EH1D2F48SEC0 Huawei S9700 switch 48-port 100BASE-X interface card (EC, SFP)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

EH1D2F48SEC0 overview

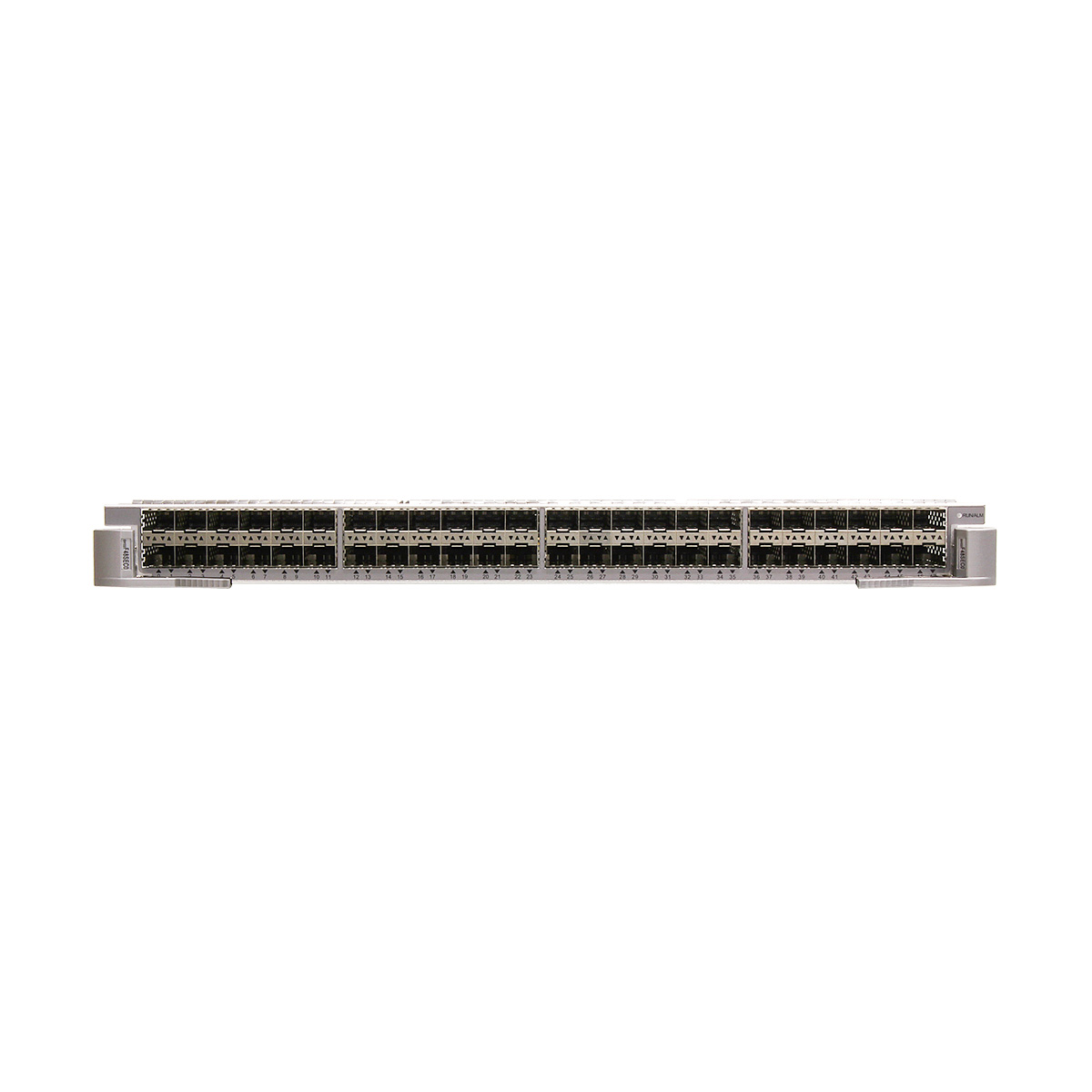

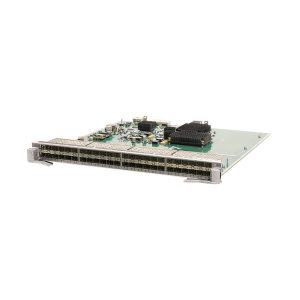

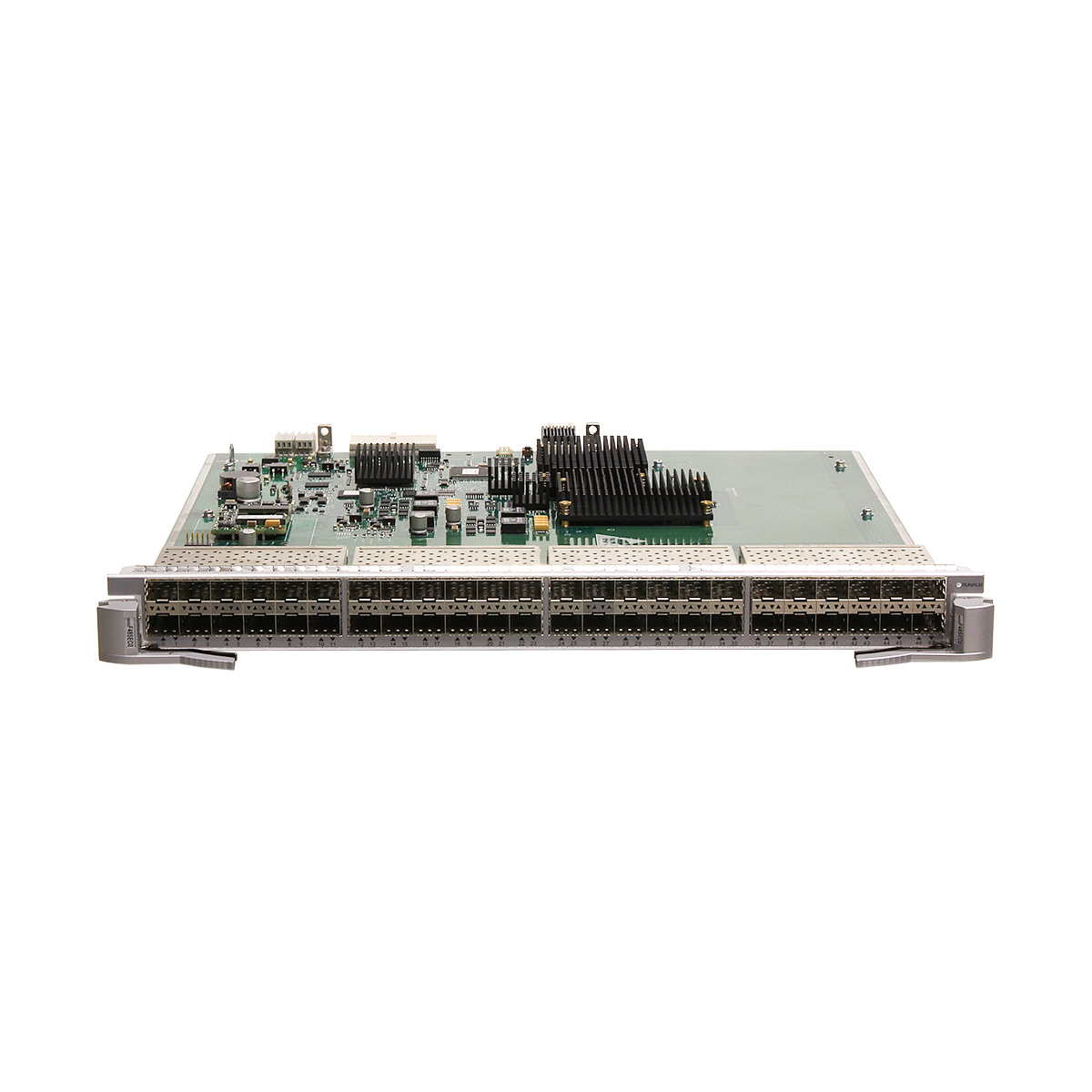

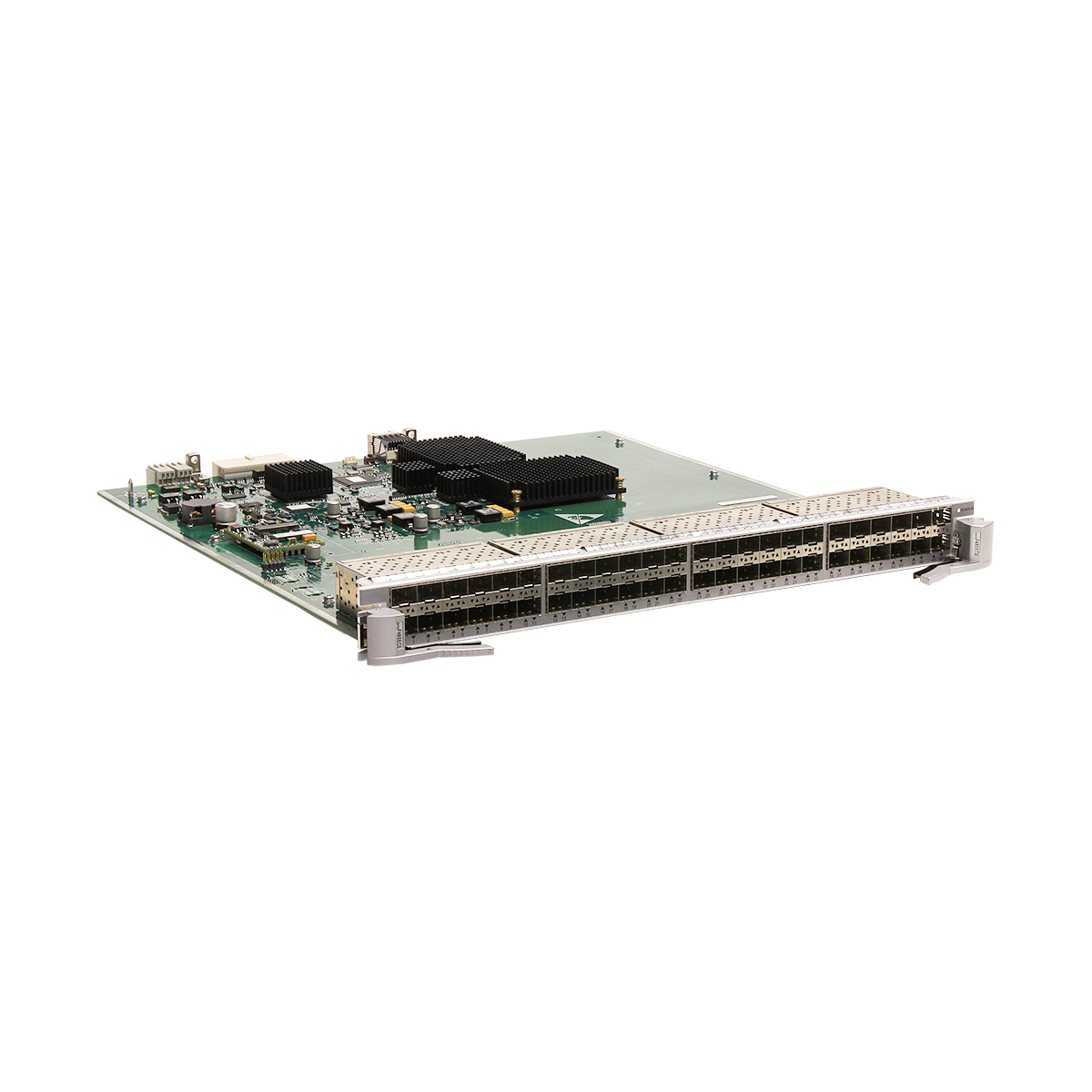

EH1D2F48SEC0 Huawei S9700 switch 48-port 100BASE-X interface card (EC, SFP)



EH1D2F48SEC0 application
Card Name S9700 Chassis
EH1D2F48SEC0 Supported in V200R001C00 to V200R013C00
EH1D2F48SEC0 function and feature
Function Description
Basic function Provides forty-eight FE optical ports for data transmission and line-rate switching.
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping The EH1D2F48SEC0 is hot swappable.
Item EH1D2F48SEC0
Apply to S9700 series
Attribute of 100M BASE-X optical port
Connector type SFP
Optical port attributes Depend on the SFP optical module used.
Standards compliance IEEE 802.3u
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Physical specification
Dimensions (mm) 394.7 mm x 426.8 mm x 35.1 mm
Weight (kg) 2.66 kg (5.86 lb)
Maximum power consumption 76 W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)

Additional information

S9700

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item EH1D2F48SEC0
Apply to S9700 series
Attribute of 100M BASE-X optical port
Connector type SFP
Optical port attributes Depend on the SFP optical module used.
Standards compliance IEEE 802.3u
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Physical specification
Dimensions (mm) 394.7 mm x 426.8 mm x 35.1 mm
Weight (kg) 2.66 kg (5.86 lb)
Maximum power consumption 76 W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)
