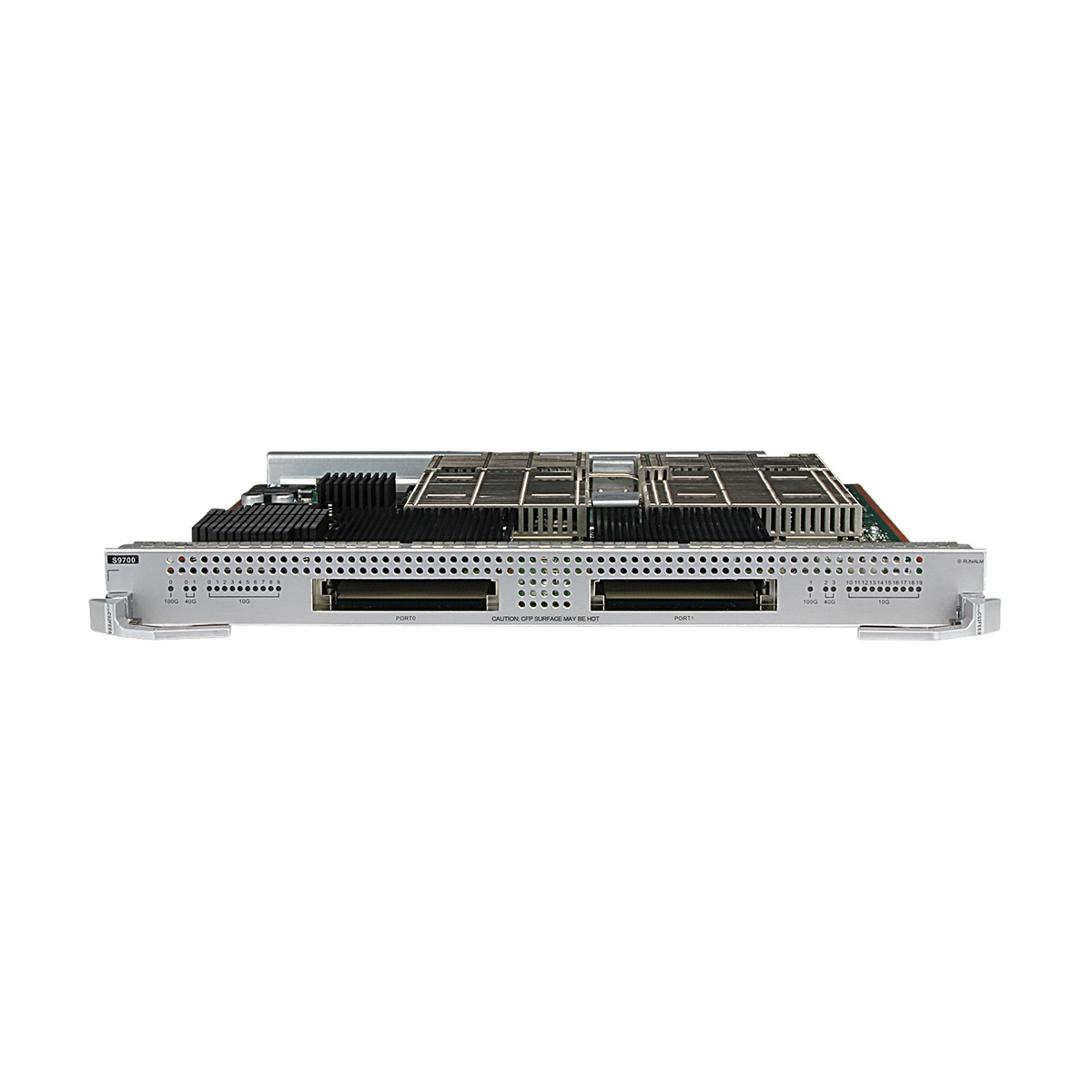

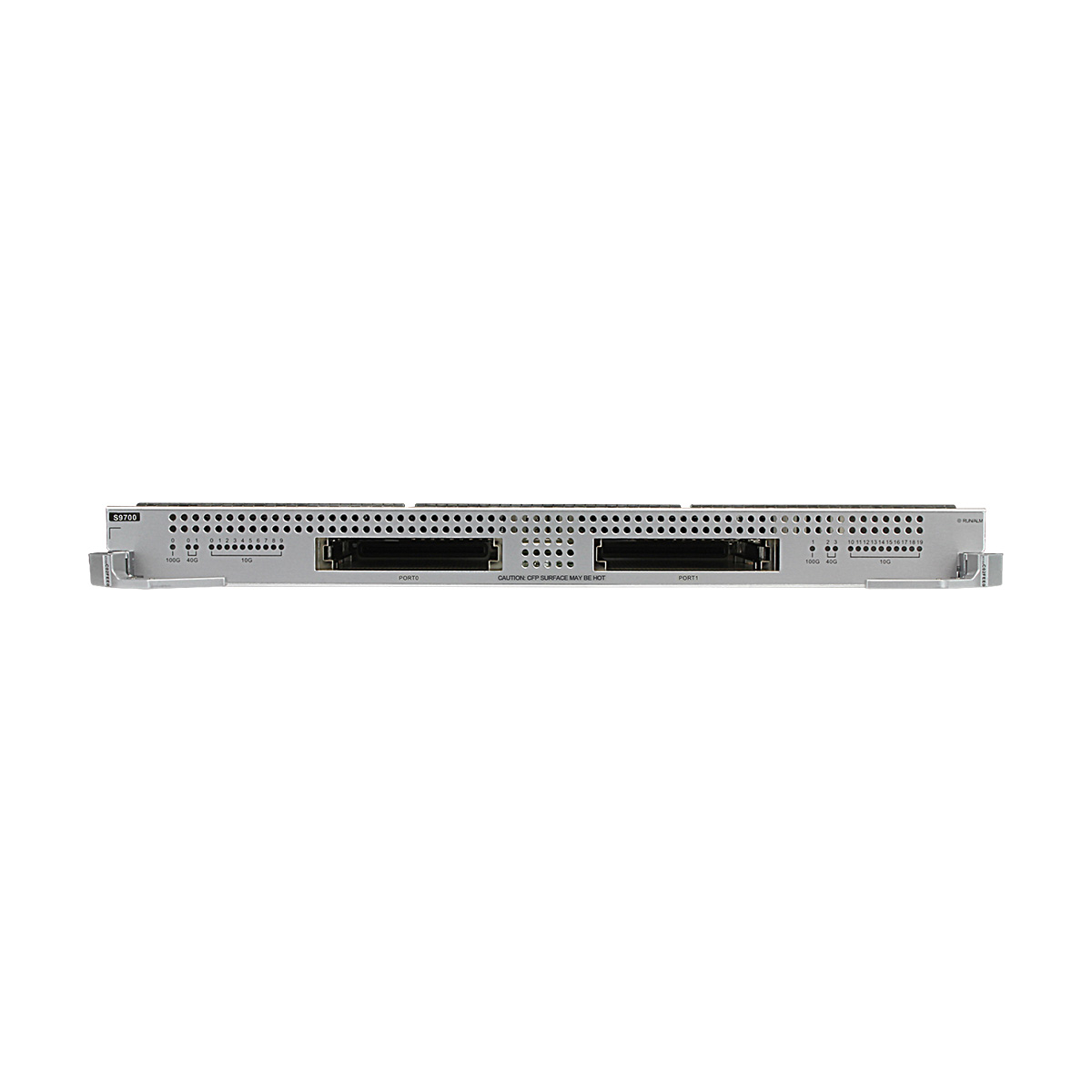

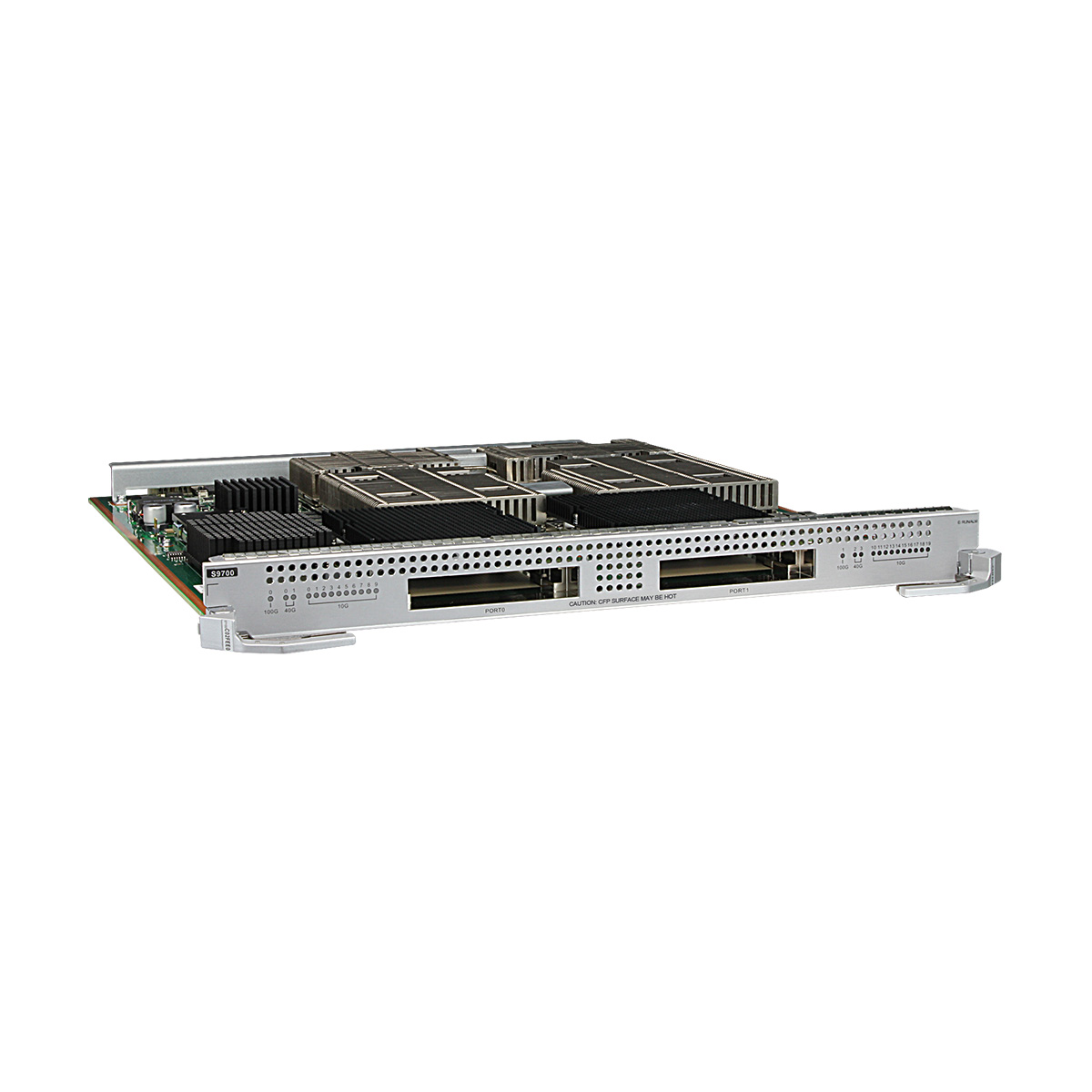

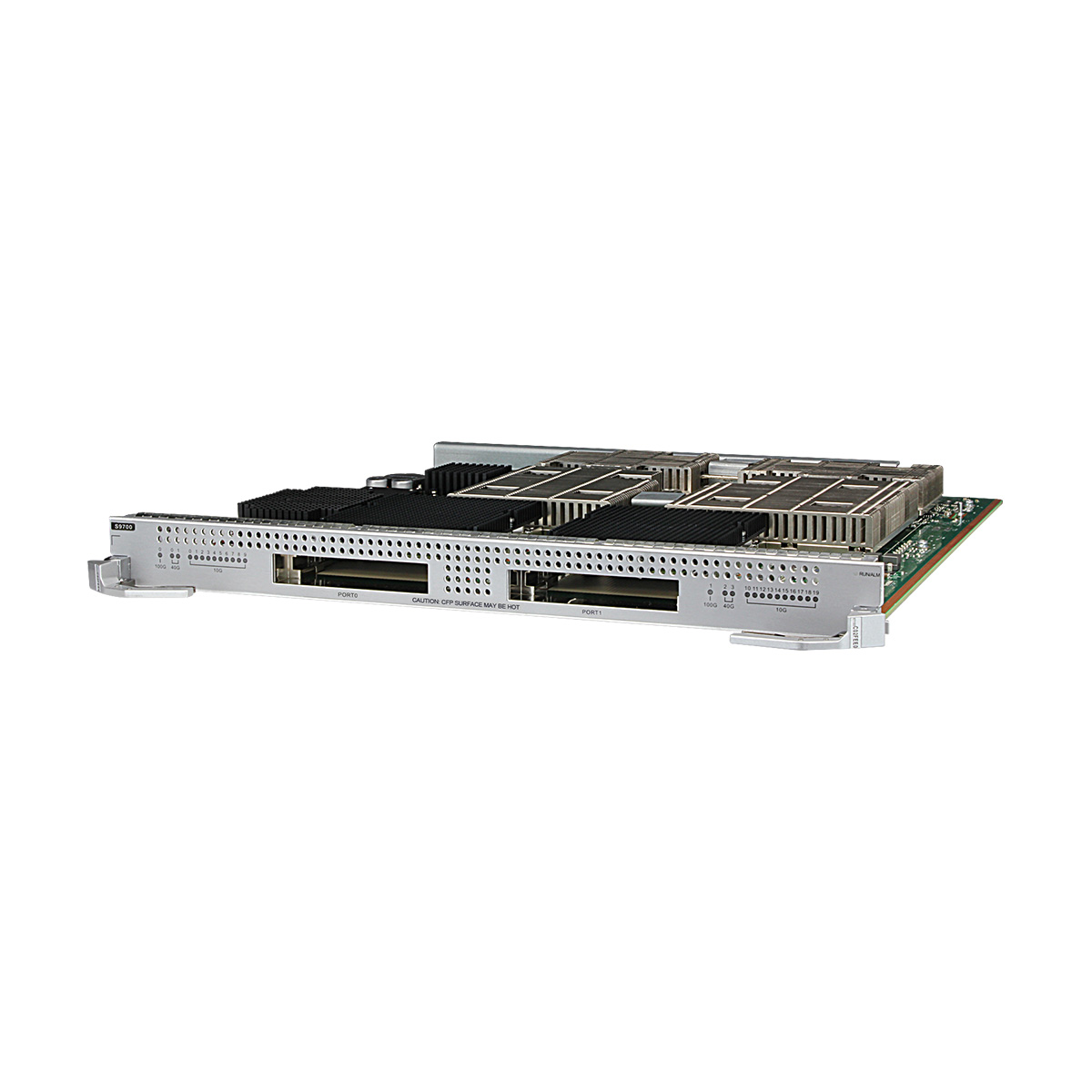

EH1D2C02FEE0 Huawei S9700 switch 2-Port 100GBASE-X Interface Card (EE, CFP)
EH1D2C02FEE0 Huawei S9700 switch 2-Port 100GBASE-X Interface Card (EE, CFP)
| Card Name | S9700 Chassis |
|---|---|
| EH1D2C02FEE0 | Supported in V200R008C00 to V200R013C00 |
| Function | Description |
|---|---|
| Basic functions | Provides two 100GE optical ports for data transmission and switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Hot swapping | Supported |
| Item | EH1D2C02FEE0 |
| Apply to S9700 series | |
| Attributes of a 100GE optical port | |
| Connector type | CFP |
| Optical port attributes | Depend on the 40GE CFP Optical Modules and 100GE CFP Optical Modules used |
| Applicable cable | CFP optical module and LC optical fiber CFP optical module and MPO optical fiber (MPO-MPO, MPO-2*MPO, or MPO-10*DLC optical fiber |
| Network protocol | IP |
| Physical specification | |
| Dimensions (mm) | 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) |
| Weight (kg) | 4.20 kg (9.26 lb) |
| Maximum power consumption | 399 W |
| Environment parameters | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 5% RH to 95% RH (noncondensing) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage relative humidity | 5% RH to 95% RH (noncondensing) |
| Brand | Huawei |
|---|---|
| S9700 | |
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | EH1D2C02FEE0 |
| Apply to S9700 series | |
| Attributes of a 100GE optical port | |
| Connector type | CFP |
| Optical port attributes | Depend on the 40GE CFP Optical Modules and 100GE CFP Optical Modules used |
| Applicable cable | CFP optical module and LC optical fiber CFP optical module and MPO optical fiber (MPO-MPO, MPO-2*MPO, or MPO-10*DLC optical fiber |
| Network protocol | IP |
| Physical specification | |
| Dimensions (mm) | 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) |
| Weight (kg) | 4.20 kg (9.26 lb) |
| Maximum power consumption | 399 W |
| Environment parameters | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 5% RH to 95% RH (noncondensing) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage relative humidity | 5% RH to 95% RH (noncondensing) |
