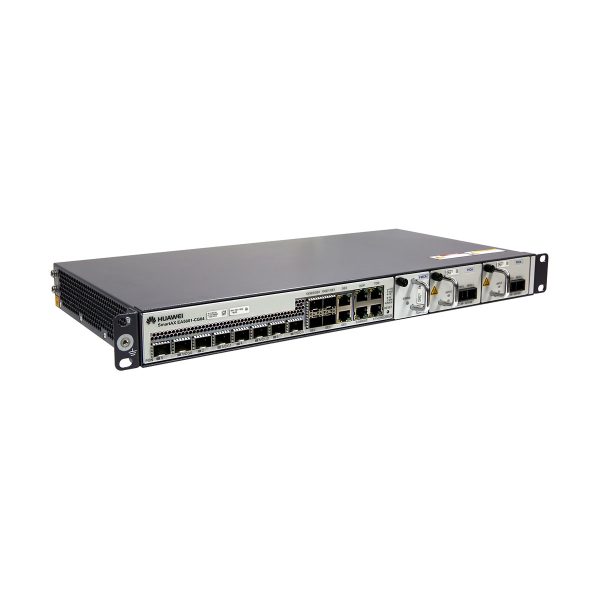

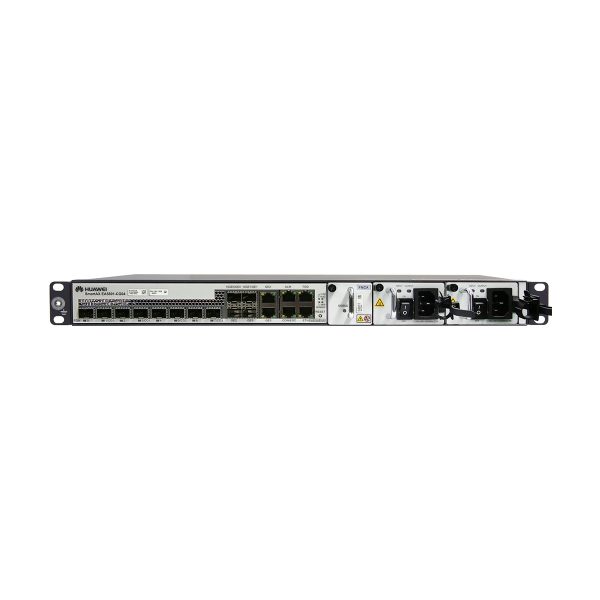

Huawei EA5801-GG04 integrated OLT with 8*GPON Ports, 2*10GE/GE Uplink Ports,  4* XG-PON&GPON combo Ports, 2*AC Power Module

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

SmartAX EA5801 is a compact and low-density OLT in the form of a box. It supports XG-PON&GPON combo access, and it provides a unified carrying platform for multiple services, including broadband, voice, video, and monitoring.

The EA5801 unit supports two types of chassis: EA5801-GP08 and EA5801-CG04. It can be installed in indoor or outdoor cabinets. Outdoors can be installed in high-temperature environments, protecting personnel and saving closet space.

The EA5801 is a box-shaped OLT that requires 1U installation space and is applicable to access point convergence on a small scale. It is suitable for lightweight deployment in enterprises. One OLT can meet the service-carrying requirements for an enterprise or campus.

The EA5801-CG04 supports the PON combo technology and can work with the built-in WDM1r optical module to support smooth evolution from GPON to XG-PON.

The EA5801-CG04 supports POL and FTTH network construction modes. It carries all services over one fiber network, simplifying network architecture and reducing OPEX.

The EA5801-CG04 can be installed in indoors or outdoors cabinets. When installed outdoors, it can be easily deployed in high temperatures, conserving man power and cabinet space.

Item EA5801-CG04
10GE/GE upstream ports 2
Number of service ports 4 XG-PON&GPON combo
GE upstream ports 2 optical/electrical combo ports
System Layer 2 packet forwarding rate 13 Mpps
MAC addresses 32768
Access ONT 1024
IPv4 routing table 8192
IPv6 routing table 4096
ARP table 16384
Dimensions (H x W x D) Without mounting ears: 43.6 mm x 442 mm x 222.3 mm
With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm
With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm
Power supply mode DC power supply (dual for backup)
AC power supply (dual for backup)
Working voltage range DC power supply: -38.4 V to -72 V
AC power supply: 100 V to 240 V
Rated voltage DC power supply: -48 V/-60 V
AC power supply: 110 V/220 V
Maximum input current DC power supply: 6 A
AC power supply: 2.5 A
Ambient temperature -40°C to +65°C* (normal operation)  Minimum startup temperature: -25°C
+65°C indicates the temperature of the air intake vent of the service subrack.
Ambient humidity 5% RH to 95% RH
Atmospheric pressure 70 kPa to 106 kPa
Altitude < 4000 m
The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.


Additional information

Weight 8 kg
Dimensions 4.36 × 53.5 × 22.23 cm
Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item EA5801-CG04
10GE/GE upstream ports 2
Number of service ports 4 XG-PON&GPON combo
GE upstream ports 2 optical/electrical combo ports
System Layer 2 packet forwarding rate 13 Mpps
MAC addresses 32768
Access ONT 1024
IPv4 routing table 8192
IPv6 routing table 4096
ARP table 16384
Dimensions (H x W x D) Without mounting ears: 43.6 mm x 442 mm x 222.3 mm
With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm
With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm
Power supply mode DC power supply (dual for backup)
AC power supply (dual for backup)
Working voltage range DC power supply: -38.4 V to -72 V
AC power supply: 100 V to 240 V
Rated voltage DC power supply: -48 V/-60 V
AC power supply: 110 V/220 V
Maximum input current DC power supply: 6 A
AC power supply: 2.5 A
Ambient temperature -40°C to +65°C* (normal operation)  Minimum startup temperature: -25°C
+65°C indicates the temperature of the air intake vent of the service subrack.
Ambient humidity 5% RH to 95% RH
Atmospheric pressure 70 kPa to 106 kPa
Altitude < 4000 m
The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
