Description
CR8MM82FBXC1 overview
Huawei NetEngine 8000 M8 fan box, 03033GGC
Mapping products and versions
| Product | Slot | Minimum Version Requirement |
|---|---|---|
| NetEngine 8000 M8 | slot 13 | V800R011C10 |
Basic information about the CR8MM82FBXC1
| Item | Details |
|---|---|
| Description | NetEngine 8000 M8 Fan Box |
| Part number | 03033GGC |
| Model | CR8MM82FBXC1 |
| Remarks | To ensure that the system provides better heat dissipation performance during main control board startup, the fan speed increases to at least 50% of the full speed as long as one main control board restarts. The system will automatically decrease the fan speed after main control board registration is completed. |

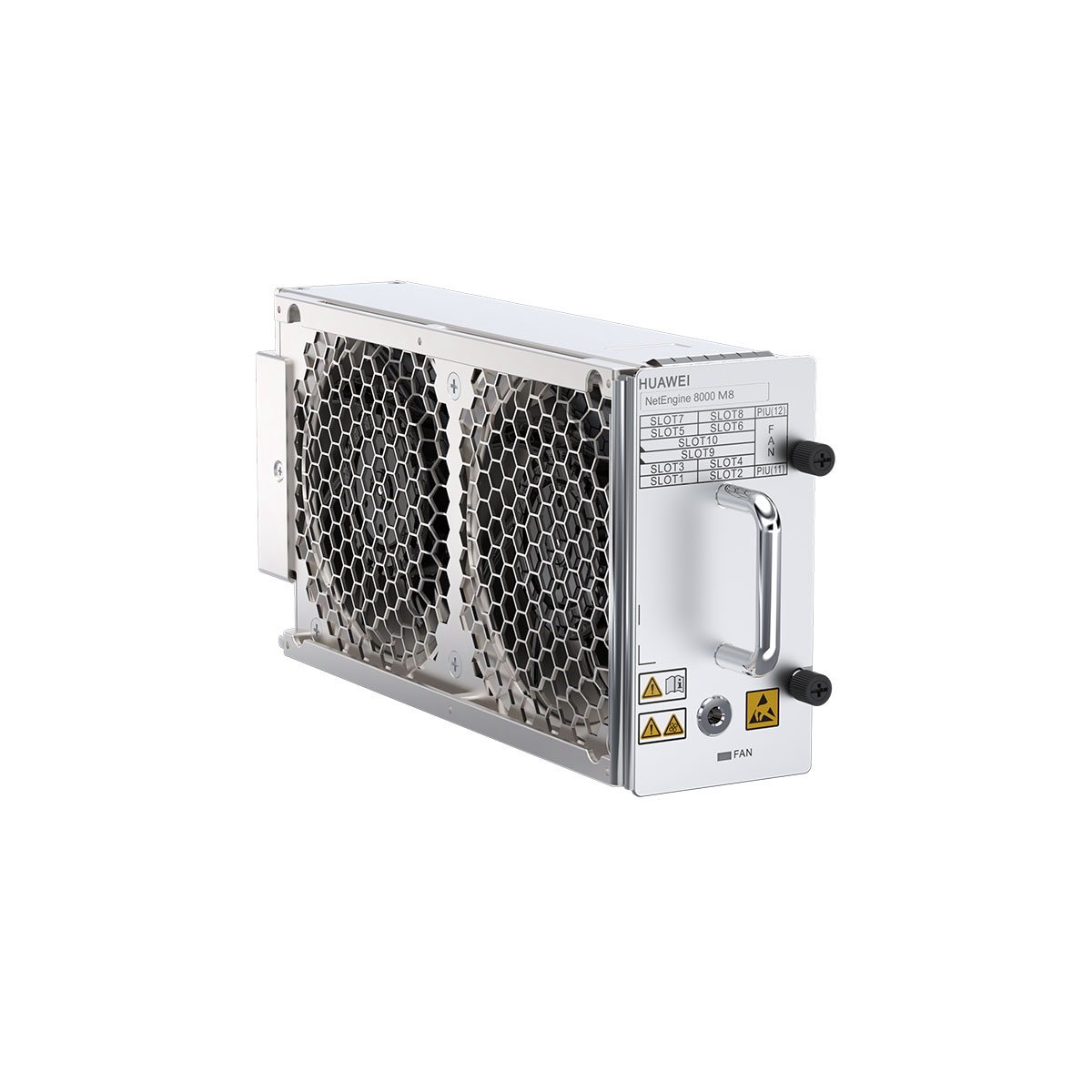

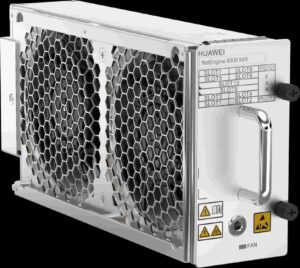

Appearance of the CR8MM82FBXC1
Panel of the CR8MM82FBXC1
| 1.ESD jack | 2.Status indicator |
Indicators on the CR8MM82FBXC1
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| FAN | Status indicator | Green | Steady on | The fan module is working normally. |
| Red | Steady on | The fan module fails. | ||
| Orange | Steady on | The fan module is not registered. | ||
| – | Off | The fan module is not powered on or the fan hardware is faulty. |
Ports on the CR8MM82FBXC1
| Port | Description |
|---|---|
| ESD | The ESD wrist strap should be connected to this jack for proper grounding of the human body. |
