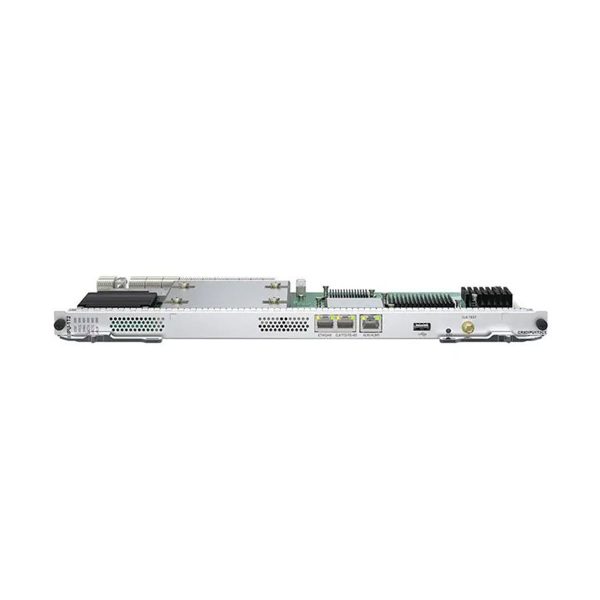

NetEngine 8000 M8 IPU CR8DIPU1T2C1(Integrated Network Processing Unit (IPU-1T2))

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Basic information about the CR8DIPU1T2C1

Item Details
Description Integrated Network Processing Unit (IPU-1T2)
Card type IPU
Part Number 03033FXD
Model CR8DIPU1T2C1
Silkscreen IPU-1T2



Mappings between CR8DIPU1T2C1 and product models

Product Sub-Series
Product Model
First Supported Version
Limitations
IDs of available slots
NetEngine 8000 M8 CR8BM8BKPDC1 NetEngine 8000 M V800R011C10 – 9,10
NetEngine 8000 M8 CR8BM8BKPAC1 NetEngine 8000 M V800R012C00 – 9,10
Item CR8DIPU1T2C1
Basic function Data forwarding: The IPU is the core of service processing in the entire system, and is connected to all subcards through data channels. Control and management: Through the management channels between IPUs and the subcards, the IPUs can manage subcards and transmit routing protocol data. The line rate capability is 2.4T bit/s@310Bytes(Bidirectional).
Reliability and availability Supports the hot swappable function. Supports the board-level 1:1 backup function.
Restrictions and remarks This board does not support value-added services and is not applicable to outdoor scenarios. In addition, this board cannot be used together with other IPUs.
Breakout supported No
Interface rate auto-sensing supported No
Dimensions without packaging (H x W x D) [mm(in.)] 22.4 mm x 388.4 mm x 209.3 mm (0.88 in. x 15.29 in. x 8.24 in.)
Weight without packaging [kg(lb)] 2.3 kg (5.07 lb)
Typical power consumption [W] 144.2 W
Typical heat dissipation [BTU/hour] 467.94 BTU/hour
Long-term operating temperature [°C(°F)] -40°C to 65°C(-40°F to 149°F), start:≥-20°C(-4°F)
CPU 8-core 1.5 GHz
SDRAM 8GB
Flash memory 64MB
Storage 4GB NandFlash

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item CR8DIPU1T2C1
Basic function Data forwarding: The IPU is the core of service processing in the entire system, and is connected to all subcards through data channels. Control and management: Through the management channels between IPUs and the subcards, the IPUs can manage subcards and transmit routing protocol data. The line rate capability is 2.4T bit/s@310Bytes(Bidirectional).
Reliability and availability Supports the hot swappable function. Supports the board-level 1:1 backup function.
Restrictions and remarks This board does not support value-added services and is not applicable to outdoor scenarios. In addition, this board cannot be used together with other IPUs.
Breakout supported No
Interface rate auto-sensing supported No
Dimensions without packaging (H x W x D) [mm(in.)] 22.4 mm x 388.4 mm x 209.3 mm (0.88 in. x 15.29 in. x 8.24 in.)
Weight without packaging [kg(lb)] 2.3 kg (5.07 lb)
Typical power consumption [W] 144.2 W
Typical heat dissipation [BTU/hour] 467.94 BTU/hour
Long-term operating temperature [°C(°F)] -40°C to 65°C(-40°F to 149°F), start:≥-20°C(-4°F)
CPU 8-core 1.5 GHz
SDRAM 8GB
Flash memory 64MB
Storage 4GB NandFlash
