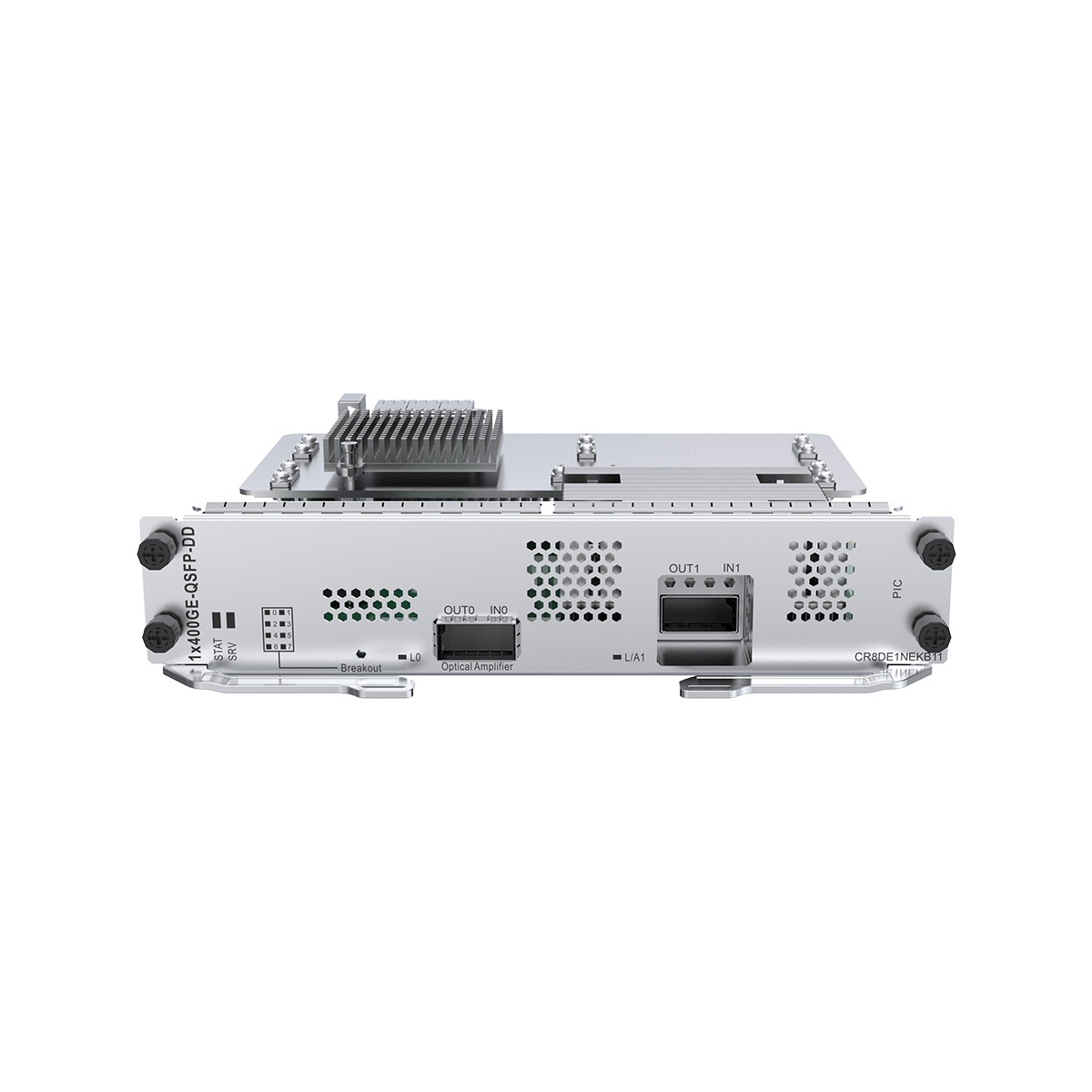

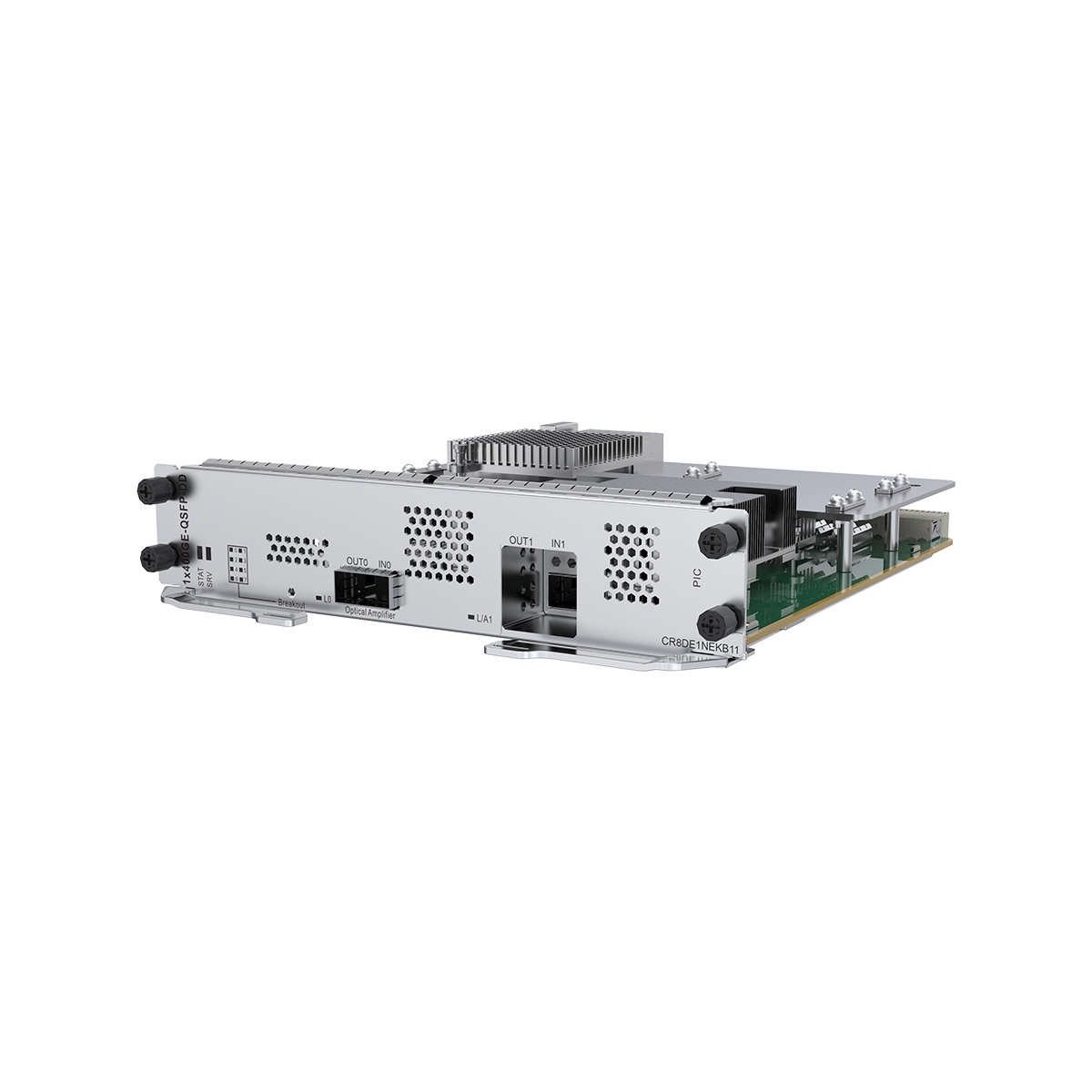

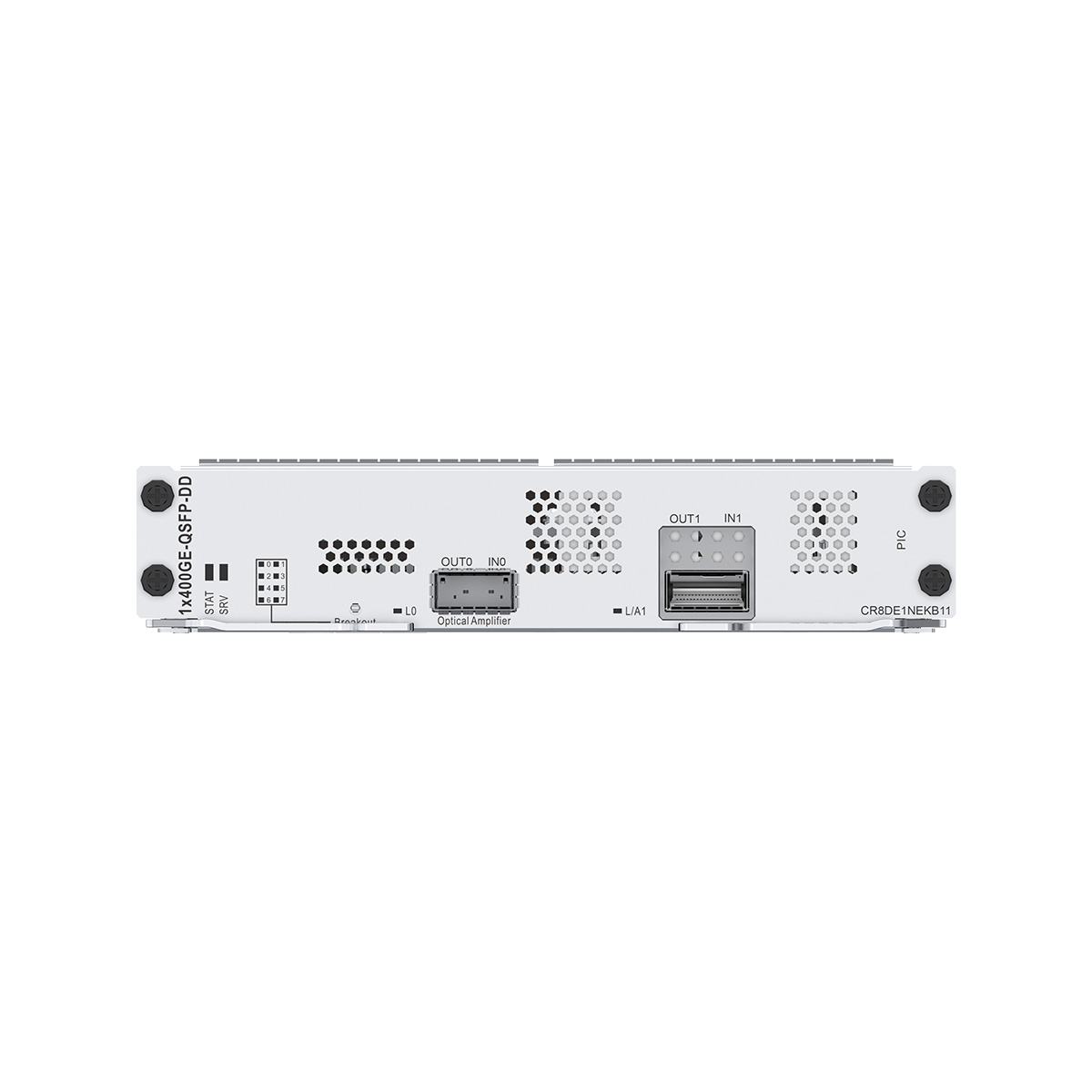

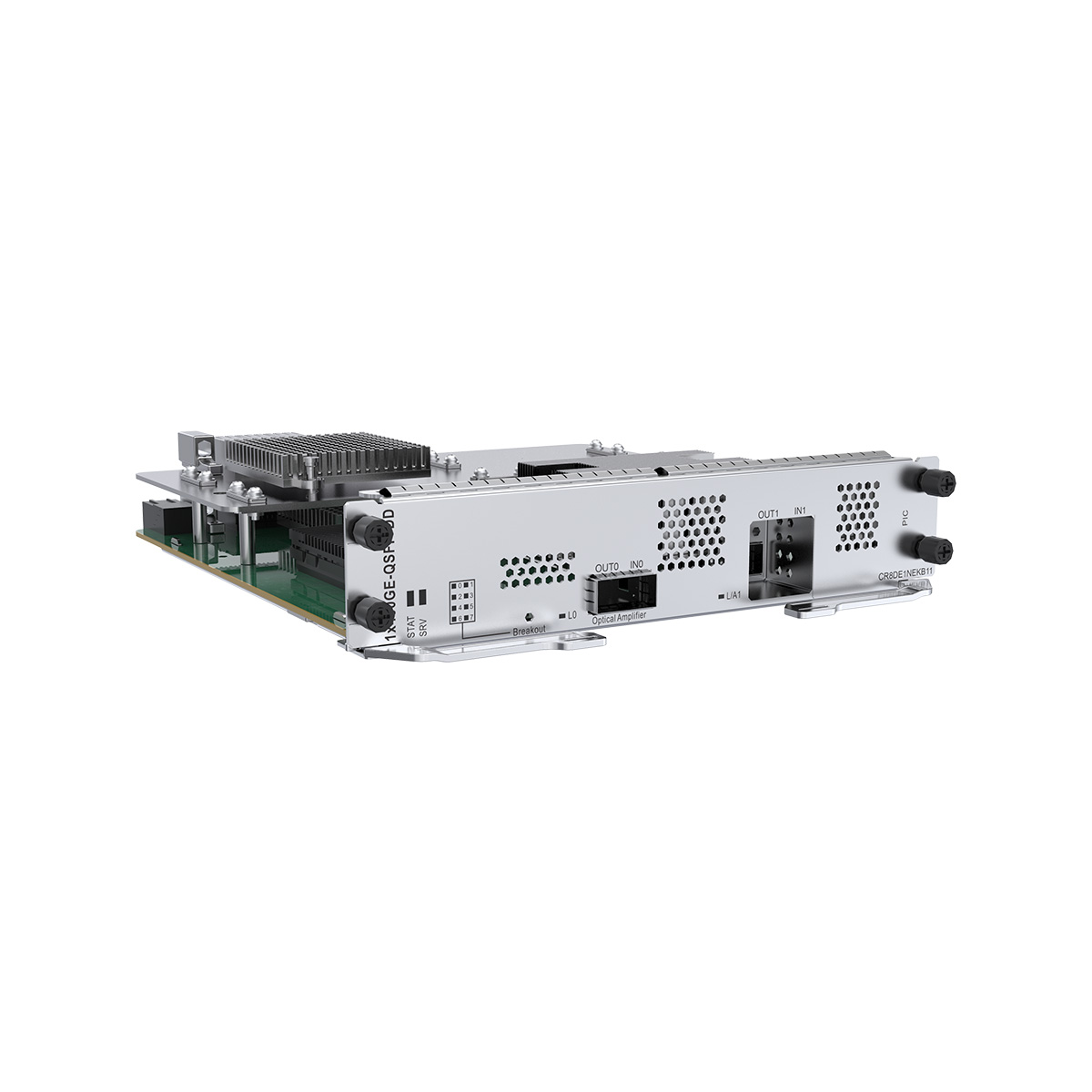

NE8000 CR8DE1NEKB11 with 1-Port 400GBase-QSFP-DD Physical Interface Card CM(Enable 1*100G)(PIC)

Service Commitment

Customer Satisfacition

Description

CR8DE1NEKB11 Overview

Item	Details
Description	1-Port 400GBase-QSFP-DD Physical Interface Card CM(Enable 1*100G)(PIC)
Part Number	03034EDT
Model	CR8DE1NEKB11
Card type	Interface Card
Silkscreen	1x400GE-QSFP-DD

Mappings between CR8DE1NEKB11 and product models

Chassis	Product Model	Supported Versions	Limitations
NetEngine 8000 M14 Integrated AC Chassis Components (Including 4*AC Power,Fan Box)	CR8B0BKPACC2	V800R021C00SPC100 and later versions	–
NetEngine 8000E M14 Integrated AC Chassis Components (Including 2*AC Power,Fan Box)	CR8B0BKPACC3	V800R024C10SPC300 and later versions	–
NetEngine 8000E M14 Integrated AC Chassis Components (Including 4*AC Power,Fan Box)	CR8B0BKPACC4	V800R023C00SPC500 and later versions	–
NetEngine 8000E M14 Integrated AC Chassis Components(Including 2*AC Power,Fan Box)	CR8B0BKPACC5	V800R023C10SPC500 and later versions	–
NetEngine 8000 M14 Integrated AC Chassis Components(Including 2*AC Power,Fan Box)	CR8B0BKPACC6	V800R023C10SPC500 and later versions	–
NetEngine 8000E M14 Integrated AC Chassis Components(Including 2*AC Power,Fan Box)	CR8B0BKPACC7	V800R023C10SPC500 and later versions	–
NetEngine 8000 M14 Integrated AC Chassis Components(Including 2*AC Power,Fan Box)	CR8B0BKPACM1	V800R023C10SPC500 and later versions	–
NetEngine 8000 M14 Integrated DC Chassis Components (Including 2*DC Power,Fan Box)	CR8B0BKPDCC1	V800R021C00SPC100 and later versions	–
NetEngine 8000E M14 Integrated DC Chassis Components (Including 2*DC Power,Fan Box)	CR8B0BKPDCC2	V800R023C00SPC500 and later versions	–
NetEngine 8000E M14 Integrated DC Chassis Components(Including 2*DC Power,Fan Box)	CR8B0BKPDCC4	V800R023C10SPC500 and later versions	–
NetEngine 8000 M14 Integrated DC Chassis Components(Including 2*DC Power,Fan Box)	CR8B0BKPDCM1	V800R023C10SPC500 and later versions	–
NetEngine 8000 M4 Integrated AC Chassis Components(Including AC Power,Fan Box)	CR8PM4BASAC2	V800R022C00SPC600 and later versions	–
NetEngine 8000 M4 Integrated AC Chassis Components(Including AC Power,Fan Box)	CR8PM4BASAC6	V800R022C10SPC500 and later versions	–
NetEngine 8000E M4 Integrated AC Chassis Components(Including AC Power,Fan Box)	CR8PM4BASACC	V800R024C10SPC300 and later versions	–
NetEngine 8000 M4 Integrated DC Chassis Components(Including DC Power,Fan Box)	CR8PM4BASDC2	V800R022C00SPC600 and later versions	–
NetEngine 8000 M4 Integrated DC Chassis Components(Including DC Power,Fan Box)	CR8PM4BASDC6	V800R022C10SPC500 and later versions	–
NetEngine 8000E M4 Integrated DC Chassis Components(Including DC Power,Fan Box)	CR8PM4BASDCC	V800R024C10SPC300 and later versions	–

Item	CR8DE1NEKB11
Basic function	Occupies two flexible interface card slots. The line side of the board provides one 400GE QSFP-DD port and one QSFP28 OA port. 1. The default rate of a QSFP-DD port is 100 Gbps. The initial 100 Gbps capability can be upgraded to 200 Gbps/400 Gbps using the 50G RTU. 2. The QSFP28 OA port supports the OA module. Supports FlexE.
Reliability and availability	Hot swappable.
Restrictions and remarks	1. By default, a QSFP-DD port supports 400G QSFP-DD optical modules. To enable a QSFP-DD port to support 100G QSFP28 optical modules instead, run the port split command in the system view. 2. When the board works with a 400G ZR+ optical module, the short-term operating temperature supported by the optical module ranges from –5°C to +50°C.
Breakout supported	No
Interface rate auto-sensing supported	No
FlexE supported	Yes Physical ports can be bundled into a FlexE group across straight-through cards. 1. This interface card supports FlexE when it is installed on the NetEngine 8000 M4. The specifications are as follows: Physical port 1 can only be added to a FlexE group separately. port-id ranges from 0 to 47 and from 1000 to 3000. Such a FlexE group supports a maximum of 48 FlexE clients. 2. This interface card supports FlexE when it is installed on the NetEngine 8000E M14, NetEngine 8000 M14 and works with IPUs such as the TNRD0IPU2TC1, TNRD0IPU2TC2, TNRD0IPU2T90, CR8D0IPU2TM3, CR8D0IPU2TC1, CR8D0IPU2TC2, CR8D0IPU2TC3, CR8D0IPU2TC4, CR8D0IPU2TC5, CR8D0IPU2TD2, CR8D0IPU2TM1, CR8D0IPU2TM2, CR5D0IPU2TC1, CR5D0IPU2TC3, CR5D0IPU2TC5, and CR5D0IPU2T91. The specifications are as follows: Physical port 1 can only be added to a FlexE group separately. port-id ranges from 0 to 47 and from 1000 to 3000. Such a FlexE group supports a maximum of 48 FlexE clients. 3. This interface card supports FlexE when it is installed on the NetEngine 8000E M14, NetEngine 8000 M14 and works with IPUs such as the TNRD0IPU3T91, TNRDUIPU2T91, TNRD0IPU3T92, TNRDUIPU2T92, CR8D0IPU3TM5, CR8DUIPU2TM5, CR8D0IPU3TM1, CR8D0IPU3TM3, CR8DUIPU2TM3, CR8DUIPU2TM1, CR8D0IPU3TM2, CR8DUIPU2TM2, CR5D0IPU3TM1, CR5DUIPU2TM1, CR5D0IPU3TM2, and CR5DUIPU2TM2. The specifications are as follows: Versions earlier than V800R024C00: Physical port 1 can only be added to a FlexE group separately. port-id ranges from 1000 to 3000. Such a FlexE group supports a maximum of 80 FlexE clients. V800R024C00 and later: Physical port 1 can only be added to a FlexE group separately. port-id ranges from 1000 to 3000. The maximum number of FlexE clients supported by a virtual card (numbered 76, 77, 78, or 79) plus the number of interfaces split from physical ports in 1-to-N mode equal 180. The maximum number of FlexE clients supported by virtual cards 76 and 77 plus the number of interfaces split from physical ports in 1-to-N mode equal 347. The maximum number of FlexE clients supported by virtual cards 78 and 79 plus the number of interfaces split from physical ports in 1-to-N mode equal 347. A maximum of 512 FlexE clients can be created on all virtual cards of a device.
Dimensions without packaging (H x W x D) [mm(in.)]	40.14 mm x 193.8 mm x 209.3 mm (1.58 in. x 7.63 in. x 8.24 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	115 mm x 317.5 mm x 305 mm (4.53 in. x 12.50 in. x 12.01 in.)
Weight without packaging [kg(lb)]	1.1 kg (2.43 lb)
Weight with packaging [kg(lb)]	1.7 kg (3.75 lb)
Typical power consumption [W]	69.8 W
Typical heat dissipation [BTU/hour]	226.34 BTU/hour
Long-term operating temperature [°C(°F)]	–5°C to +55°C (23°F to 131°F)

Item	CR8DE1NEKB11
Basic function	Occupies two flexible interface card slots. The line side of the board provides one 400GE QSFP-DD port and one QSFP28 OA port. 1. The default rate of a QSFP-DD port is 100 Gbps. The initial 100 Gbps capability can be upgraded to 200 Gbps/400 Gbps using the 50G RTU. 2. The QSFP28 OA port supports the OA module. Supports FlexE.
Reliability and availability	Hot swappable.
Restrictions and remarks	1. By default, a QSFP-DD port supports 400G QSFP-DD optical modules. To enable a QSFP-DD port to support 100G QSFP28 optical modules instead, run the port split command in the system view. 2. When the board works with a 400G ZR+ optical module, the short-term operating temperature supported by the optical module ranges from –5°C to +50°C.
Breakout supported	No
Interface rate auto-sensing supported	No
FlexE supported	Yes Physical ports can be bundled into a FlexE group across straight-through cards. 1. This interface card supports FlexE when it is installed on the NetEngine 8000 M4. The specifications are as follows: Physical port 1 can only be added to a FlexE group separately. port-id ranges from 0 to 47 and from 1000 to 3000. Such a FlexE group supports a maximum of 48 FlexE clients. 2. This interface card supports FlexE when it is installed on the NetEngine 8000E M14, NetEngine 8000 M14 and works with IPUs such as the TNRD0IPU2TC1, TNRD0IPU2TC2, TNRD0IPU2T90, CR8D0IPU2TM3, CR8D0IPU2TC1, CR8D0IPU2TC2, CR8D0IPU2TC3, CR8D0IPU2TC4, CR8D0IPU2TC5, CR8D0IPU2TD2, CR8D0IPU2TM1, CR8D0IPU2TM2, CR5D0IPU2TC1, CR5D0IPU2TC3, CR5D0IPU2TC5, and CR5D0IPU2T91. The specifications are as follows: Physical port 1 can only be added to a FlexE group separately. port-id ranges from 0 to 47 and from 1000 to 3000. Such a FlexE group supports a maximum of 48 FlexE clients. 3. This interface card supports FlexE when it is installed on the NetEngine 8000E M14, NetEngine 8000 M14 and works with IPUs such as the TNRD0IPU3T91, TNRDUIPU2T91, TNRD0IPU3T92, TNRDUIPU2T92, CR8D0IPU3TM5, CR8DUIPU2TM5, CR8D0IPU3TM1, CR8D0IPU3TM3, CR8DUIPU2TM3, CR8DUIPU2TM1, CR8D0IPU3TM2, CR8DUIPU2TM2, CR5D0IPU3TM1, CR5DUIPU2TM1, CR5D0IPU3TM2, and CR5DUIPU2TM2. The specifications are as follows: Versions earlier than V800R024C00: Physical port 1 can only be added to a FlexE group separately. port-id ranges from 1000 to 3000. Such a FlexE group supports a maximum of 80 FlexE clients. V800R024C00 and later: Physical port 1 can only be added to a FlexE group separately. port-id ranges from 1000 to 3000. The maximum number of FlexE clients supported by a virtual card (numbered 76, 77, 78, or 79) plus the number of interfaces split from physical ports in 1-to-N mode equal 180. The maximum number of FlexE clients supported by virtual cards 76 and 77 plus the number of interfaces split from physical ports in 1-to-N mode equal 347. The maximum number of FlexE clients supported by virtual cards 78 and 79 plus the number of interfaces split from physical ports in 1-to-N mode equal 347. A maximum of 512 FlexE clients can be created on all virtual cards of a device.
Dimensions without packaging (H x W x D) [mm(in.)]	40.14 mm x 193.8 mm x 209.3 mm (1.58 in. x 7.63 in. x 8.24 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	115 mm x 317.5 mm x 305 mm (4.53 in. x 12.50 in. x 12.01 in.)
Weight without packaging [kg(lb)]	1.1 kg (2.43 lb)
Weight with packaging [kg(lb)]	1.7 kg (3.75 lb)
Typical power consumption [W]	69.8 W
Typical heat dissipation [BTU/hour]	226.34 BTU/hour
Long-term operating temperature [°C(°F)]	–5°C to +55°C (23°F to 131°F)
