Description

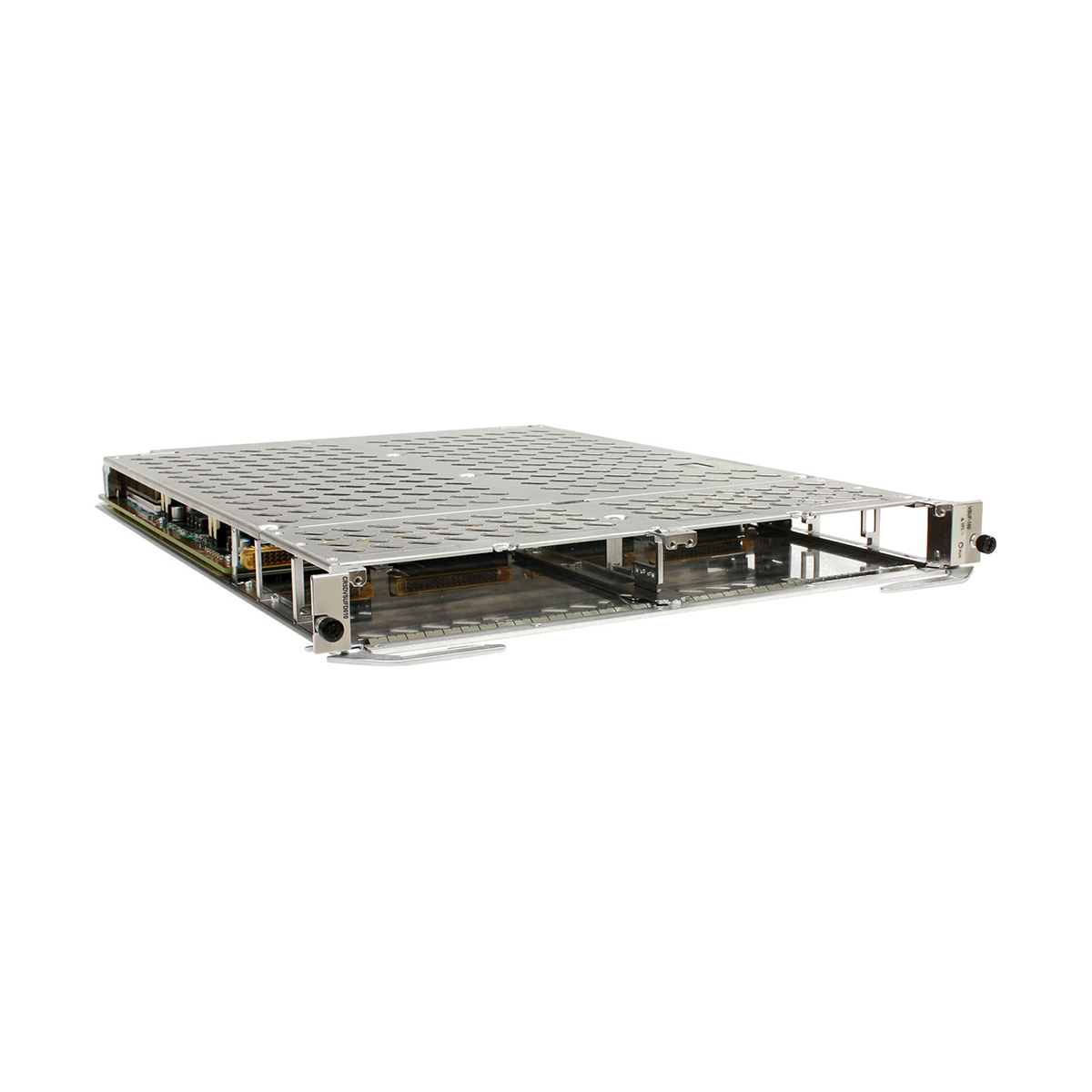

CR5DVSUFD010 Subcard:
Versatile Service Flexible Card(SP160)
Versatile Service Flexible Card(SP80)
| Item | CR5DVSUFD010 |
|---|---|
|
Line-Rate capability |
Supports a maximum of 160 Gbit/s line-rate service processing capability and defaults to 40 Gbit/s. |
|
Slot information |
The board provides a maximum of two half-width slots and each slot can hold one universal service card. |
|
Reliability and availability |
Hot swappable. |
|
Restrictions and remarks |
To facilitate heat dissipation, on the X8, installing a VSUF-160 in slot 3, 4, 5, or 6 is recommended; on the X16, installing a VSUF-160 in slot 3, 4, 5, 10, 11, 12, 13, or 14 is recommended. |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 312.0 W |
| Weight | 7.5 kg (16.54 lb) |
