Description

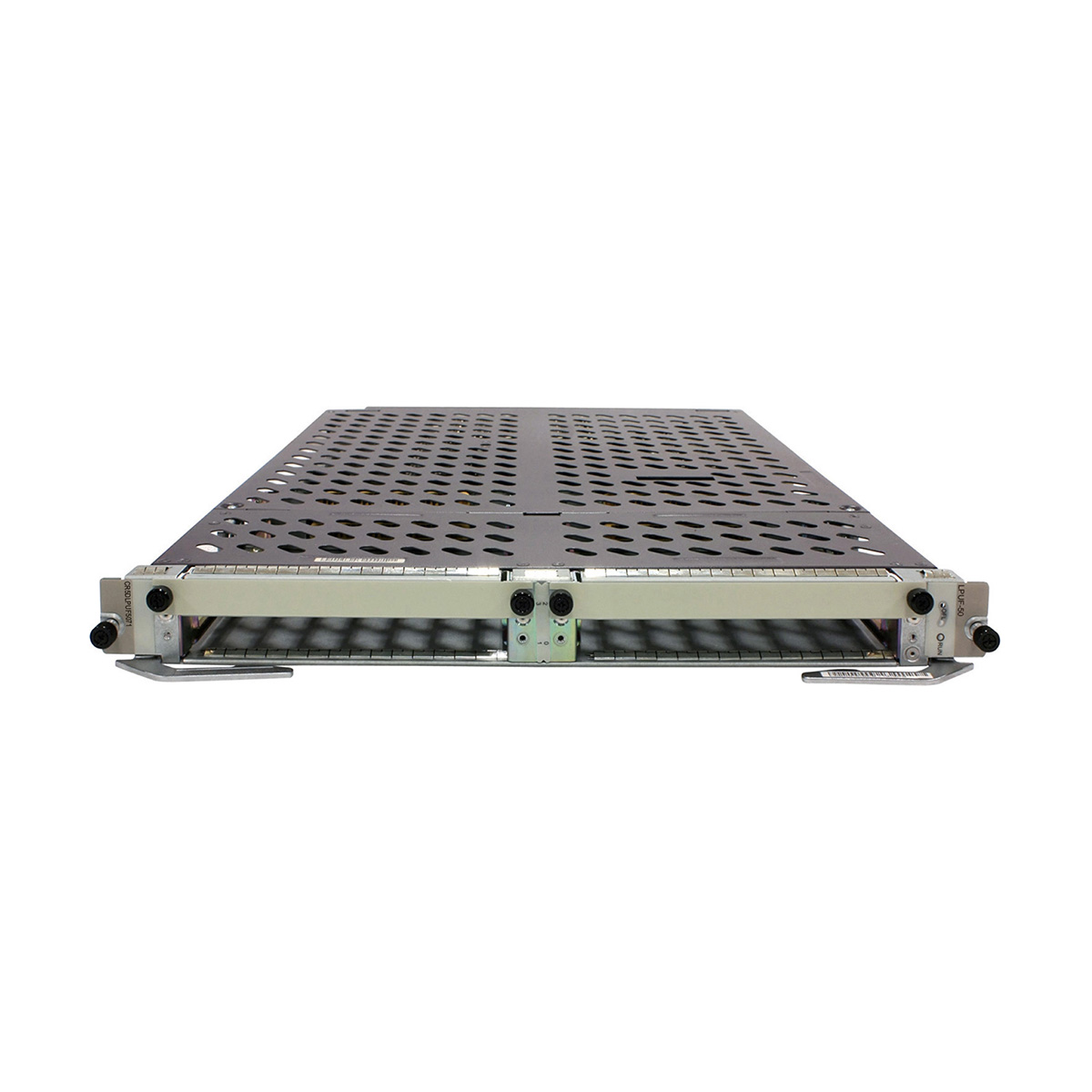

CR5DLPUF5071 subcard:
8-Port OC-3c/STM-1c POS-SFP Flexible Card
4-Port OC-3c/STM-1c POS-SFP Flexible Card
2-Port OC-3c/STM-1c POS-SFP Flexible Card
8-Port 100/1000Base-X-SFP Flexible Card A(P10-A,Supporting 1588v2)
2-Port 10GBase WAN/LAN-SFP+ Flexible Card A
4-Port Channelized STM-1 POS-SFP Flexible Card(P50)
8-Port Channelized STM-1 POS-SFP Flexible Card(P50)
2-Port Channelized STM-1c POS-SFP Flexible Card(P50)
24-Port Channelized E1/T1-DB100 Flexible Card
8-Port OC-12c/STM-4c POS-SFP Flexible Card
1-Port OC-192c/STM-64c POS-XFP Flexible Card(Occupy two slots)
2-Port OC-48c/STM-16c POS-SFP Flexible Card
4-Port OC-48c/STM-16c POS-SFP Flexible Card
8-Channel CWDM Multiplexing & Demultiplexing(1471/1491/1511/1531/1551/1571/1591/1611nm) Flexible Card(P50)
2-Port Channelized OC-3c/STM-1c POS-SFP Flexible Card
4-Port OC-12c/STM-4c POS-SFP Flexible Card
| Item | CR5DLPUF5071 |
| Line-Rate capability | Supports 50G line-rate processing. |
| Slot information | The board provides a maximum of four half-width and half-high slots and each slot can hold one FPIC card |
| Reliability and availability | Hot swappable. |
| Working mode | Full-duplex |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 171.0 W |
| Weight | 8.2 kg (18.08 lb) |
