Description

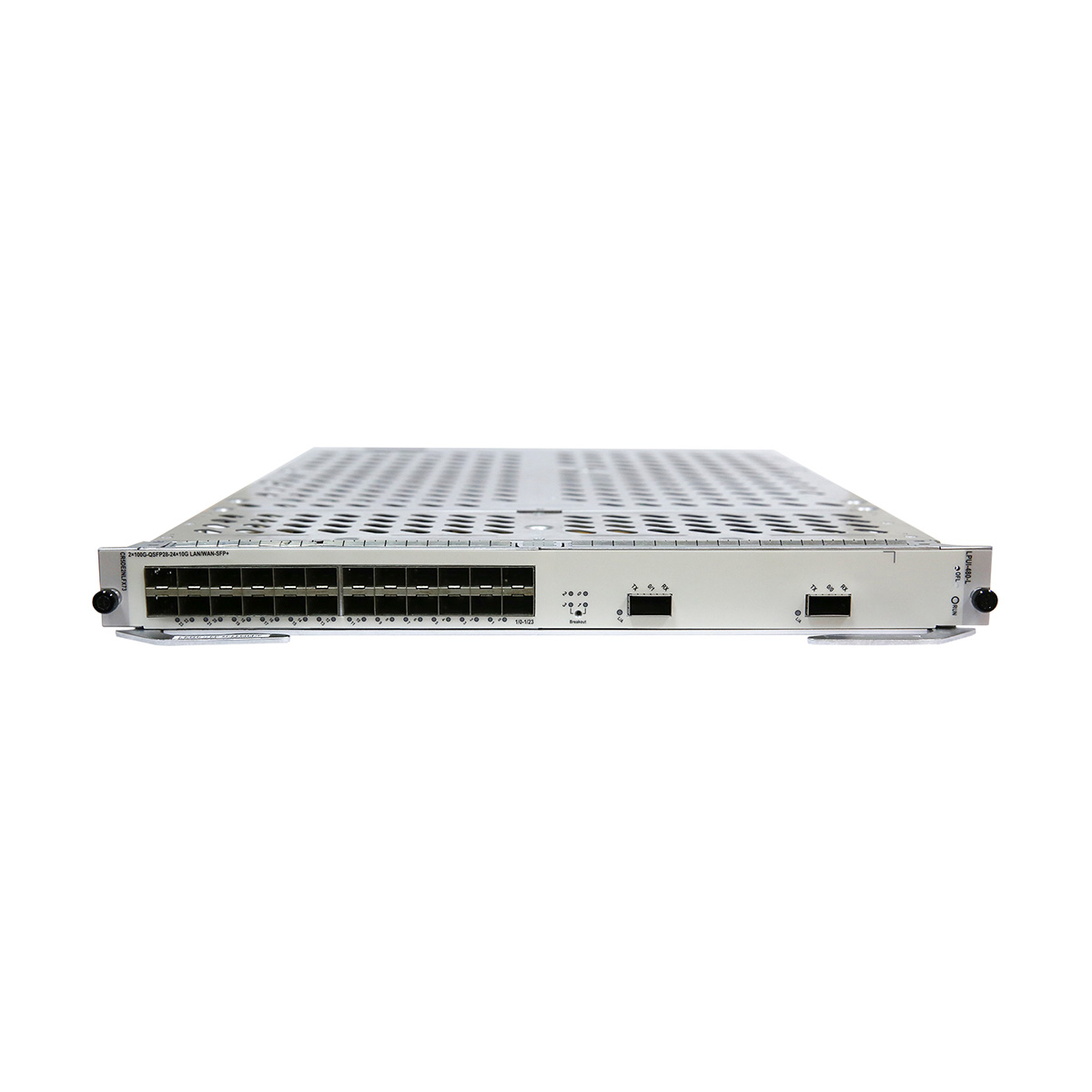

| Item | CR5DE2NLFX73 |
| Line-Rate capability | Supports 480G line-rate forwarding. There are two types of interfaces: two 100G line-rate forwarding interfaces and 24 10GE interfaces. |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | All the four 10GE interfaces split from one interface must work in the same LAN or WAN mode(The 10G interfaces working in WAN mode can function only as master interfaces).The default transmission rate of an interface on the board is 100 Gbit/s. When the transmission rate of an interface on the used optical module does not match the default rate, for example, when a 40G optical module is used, run the port split command to enable the interface breakout function. |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 459.4 W |
| Weight | 10.3 kg (22.71 lb) |
