Description

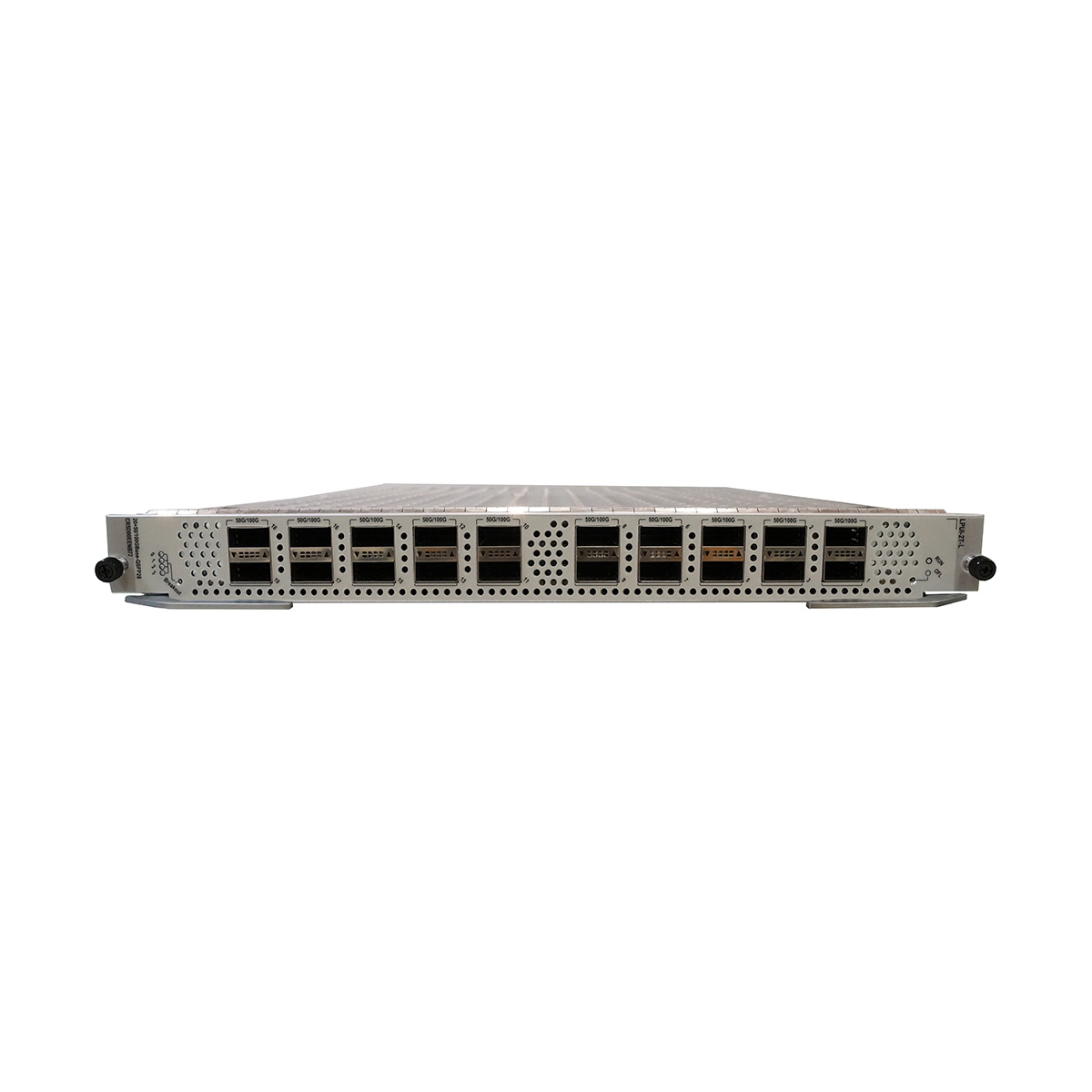

| Item | CR5D00EENB72 |
| Line-Rate capability | Provides twenty 100G line-rate forwarding interfaces to support 2T line-rate forwarding. |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | 1. The four 10GE interfaces split from the same QSFP+ interface must all work in the same mode, either WAN or LAN mode. Mixed use of 10GE WAN and 10GE LAN modes is not allowed. 10GE WAN interfaces support only the master clock mode. The default transmission rate of an interface on the board is 100 Gbit/s. When the transmission rate of the used optical module does not match the default interface rate, for example, when a 40G optical module is used, run the port split command on the board interface to implement the interface breakout function. 2. Interfaces 0 and 1, 2 and 3, 6 and 7, 8 and 9, 10 and 11, 12 and 13, 16 and 17, and 18 and 19 support 2x100GE FlexE bonding. Interfaces 4 and 5 and interfaces 14 and 15 do not support 2x100GE FlexE bonding. 3. Because of software limitations, the V800R011C10 does not support FlexE. |
| Working mode | Full-duplex |
| Compliant standard | IEEE 802.3 |
| Frame format | Ethernet_II, Ethernet_SAP and Ethernet_SNAP |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 790.0 W |
| Weight | 13.5 kg (29.77 lb) |
