Categories:H3C CR Series

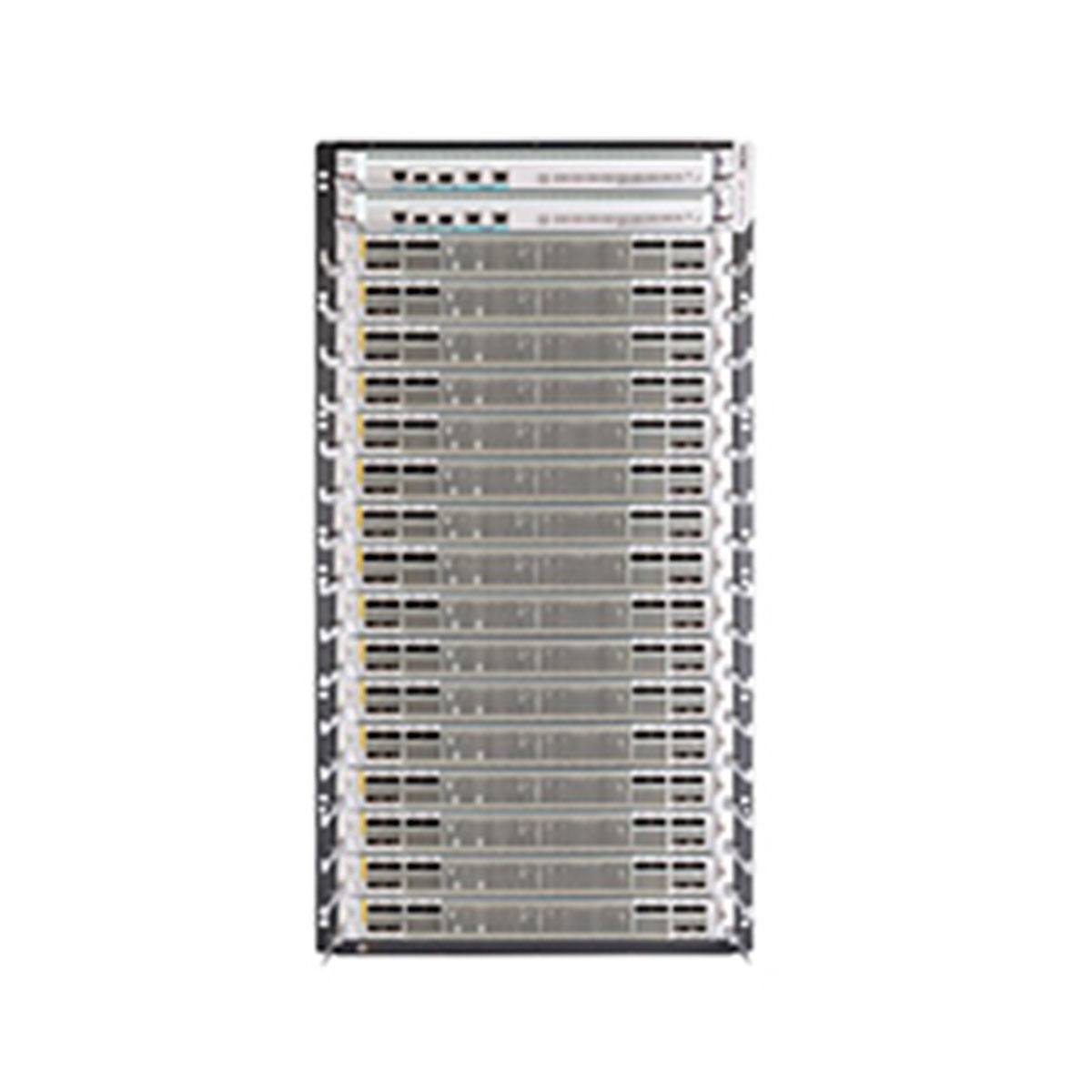

CR19000-16

0 Reviews Write a review

SKU2027123

BrandsH3C

AvailabilityIn Stock

WarrantyUp to 36 months

H3C CR19000-16 router, supports GE、10GE、40GE、50GE、100GE、400GE /50G FlexE、100G FlexE/POS/CPOS Port.

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CR19000-16 Overview

The CR19000 router series includes the CR19000-8, CR19000-16, CR19000-20, and CR19000-MC models. The CR19000-8, -16, and -20 offer 8, 16, and 20 service line-card slots, respectively. The CR19000-MC is a fabric card chassis (FCC) that connects and manages multiple CR19000-20 routers. The CR19000-8 supports single-chassis or back-to-back cluster modes, the CR19000-16 supports single-chassis mode, and the CR19000-20 can operate in single-chassis, back-to-back cluster, or multi-chassis cluster modes.

Massive capacity and boundless scalability

Each CR19000 router, with a capacity of 1800G per slot, can deliver up to 400Gbps per port. It supports a maximum of 360*100G ports, with plans for this number to continuously grow.

Flexible architecture with an SDN-focused design

With full support for SDN, the CR19000 provides various protocol interfaces for collaboration with external systems and can communicate comprehensively with SDN controllers. This enables users to precisely control network resources on demand and greatly improves network operation efficiency.

CR19000-16 Datasheet

Item	CR19000-8	CR19000-8 back-to-back cluster	CR19000-16	CR19000-20	CR19000-20 3+12 cluster
MPU slots	2	N/A	2	2	N/A
Switching fabric slots	6	N/A	6	8	N/A
line-card slots	8	16	16	20	240
Switching capacity	43.2 Tbps	86.4 Tbps	86.4 Tbps	172.8 Tbps	1555.2 Tbps
System aggregated throughput	14.4 Tbps	28.8 Tbps	28.8 Tbps	36 Tbps	432 Tbps
Power module	8 power modules per chassis support for redundancy and smart power management		16 power modules support for redundancy and smart power management	24 power modules per chassis support for redundancy and smart power management
Fan trays	6 fan trays per chassis support for redundancy and smart heat dissipation		2 fan trays support for redundancy and smart heat dissipation	33 fan trays per chassis support for redundancy and smart heat dissipation
Dimensions (H × W × D)	843 × 440 × 743 mm (33.19 × 17.32 × 29.25 in), 19 RU		931 × 440 × 857 mm (36.65 × 17.32 × 33.74 in), 21 RU	1820 × 440 × 850 mm (71.65 × 17.32 × 33.46 in), 41 RU
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating humidity	5% to 95%, non-condensing
Operatingaltitude	–60 m (–196.85 ft) to +5000 m (+16404.20 ft)
Ports	1000BASE-X-SFP fiber ports 10GBASE-R/W-SFP+ fiber ports 40GBASE-R-QSFP+ fiber ports 100GBASE-R-CFP2 fiber ports 100GBASE-R-QSFP28 fiber ports POS-OC192c/STM64c-XFP fiber ports POS-OC48c/OC12c/OC3c-SFP fiber ports
EMC standards	FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 ETSI EN 300 386 EN 301 489-1 EN 301 489-17
Safety standards	UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB 4943
Interfaces	GE, 10GE, 40GE, and 100GE interfaces OC-192c/STM-64c POS interfaces POS-OC48c/OC12c/OC3c-SFP interfaces
Data link layer	PPP, HDLC Ethernet link aggregation, port mirroring DLDP
QinQ	VLAN termination
Traffic statistics	Traffic statistics on both the incoming and outgoing traffic
QoS	Priority marking/remarking CAR (Ingress/Egress) CBQ Congestion management Queue scheduling QoS policy (applied on an interface, globally, and on the control plane) Dynamic modification of QoS policies QPPB
ACL	Ingress/Egress ACL Basic ACLs, advanced ACLs Applying an ACL to an interface or globally
IPv4 protocol	TCP, UDP, RawIP, Ping, Traceroute Telnet, FTP, TFTP ICMPv4 DNS DHCP NTP ARP, ARP Proxy
IPv6 protocol	Dual IPv4 and IPv6 protocol stacks TCP6, UDP6, RawIP6, Pingv6, Traceroute6 Telnetv6, FTPv6, TFTPv6 DNS6 ICMPv6 VRRPv3 DHCPv6 ND PMTUD (IPv6) 6PE
IPv4 routing protocol	RIPv1/v2 OSPFv2 IS-IS BGPv4 IPv4 static routing/routing policy/route recursion/policy-based routing
IPv6 routing protocol	RIPng OSPFv3 IS-IS6 BGPv4+ IPv6 static routing/routing policy/route recursion/policy-based routing
Layer 3 multicast	Static multicast routes IPv4 intra-AS multicast routes IPv4 inter-AS multicast routes IPv4 multicast group management IPv6 intra-AS multicast routes IPv6 multicast group management Multicast VPN
Interconnect	VXLAN
MPLS	Basic MPLS MPLS L3VPN VPWS/VPLS 6VPE MPLS TE P2MP
SDN	BGP-LS BMP Flowspec Segment routing OpenFlow PCEP
Device security	Protection against data packet-based attacks Protection against protocol packet-based attacks Attack detection Protection of protocol packets Diagnosis on packet transmitting and receiving
Network security	Packet validity check uRPF Packet filtering ARP attack protection Protocol-based traffic limiting NetStream
User security	Device management security AAA SSH
Device management	CLI management by accessing the device through console port, Telnet, or sTelnet (SSH)
File management	Uploading/downloading files through FTP/TFTP Formatting files Creating, copying, deleting, saving files and directories
Network maintenance	Ping TraceRoute LSP Ping/Tracert Loop detection on a port
Network management and monitoring	SNMPv3 IMC LLDP/LLDP-MED MIB PTP
High availability	Hot swapping of cards Redundancy of switching fabric modules Active/standby switchover Hot patching GR NSR VRRP, VRRPE BFD for VRRP/BGP/IS-IS/RIP/OSPF/static routing IP FRR

Brand	H3C

CR19000-16 Datasheet

Item	CR19000-8	CR19000-8 back-to-back cluster	CR19000-16	CR19000-20	CR19000-20 3+12 cluster
MPU slots	2	N/A	2	2	N/A
Switching fabric slots	6	N/A	6	8	N/A
line-card slots	8	16	16	20	240
Switching capacity	43.2 Tbps	86.4 Tbps	86.4 Tbps	172.8 Tbps	1555.2 Tbps
System aggregated throughput	14.4 Tbps	28.8 Tbps	28.8 Tbps	36 Tbps	432 Tbps
Power module	8 power modules per chassis support for redundancy and smart power management		16 power modules support for redundancy and smart power management	24 power modules per chassis support for redundancy and smart power management
Fan trays	6 fan trays per chassis support for redundancy and smart heat dissipation		2 fan trays support for redundancy and smart heat dissipation	33 fan trays per chassis support for redundancy and smart heat dissipation
Dimensions (H × W × D)	843 × 440 × 743 mm (33.19 × 17.32 × 29.25 in), 19 RU		931 × 440 × 857 mm (36.65 × 17.32 × 33.74 in), 21 RU	1820 × 440 × 850 mm (71.65 × 17.32 × 33.46 in), 41 RU
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating humidity	5% to 95%, non-condensing
Operatingaltitude	–60 m (–196.85 ft) to +5000 m (+16404.20 ft)
Ports	1000BASE-X-SFP fiber ports 10GBASE-R/W-SFP+ fiber ports 40GBASE-R-QSFP+ fiber ports 100GBASE-R-CFP2 fiber ports 100GBASE-R-QSFP28 fiber ports POS-OC192c/STM64c-XFP fiber ports POS-OC48c/OC12c/OC3c-SFP fiber ports
EMC standards	FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 ETSI EN 300 386 EN 301 489-1 EN 301 489-17
Safety standards	UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB 4943
Interfaces	GE, 10GE, 40GE, and 100GE interfaces OC-192c/STM-64c POS interfaces POS-OC48c/OC12c/OC3c-SFP interfaces
Data link layer	PPP, HDLC Ethernet link aggregation, port mirroring DLDP
QinQ	VLAN termination
Traffic statistics	Traffic statistics on both the incoming and outgoing traffic
QoS	Priority marking/remarking CAR (Ingress/Egress) CBQ Congestion management Queue scheduling QoS policy (applied on an interface, globally, and on the control plane) Dynamic modification of QoS policies QPPB
ACL	Ingress/Egress ACL Basic ACLs, advanced ACLs Applying an ACL to an interface or globally
IPv4 protocol	TCP, UDP, RawIP, Ping, Traceroute Telnet, FTP, TFTP ICMPv4 DNS DHCP NTP ARP, ARP Proxy
IPv6 protocol	Dual IPv4 and IPv6 protocol stacks TCP6, UDP6, RawIP6, Pingv6, Traceroute6 Telnetv6, FTPv6, TFTPv6 DNS6 ICMPv6 VRRPv3 DHCPv6 ND PMTUD (IPv6) 6PE
IPv4 routing protocol	RIPv1/v2 OSPFv2 IS-IS BGPv4 IPv4 static routing/routing policy/route recursion/policy-based routing
IPv6 routing protocol	RIPng OSPFv3 IS-IS6 BGPv4+ IPv6 static routing/routing policy/route recursion/policy-based routing
Layer 3 multicast	Static multicast routes IPv4 intra-AS multicast routes IPv4 inter-AS multicast routes IPv4 multicast group management IPv6 intra-AS multicast routes IPv6 multicast group management Multicast VPN
Interconnect	VXLAN
MPLS	Basic MPLS MPLS L3VPN VPWS/VPLS 6VPE MPLS TE P2MP
SDN	BGP-LS BMP Flowspec Segment routing OpenFlow PCEP
Device security	Protection against data packet-based attacks Protection against protocol packet-based attacks Attack detection Protection of protocol packets Diagnosis on packet transmitting and receiving
Network security	Packet validity check uRPF Packet filtering ARP attack protection Protocol-based traffic limiting NetStream
User security	Device management security AAA SSH
Device management	CLI management by accessing the device through console port, Telnet, or sTelnet (SSH)
File management	Uploading/downloading files through FTP/TFTP Formatting files Creating, copying, deleting, saving files and directories
Network maintenance	Ping TraceRoute LSP Ping/Tracert Loop detection on a port
Network management and monitoring	SNMPv3 IMC LLDP/LLDP-MED MIB PTP
High availability	Hot swapping of cards Redundancy of switching fabric modules Active/standby switchover Hot patching GR NSR VRRP, VRRPE BFD for VRRP/BGP/IS-IS/RIP/OSPF/static routing IP FRR
