Choosing the Best Liquid Cooling Solution for Your Data Center: A Comprehensive Guide

As data centers continue to grow in size and complexity, managing heat generated by high-performance servers has become a critical challenge. Traditional air cooling methods are often insufficient for modern data centers, leading to increased energy consumption and reduced efficiency. Liquid cooling, a more effective and energy-efficient alternative, is gaining traction as the go-to solution for heat management. But with several types of liquid cooling solutions available, how do you choose the right one for your data center? This article explores four main types of liquid cooling solutions, their benefits, and how to determine which one best suits your needs.

Why Liquid Cooling?

Liquid cooling is more efficient than air cooling because liquids have a higher heat capacity and can transfer heat more effectively. This makes it ideal for data centers with high-density server configurations, where heat dissipation is a major concern. Liquid cooling not only improves performance but also reduces energy costs and extends the lifespan of hardware.

1. Direct-to-Chip Liquid Cooling

Direct-to-chip liquid cooling, also known as cold plate cooling, involves placing a cold plate directly on the heat-generating components of a server, such as the CPU or GPU. A coolant fluid circulates through the plate, absorbing heat and carrying it away to a heat exchanger.

Key Features:

• High Efficiency: Directly targets the hottest components, providing precise cooling.
• Compact Design: Requires minimal space, making it ideal for high-density setups.
• Scalability: Easily adaptable to different server configurations.

Best For:

Data centers with high-performance computing (HPC) needs, such as those running AI workloads or scientific simulations.

2. Immersion Cooling

Immersion cooling involves submerging entire servers or components in a dielectric fluid that absorbs heat. The heated fluid is then circulated to a heat exchanger, where it is cooled and recirculated.

Key Features:

• Maximum Heat Dissipation: Provides uniform cooling across all components.
• Energy Savings: Eliminates the need for fans, reducing power consumption.
• Noise Reduction: Operates silently compared to air-cooled systems.

Best For:

Large-scale data centers with extreme heat loads, such as cryptocurrency mining operations or cloud service providers.

3. Rear-Door Heat Exchangers

Rear-door heat exchangers are mounted on the back of server racks and use liquid-cooled coils to absorb heat from the exhaust air. The heat is then transferred to a cooling loop and dissipated outside the data center.

Key Features:

• Ease of Installation: Can be retrofitted to existing server racks.
• Moderate Cooling Capacity: Suitable for medium-density setups.
• Cost-Effective: Provides a balance between performance and cost.

Best For:

Data centers looking to upgrade their cooling systems without significant infrastructure changes.

4. In-Row Cooling

In-row cooling systems are placed between server racks and use liquid-cooled units to absorb heat directly from the air within the rows. This localized approach ensures efficient cooling without affecting the entire data center.

Key Features:

• Targeted Cooling: Focuses on specific areas, improving efficiency.
• Flexibility: Can be adjusted to meet changing cooling demands.
• Space Efficiency: Fits seamlessly into existing rack layouts.

Best For:

Medium to high-density data centers with varying cooling needs, such as enterprise IT environments.

Factors to Consider When Choosing a Liquid Cooling Solution

Selecting the right liquid cooling solution depends on several factors:

1. Heat Load: High-density setups with significant heat generation may require immersion or direct-to-chip cooling, while lower-density environments may benefit from rear-door or in-row solutions.
2. Infrastructure: Consider whether your data center can accommodate the physical and logistical requirements of the cooling system.
3. Budget: Evaluate the upfront and operational costs of each solution, including installation, maintenance, and energy savings.
4. Scalability: Ensure the solution can grow with your data center’s needs.
5. Environmental Impact: Look for solutions that reduce energy consumption and align with sustainability goals.

Real-World Applications

Liquid cooling is already making a significant impact in various industries:

• AI and Machine Learning: Direct-to-chip cooling is widely used in AI data centers to manage the intense heat generated by GPUs.
• Cryptocurrency Mining: Immersion cooling is popular in mining operations due to its ability to handle extreme heat loads.
• Enterprise IT: In-row and rear-door cooling solutions are commonly used in corporate data centers to balance performance and cost.

The Future of Liquid Cooling

As data centers continue to evolve, liquid cooling is expected to play an increasingly important role. Emerging trends include:

1. Hybrid Cooling Systems: Combining liquid and air cooling for optimal efficiency.
2. Advanced Coolants: Development of new fluids with higher heat transfer capabilities.
3. Integration with Renewable Energy: Using liquid cooling to support sustainable data center operations.

Liquid cooling is revolutionizing data center heat management, offering a more efficient and sustainable alternative to traditional air cooling. Whether you opt for direct-to-chip, immersion, rear-door, or in-row cooling, each solution has unique advantages that can help you achieve optimal performance and energy efficiency. By carefully evaluating your data center’s needs and considering factors like heat load, infrastructure, and budget, you can choose the right liquid cooling solution to future-proof your operations. As technology advances, liquid cooling will undoubtedly remain a cornerstone of modern data center design.

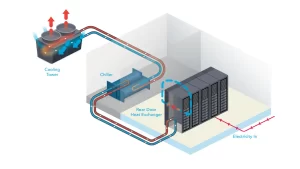

Note: The image below illustrates a data center using liquid cooling solutions, showcasing the integration of cooling systems with server racks.

Image Source: Data Center Industry Resources

As data centers continue to push the boundaries of performance and efficiency, liquid cooling solutions will play a pivotal role in ensuring their success. By embracing these technologies, you can create a data center that is not only powerful but also sustainable and cost-effective.
