Categories:CloudEngine 16800 Series

CEL72XSHGA-P

0 Reviews Write a review

PN03059454

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Huawei 16800series Switch Card CEL72XS-SAN 72-port 25GE and 6-port 100GE interface card (HGA-P, SFP28, QSFP28) (CM)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CEL72XSHGA-P overview

Item	Details
Description	72-port 25GE and 6-port 100GE interface card (HGA-P, SFP28, QSFP28) (CM)
Part Number	03059454
Model	CEL72XSHGA-P
Silkscreen	CEL72XSHGA-P
Card Type	Interface Card

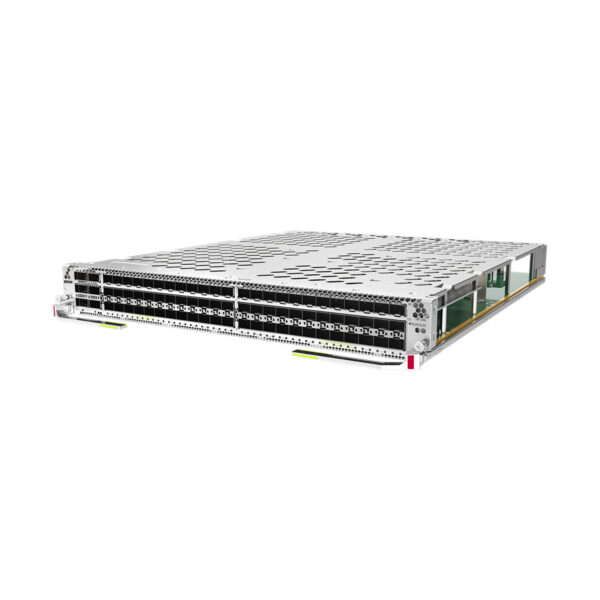

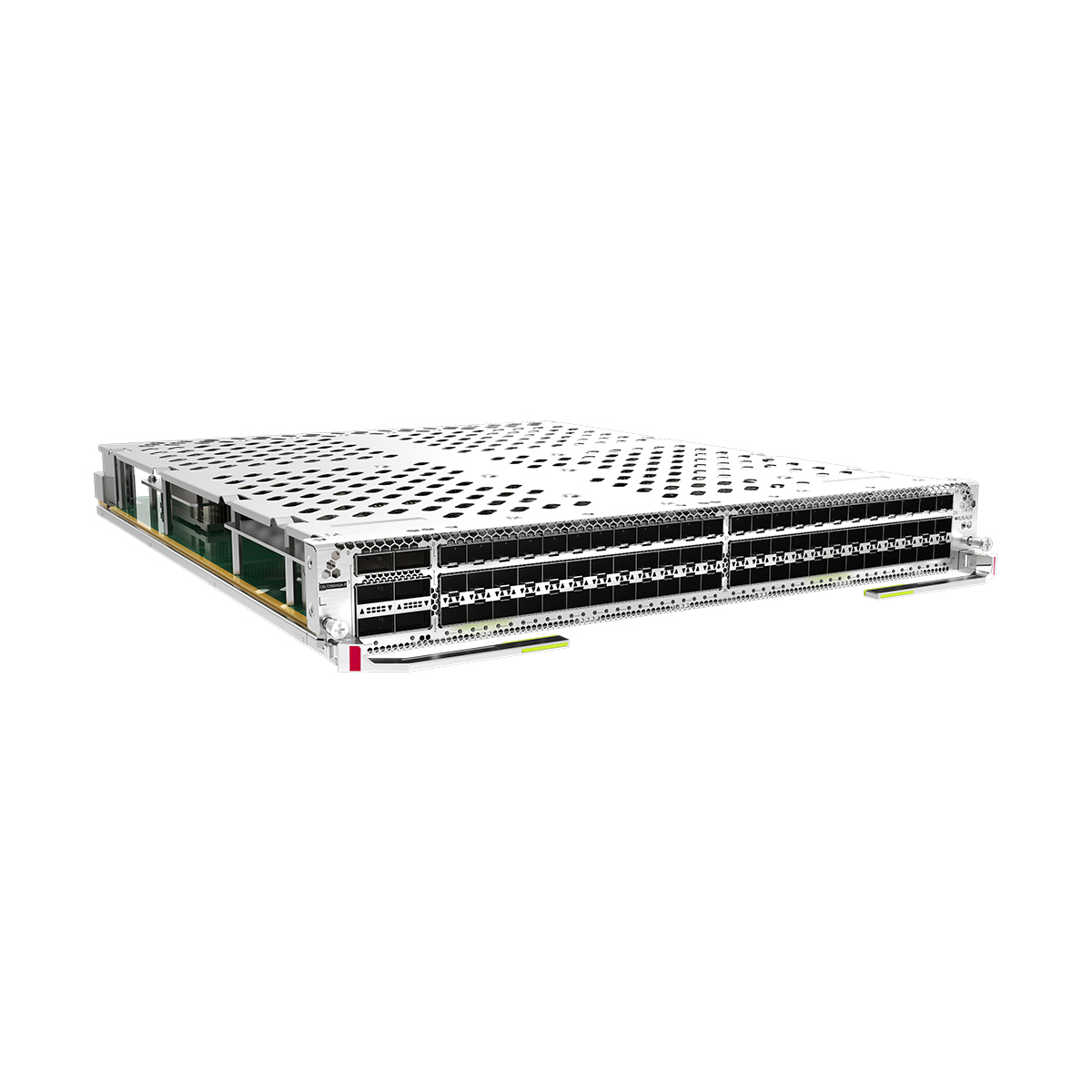

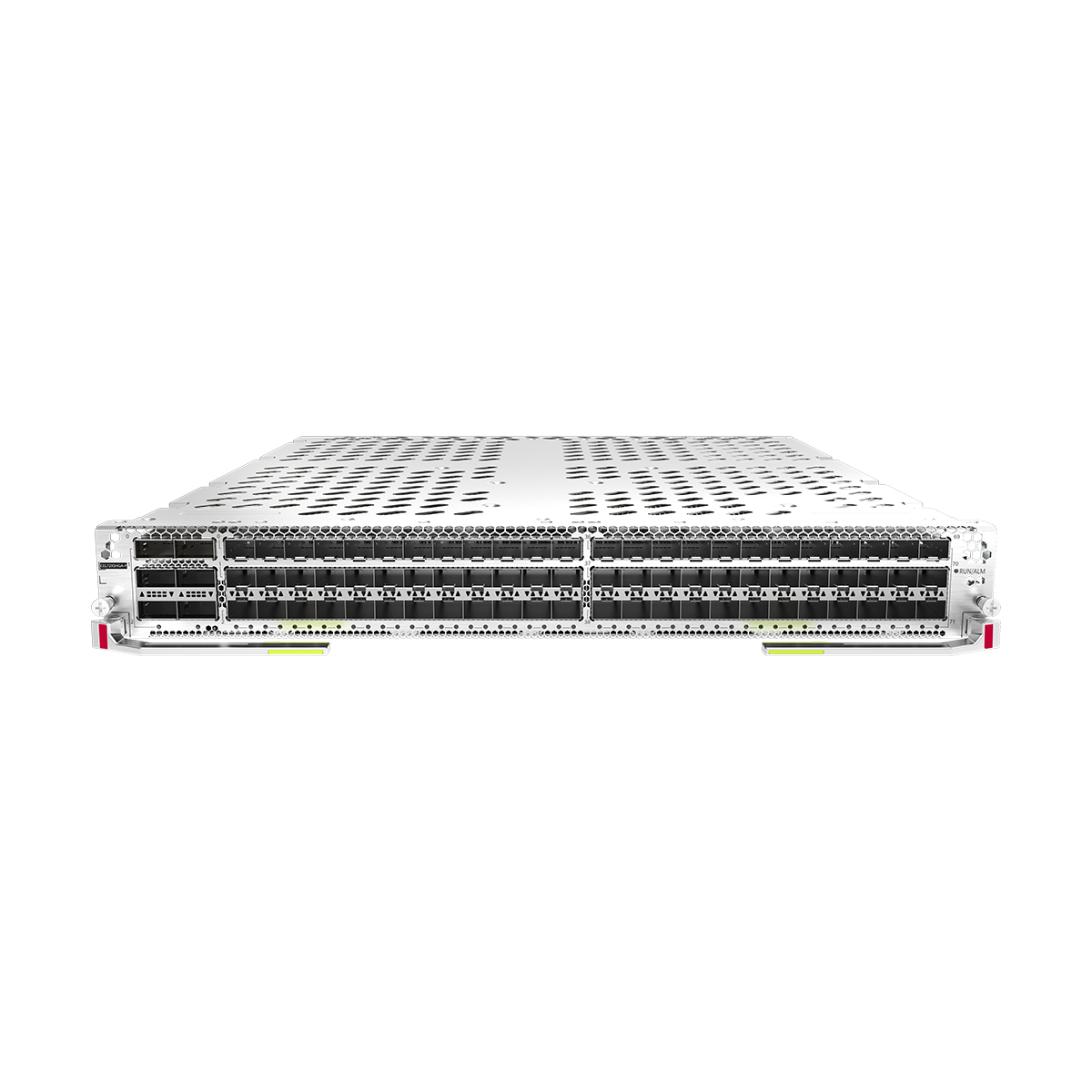

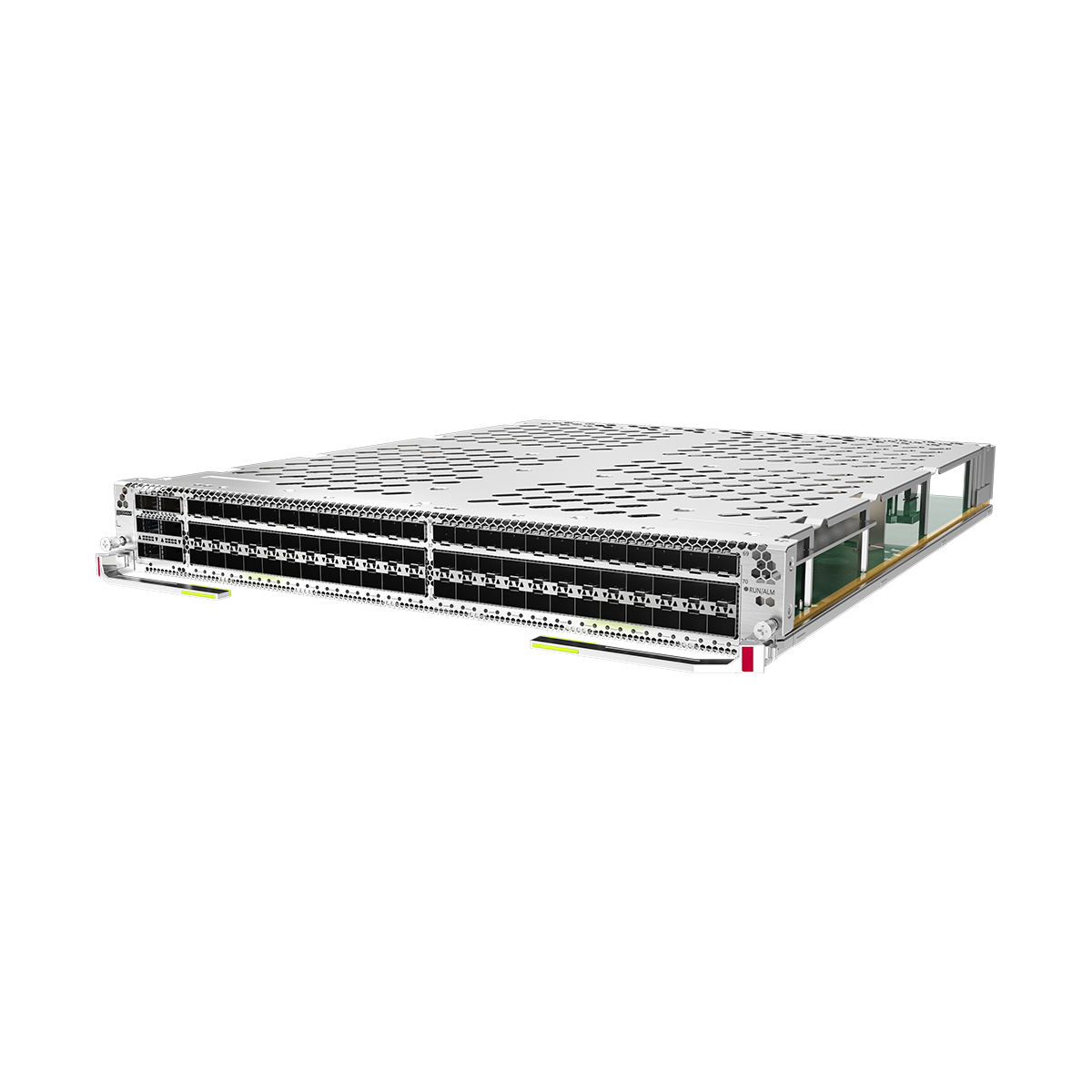

CEL72XSHGA-P Appearance

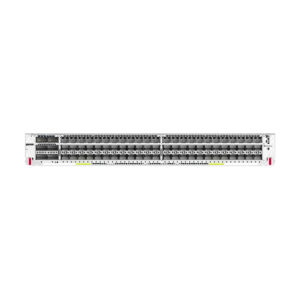

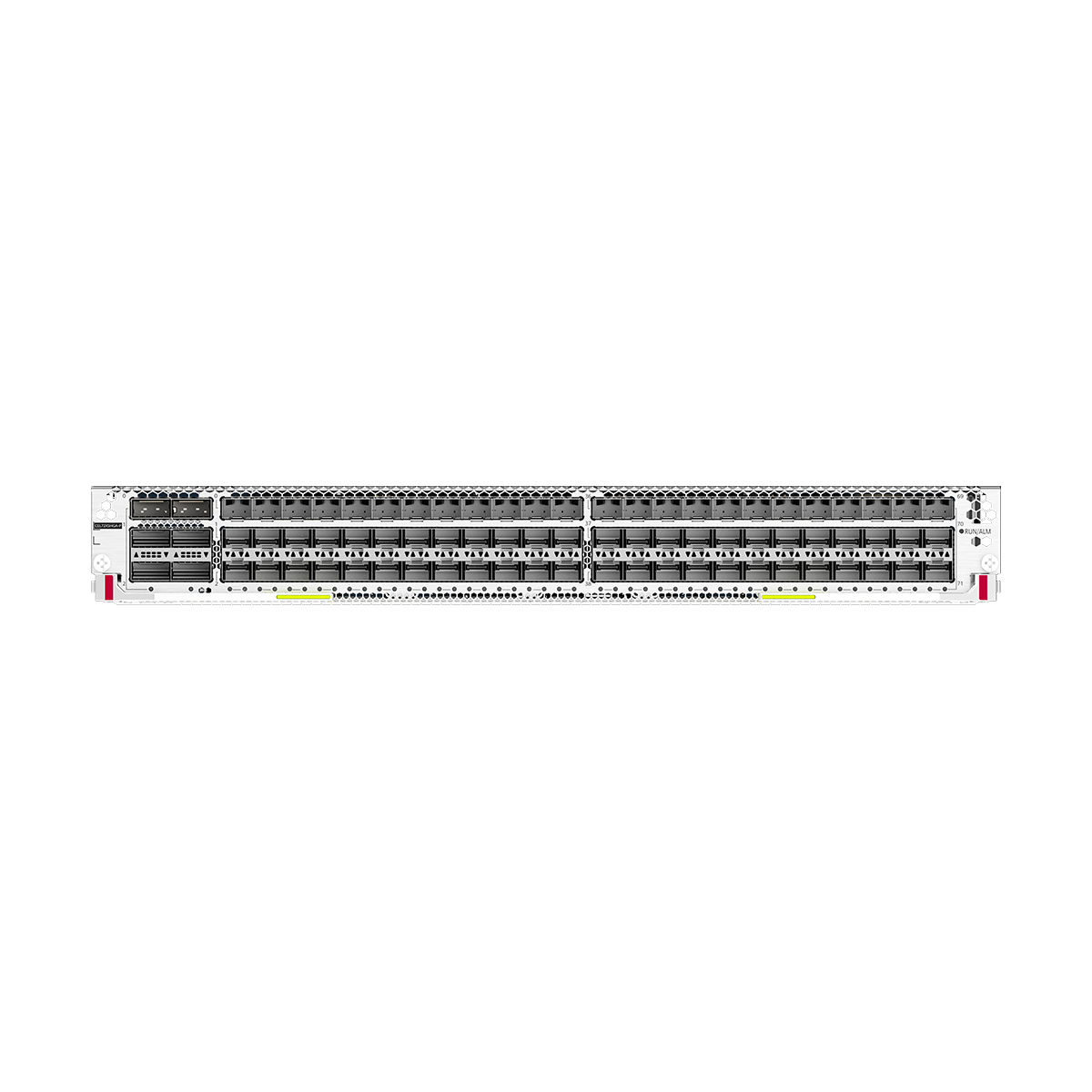

Panel on the CloudEngine CEL72XSHGA-P

1. Six 100GE optical ports

2. Seventy-two 25GE optical ports

Ports on the CEL72XSHGA-P

Port	Connector Type	Description	Available Components
72 x 25GE optical ports	SFP28/SFP+	Port for inputting and outputting 25GE/10GE optical signals	10GE SFP+ optical modules 25GE SFP28 optical modules SFP+ to SFP+ AOC cable SFP28 to SFP28 AOC cableThe top-row 25GE/10GE ports also support:SFP+ to SFP+ high-speed cable SFP28 to SFP28 high-speed cable
6 x 100GE optical ports	QSFP28/QSFP+	Port for inputting and outputting 100GE/40GE optical signals	40GE QSFP+ optical modules 100GE QSFP28 optical modules QSFP+ to QSFP+ AOC cable QSFP28 to QSFP28 AOC cable QSFP+ to QSFP+ high-speed cable QSFP28 to QSFP28 high-speed cable

Item	CEL72XSHGA-P
Typical power consumption [W]	509 W
Typical heat dissipation [BTU/hour]	1737 BTU/hour
Static power consumption [W]	376 W
Static heat dissipation [BTU/hour]	1283 BTU/hour
Maximum power consumption [W]	635 W
Maximum heat dissipation [BTU/hour]	2167 BTU/hour
CPU	4-core, 1.4 GHz clock speed
Memory	Standard 8 GB
NOR Flash	Standard 128 MB
RTU License Supported	Yes. By default, 48 x 25GE (ports 0 to 47, which can only work at the rate of 10 Gbit/s) and 4 x 100GE ports (ports 0 to 3) are available, and other ports are unavailable. The following RTU licenses can be used: 88036EUR: Two 100GE ports are added. 88036EUS: 24 x 25GE ports are added and the port rate is 10 Gbit/s. 88036EUT: The rate of 24 x 25GE ports is upgraded to 25 Gbit/s. A maximum of three licenses can be activated on a device to increase the rate of 72 x 25GE ports to 25 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)]	55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]	285 mm x 650 mm x 860 mm (11.22 in. x 25.59 in. x 33.86 in.)
Weight without packaging [kg (lb)]	9.9 kg (21.83 lb)
Weight with packaging [kg (lb)]	16.2 kg (53.15 lb)

Item	CEL72XSHGA-P
Typical power consumption [W]	509 W
Typical heat dissipation [BTU/hour]	1737 BTU/hour
Static power consumption [W]	376 W
Static heat dissipation [BTU/hour]	1283 BTU/hour
Maximum power consumption [W]	635 W
Maximum heat dissipation [BTU/hour]	2167 BTU/hour
CPU	4-core, 1.4 GHz clock speed
Memory	Standard 8 GB
NOR Flash	Standard 128 MB
RTU License Supported	Yes. By default, 48 x 25GE (ports 0 to 47, which can only work at the rate of 10 Gbit/s) and 4 x 100GE ports (ports 0 to 3) are available, and other ports are unavailable. The following RTU licenses can be used: 88036EUR: Two 100GE ports are added. 88036EUS: 24 x 25GE ports are added and the port rate is 10 Gbit/s. 88036EUT: The rate of 24 x 25GE ports is upgraded to 25 Gbit/s. A maximum of three licenses can be activated on a device to increase the rate of 72 x 25GE ports to 25 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)]	55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]	285 mm x 650 mm x 860 mm (11.22 in. x 25.59 in. x 33.86 in.)
Weight without packaging [kg (lb)]	9.9 kg (21.83 lb)
Weight with packaging [kg (lb)]	16.2 kg (53.15 lb)
