Huawei CE16800 Series CEL36LQFD-E 36-port 40GE interface card (FD-E, QSFP+)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CEL36LQFD-E overview

Item	CEL36LQFD-E
Description	36-port 40GE interface card (FD-E, QSFP+)
Part Number	03050EPW
Model	CEL36LQFD-E
Silkscreen	CEL36LQFD-E
Card Type	Interface Card

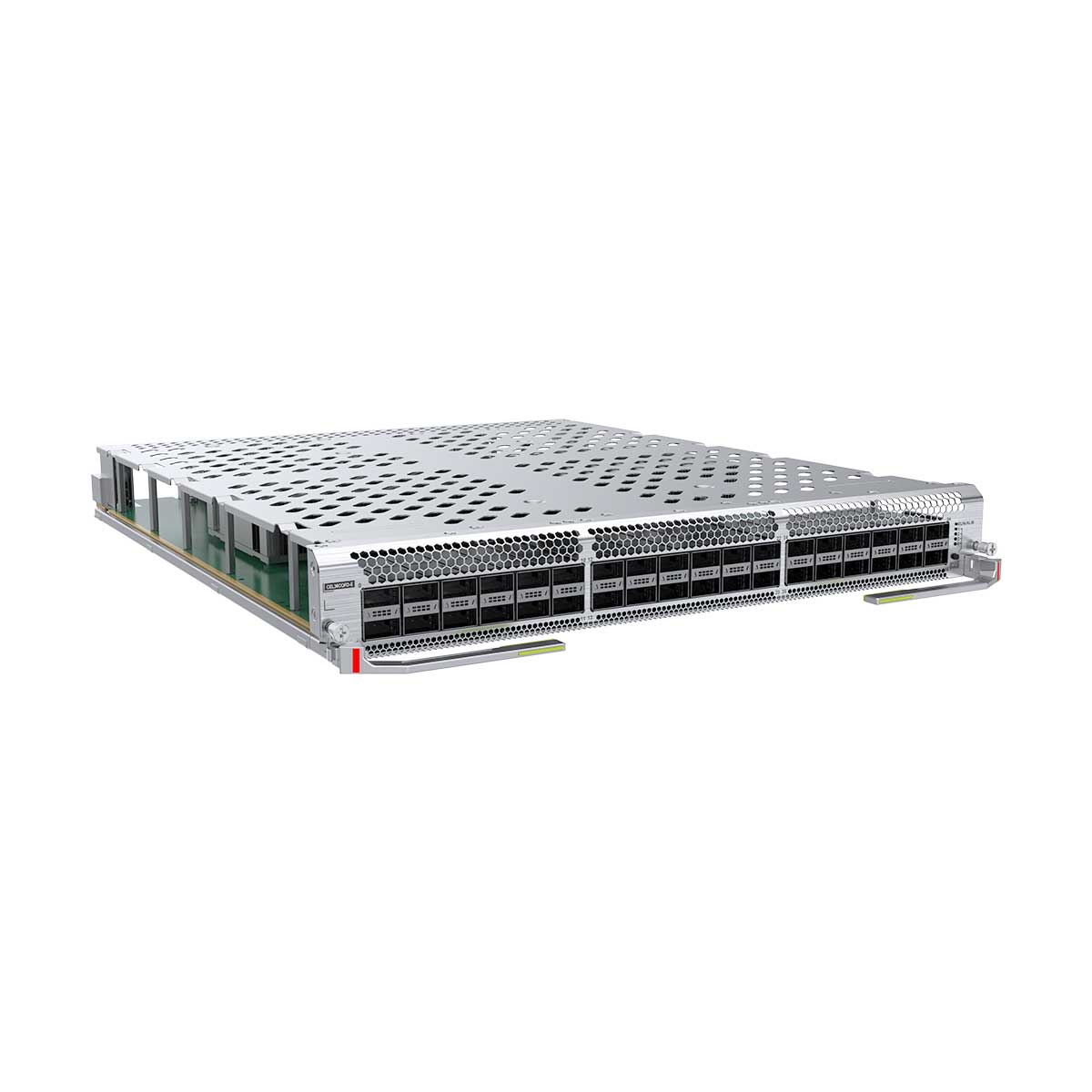

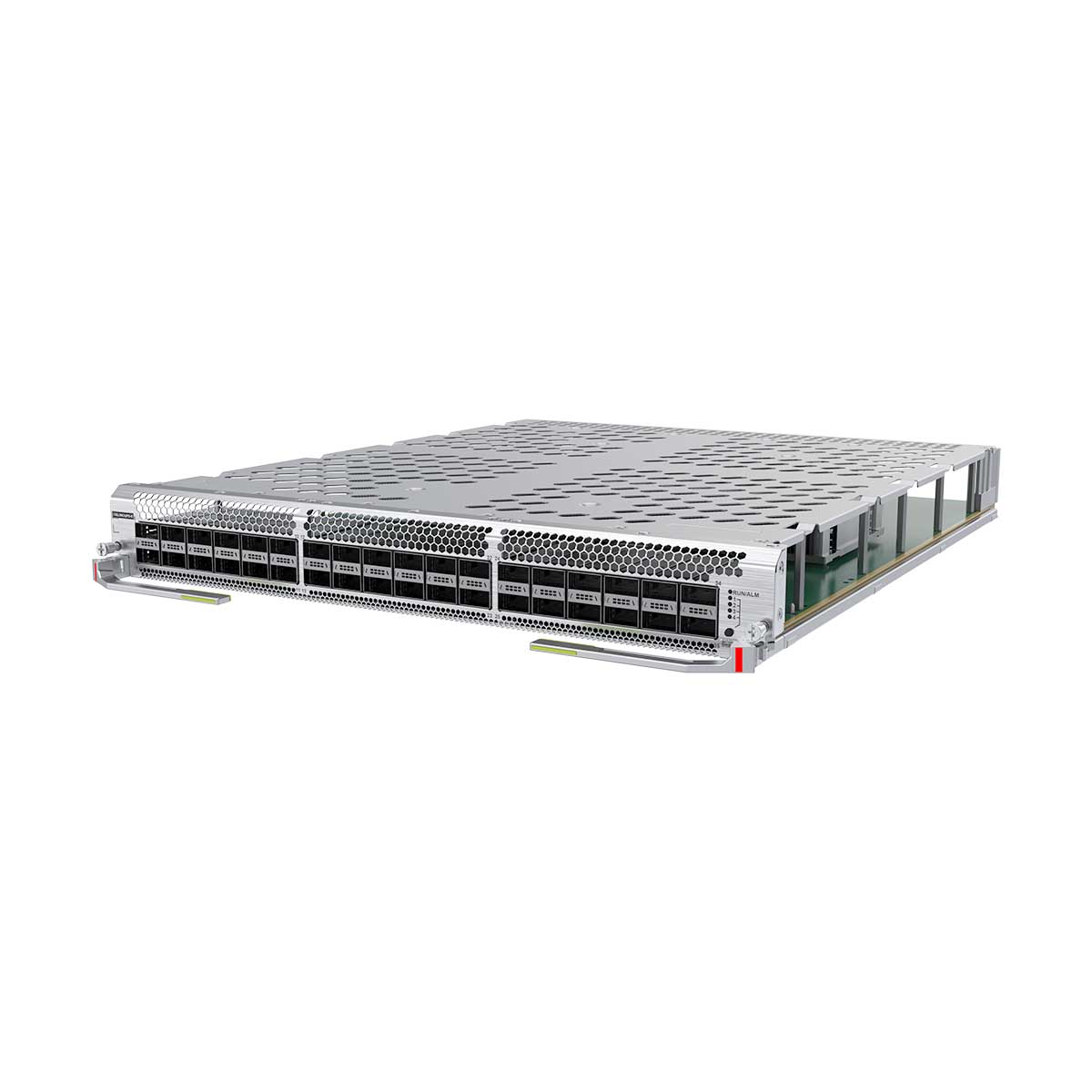

CEL36LQFD-E Appearance

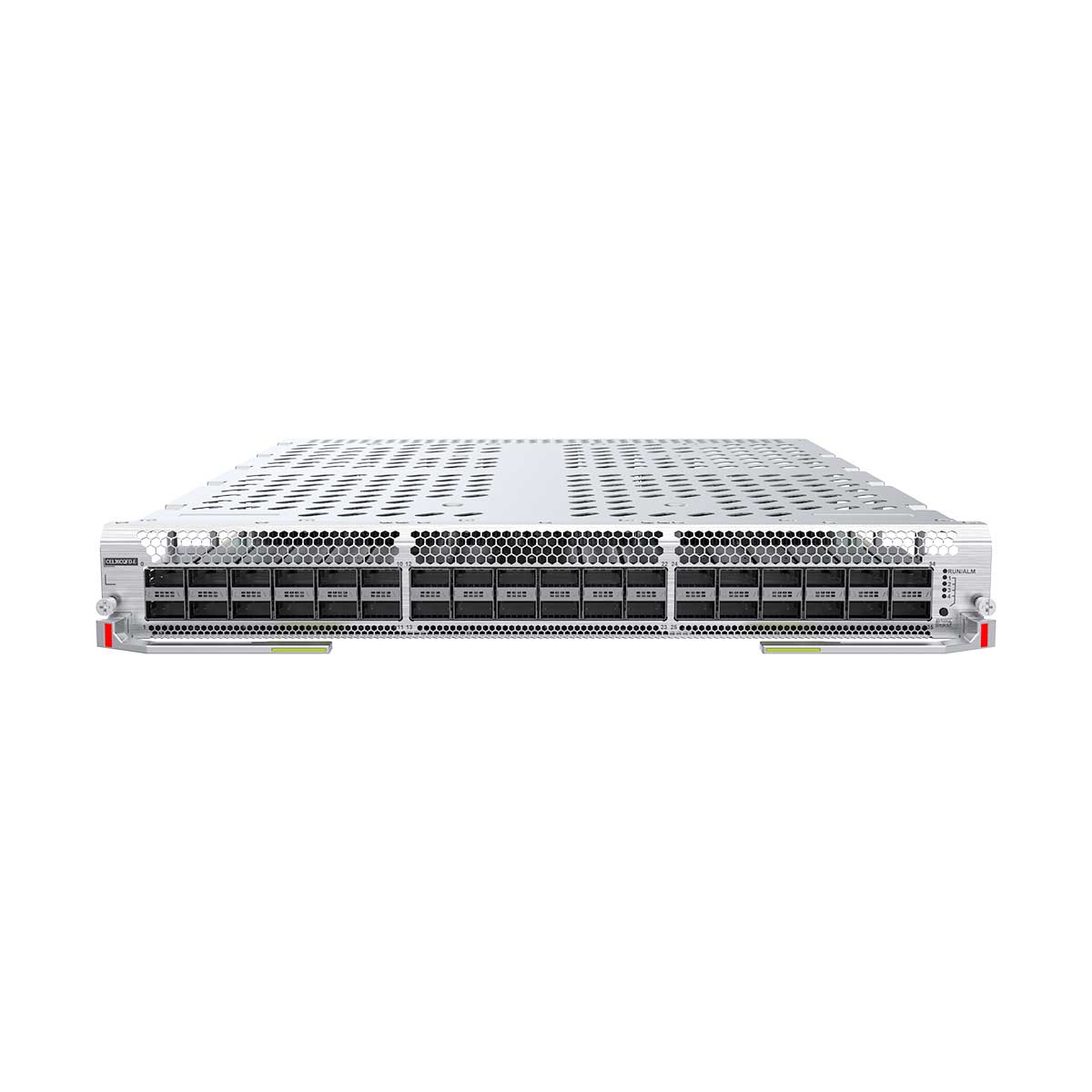

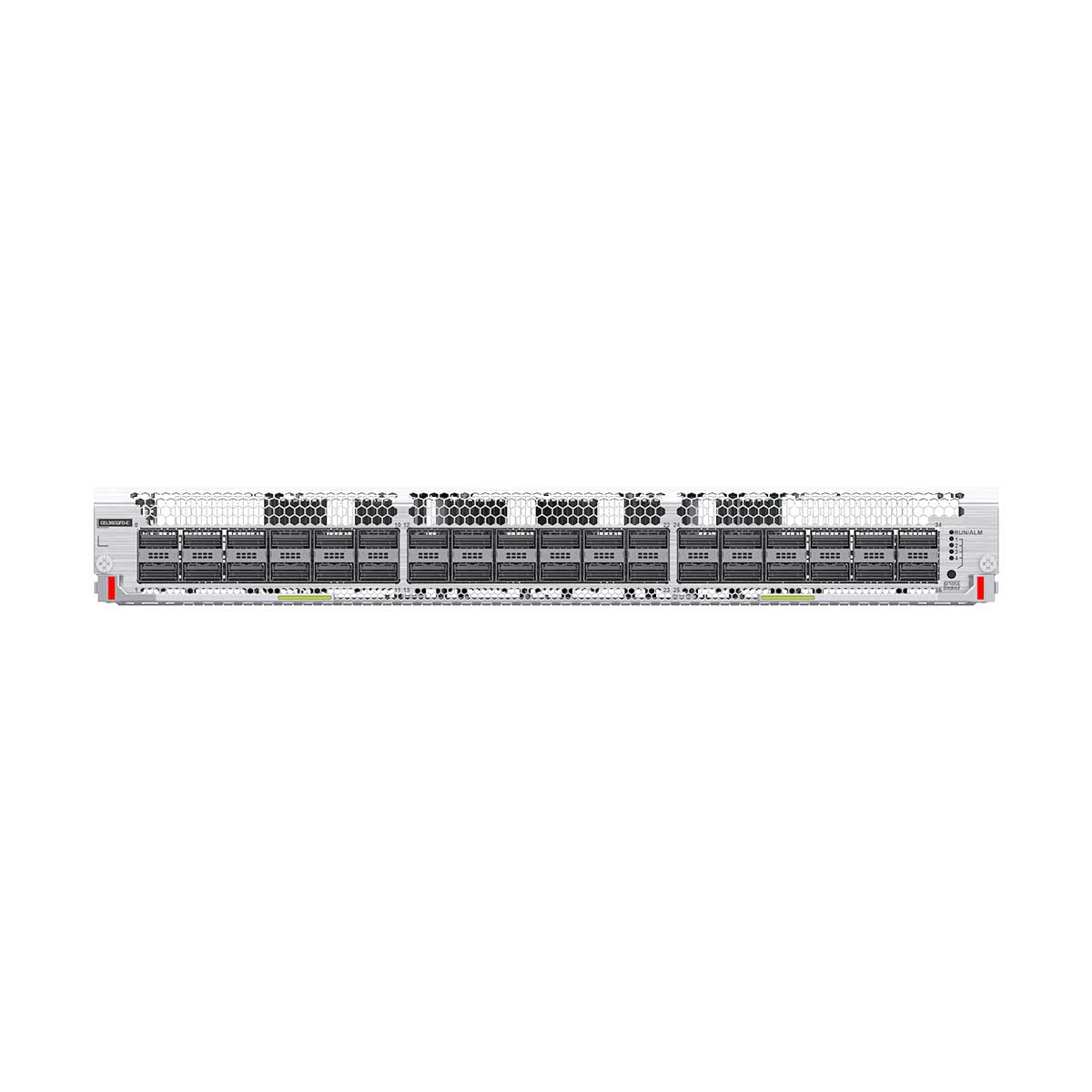

Panel on the CloudEngine CEL36LQFD-E

1. Thirty-six 40GE optical ports

Ports on the CEL36LQFD-E

Port	Connector Type	Description	Available Components
36 x 40GE optical ports	QSFP28/QSFP+	Port for inputting and outputting 100GE (supported by half of the ports)/40GE optical signals	40GE QSFP+ optical modules QSFP+ to QSFP+ AOC cable QSFP+ to 4SFP+ AOC cable QSFP+ to QSFP+ high-speed cable QSFP+ to 4SFP+ high-speed cable When eighteen 40GE ports (0, 1, 4, 5…) on the card work in 100GE mode, the following cables can be used: 100GE QSFP28 optical modules QSFP28 to QSFP28 AOC cable

Port

Connector Type

Description

Available Components

36 x 40GE optical ports

QSFP28/QSFP+

Port for inputting and outputting 100GE (supported by half of the ports)/40GE optical signals

40GE QSFP+ optical modules
QSFP+ to QSFP+ AOC cable
QSFP+ to 4*SFP+ AOC cable
QSFP+ to QSFP+ high-speed cable
QSFP+ to 4*SFP+ high-speed cable

When eighteen 40GE ports (0, 1, 4, 5…) on the card work in 100GE mode, the following cables can be used:

100GE QSFP28 optical modules
QSFP28 to QSFP28 AOC cable

Item	CEL36LQFD-E
Basic function	The card provides data packet processing and traffic management on 36 40GE optical ports, which can be split into 144 10GE optical ports.
Maximum port density	If all LPUs are these cards: The CloudEngine 16804 chassis provides a maximum of 144 40GE ports. The CloudEngine 16808 chassis provides a maximum of 288 40GE ports. The CloudEngine 16816 chassis provides a maximum of 576 40GE ports.
40GE port	A 40GE port on the card can be split into four 10GE ports. That is, a card provides a maximum port density of 144 x 10GE. All the 36 40GE ports are independent, and each can be split into four 10GE ports. On the card, the 18 40GE ports that can be used as 100GE ports are marked with silkscreen 40/100G. The port IDs are 0, 1, 4, 5, 8, 9, 12, 13, 16, 17, 20, 21, 24, 25, 28, 29, 32, and 33. These port IDs are represented by (0, 1, 4, 5...) in the following descriptions. The 36 ports on the card are divided into groups, each of which contains four ports starting from port 0. The total port rate of a group cannot exceed 200GE. When port n is used as a 100GE port, port n+2 becomes unavailable and is in DOWN(Port unavailable) state. For example: Ports 0 to 3 are in the same group. If ports 0 and 1 are used as 100GE ports, ports 2 and 3 become unavailable and are in DOWN(Port unavailable) state. If only one port (for example, port 0) is used as a 100GE port, port 2 becomes unavailable and is in DOWN(Port unavailable) state. Ports 1 and 3 can work as 40GE ports or each of them can be split into four 10GE ports.
Hot swapping	Supported
Restrictions and remarks	Ports 0 to 11 are in a group, ports 12 to 23 are in a group, and ports 24 to 35 are in a group. When the total port bandwidth of each group does not exceed 480 Gbit/s, SFUs can forward data at the line rate in 4+1 backup mode. When the total port bandwidth of each group does not exceed 600 Gbit/s, SFUs can forward data at the line rate in 5+1 backup mode.
Typical power consumption [W]	256 W
Typical heat dissipation [BTU/hour]	874 BTU/hour
Static power consumption [W]	217 W
Static heat dissipation [BTU/hour]	741 BTU/hour
Maximum power consumption [W]	443 W
Maximum heat dissipation [BTU/hour]	1513 BTU/hour
CPU	Quad-core, 1.4 GHz clock speed
Memory	Standard 4 GB
Dimensions without packaging (H x W x D) [mm (in.)]	55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]	225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)]	8.0 kg (17.64 lb)
Weight with packaging [kg (lb)]	12.9 kg (28.44 lb)

Brand	Huawei

Item	CEL36LQFD-E
Basic function	The card provides data packet processing and traffic management on 36 40GE optical ports, which can be split into 144 10GE optical ports.
Maximum port density	If all LPUs are these cards: The CloudEngine 16804 chassis provides a maximum of 144 40GE ports. The CloudEngine 16808 chassis provides a maximum of 288 40GE ports. The CloudEngine 16816 chassis provides a maximum of 576 40GE ports.
40GE port	A 40GE port on the card can be split into four 10GE ports. That is, a card provides a maximum port density of 144 x 10GE. All the 36 40GE ports are independent, and each can be split into four 10GE ports. On the card, the 18 40GE ports that can be used as 100GE ports are marked with silkscreen 40/100G. The port IDs are 0, 1, 4, 5, 8, 9, 12, 13, 16, 17, 20, 21, 24, 25, 28, 29, 32, and 33. These port IDs are represented by (0, 1, 4, 5...) in the following descriptions. The 36 ports on the card are divided into groups, each of which contains four ports starting from port 0. The total port rate of a group cannot exceed 200GE. When port n is used as a 100GE port, port n+2 becomes unavailable and is in DOWN(Port unavailable) state. For example: Ports 0 to 3 are in the same group. If ports 0 and 1 are used as 100GE ports, ports 2 and 3 become unavailable and are in DOWN(Port unavailable) state. If only one port (for example, port 0) is used as a 100GE port, port 2 becomes unavailable and is in DOWN(Port unavailable) state. Ports 1 and 3 can work as 40GE ports or each of them can be split into four 10GE ports.
Hot swapping	Supported
Restrictions and remarks	Ports 0 to 11 are in a group, ports 12 to 23 are in a group, and ports 24 to 35 are in a group. When the total port bandwidth of each group does not exceed 480 Gbit/s, SFUs can forward data at the line rate in 4+1 backup mode. When the total port bandwidth of each group does not exceed 600 Gbit/s, SFUs can forward data at the line rate in 5+1 backup mode.
Typical power consumption [W]	256 W
Typical heat dissipation [BTU/hour]	874 BTU/hour
Static power consumption [W]	217 W
Static heat dissipation [BTU/hour]	741 BTU/hour
Maximum power consumption [W]	443 W
Maximum heat dissipation [BTU/hour]	1513 BTU/hour
CPU	Quad-core, 1.4 GHz clock speed
Memory	Standard 4 GB
Dimensions without packaging (H x W x D) [mm (in.)]	55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]	225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)]	8.0 kg (17.64 lb)
Weight with packaging [kg (lb)]	12.9 kg (28.44 lb)
