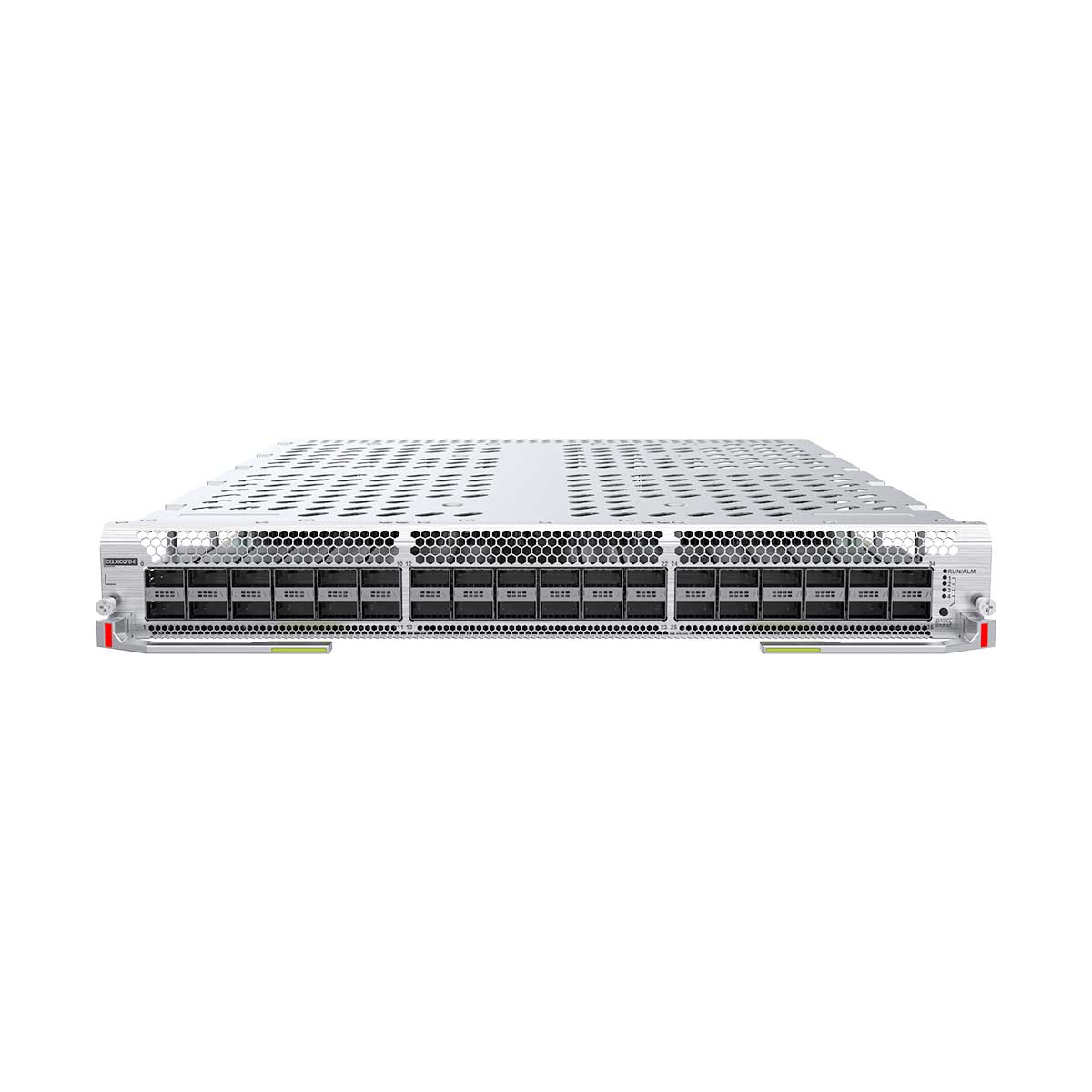

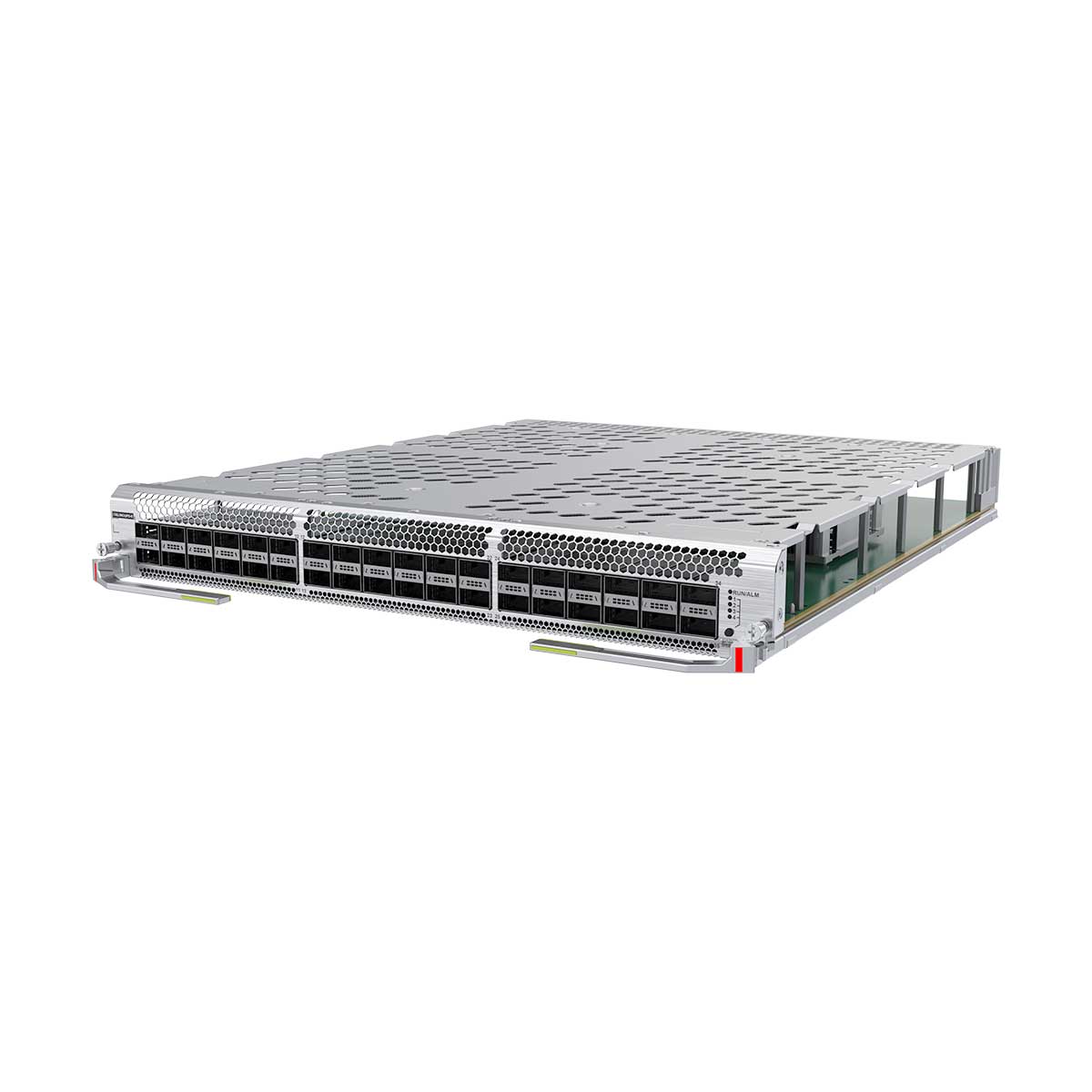

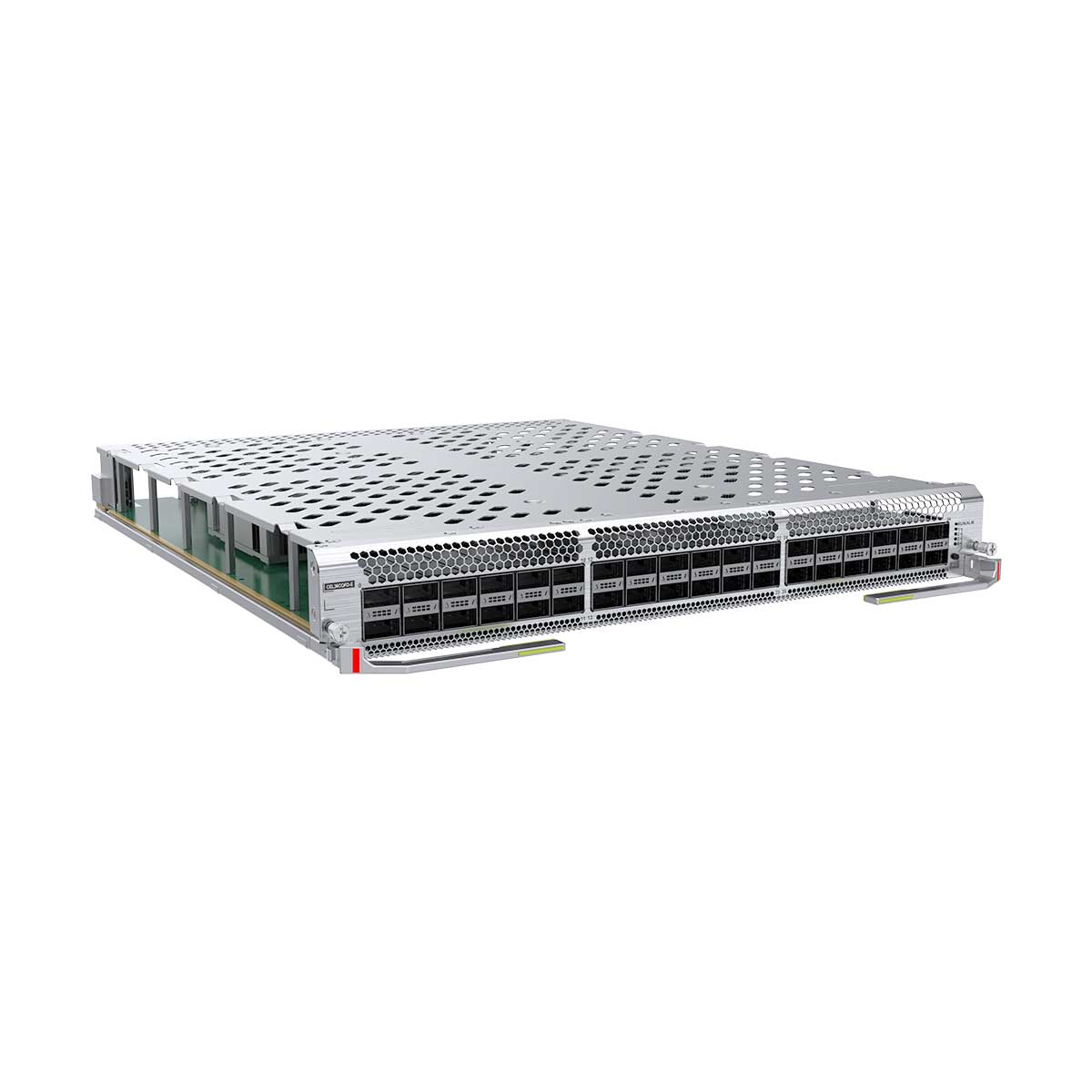

Huawei CE16800 Series CEL36CQFD-E 36-port 100GE interface card (FD-E, QSFP28)
| Item | CEL36CQFD-E |
|---|---|
| Description | 36-port 100GE interface card (FD-E, QSFP28) |
| Part Number | 03050EPT |
| Model | CEL36CQFD-E |
| Silkscreen | CEL36CQFD-E |
| Card Type | Interface Card |

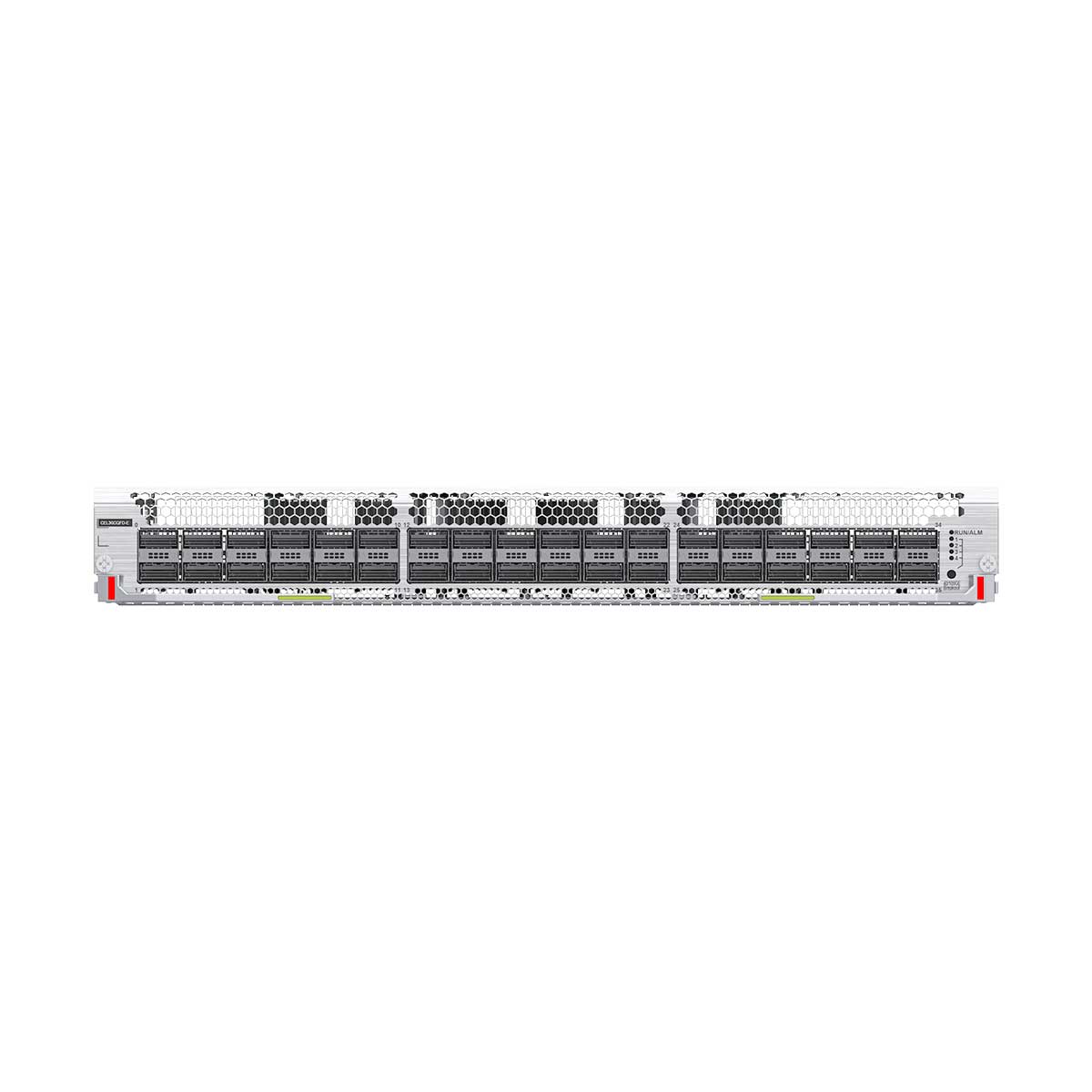

Panel on the CloudEngine CEL36CQFD-E
| 1. Thirty-six 100GE optical ports |
Ports on the CEL36CQFD-E
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| Thirty-six 100GE optical ports | QSFP28/QSFP+ | Port for inputting and outputting 100GE/40GE optical signals |
|
| Item | CEL36CQFD-E |
|---|---|
| Basic function | The card provides data packet processing and traffic management on 36 100GE optical ports, which can be used as 36 40GE optical ports or split into 144 25GE or 144 10GE optical ports. |
| Maximum port density | All LPUs are of this model:
|
| 100GE port | Supports QSFP28 and QSFP+ optical modules. 100GE ports can work as 40GE ports through auto-sensing or be split into four 25GE or 10GE ports. Provides up to 36 x 40GE, 144 x 25GE, or 144 x 10GE ports. The 36 optical ports are independent, and each can work as a 40GE port or be split into four 25GE or 10GE ports. |
| Hot swapping | Supported |
| Typical power consumption [W] | 525 W |
| Typical heat dissipation [BTU/hour] | 1793 BTU/hour |
| Static power consumption [W] | 406 W |
| Static heat dissipation [BTU/hour] | 1386 BTU/hour |
| Maximum power consumption [W] | 764 W |
| Maximum heat dissipation [BTU/hour] | 2609 BTU/hour |
| CPU | Quad-core, 1.4 GHz clock speed |
| Memory | Standard 8 GB |
| Dimensions without packaging (H x W x D) [mm (in.)] | 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.) |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.) |
| Weight without packaging [kg (lb)] | 8.4 kg (18.52 lb) |
| Weight with packaging [kg (lb)] | 13.3 kg (29.32 lb) |
| Typical power consumption [W] | 525 W |
| Brand | Huawei |
|---|
| Item | CEL36CQFD-E |
|---|---|
| Basic function | The card provides data packet processing and traffic management on 36 100GE optical ports, which can be used as 36 40GE optical ports or split into 144 25GE or 144 10GE optical ports. |
| Maximum port density | All LPUs are of this model:
|
| 100GE port | Supports QSFP28 and QSFP+ optical modules. 100GE ports can work as 40GE ports through auto-sensing or be split into four 25GE or 10GE ports. Provides up to 36 x 40GE, 144 x 25GE, or 144 x 10GE ports. The 36 optical ports are independent, and each can work as a 40GE port or be split into four 25GE or 10GE ports. |
| Hot swapping | Supported |
| Typical power consumption [W] | 525 W |
| Typical heat dissipation [BTU/hour] | 1793 BTU/hour |
| Static power consumption [W] | 406 W |
| Static heat dissipation [BTU/hour] | 1386 BTU/hour |
| Maximum power consumption [W] | 764 W |
| Maximum heat dissipation [BTU/hour] | 2609 BTU/hour |
| CPU | Quad-core, 1.4 GHz clock speed |
| Memory | Standard 8 GB |
| Dimensions without packaging (H x W x D) [mm (in.)] | 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.) |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.) |
| Weight without packaging [kg (lb)] | 8.4 kg (18.52 lb) |
| Weight with packaging [kg (lb)] | 13.3 kg (29.32 lb) |
| Typical power consumption [W] | 525 W |
