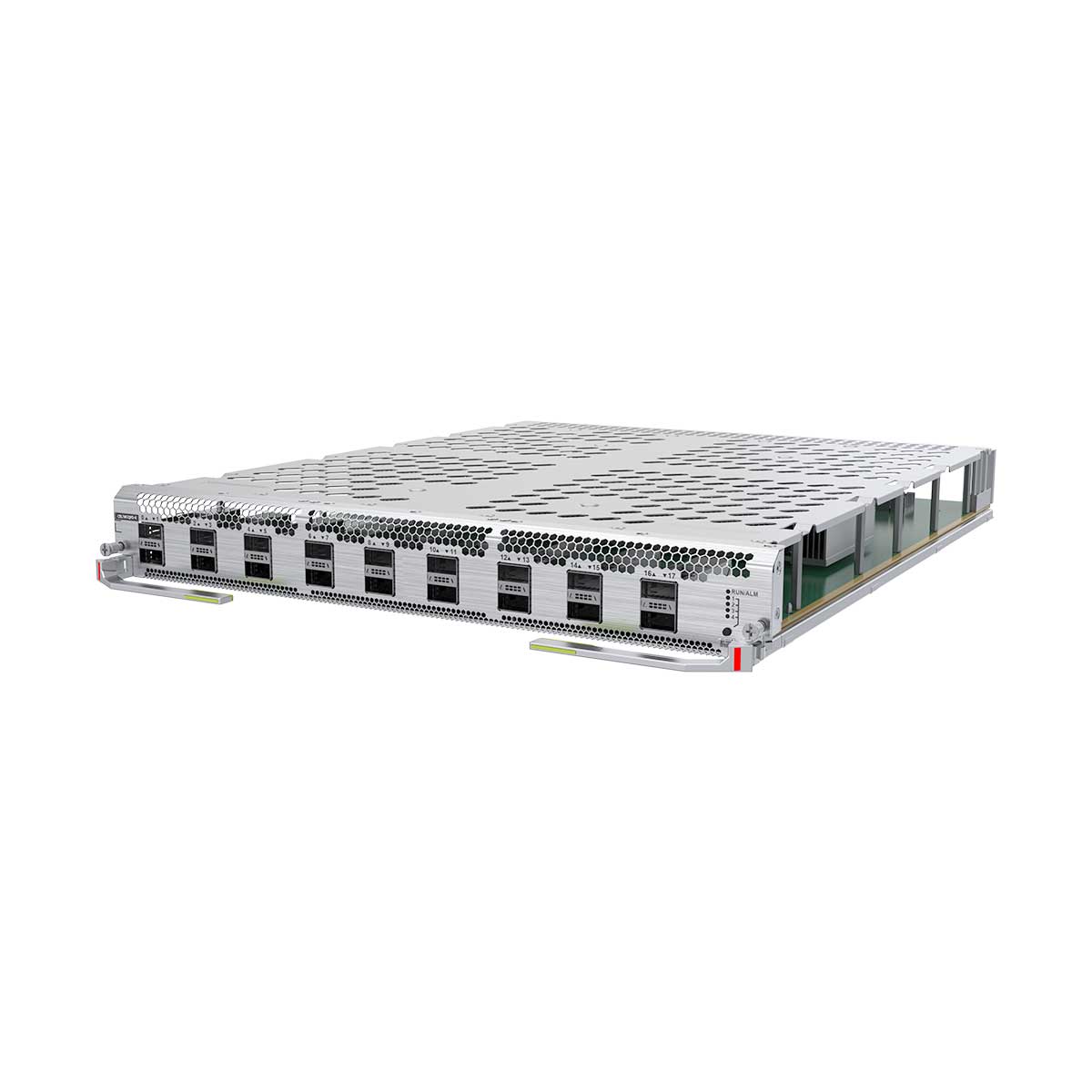

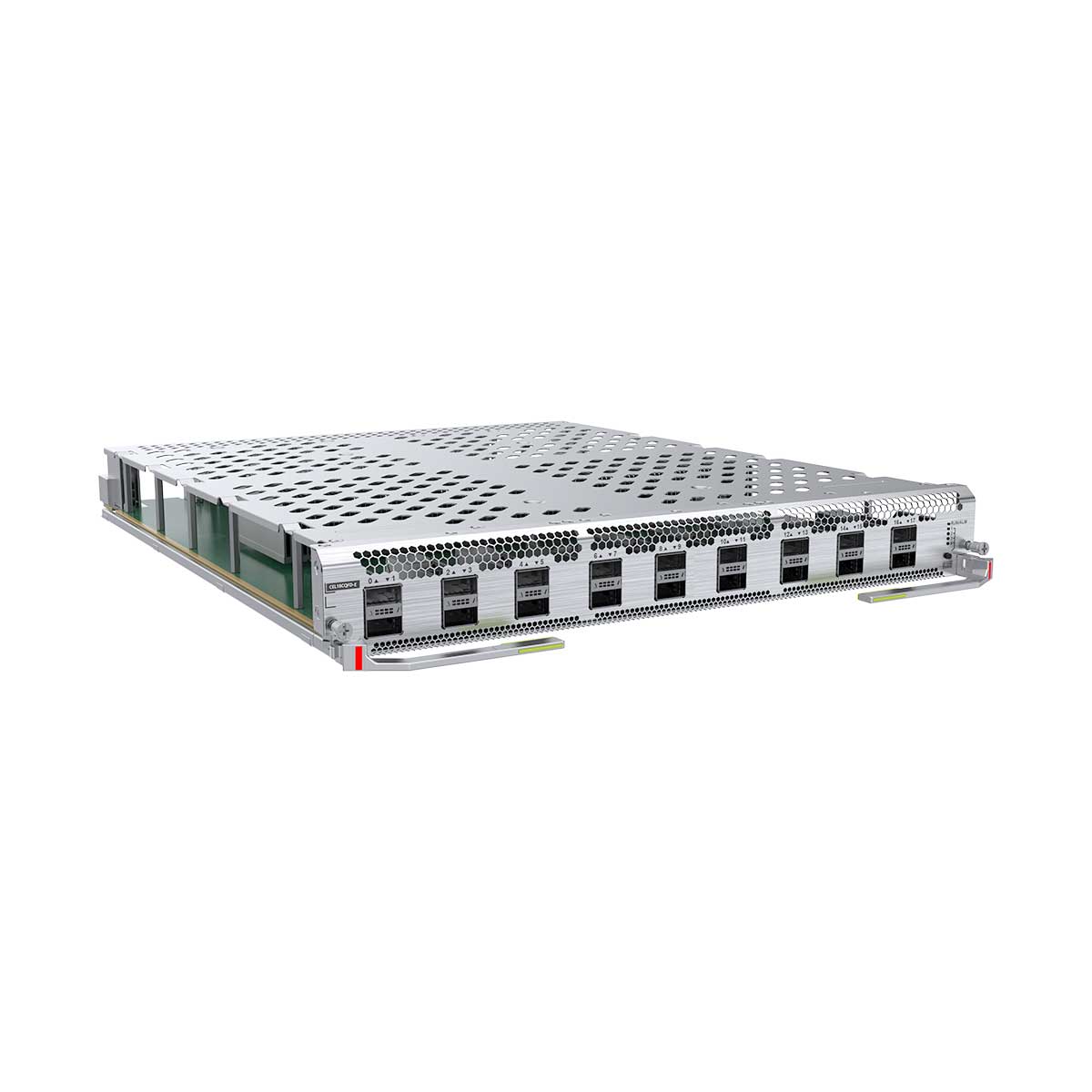

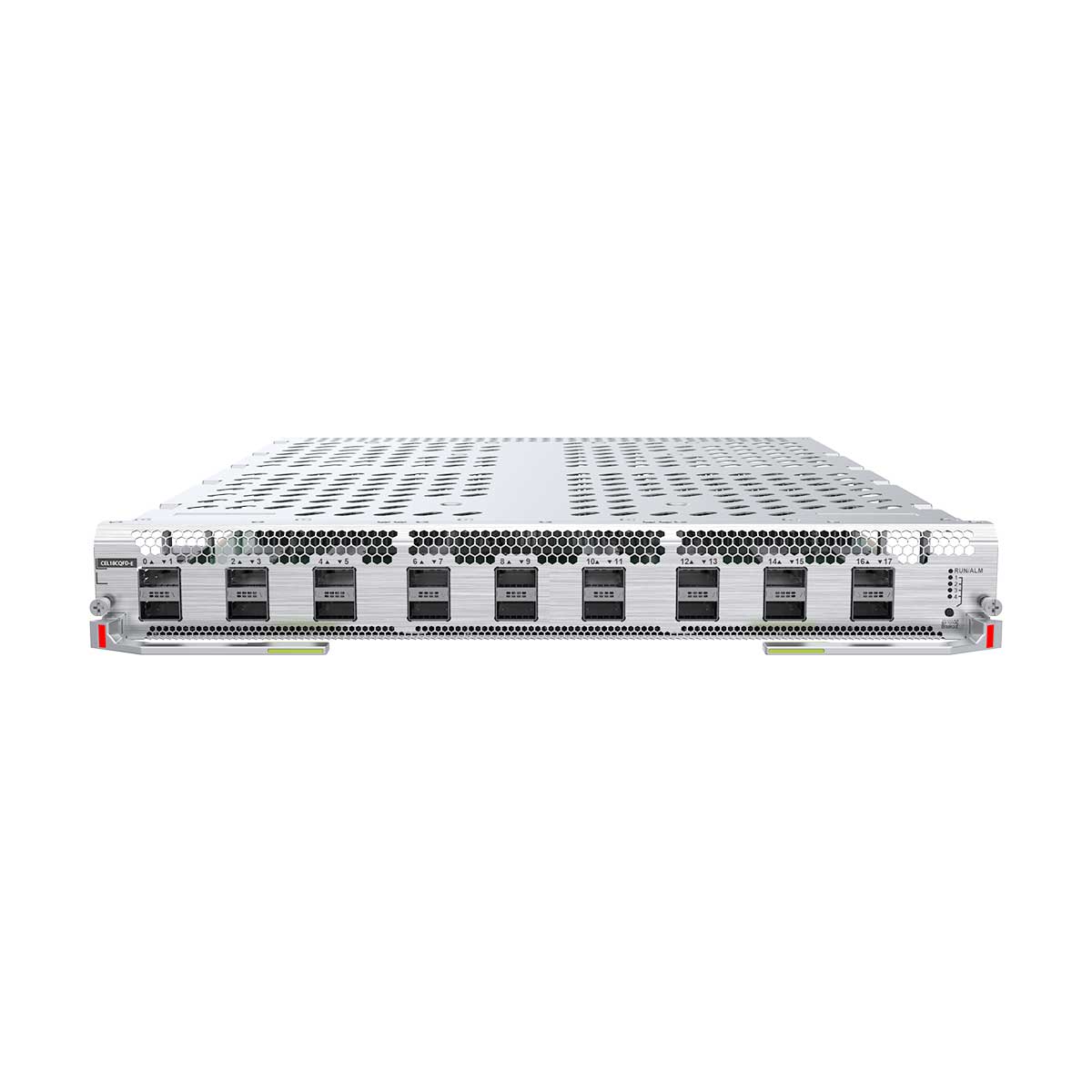

Huawei CE16800 Series CEL18CQFD-E 18-port 100GE interface card (FD-E, QSFP28)
| Item | CEL18CQFD-E |
|---|---|
| Description | 18-port 100GE interface card (FD-E, QSFP28) |
| Part Number | 03050DNH |
| Model | CEL18CQFD-E |
| Silkscreen | CEL18CQFD-E |
| Card Type | Interface Card |

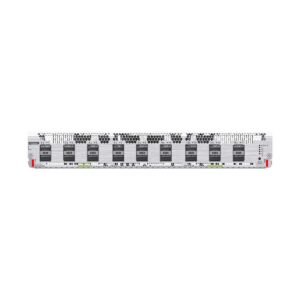

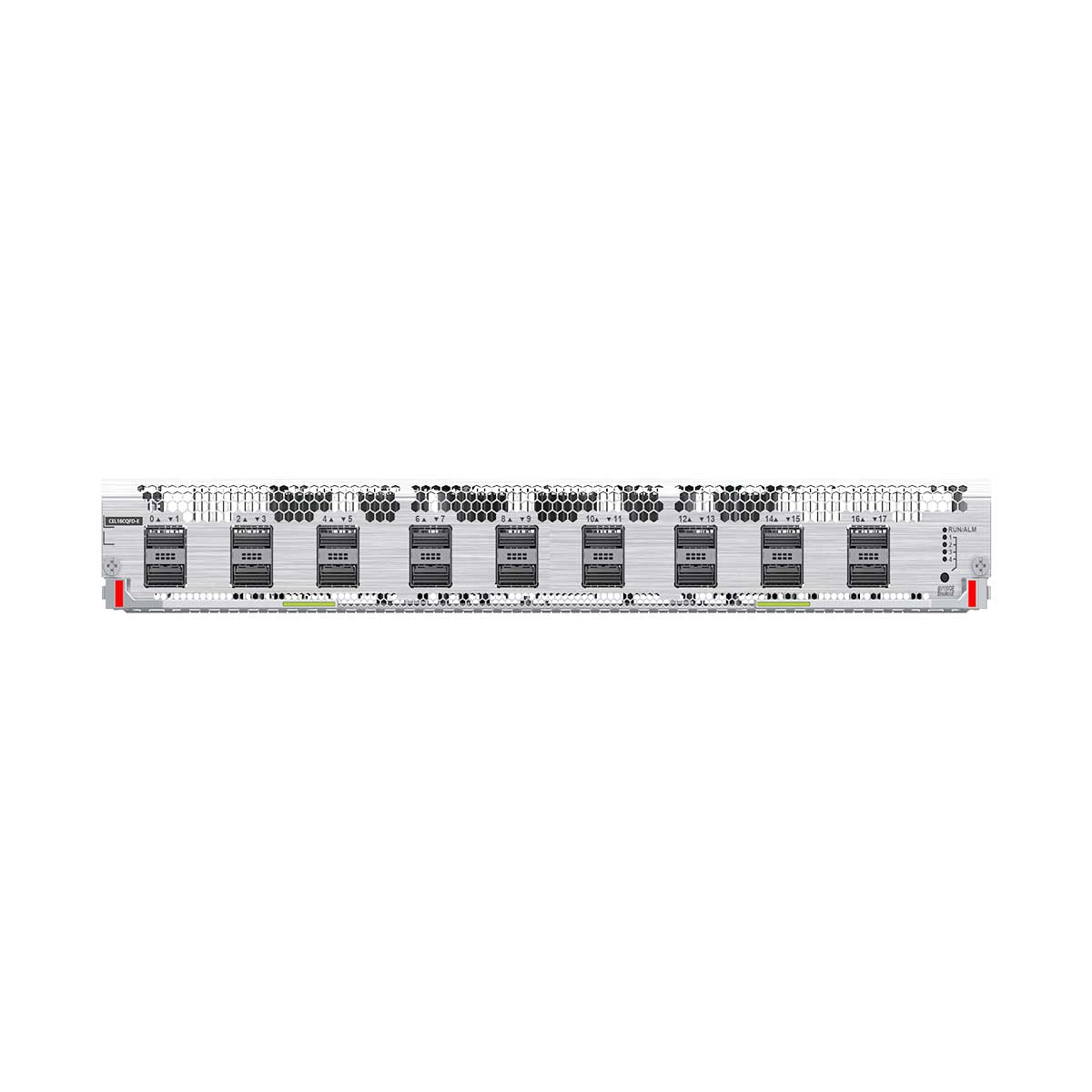

Panel on the CloudEngine CEL18CQFD-E
| 1. Eighteen 100GE optical ports |
Ports on the CEL18CQFD-E
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 18 x 100GE optical ports | QSFP28/QSFP+ | Port for inputting and outputting 100GE/40GE optical signals |
|
| Item | CEL18CQFD-E |
|---|---|
| Basic function | The card provides data packet processing and traffic management on 18 100GE optical ports, which can be used as 18 40GE optical ports or split into 72 25GE or 72 10GE optical ports. |
| Maximum port density | If all LPUs are such cards:
|
| 100GE port | 100GE ports on the card support QSFP28 and QSFP+ optical modules. A 100GE port can be used as a 40GE port through auto-sensing, or split into four 25GE or four 10GE ports. That is, a card can provide a maximum port density of 18 x 40GE, 72 x 25GE, or 72 x 10GE. All the 18 100GE ports are independent, and each port can be used as a 40GE port through auto-sensing, or split into four 25GE or four 10GE ports. |
| Hot swapping | Supported |
| Typical power consumption [W] | 251 W |
| Typical heat dissipation [BTU/hour] | 857 BTU/hour |
| Static power consumption [W] | 150 W |
| Static heat dissipation [BTU/hour] | 512 BTU/hour |
| Maximum power consumption [W] | 388 W |
| Maximum heat dissipation [BTU/hour] | 1325 BTU/hour |
| CPU | Quad-core, 1.4 GHz clock speed |
| Memory | Standard 4 GB |
| Dimensions without packaging (H x W x D) [mm (in.)] | 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.) |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.) |
| Weight without packaging [kg (lb)] | 7.6 kg (16.76 lb) |
| Weight with packaging [kg (lb)] | 12.5 kg (27.56 lb) |
| Brand | Huawei |
|---|
| Item | CEL18CQFD-E |
|---|---|
| Basic function | The card provides data packet processing and traffic management on 18 100GE optical ports, which can be used as 18 40GE optical ports or split into 72 25GE or 72 10GE optical ports. |
| Maximum port density | If all LPUs are such cards:
|
| 100GE port | 100GE ports on the card support QSFP28 and QSFP+ optical modules. A 100GE port can be used as a 40GE port through auto-sensing, or split into four 25GE or four 10GE ports. That is, a card can provide a maximum port density of 18 x 40GE, 72 x 25GE, or 72 x 10GE. All the 18 100GE ports are independent, and each port can be used as a 40GE port through auto-sensing, or split into four 25GE or four 10GE ports. |
| Hot swapping | Supported |
| Typical power consumption [W] | 251 W |
| Typical heat dissipation [BTU/hour] | 857 BTU/hour |
| Static power consumption [W] | 150 W |
| Static heat dissipation [BTU/hour] | 512 BTU/hour |
| Maximum power consumption [W] | 388 W |
| Maximum heat dissipation [BTU/hour] | 1325 BTU/hour |
| CPU | Quad-core, 1.4 GHz clock speed |
| Memory | Standard 4 GB |
| Dimensions without packaging (H x W x D) [mm (in.)] | 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.) |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.) |
| Weight without packaging [kg (lb)] | 7.6 kg (16.76 lb) |
| Weight with packaging [kg (lb)] | 12.5 kg (27.56 lb) |
