CE9860-4C-EI-A

0 Reviews Write a review

PN02355FEA

AvailabilityIn Stock

WarrantyUp to 36 months

CE9860-4C-EI-A Huawei CE9800 switch supports 4*subcard slots, without fan and power modules

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE9860-4C-EI-A overview

CE9860-4C-EI-A Huawei CE9800 switch supports 4*subcard slots, without fan and power modules

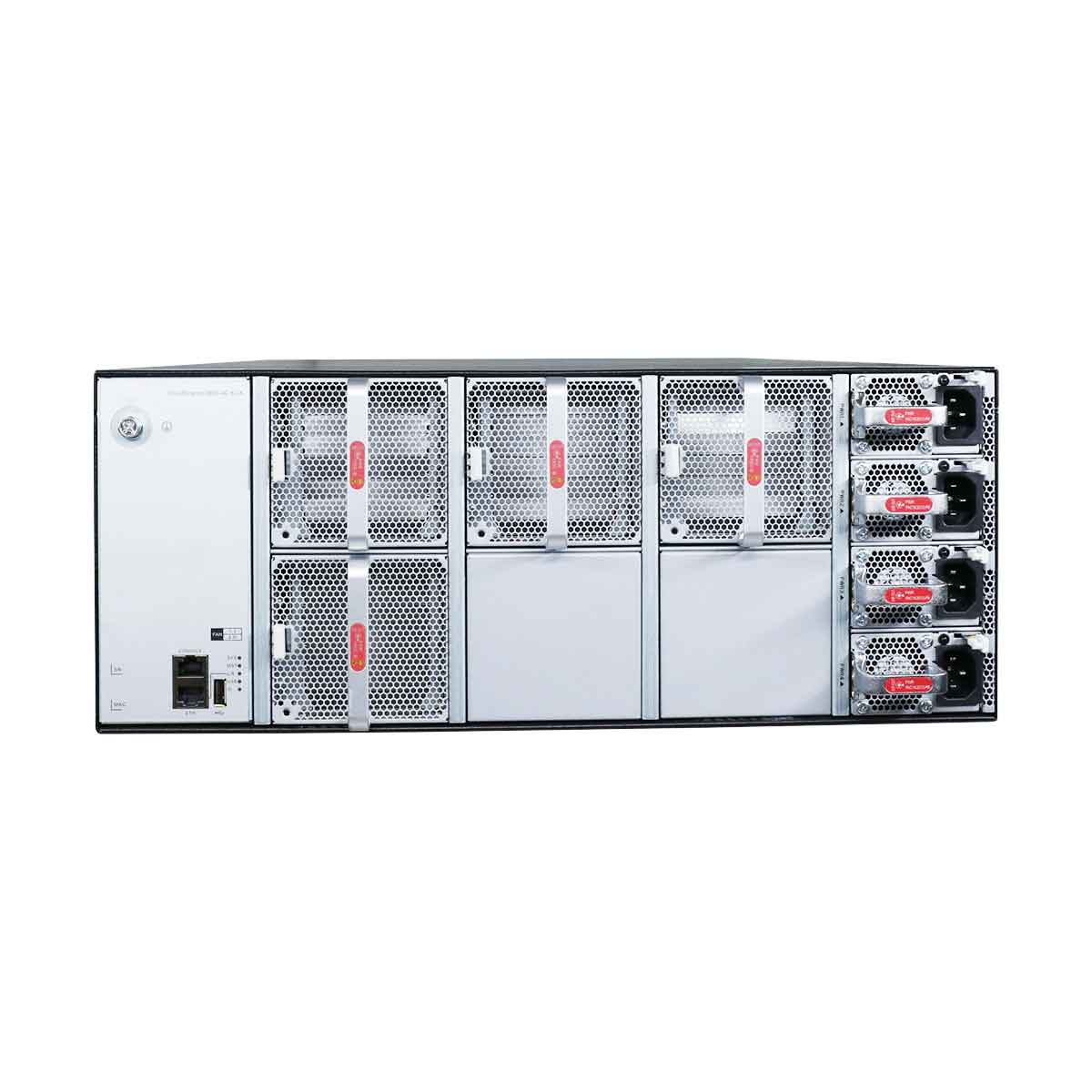

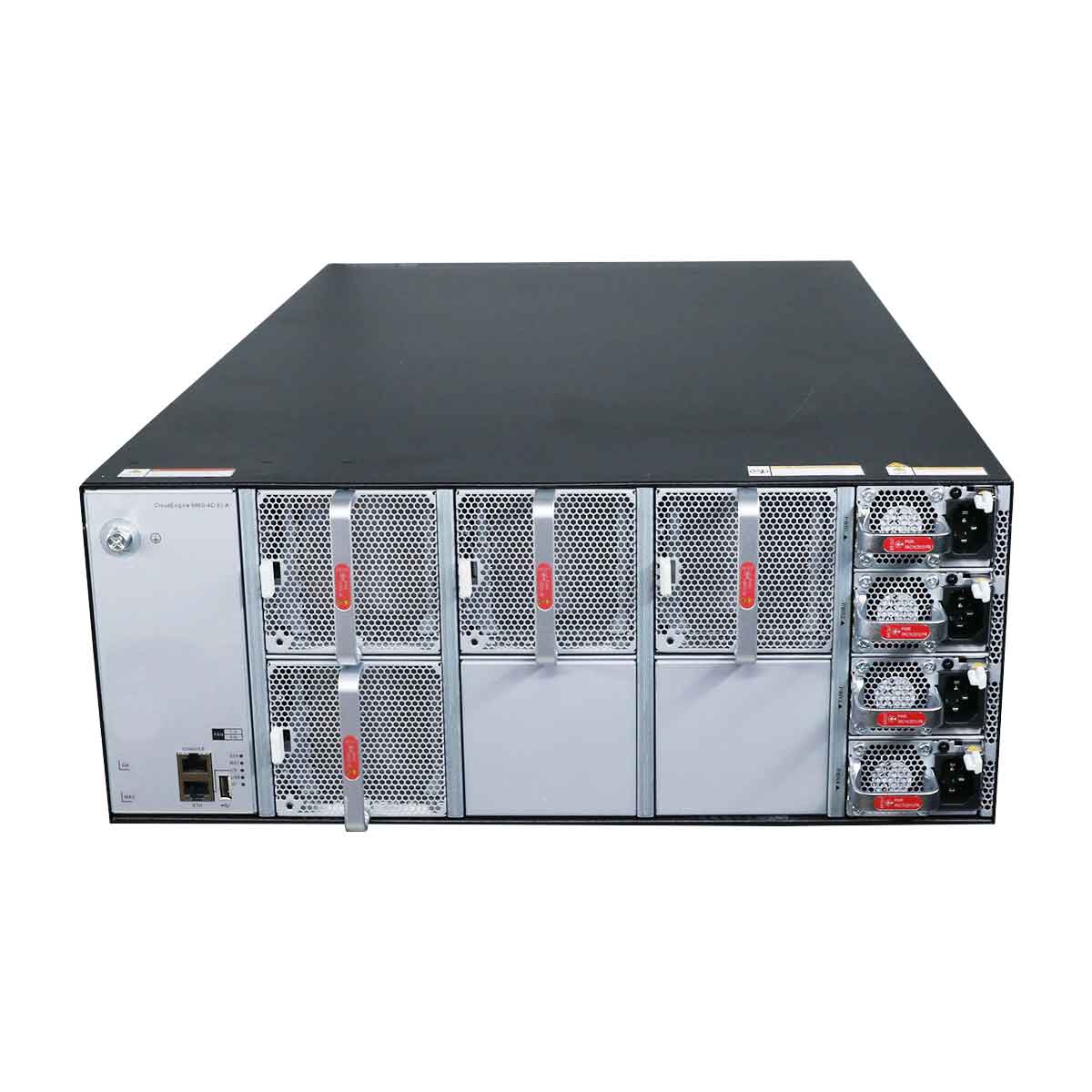

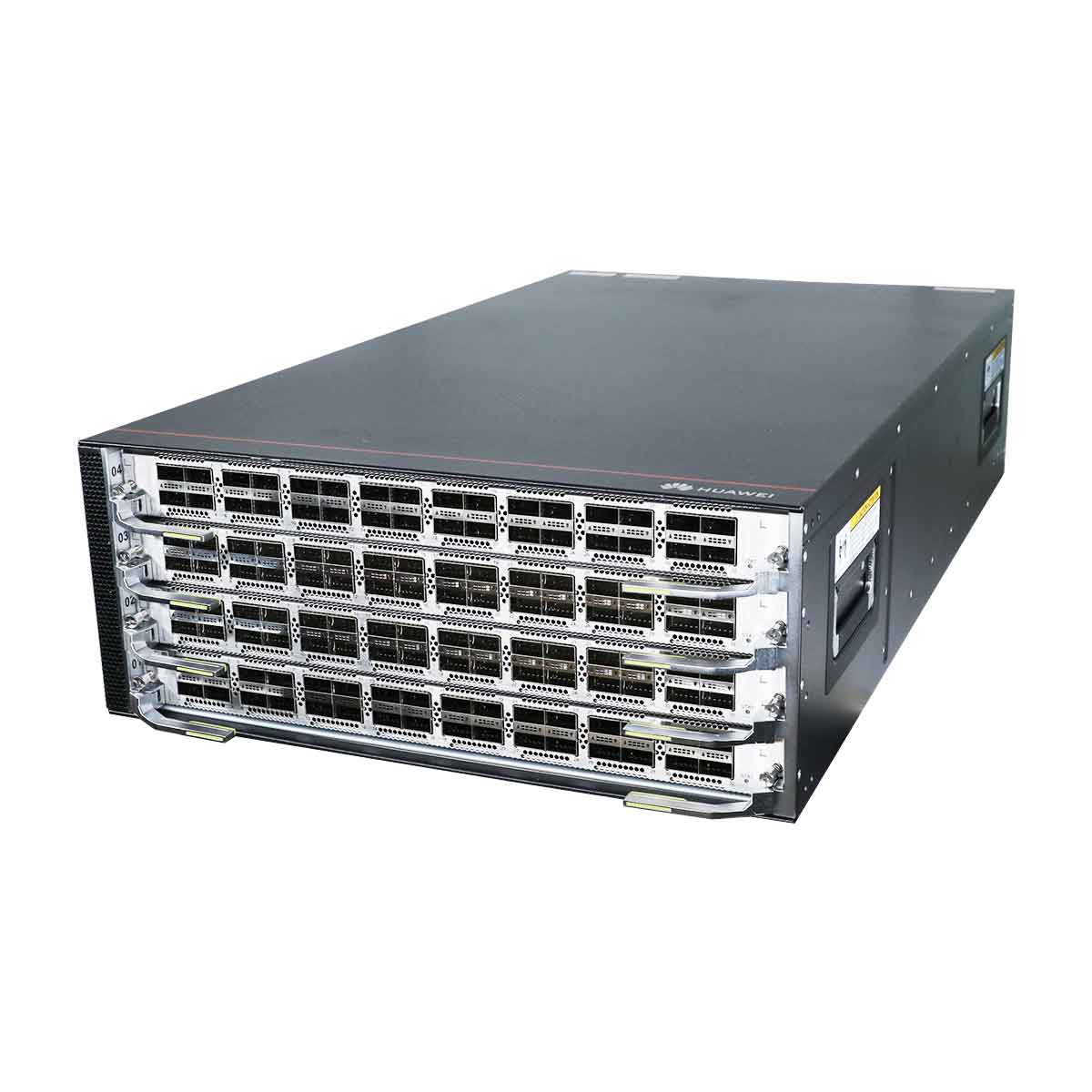

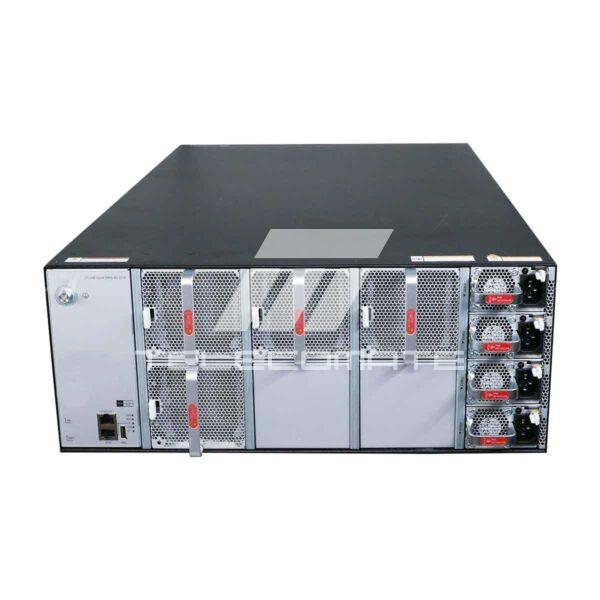

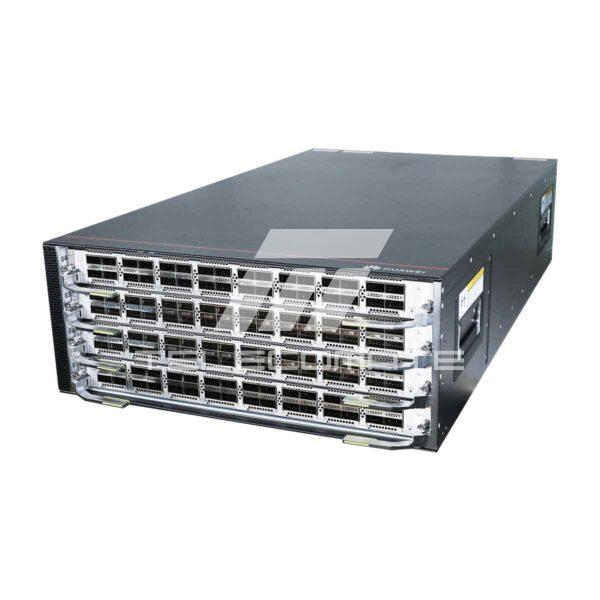

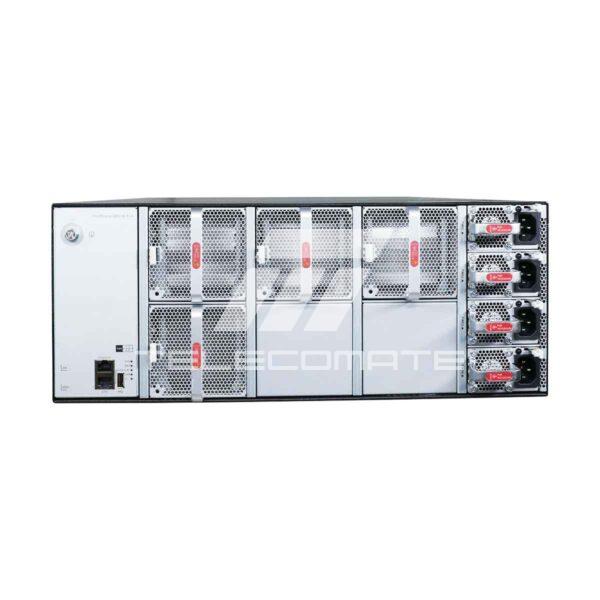

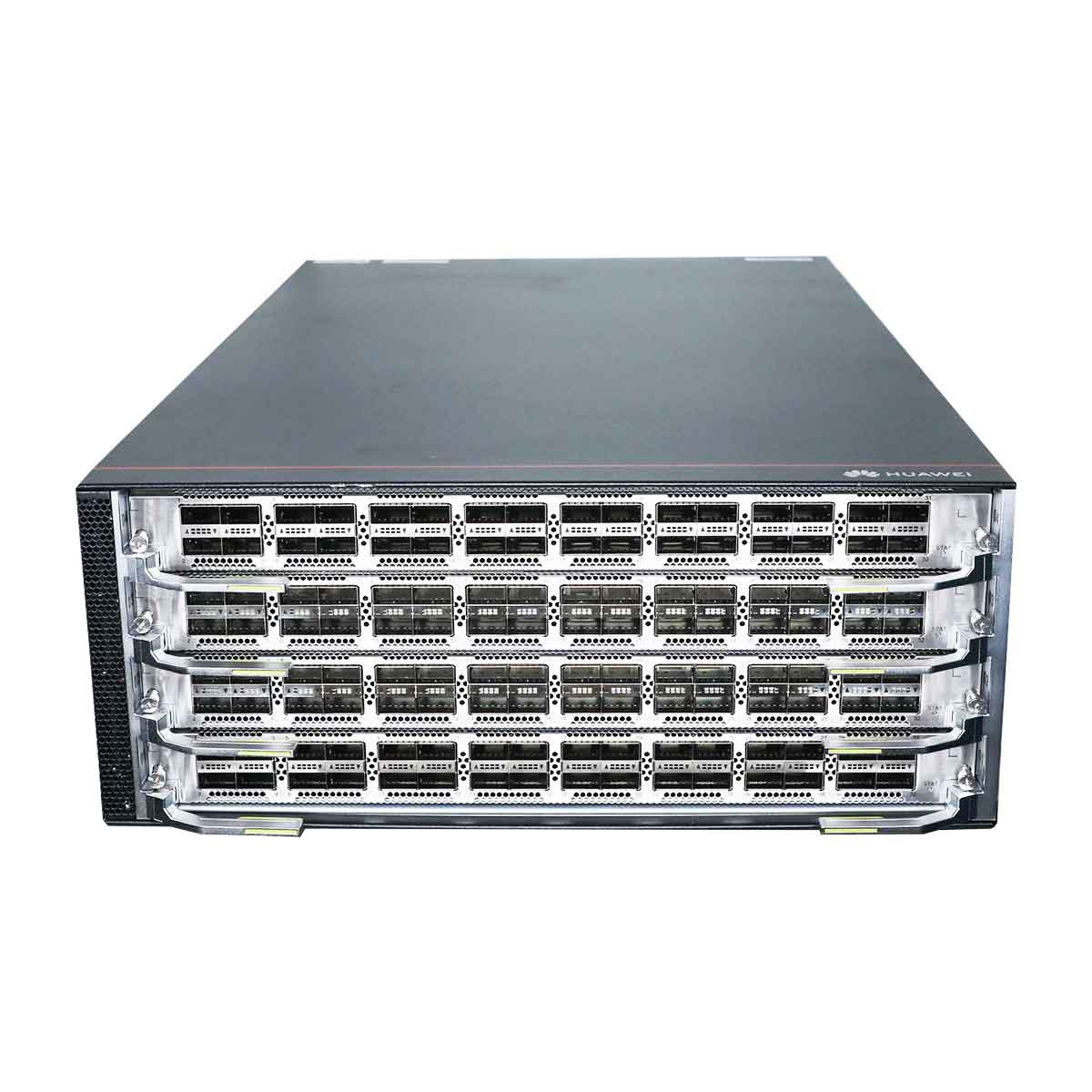

CE9860-4C-EI-A appearance

1	Ground screw	2	SN and MAC address label
3	Console port	4	ETH management port (RJ45)
5	USB 2.0 port	6	Fan slot 1 Applicable fan modules: FAN-180C series fan modules
7	Fan slot 2 Applicable fan modules: FAN-180C series fan modules	8	Fan slot 3 Applicable fan modules: FAN-180C series fan modules
9	Fan slot 4 Applicable fan modules: FAN-180C series fan modules	10	Power supply slot 1 Applicable power modules: 1200 W AC&240 V DC power module 1200 W DC Power Module
11	Power supply slot 2 Applicable power modules: 1200 W AC&240 V DC power module 1200 W DC Power Module	12	Power supply slot 3 Applicable power modules: 1200 W AC&240 V DC power module 1200 W DC Power Module
13	Power supply slot 4 Applicable power modules: 1200 W AC&240 V DC power module 1200 W DC Power Module	14	Card slot 1 Applicable cards: CE98-D8DQ CE98-D32CQ-A CE98-D32CQ-F (0302058698) CE98-D32CQ-F (03035LSP) CE98-D8DQ-F (0302058699) CE98-D8DQ-F (03035LSN)
15	Card slot 2 Applicable cards: CE98-D8DQ CE98-D32CQ-A CE98-D32CQ-F (0302058698) CE98-D32CQ-F (03035LSP) CE98-D8DQ-F (0302058699) CE98-D8DQ-F (03035LSN)	16	Card slot 3 Applicable cards: CE98-D8DQ CE98-D32CQ-A CE98-D32CQ-F (0302058698) CE98-D32CQ-F (03035LSP) CE98-D8DQ-F (0302058699) CE98-D8DQ-F (03035LSN)
17	Card slot 4 Applicable cards: CE98-D8DQ CE98-D32CQ-A CE98-D32CQ-F (0302058698) CE98-D32CQ-F (03035LSP) CE98-D8DQ-F (0302058699) CE98-D8DQ-F (03035LSN)

Item	CE9860-4C-EI-A
Chassis height [U]	4 U
Installation Type	Cabinet installation
Switching capacity	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU	16-core, 2 GHz
Memory	DRAM: 16 GB
NOR Flash	64 MB x 2
SSD Flash	8 GB
USB	Supported
Power supply mode	AC DC HVDC
Console port	RJ45
Downlink Service interface	The device does not have fixed ports and provides four card slots. Currently, the device supports the following cards: CE98-D32CQ-A: 32 x 100GE QSFP28 1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s. 2. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on M-LAG peer-link ports. 3. In versions earlier than V200R023C00, a 100GE QSFP28 port cannot be split. In V200R023C00 and later versions, a 100GE QSFP28 port can be split into 4 x 25GE and 4 x 10GE ports. Ports 1, 5, 9, 13, 17, 21, 25, and 29 on each card can be split into 4 x 25GE ports and 4 x 10GE ports. After the split, the three ports after each of the following ports are deleted: 1, 5, 9, 13, 17, 21, 25, and 29. (For example, if port 1 is split, ports 2, 3, and 4 are deleted.) Only ports with optical modules can be split, and ports with copper cables cannot be split. If a 100GE port is split into 4 x 25GE ports, the rate of the ports is 25 Gbit/s after the split and cannot be auto-negotiated to 10 Gbit/s, and the port mode 10g and port mode ge commands cannot be configured. If a 40GE port is split, the rate of the ports is 10 Gbit/s after the split. CE98-D8DQ: 8 x 400GE QSFP-DD In V200R021C00, such ports can only work at 400 Gbit/s, cannot be used as 200GE, 100GE, or 40GE ports, and cannot be split (for example, 4 x 100GE/2 x 200GE/2 x 100GE/2 x 40GE/8 x 50GE/8 x 25GE/8 x 10GE/4 x 50GE/4 x 25GE/4 x 10GE ports). Auto-negotiation of 400GE copper cables is not supported and such cables can be used only for peer-link. In V200R021C10 and later versions, 400GE ports can be dynamically split into 2 x 200GE ports through 2 x 200GE AOCs and 2.5 m copper cables. By default, negotiation is disabled and cannot be enabled for copper cables. If an unsupported module is inserted into such a port, the system displays a message indicating a medium mismatch. In V200R023C00 and later versions, 400GE ports can be dynamically split into 2 x 200GE ports by using 400G-SR8 optical modules. In V200R023C10 and later versions, the CE9860-4C-EI-A supports the CE98-D32CQ-F and CE98-D8DQ-F cards. CE98-D32CQ-F: 32 x 100GE QSFP28 1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s. 2. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on M-LAG peer-link ports. 3. A 100GE QSFP28 port can be split into 4 x 25GE and 4 x 10GE ports. Ports 1, 5, 9, 13, 17, 21, 25, and 29 on each card can be split into 4 x 25GE ports and 4 x 10GE ports. After the split, the three ports after each of the following ports are deleted: 1, 5, 9, 13, 17, 21, 25, and 29. (For example, if port 1 is split, ports 2, 3, and 4 are deleted.) Only ports with optical modules can be split, and ports with copper cables cannot be split. If a 100GE port is split into 4 x 25GE ports, the rate of the ports is 25 Gbit/s after the split and cannot be auto-negotiated to 10 Gbit/s, and the port mode 10g and port mode ge commands cannot be configured. If a 40GE port is split, the rate of the ports is 10 Gbit/s after the split. CE98-D8DQ-F: 8 x 400GE QSFP-DD 1. Such ports can only work at the rate of 400 Gbit/s and cannot be configured as 200GE/100GE/40GE ports. Auto-negotiation of 400GE copper cables is not supported and such cables can be used only for peer-link. 2. A 400GE port can be dynamically split into 2 x 200GE ports through 2 x 200GE AOCs and 2.5 m copper cables but cannot be split into 4 x 100GE, 2 x 100GE, 2 x 40GE, 8 x 50GE, 8 x 25GE, 8 x 10GE, 4 x 50GE, 4 x 25GE, or 4 x 10GE ports. By default, negotiation is disabled and cannot be enabled for copper cables. If an unsupported module is inserted into such a port, the system displays a message indicating a medium mismatch. 400G-SR8 optical modules can be used to dynamically split a 400GE port into 2 x 200GE ports.
Service port supporting the stack function	Not supported
RTC	Supported
Typical power consumption [W]	Configured with four CE98-D32CQ-A cards: 1291 W (100% traffic load, short-distance 100GE optical modules on 64 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 953 W (100% traffic load, short-distance 400GE optical modules on 16 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 1313 W (100% traffic load, short-distance 100GE optical modules on 64 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 961 W (100% traffic load, short-distance 400GE optical modules on 16 ports, normal temperature, fully configured with AC power modules)
Typical heat dissipation [BTU/hour]	Configured with four CE98-D32CQ-A cards: 4405 BTU/hour (100% traffic load, short-distance 100GE optical modules on 64 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 3252 BTU/hour (100% traffic load, short-distance 400GE optical modules on 16 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 4480 BTU/hour (100% traffic load, short-distance 100GE optical modules on 64 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 3279 BTU/hour (100% traffic load, short-distance 400GE optical modules on 16 ports, normal temperature, fully configured with AC power modules)
Static power consumption [W]	Configured with four CE98-D32CQ-A cards: 900 W Configured with four CE98-D8DQ cards: 621 W Configured with four CE98-D32CQ-F cards: 807 W Configured with four CE98-D8DQ-F cards: 712 W
Static heat dissipation [BTU/hour]	Configured with four CE98-D32CQ-A cards: 3071 BTU/hour Configured with four CE98-D8DQ cards: 2119 BTU/hour Configured with four CE98-D32CQ-F cards: 2754 BTU/hour Configured with four CE98-D8DQ-F cards: 2429 BTU/hour
Maximum power consumption [W]	Configured with four CE98-D32CQ-A cards: 1833 W (100% traffic load, short-distance 100GE optical modules on 128 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 1261 W (100% traffic load, short-distance 400GE optical modules on 32 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-A cards: 2253 W (100% traffic load, long-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 1677 W (100% traffic load, long-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 1838 W (100% traffic load, short-distance 100GE optical modules on 128 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 1321 W (100% traffic load, short-distance 400GE optical modules on 32 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 2295 W (100% traffic load, long-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 1753 W (100% traffic load, long-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules)
Maximum heat dissipation [BTU/hour]	Configured with four CE98-D32CQ-A cards: 6254 BTU/hour (100% traffic load, short-distance 100GE optical modules on 128 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 4303 BTU/hour (100% traffic load, short-distance 400GE optical modules on 32 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-A cards: 7688 BTU/hour (100% traffic load, long-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 5722 BTU/hour (100% traffic load, long-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 6272 BTU/hour (100% traffic load, short-distance 100GE optical modules on 128 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 4507 BTU/hour (100% traffic load, short-distance 400GE optical modules on 32 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 7831 BTU/hour (100% traffic load, long-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 5981 BTU/hour (100% traffic load, long-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules)
Number of power modules	4
Redundant power supply	2+2 backup
Rated input voltage [V]	1200 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1200 W DC power module: –48 V DC: –48 V DC to –60 V DC; +48 V DC: +40 V DC to +57 V DC
Input voltage range [V]	1200 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC 1200 W DC power module: -48 V DC: -38.4 V DC to -72 V DC; +48 V DC: +38.4 V DC to +60 V DC
Maximum input current [A]	1200 W AC&240 V DC power module: 10 A (100 V AC to 130 V AC); 8 A (200 V AC to 240 V AC); 8 A (240 V DC) 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC)
Rated output power [W]	1200 W AC&240 V DC power module: 1200 W 1200 W DC power module: 1200 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Back-to-front airflow: Air flows into the chassis from the port side and flows out from the power supply side.
Availability	0.999997861
MTBF [year]	42.79 years
MTTR [hour]	1.73 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Back-to-front airflow: < 66 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Back-to-front airflow: < 81 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	370 mm x 635 mm x 1025 mm (14.57 in. x 25.00 in. x 40.35 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 175 mm x 442 mm x 765 mm (6.89 in. x 17.40 in. x 30.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 175 mm x 442 mm x 817.5 mm (6.89 in. x 17.40 in. x 32.19 in.)
Weight without packaging [kg (lb)]	26.9 kg (59.30 lb) (excluding fan modules, power modules, and cards)
Weight without packaging (full configuration) [kg (lb)]	43.2 kg (95.24 lb) (with four power modules, four fan modules, and four cards) 33.04 kg (72.84 lb) (with four power modules and four fan modules)
Weight with packaging [kg (lb)]	51.9 kg (114.42 lb) (excluding fan modules, power modules, and cards)
Weight with packaging (full configuration) [kg (lb)]	68.2 kg (150.36 lb) (with four power modules, four fan modules, and four cards) 58.04 kg (127.96 lb) (with four power modules and four fan modules)

Item	CE9860-4C-EI-A
Chassis height [U]	4 U
Installation Type	Cabinet installation
Switching capacity	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU	16-core, 2 GHz
Memory	DRAM: 16 GB
NOR Flash	64 MB x 2
SSD Flash	8 GB
USB	Supported
Power supply mode	AC DC HVDC
Console port	RJ45
Downlink Service interface	The device does not have fixed ports and provides four card slots. Currently, the device supports the following cards: CE98-D32CQ-A: 32 x 100GE QSFP28 1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s. 2. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on M-LAG peer-link ports. 3. In versions earlier than V200R023C00, a 100GE QSFP28 port cannot be split. In V200R023C00 and later versions, a 100GE QSFP28 port can be split into 4 x 25GE and 4 x 10GE ports. Ports 1, 5, 9, 13, 17, 21, 25, and 29 on each card can be split into 4 x 25GE ports and 4 x 10GE ports. After the split, the three ports after each of the following ports are deleted: 1, 5, 9, 13, 17, 21, 25, and 29. (For example, if port 1 is split, ports 2, 3, and 4 are deleted.) Only ports with optical modules can be split, and ports with copper cables cannot be split. If a 100GE port is split into 4 x 25GE ports, the rate of the ports is 25 Gbit/s after the split and cannot be auto-negotiated to 10 Gbit/s, and the port mode 10g and port mode ge commands cannot be configured. If a 40GE port is split, the rate of the ports is 10 Gbit/s after the split. CE98-D8DQ: 8 x 400GE QSFP-DD In V200R021C00, such ports can only work at 400 Gbit/s, cannot be used as 200GE, 100GE, or 40GE ports, and cannot be split (for example, 4 x 100GE/2 x 200GE/2 x 100GE/2 x 40GE/8 x 50GE/8 x 25GE/8 x 10GE/4 x 50GE/4 x 25GE/4 x 10GE ports). Auto-negotiation of 400GE copper cables is not supported and such cables can be used only for peer-link. In V200R021C10 and later versions, 400GE ports can be dynamically split into 2 x 200GE ports through 2 x 200GE AOCs and 2.5 m copper cables. By default, negotiation is disabled and cannot be enabled for copper cables. If an unsupported module is inserted into such a port, the system displays a message indicating a medium mismatch. In V200R023C00 and later versions, 400GE ports can be dynamically split into 2 x 200GE ports by using 400G-SR8 optical modules. In V200R023C10 and later versions, the CE9860-4C-EI-A supports the CE98-D32CQ-F and CE98-D8DQ-F cards. CE98-D32CQ-F: 32 x 100GE QSFP28 1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s. 2. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on M-LAG peer-link ports. 3. A 100GE QSFP28 port can be split into 4 x 25GE and 4 x 10GE ports. Ports 1, 5, 9, 13, 17, 21, 25, and 29 on each card can be split into 4 x 25GE ports and 4 x 10GE ports. After the split, the three ports after each of the following ports are deleted: 1, 5, 9, 13, 17, 21, 25, and 29. (For example, if port 1 is split, ports 2, 3, and 4 are deleted.) Only ports with optical modules can be split, and ports with copper cables cannot be split. If a 100GE port is split into 4 x 25GE ports, the rate of the ports is 25 Gbit/s after the split and cannot be auto-negotiated to 10 Gbit/s, and the port mode 10g and port mode ge commands cannot be configured. If a 40GE port is split, the rate of the ports is 10 Gbit/s after the split. CE98-D8DQ-F: 8 x 400GE QSFP-DD 1. Such ports can only work at the rate of 400 Gbit/s and cannot be configured as 200GE/100GE/40GE ports. Auto-negotiation of 400GE copper cables is not supported and such cables can be used only for peer-link. 2. A 400GE port can be dynamically split into 2 x 200GE ports through 2 x 200GE AOCs and 2.5 m copper cables but cannot be split into 4 x 100GE, 2 x 100GE, 2 x 40GE, 8 x 50GE, 8 x 25GE, 8 x 10GE, 4 x 50GE, 4 x 25GE, or 4 x 10GE ports. By default, negotiation is disabled and cannot be enabled for copper cables. If an unsupported module is inserted into such a port, the system displays a message indicating a medium mismatch. 400G-SR8 optical modules can be used to dynamically split a 400GE port into 2 x 200GE ports.
Service port supporting the stack function	Not supported
RTC	Supported
Typical power consumption [W]	Configured with four CE98-D32CQ-A cards: 1291 W (100% traffic load, short-distance 100GE optical modules on 64 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 953 W (100% traffic load, short-distance 400GE optical modules on 16 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 1313 W (100% traffic load, short-distance 100GE optical modules on 64 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 961 W (100% traffic load, short-distance 400GE optical modules on 16 ports, normal temperature, fully configured with AC power modules)
Typical heat dissipation [BTU/hour]	Configured with four CE98-D32CQ-A cards: 4405 BTU/hour (100% traffic load, short-distance 100GE optical modules on 64 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 3252 BTU/hour (100% traffic load, short-distance 400GE optical modules on 16 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 4480 BTU/hour (100% traffic load, short-distance 100GE optical modules on 64 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 3279 BTU/hour (100% traffic load, short-distance 400GE optical modules on 16 ports, normal temperature, fully configured with AC power modules)
Static power consumption [W]	Configured with four CE98-D32CQ-A cards: 900 W Configured with four CE98-D8DQ cards: 621 W Configured with four CE98-D32CQ-F cards: 807 W Configured with four CE98-D8DQ-F cards: 712 W
Static heat dissipation [BTU/hour]	Configured with four CE98-D32CQ-A cards: 3071 BTU/hour Configured with four CE98-D8DQ cards: 2119 BTU/hour Configured with four CE98-D32CQ-F cards: 2754 BTU/hour Configured with four CE98-D8DQ-F cards: 2429 BTU/hour
Maximum power consumption [W]	Configured with four CE98-D32CQ-A cards: 1833 W (100% traffic load, short-distance 100GE optical modules on 128 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 1261 W (100% traffic load, short-distance 400GE optical modules on 32 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-A cards: 2253 W (100% traffic load, long-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 1677 W (100% traffic load, long-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 1838 W (100% traffic load, short-distance 100GE optical modules on 128 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 1321 W (100% traffic load, short-distance 400GE optical modules on 32 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 2295 W (100% traffic load, long-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 1753 W (100% traffic load, long-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules)
Maximum heat dissipation [BTU/hour]	Configured with four CE98-D32CQ-A cards: 6254 BTU/hour (100% traffic load, short-distance 100GE optical modules on 128 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 4303 BTU/hour (100% traffic load, short-distance 400GE optical modules on 32 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-A cards: 7688 BTU/hour (100% traffic load, long-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 5722 BTU/hour (100% traffic load, long-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 6272 BTU/hour (100% traffic load, short-distance 100GE optical modules on 128 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 4507 BTU/hour (100% traffic load, short-distance 400GE optical modules on 32 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 7831 BTU/hour (100% traffic load, long-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 5981 BTU/hour (100% traffic load, long-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules)
Number of power modules	4
Redundant power supply	2+2 backup
Rated input voltage [V]	1200 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1200 W DC power module: –48 V DC: –48 V DC to –60 V DC; +48 V DC: +40 V DC to +57 V DC
Input voltage range [V]	1200 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC 1200 W DC power module: -48 V DC: -38.4 V DC to -72 V DC; +48 V DC: +38.4 V DC to +60 V DC
Maximum input current [A]	1200 W AC&240 V DC power module: 10 A (100 V AC to 130 V AC); 8 A (200 V AC to 240 V AC); 8 A (240 V DC) 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC)
Rated output power [W]	1200 W AC&240 V DC power module: 1200 W 1200 W DC power module: 1200 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Back-to-front airflow: Air flows into the chassis from the port side and flows out from the power supply side.
Availability	0.999997861
MTBF [year]	42.79 years
MTTR [hour]	1.73 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Back-to-front airflow: < 66 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Back-to-front airflow: < 81 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	370 mm x 635 mm x 1025 mm (14.57 in. x 25.00 in. x 40.35 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 175 mm x 442 mm x 765 mm (6.89 in. x 17.40 in. x 30.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 175 mm x 442 mm x 817.5 mm (6.89 in. x 17.40 in. x 32.19 in.)
Weight without packaging [kg (lb)]	26.9 kg (59.30 lb) (excluding fan modules, power modules, and cards)
Weight without packaging (full configuration) [kg (lb)]	43.2 kg (95.24 lb) (with four power modules, four fan modules, and four cards) 33.04 kg (72.84 lb) (with four power modules and four fan modules)
Weight with packaging [kg (lb)]	51.9 kg (114.42 lb) (excluding fan modules, power modules, and cards)
Weight with packaging (full configuration) [kg (lb)]	68.2 kg (150.36 lb) (with four power modules, four fan modules, and four cards) 58.04 kg (127.96 lb) (with four power modules and four fan modules)
