CE9860-4C-EI

0 Reviews Write a review

SKU2008455

BrandsHuawei

AvailabilityIn Stock

CE Switch CE9800

WarrantyUp to 36 months

CE8868-4C-EI Huawei CE8800 switch supports 128*100GE QSFP28 ports

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

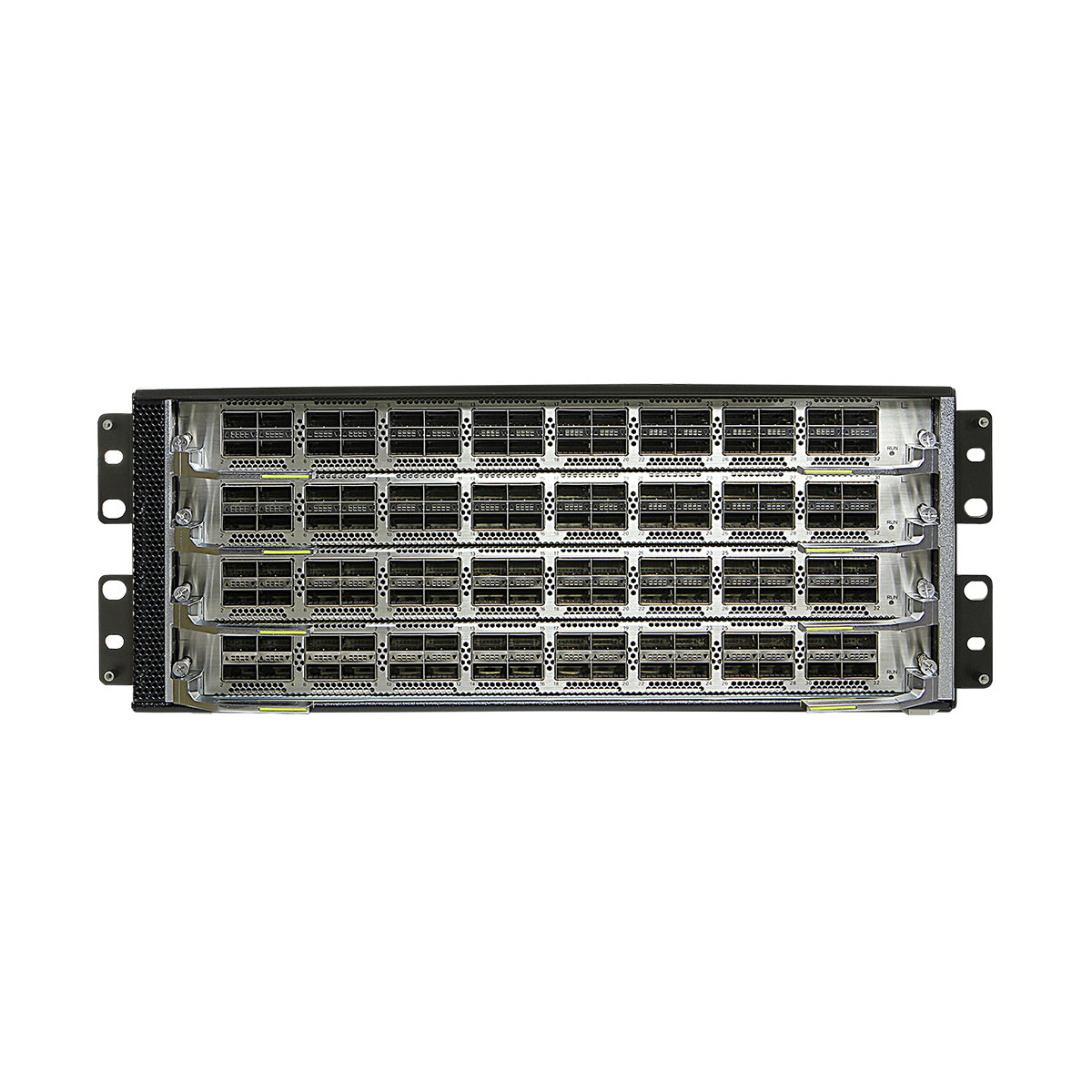

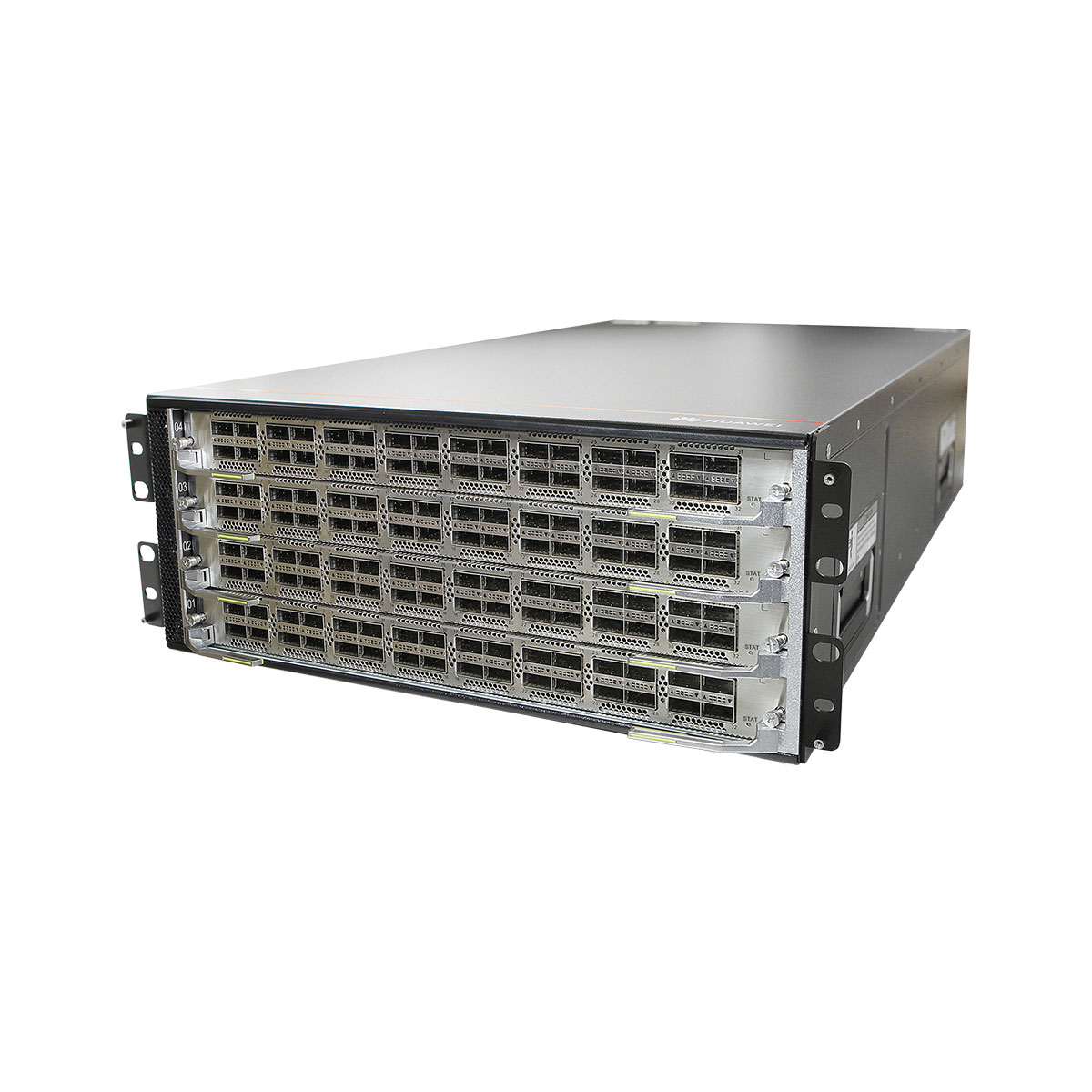

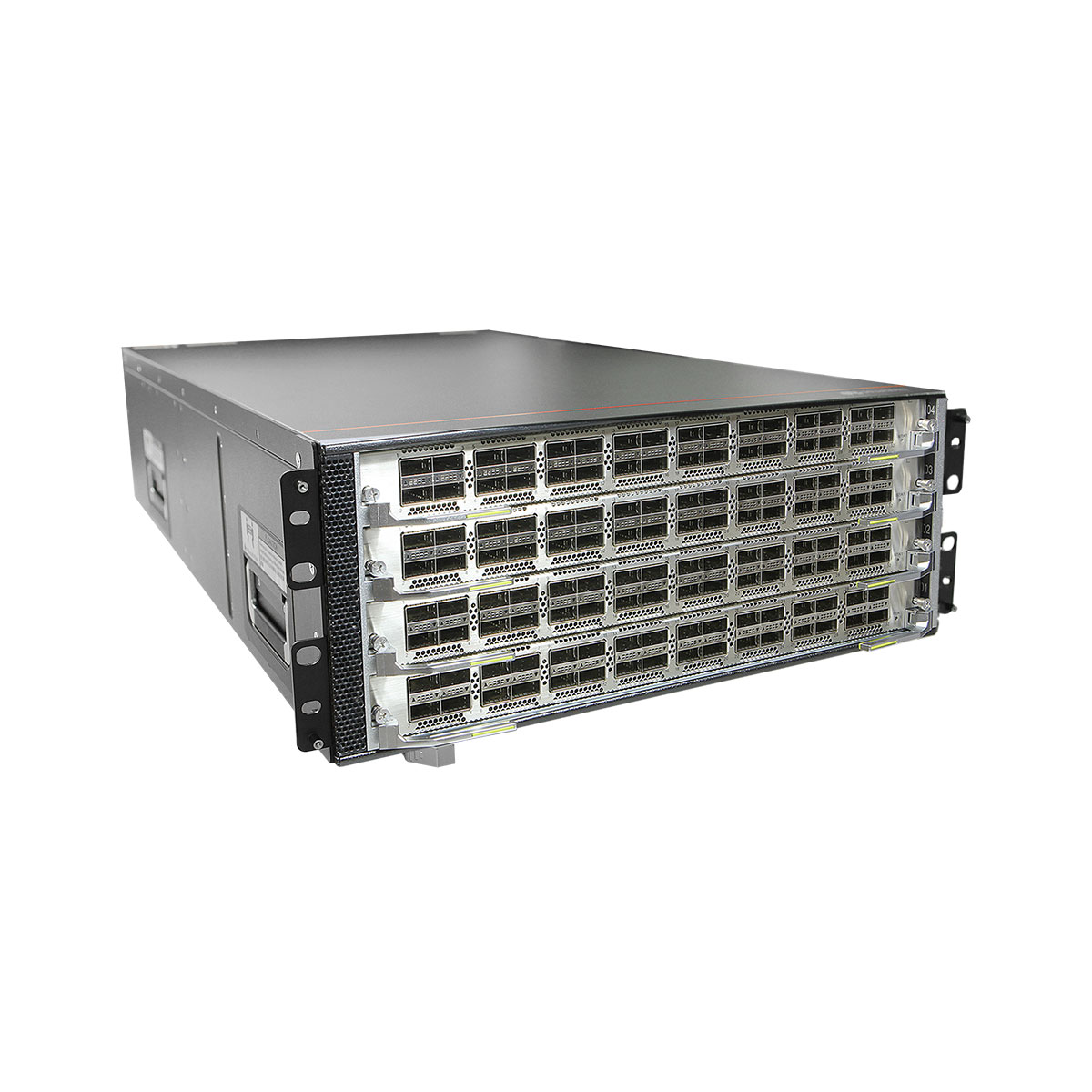

CE9860-4C-EI overview

CE8868-4C-EI Huawei CE8800 switch supports 128*100GE QSFP28 ports

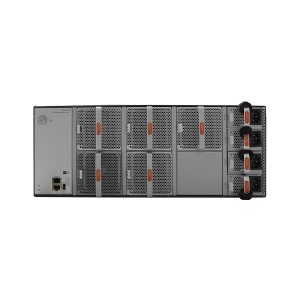

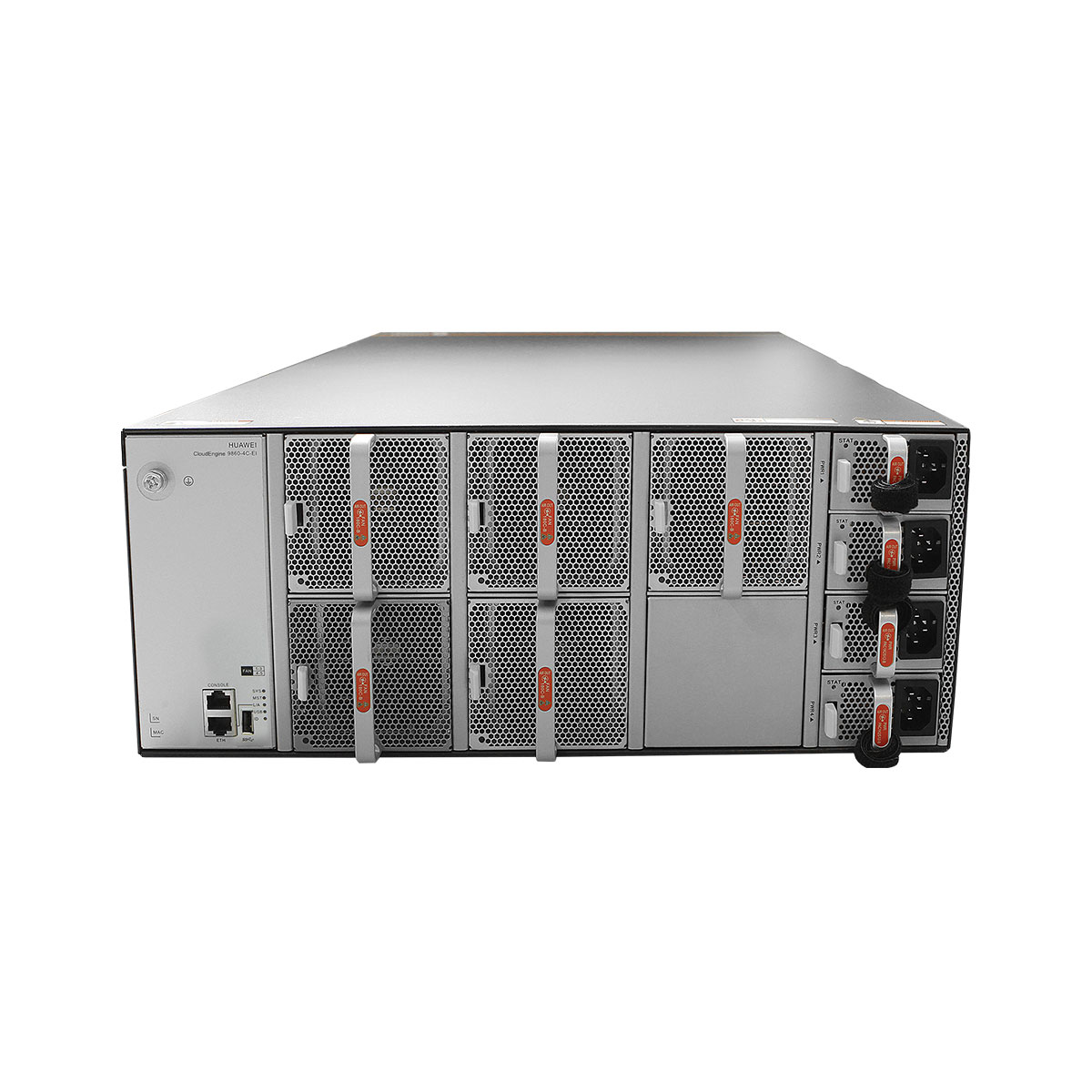

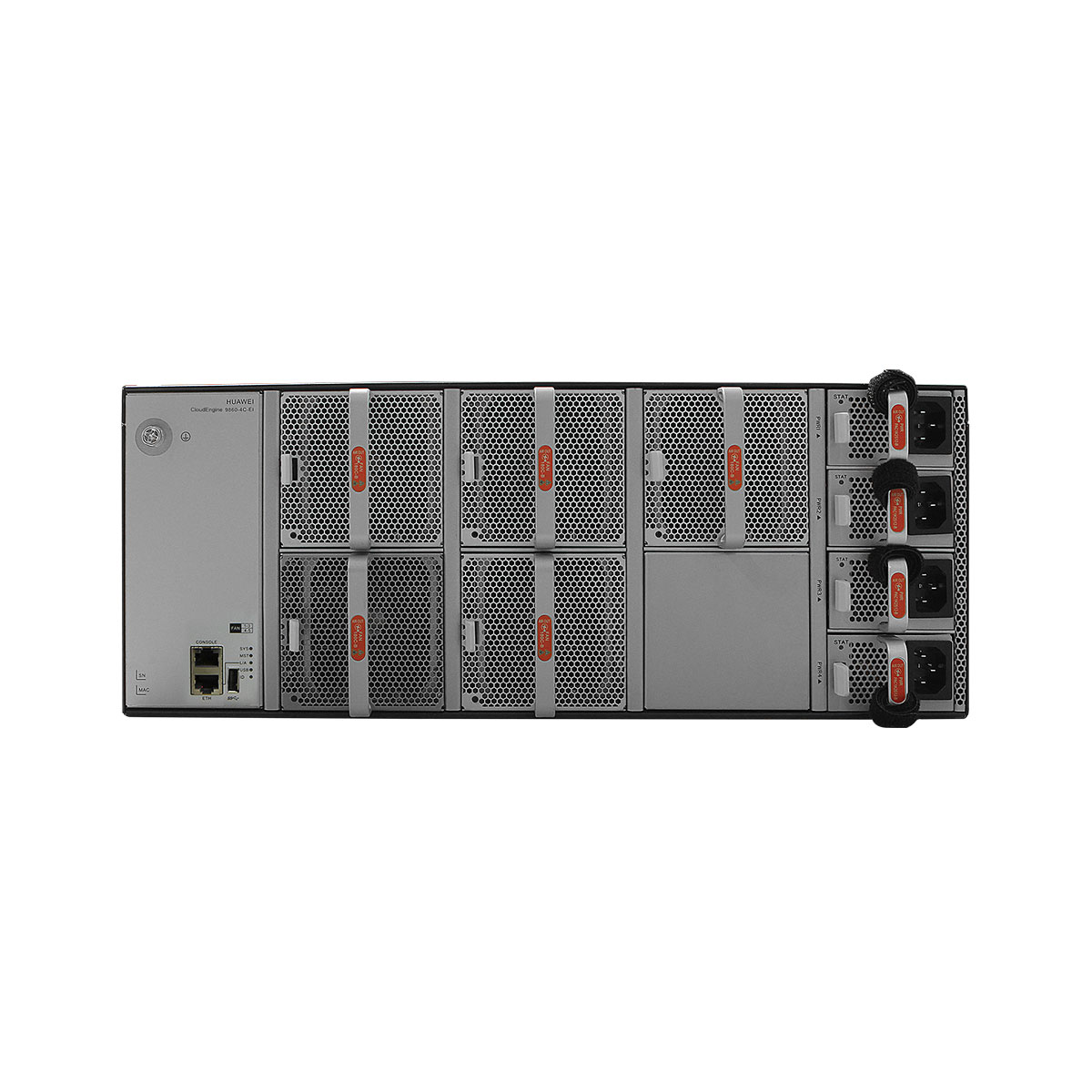

CE9860-4C-EI appearance

1	Ground screw	2	SN and MAC address label
3	Console port	4	ETH management port (RJ45)
5	USB 2.0 port	6	Fan slot 1
7	Fan slot 2	8	Fan slot 3
9	Fan slot 4	10	Fan slot 5
11	Power supply slot 1	12	Power supply slot 2
13	Power supply slot 3	14	Power supply slot 4
15	Card slot 1	16	Card slot 2
17	Card slot 3	18	Card slot 4
19	Mounting brackets	–	–

CE9860-4C-EI application

Device Series	Sub-series	Device Model	Short Name	Supported Version
CE9800	CE9860	CE9860-4C-EI	CE9860EI	V200R020C00 and later versions

Item	CE9860-4C-EI
Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity	5% RH to 95% RH, noncondensing
Altitude	< 5000 m (16404 ft.)
Noise (sound pressure, 27°C)	Back-to-front airflow: < 66 dBA
Power source type	AC/High-voltage DC
AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-voltage DC power input	Rated voltage of 240 V high-voltage DC power input: 240 V DC Maximum voltage range of 240 V high-voltage DC power input: 190 V DC to 290 V DC
Rated input current	1200 W AC&240 V DC power module (PAC1K2S12 series): 10 A (100 V AC to 130 V AC)/8 A (200 V AC to 240 V AC)/8 A (240 V DC)
Maximum power consumption	Configured with four CE98-D32CQ cards: 1627 W (70% of the full fan speed at an ambient temperature of 40°C) Configured with four CE98-D8DQ cards: 1717 W (full fan speed at an ambient temperature of 40°C)
Typical power consumption	Fully configured with four CE98-D32CQ cards: 1231 W (50% throughput, short-distance QSFP28 optical modules on 64 ports and long-distance QSFP28 optical modules on another 64 ports, two power modules) Configured with four CE98-D8DQ cards: 1289 W (50% throughput, short-distance QSFPDD optical modules on 32 ports, two power modules)
Static power consumption	Configured with four CE98-D32CQ cards: 377 W Configured with four CE98-D8DQ cards: 548 W
Maximum heat dissipation	Configured with four CE98-D32CQ cards: 5553 BTU/hour (70% of the full fan speed at an ambient temperature of 40°C) Configured with four CE98-D8DQ cards: 5861 BTU/hour (full fan speed at an ambient temperature of 40°C)
Typical heat dissipation	Fully configured with four CE98-D32CQ cards: 4202 BTU/hr (50% throughput, 64-port short-distance QSFP28 optical module and 64-port long-distance QSFP28 optical module, double power modules) Configured with four CE98-D8DQ cards: 4400 BTU/hr (50% throughput, short-distance QSFPDD optical modules on 32 ports, two power modules)
Static heat dissipation	Configured with four CE98-D32CQ cards: 1505 BTU/hour Configured with four CE98-D8DQ cards: 1871 BTU/hour
Surge protection	PAC1K2S12-B series power module: AC: 4 kV in common mode and 2.5 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode PAC1K2S12-CB series power module: AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode
Power module backup	2+2 backup
Fan module backup	Five fan modules, working in 4+1 backup mode when the temperature is below 35°C
Hot swap	Supported by all power modules and fan modules
Mean time between failures (MTBF)	21.91 years
Mean time to repair (MTTR)	3.43 hours
Availability	0.9999934738
Processor	2.2 GHz, 8-thread, four-core
DRAM memory	16 GB
NOR Flash	Two 32 MB flash memories
SSD Flash	64 GB
Physical specifications	Dimensions (H x W x D): 175.0 mm x 442.0 mm x 765.0 mm (6.9 in. x 17.4 in. x 30.1 in.) Weight (with four power modules and five fan modules, calculated based on the heaviest model if multiple models are supported): 46.2 kg (101.85 lb)
