Categories:CloudEngine 8800 Series

CE8861-4C-EI

0 Reviews Write a review

PN02351SGW

BrandsHuawei

AvailabilityIn Stock

CE Switch CE8800

WarrantyUp to 36 months

CE8861-4C-EI Huawei CE8800 switch supports 64*40GE QSFP+, 32*100GE QSFP28

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

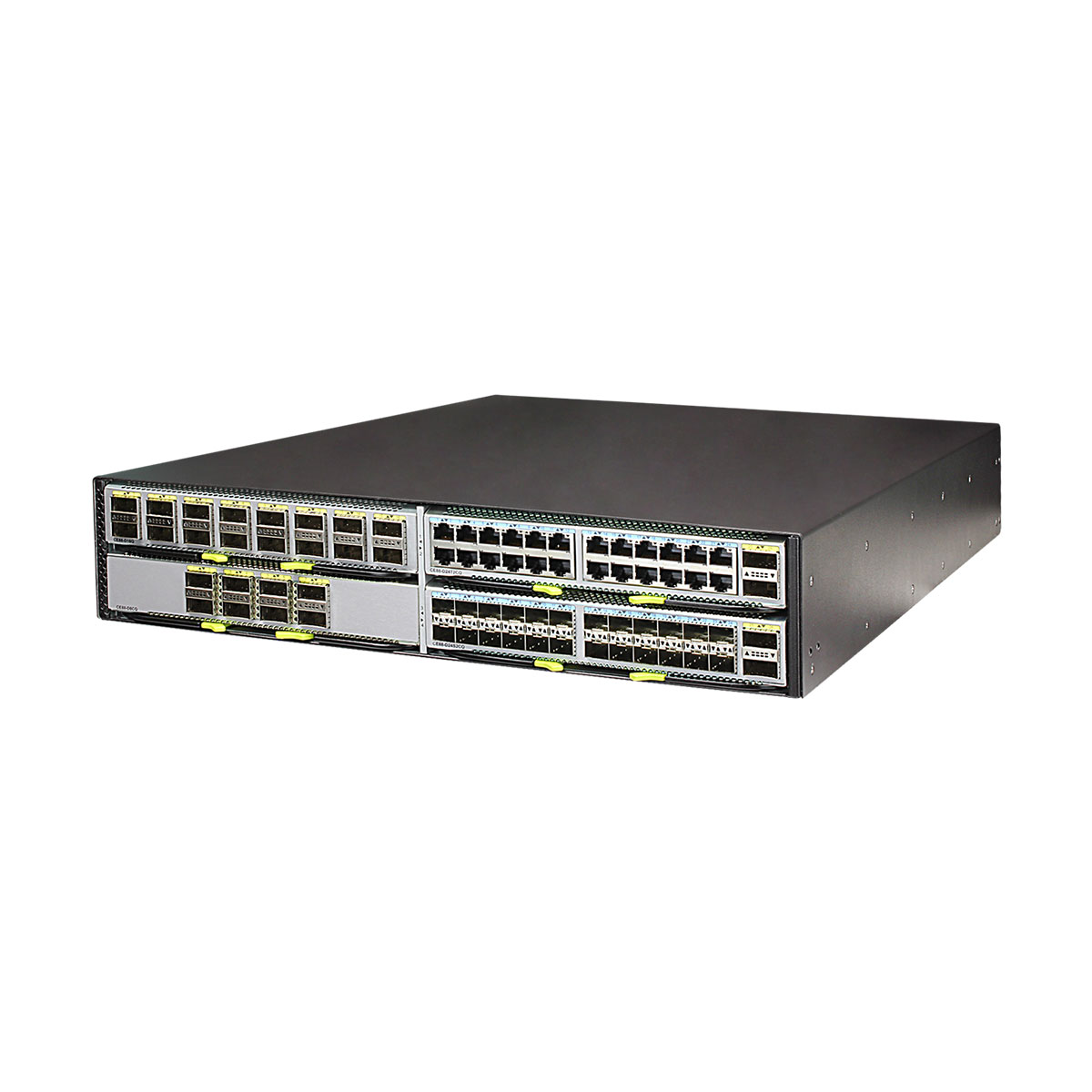

CE8861-4C-EI overview

CE8861-4C-EI Huawei CE8800 switch supports 64*40GE QSFP+, 32*100GE QSFP28

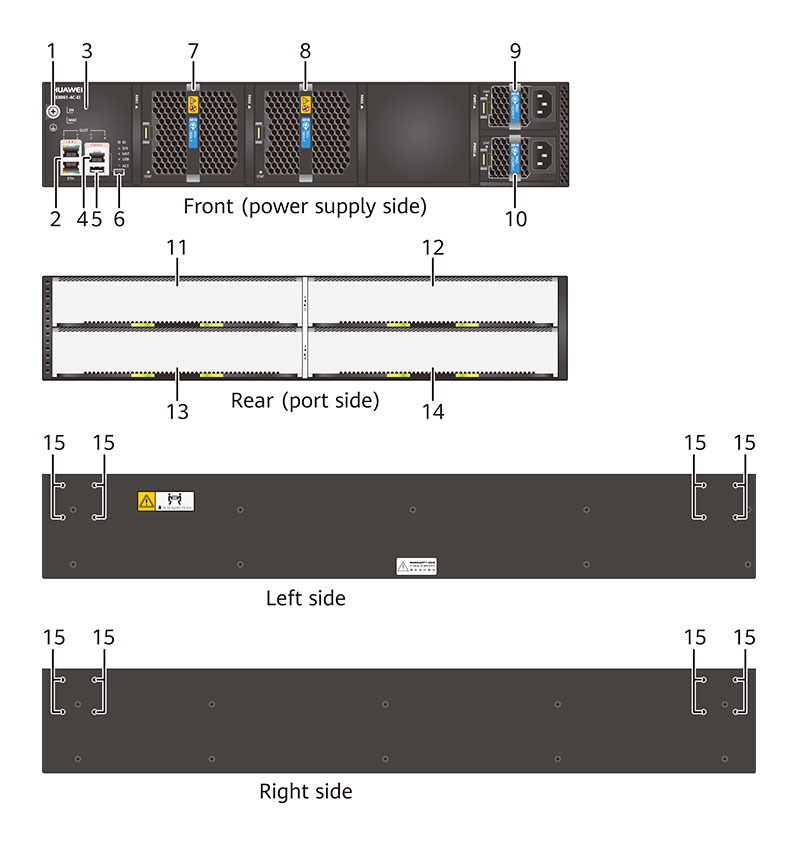

CE8861-4C-EI appearance

1	Ground screw	2	Two ETH management ports (RJ45)
3	ESN and MAC address label	4	Console port
5	USB port	6	Mini USB port
7	Fan slot 1	8	Fan slot 2
9	Power supply slot 1	10	Power supply slot 2
11	Extended card slot 1	12	Extended card slot 2
13	Extended card slot 3	14	Extended card slot 4
15	Mounting holes for mounting brackets	–	–

CE8861-4C-EI application

Device Series	Sub-series	Device Model	Short Name	Supported Version
CE8800	CE8861	CE8861-4C-EI	CE8861EI	V200R005C10 to V200R021C00 NOTE: This model is not supported in V200R005C20 and V200R020C00.

Item	CE8861-4C-EI
Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity	5% RH to 95% RH, noncondensing
Altitude	< 5000 m (16404 ft.)
Noise (sound pressure, 27°C)	Back-to-front airflow: < 58 dBA Front-to-back airflow: < 56 dBA
Power source type	AC/DC/high-voltage DC
AC power input	Rated input voltage range: 100 V AC to 130 V AC/200 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input	Rated voltage of 240 V high-voltage DC power input: 240 V DC Maximum voltage range of 240 V high-voltage DC power input: 188 V DC to 290 V DC Rated voltage range of 380 V high-voltage DC power input: 240 V DC to 380 V DC Maximum voltage range of 380 V high-voltage DC power input: 188 V DC to 400 V DC
Rated input current	1200 W AC&240 V DC power module (PAC-1K2WA series): 10 A (100 V AC to 130 V AC)/8 A (200 V AC to 240 V AC)/8 A (240 V DC) 1200 W high-voltage DC power module (PHD-1K2WA series): 8 A (240 V DC to 380 V DC) 1200 W DC power (PDC-1K2WA series): 38 A (-48 V DC to -60 V DC)
Power module backup	1+1 backup
Fan module backup	Two fan modules, working in 1+1 backup mode when the temperature is below 35°C
Hot swap	Supported by all power modules and fan modules
Mean time between failures (MTBF)	36.02 years
Mean time to repair (MTTR)	1.87 hours
Availability	0.9999940608
Processor	1.5 GHz, eight-core
DRAM Memory	4 GB
NOR Flash	32 MB
NAND Flash	2 GB
Physical specifications	Dimensions (W x D x H): 442.0 mm x 600.0 mm x 88.1 mm (17.4 in. x 23.6 in. x 3.47 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 21.3 kg

Brand	Huawei
CE Switch	CE8800
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	CE8861-4C-EI
Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity	5% RH to 95% RH, noncondensing
Altitude	< 5000 m (16404 ft.)
Noise (sound pressure, 27°C)	Back-to-front airflow: < 58 dBA Front-to-back airflow: < 56 dBA
Power source type	AC/DC/high-voltage DC
AC power input	Rated input voltage range: 100 V AC to 130 V AC/200 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input	Rated voltage of 240 V high-voltage DC power input: 240 V DC Maximum voltage range of 240 V high-voltage DC power input: 188 V DC to 290 V DC Rated voltage range of 380 V high-voltage DC power input: 240 V DC to 380 V DC Maximum voltage range of 380 V high-voltage DC power input: 188 V DC to 400 V DC
Rated input current	1200 W AC&240 V DC power module (PAC-1K2WA series): 10 A (100 V AC to 130 V AC)/8 A (200 V AC to 240 V AC)/8 A (240 V DC) 1200 W high-voltage DC power module (PHD-1K2WA series): 8 A (240 V DC to 380 V DC) 1200 W DC power (PDC-1K2WA series): 38 A (-48 V DC to -60 V DC)
Power module backup	1+1 backup
Fan module backup	Two fan modules, working in 1+1 backup mode when the temperature is below 35°C
Hot swap	Supported by all power modules and fan modules
Mean time between failures (MTBF)	36.02 years
Mean time to repair (MTTR)	1.87 hours
Availability	0.9999940608
Processor	1.5 GHz, eight-core
DRAM Memory	4 GB
NOR Flash	32 MB
NAND Flash	2 GB
Physical specifications	Dimensions (W x D x H): 442.0 mm x 600.0 mm x 88.1 mm (17.4 in. x 23.6 in. x 3.47 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 21.3 kg
