Categories:CloudEngine 8800 Series

CE8850E-32CQ-EI

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02354LHV

AvailabilityIn Stock

WarrantyUp to 36 months

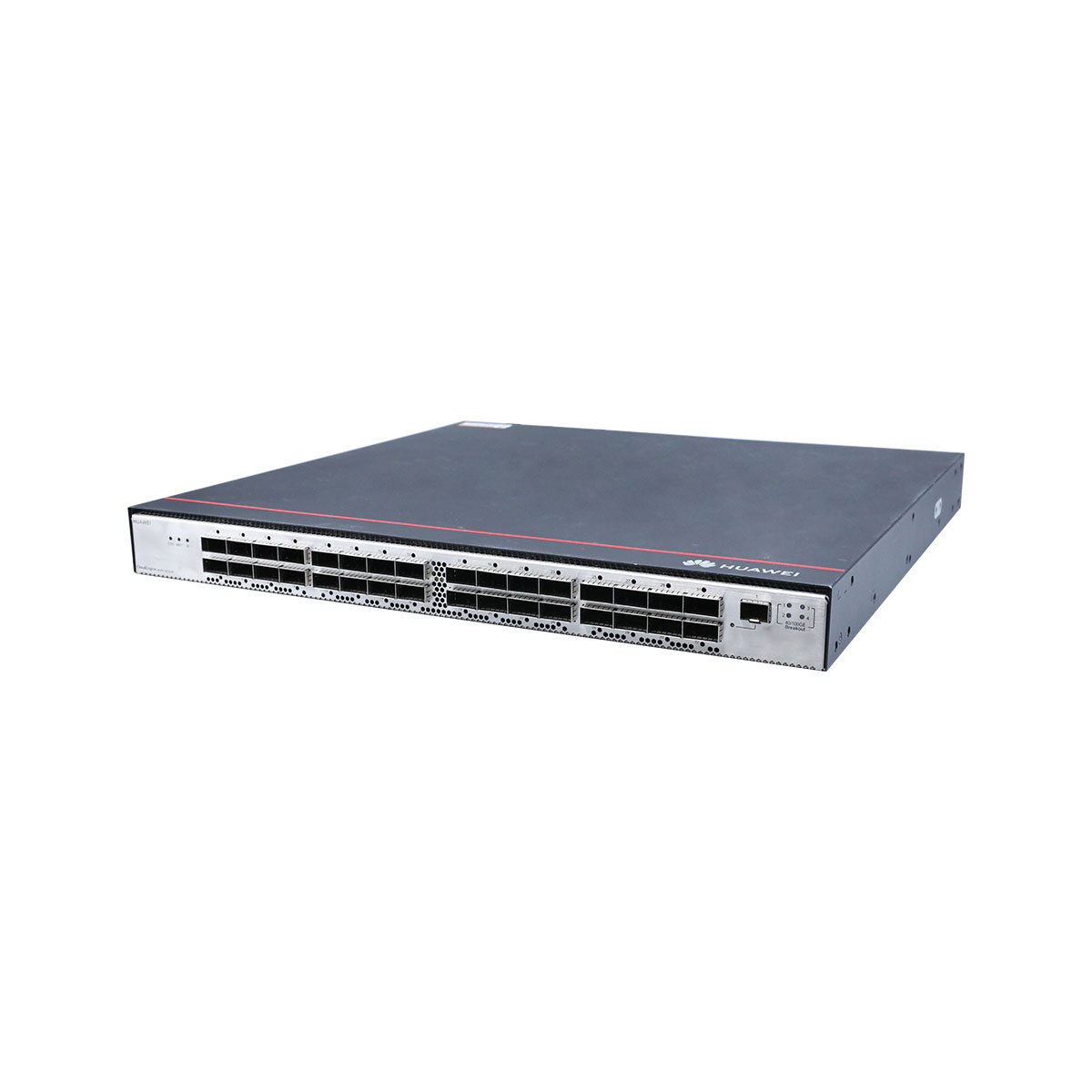

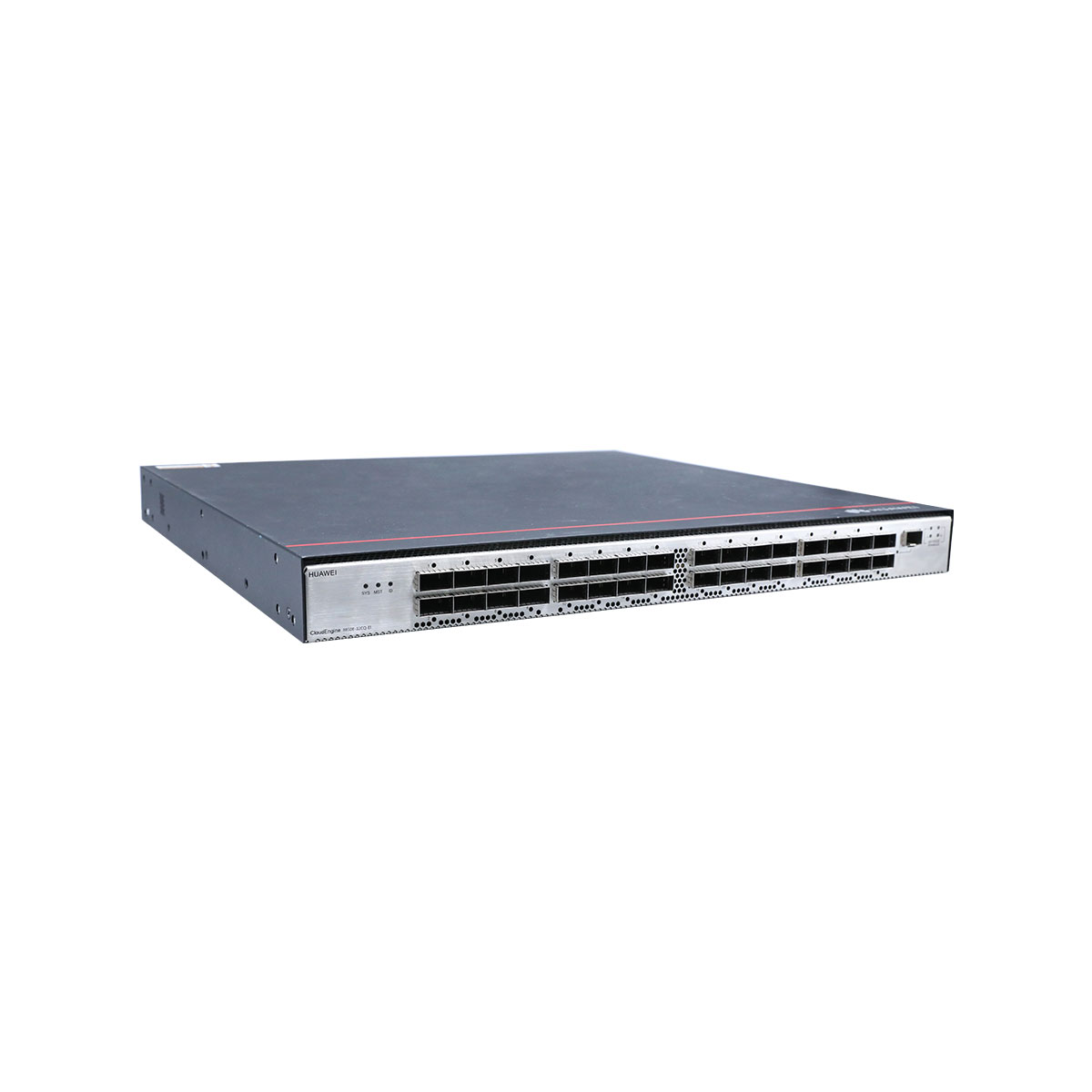

Huawei CE8850E-32CQ-EI switch with 32*100GE QSFP28,1*10GE SFP+,without fan and power module

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE8850E-32CQ-EI overview

The CloudEngine 8800 series is a next-generation high-performance, high-density, low-latency modular Ethernet switch designed for data centers. It works seamlessly with Huawei’s CloudEngine 16800, 6800, and 5800 switches to build an elastic, simple, open, and secure cloud data center network.

With high-density 400GE/200GE/100GE/40GE/25GE/10GE ports, CloudEngine 8800 supports advanced data center features and high-performance stacking, making it ideal for core or aggregation layers in data centers and campus networks.

Item	Details
Description	CE8850E-32CQ-EI Switch (32100GE QSFP28,110GE SFP+,without fan and power module)
Part Number	02354LHV
Model	CE8850E-32CQ-EI

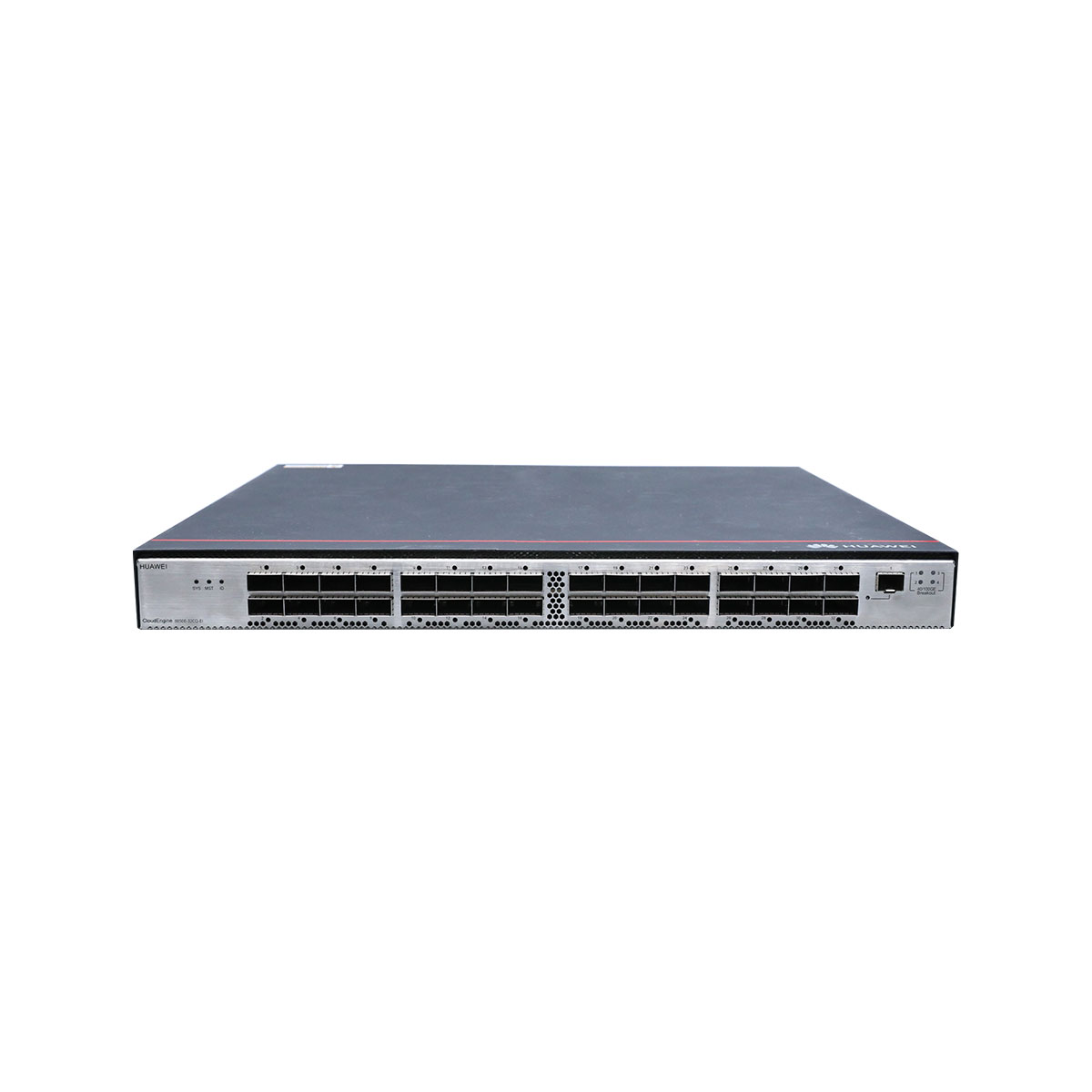

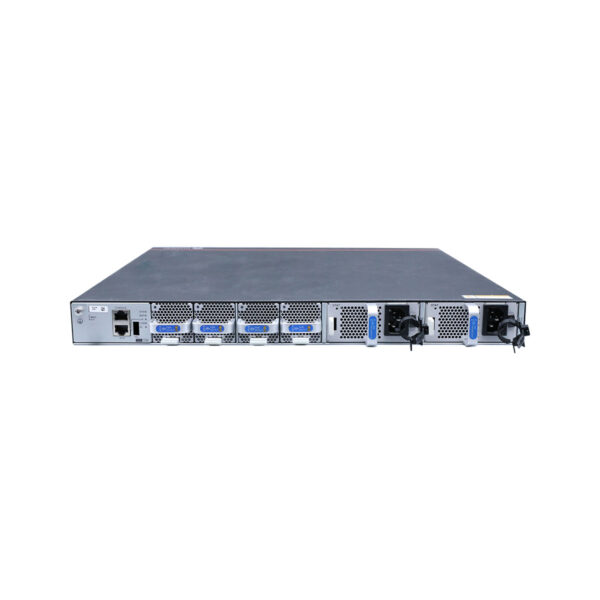

CE8850E-32CQ-EI Appearance

1	Ground screw	2	Equipment serial number (ESN) NOTE: You can scan the code to view the ESN and MAC address of the switch.
3	ETH management port (RJ45)	4	Console port
5	USB port	6	Fan slot 1
7	Fan slot 2	8	Fan slot 3
9	Fan slot 4	10	Power supply slot 1
11	Power supply slot 2	12	Thirty-two 40GE/100GE SFP28 Ethernet optical ports
13	One 10GE SFP+ Ethernet optical ports	14	Three port-side mounting holes for mounting brackets
15	Two middle mounting holes for mounting brackets	16	Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal
17	Four power-supply-side mounting holes for mounting brackets	–	–

Item	CE8850E-32CQ-EI
Installation Type	Cabinet Installation
Switching capacity	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU	4-core, 1.4 GHz
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	Supported
Power supply mode	DC pluggable AC pluggable HVDC pluggable
Console port	RJ45
Downlink Service interface	32 x 100GE QSFP28 ports and 1 x 10GE SFP+ port, regardless of the direction (uplink or downlink) NOTE: 1. 100GE ports except port 23 can be split into 4 x 25GE or 4 x 10GE ports. After the split, they cannot be used as GE ports. 2. Splitting 100GE port 23, using 10GE port 1, and configuring IOAM are mutually exclusive. 100GE port 23 supports only static split, and the device needs to be restarted for the split to take effect. 3. The 10GE SFP+ port can function as a GE SFP optical/electrical port. 4. Supported optical modules: (1) In the case of port-side air intake, 100GE ports support 100G-AOC/SR4/DR/LR4/4WDM optical modules. (2) In the case of port-side air exhaust, 100GE ports support 100G-AOC/SR4/DR/LR4 optical modules.
Service port supporting the stack function	100GE optical port
RTC	Supported
Typical power consumption [W]	203 W (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules) 244 W (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour]	693 BTU/hour (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules) 833 BTU/hour (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules)
Static power consumption [W]	165 W
Static heat dissipation [BTU/hour]	563 BTU/hour
Maximum power consumption [W]	339 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 450 W (100% traffic load, long-distance optical modules on all ports, 40°C or 104°F, dual AC power modules)
Maximum heat dissipation [BTU/hour]	1157 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 1535 BTU/hour (100% traffic load, long-distance optical modules on all ports, 40°C or 104°F, dual AC power modules)
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
Availability	0.999993932
MTBF [year]	35.88 years
MTTR [hour]	1.89 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 49.8 dB(A) on average (maximum: 53.6 dB(A)) Back-to-front airflow: 47.8 dB(A) on average (maximum: 51.2 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 67.6 dB(A) on average (maximum: 73.4 dB(A)) Back-to-front airflow: 68 dB(A) on average (maximum: 75.4 dB(A))
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.)
Weight without packaging [kg (lb)]	6.0 kg (13.23 lb), excluding optical modules, power modules, and fan modules
Weight without packaging (full configuration) [kg (lb)]	8.6 kg (18.96 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging [kg (lb)]	9.3 kg (20.50 lb)
Weight with packaging (full configuration) [kg (lb)]	11.6 kg (25.57 lb)
Chassis height [U]	1 U

Item	CE8850E-32CQ-EI
Installation Type	Cabinet Installation
Switching capacity	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU	4-core, 1.4 GHz
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	Supported
Power supply mode	DC pluggable AC pluggable HVDC pluggable
Console port	RJ45
Downlink Service interface	32 x 100GE QSFP28 ports and 1 x 10GE SFP+ port, regardless of the direction (uplink or downlink) NOTE: 1. 100GE ports except port 23 can be split into 4 x 25GE or 4 x 10GE ports. After the split, they cannot be used as GE ports. 2. Splitting 100GE port 23, using 10GE port 1, and configuring IOAM are mutually exclusive. 100GE port 23 supports only static split, and the device needs to be restarted for the split to take effect. 3. The 10GE SFP+ port can function as a GE SFP optical/electrical port. 4. Supported optical modules: (1) In the case of port-side air intake, 100GE ports support 100G-AOC/SR4/DR/LR4/4WDM optical modules. (2) In the case of port-side air exhaust, 100GE ports support 100G-AOC/SR4/DR/LR4 optical modules.
Service port supporting the stack function	100GE optical port
RTC	Supported
Typical power consumption [W]	203 W (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules) 244 W (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour]	693 BTU/hour (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules) 833 BTU/hour (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules)
Static power consumption [W]	165 W
Static heat dissipation [BTU/hour]	563 BTU/hour
Maximum power consumption [W]	339 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 450 W (100% traffic load, long-distance optical modules on all ports, 40°C or 104°F, dual AC power modules)
Maximum heat dissipation [BTU/hour]	1157 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 1535 BTU/hour (100% traffic load, long-distance optical modules on all ports, 40°C or 104°F, dual AC power modules)
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
Availability	0.999993932
MTBF [year]	35.88 years
MTTR [hour]	1.89 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 49.8 dB(A) on average (maximum: 53.6 dB(A)) Back-to-front airflow: 47.8 dB(A) on average (maximum: 51.2 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 67.6 dB(A) on average (maximum: 73.4 dB(A)) Back-to-front airflow: 68 dB(A) on average (maximum: 75.4 dB(A))
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.)
Weight without packaging [kg (lb)]	6.0 kg (13.23 lb), excluding optical modules, power modules, and fan modules
Weight without packaging (full configuration) [kg (lb)]	8.6 kg (18.96 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging [kg (lb)]	9.3 kg (20.50 lb)
Weight with packaging (full configuration) [kg (lb)]	11.6 kg (25.57 lb)
Chassis height [U]	1 U
