Categories:CloudEngine 8800 Series

CE8850-HAM

0 Reviews Write a review

PN02354WBD

AvailabilityIn Stock

WarrantyUp to 36 months

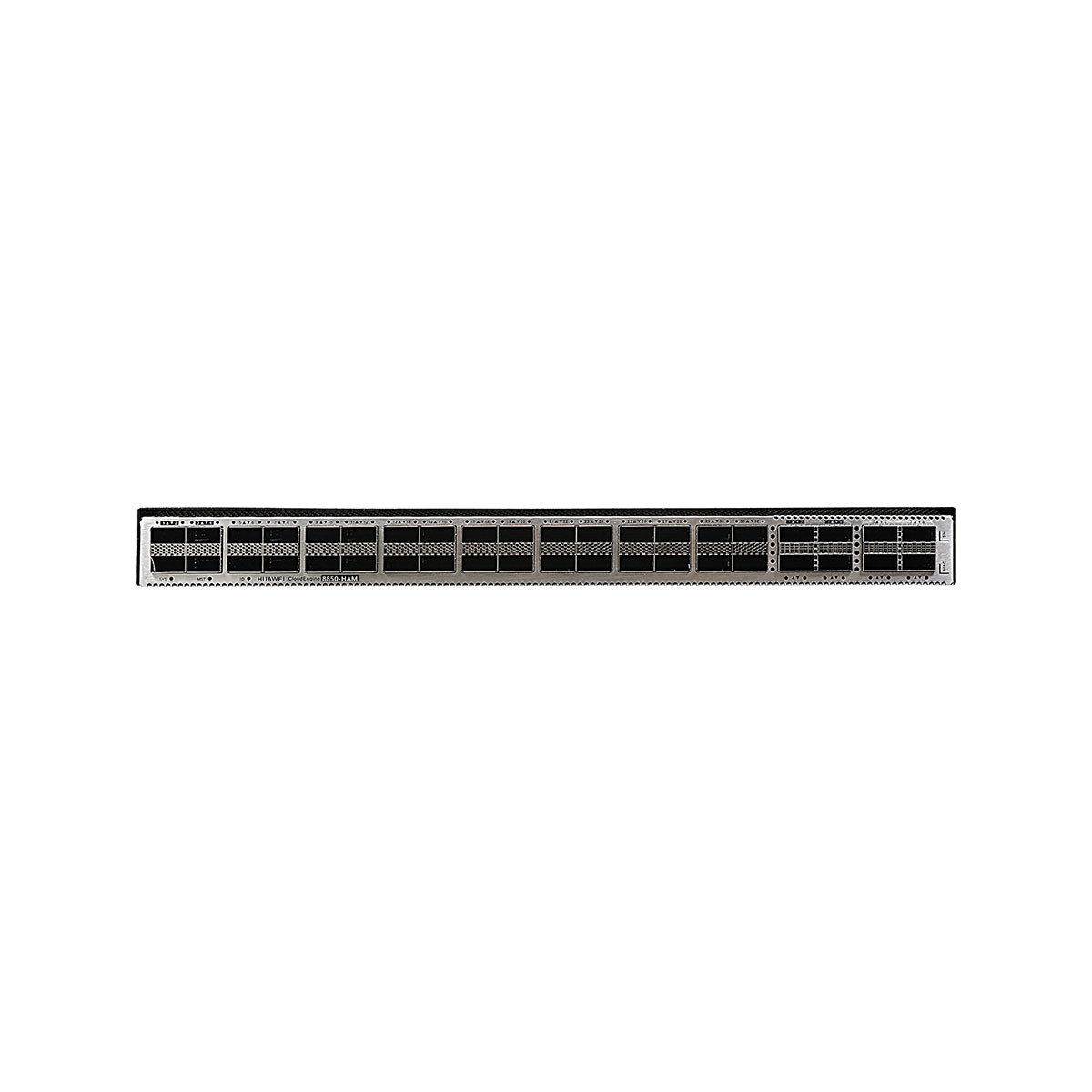

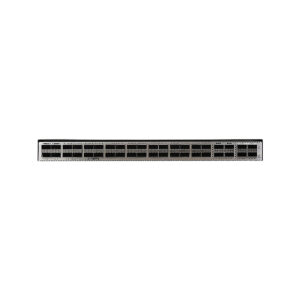

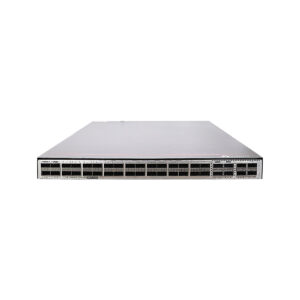

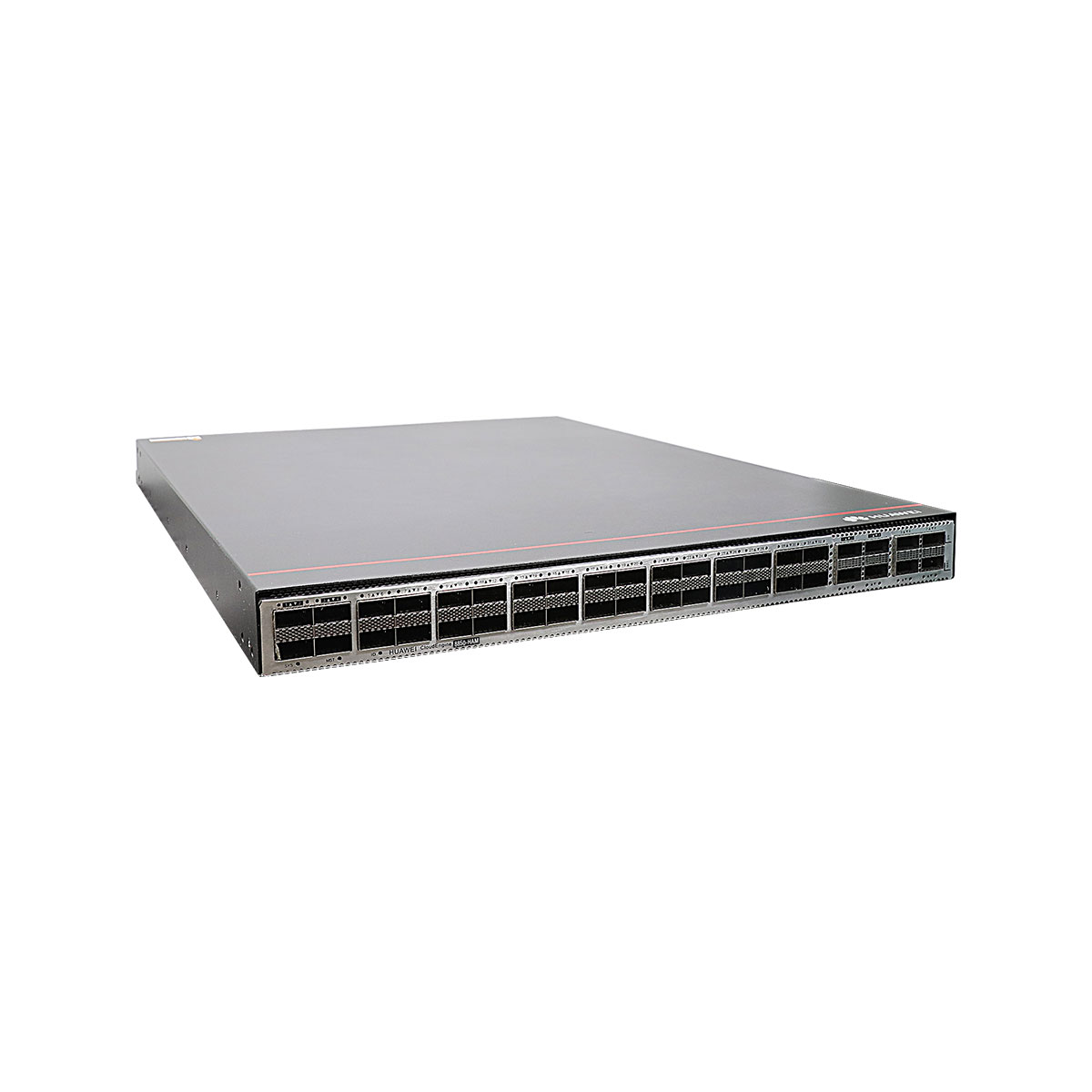

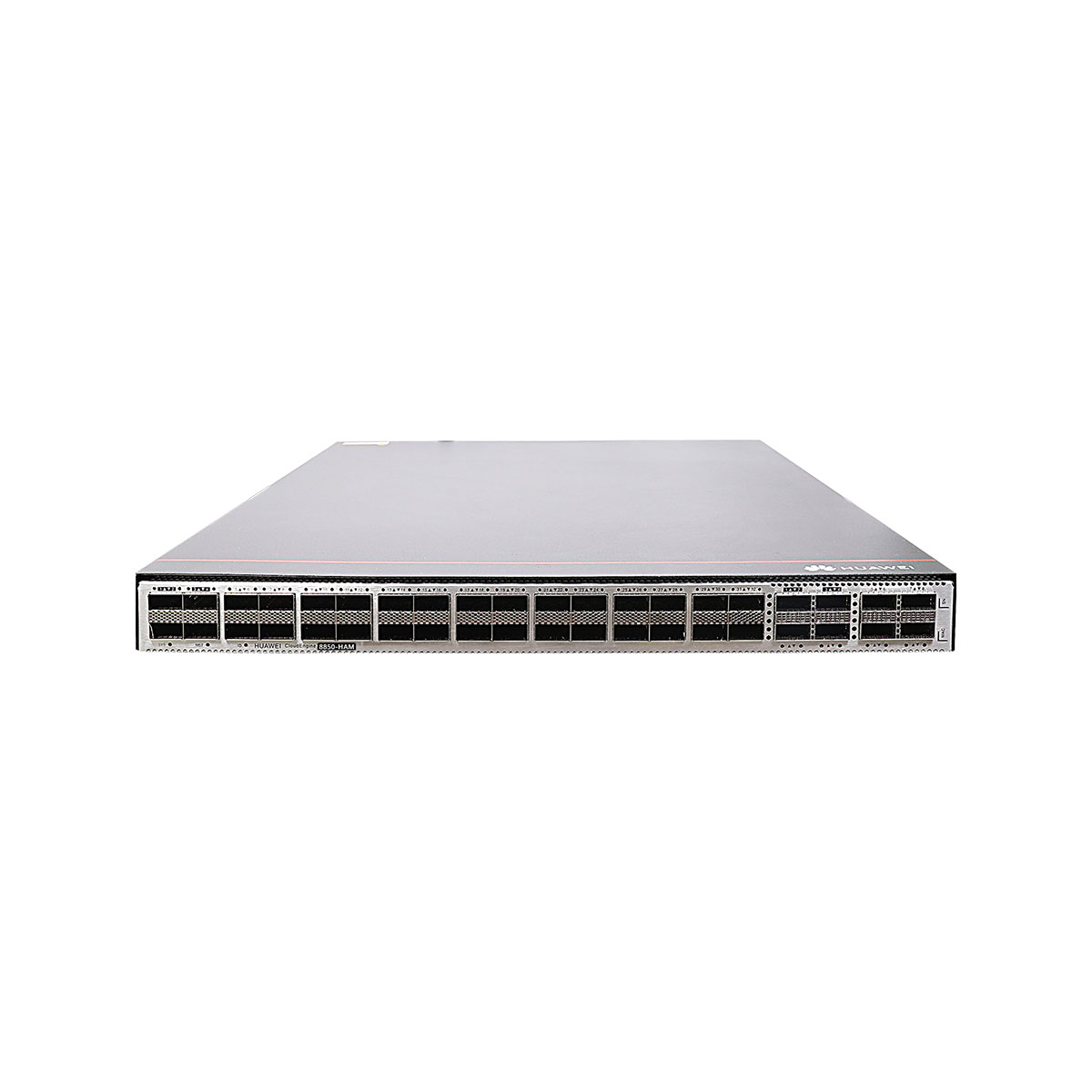

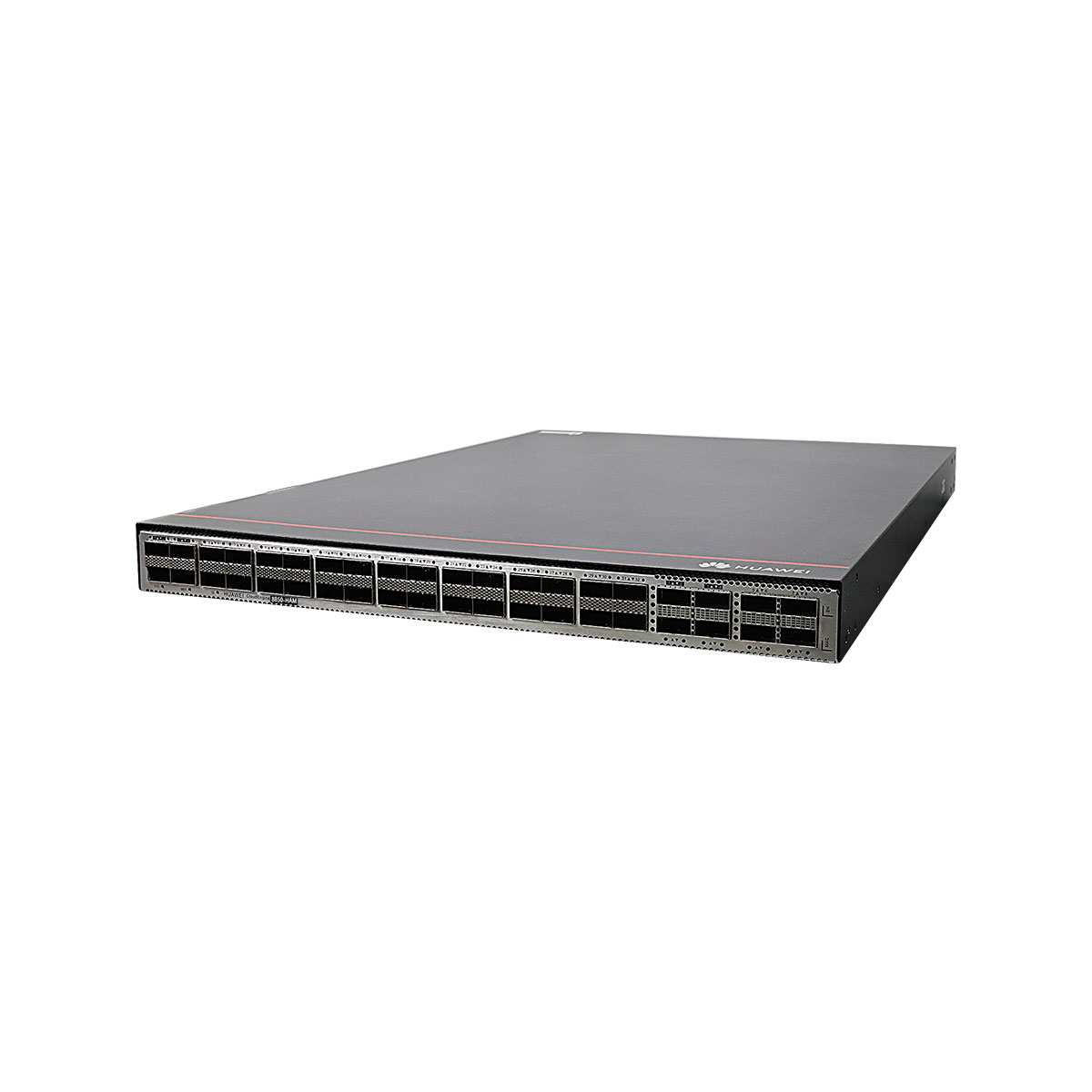

Huawei CE8850-HAM switch with 32*100GE QSFP28, 8*400GE QSFPDD, without fan and power modules

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE8850-HAM overview

The CloudEngine 8800 series is a next-generation high-performance, high-density, low-latency modular Ethernet switch designed for data centers. It works seamlessly with Huawei’s CloudEngine 16800, 6800, and 5800 switches to build an elastic, simple, open, and secure cloud data center network.

With high-density 400GE/200GE/100GE/40GE/25GE/10GE ports, CloudEngine 8800 supports advanced data center features and high-performance stacking, making it ideal for core or aggregation layers in data centers and campus networks.

Item	Details
Description	CE8850-HAM switch (32100GE QSFP28, 8400GE QSFPDD, without fan and power modules)(CM)
Part Number	02354WBD
Model	CE8850-HAM

CE8850-HAM Appearance

1. Ground screw

2. USB port

3. Console port

4. ETH management port (RJ45)

5. Six Fan slots

6. Two Power supply slots

7. Thirty-two 100GE SFP28/Thirty-two 200GE SFP56 Ethernet optical ports

8. Eight 400GE QSFP-DD Ethernet optical ports

9.Equipment serial number (ESN) and MAC address

NOTE:

You can scan the code to view the ESN and MAC address of the switch.

10. Three port-side mounting holes for mounting brackets

11. Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal

12. Four power-supply-side mounting holes for mounting brackets

–

Item	CE8850-HAM
Installation Type	Cabinet Installation
Switching capacity	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU	4-core, 1.4 GHz
Memory	DRAM: 8 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	It can be used for log backup and USB-based deployment. This function is reserved.
Power supply mode	AC pluggable DC pluggable HVDC pluggable
Console port	RJ45
Downlink Service interface	32 x 100GE QSFP28/32 x 200GE QSFP56 1. 100GE ports can be configured as 40GE or 50GE (50GE: 2 x 25GE) ports but cannot be split into 2 x 50GE ports. 2. A 100GE port can be split into 4 x 25GE, 4 x 10GE, or 2 x 50GE (50GE: 2 x 25GE) ports. Ports 1 and 2, 3 and 4, ..., and 31 and 32 form different groups. The two ports in a group need to be split together. For example, ports 1 and 2 form a group. When port 1 is split, port 2 is also split. 3. 200GE ports can be configured as 40GE/100GE ports and can be split into 2 x 100GE (100GE: 2 x 50GE) ports. NOTE: 1. Support for optical modules: (1) In the case of port-side air intake, downlink 100GE/200GE ports support 100G-SR4/CWDM4/LR4/4WDM. (2) In the case of port-side air exhaust, downlink 100GE/200GE ports support 100G-SR4/CWDM4. 2. Support for copper cables: When 200GE copper cables are used, contact Huawei engineers for interconnection verification.
Uplink Service interface	8 x 400GE QSFP-DD 1. 400GE ports can be used as 200GE, 100GE, and 40GE ports. 2. In V300R020C10, a 400GE port can be used as a 200GE/100GE/40GE port and can be split into 4 x 100GE (100GE: 2 x 50GE but not 4 x 25GE) ports. Other port split modes, such as 2 x 200GE/2 x 100GE/2 x 40GE/8 x 50GE/8 x 25GE/8 x 10GE/4 x 50GE/4 x 25GE/4 x 10GE, are not supported. In V300R021C10, a 400GE port can be dynamically split into 2 x 200GE ports. Currently, 2 x 200GE AOCs and 2.5 m copper cables can be used. NOTE: 1. Support for optical modules: (1) In the case of port-side air intake, uplink 400GE ports support 400G-SR8/DR4/FR4. When the ambient temperature ranges from 0°C to 35°C, 400G-LR8 is supported. However, the noise of the device exceeds the threshold at room temperature. (2) In the case of port-side air exhaust, uplink 400GE ports support 400G-SR8. However, the noise of the device exceeds the threshold at room temperature. 2. Support for copper cables: V300R021C10 and later versions: 40GE/100GE/200GE/400GE copper cables are supported. A 400GE port can be dynamically split into 2 x 200GE ports. 2.5 m copper cables can be used. When 200GE and 400GE copper cables are used, contact Huawei engineers for interconnection verification. V300R020C10 and V300R021C00: 40GE/100GE/200GE/400GE copper cables are supported. After uplink ports are split, copper cables are not supported. When 200GE and 400GE copper cables are used, contact Huawei engineers for interconnection verification.
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Typical power consumption [W]	32x200G+8x400G: 590 W (50% traffic load, copper cables on all ports, normal temperature, dual power modules) 32x100G+8x400G: 560 W (50% traffic load, copper cables on all ports, normal temperature, dual power modules); 693 W (50% traffic load, short-distance optical modules on all ports, normal temperature, dual power modules)
Typical heat dissipation [BTU/hour]	32 x 200G + 8 x 400G: 2013 BTU/hour (50% traffic load, copper cables on all ports, normal temperature, dual power modules) 32 x 100G + 8 x 400G: 1912 BTU/hour (50% traffic load, copper cables on all ports, normal temperature, dual power modules), 2363 BTU/hour (50% traffic load, short-distance optical modules on all ports, normal temperature, dual power modules)
Static power consumption [W]	455 W
Static heat dissipation [BTU/hour]	1757 BTU/hour
Maximum power consumption [W]	32 x 200G + 8 x 400G: 1152 W (100% traffic load, 6.5 W 200G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules) 32 x 100G + 8 x 400G: 973 W (100% traffic load, 5 W 100G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules)
Maximum heat dissipation [BTU/hour]	32 x 200G + 8 x 400G: 3927 BTU/hour (100% traffic load, 6.5 W 200G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules) 32 x 100G + 8 x 400G: 3323 BTU/hour (100% traffic load, 5 W 100G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules)
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	1200 W AC or 240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1200 W DC power module: –48 V DC: –48 V DC to –60 V DC; +48 V DC: +48 V DC
Input voltage range [V]	1200 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC 1200 W DC power module: -48 V DC: -38.4 V DC to -72 V DC; +48 V DC: +38.4 V DC to +60 V DC
Maximum input current [A]	1200 W AC&240 V DC power modules: 10 A (100 V AC to 130 V AC) 8 A (200 V AC to 240 V AC) 8 A (240 V DC) 1200 W DC power module: 38 A
Rated output power [W]	1200 W AC&240 V DC power module: 1200 W 1200 W DC power module: 1200 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC power protection: 6 kV in common mode and 6 kV in differential mode 240 V HVDC power protection: 4 kV in common mode and 2 kV in differential mode –48 V DC power supply protection: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	6
Redundant fans	The device supports 5+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Availability	0.9999920679
MTBF [year]	21.59 years
MTTR [hour]	1.5 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 56.5 dB(A) on average (maximum: 61.7 dB(A)) Back-to-front airflow: 58.7 dB(A) on average (maximum: 62.9 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 71.8 dB(A) on average (maximum: 78.3 dB(A)) Back-to-front airflow: 74.5 dB(A) on average (maximum: 78.9 dB(A))
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
RTU License Supported	Yes A 200GE interface works at the rate of 100 Gbit/s by default and can work at the rate of 200 Gbit/s only after an RTU license is activated. 400GE interfaces cannot be used by default and are available only after an RTU license is activated.
Dimensions with packaging (H x W x D) [mm (in.)]	260 mm x 790 mm x 590 mm (10.24 in. x 31.10 in. x 23.23 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442 mm x 600 mm (1.72 in. x 17.40 in. x 23.62 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 625.5 mm (1.72 in. x 17.40 in. x 24.63 in.)
Weight without packaging [kg (lb)]	9.1 kg (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	12.2 kg (including AC power modules and fan modules, excluding optical modules)
Weight with packaging [kg (lb)]	13.4 kg (29.54 lb)
Weight with packaging (full configuration) [kg (lb)]	16.5 kg (36.37 lb)
Chassis height [U]	1 U

Item	CE8850-HAM
Installation Type	Cabinet Installation
Switching capacity	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU	4-core, 1.4 GHz
Memory	DRAM: 8 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	It can be used for log backup and USB-based deployment. This function is reserved.
Power supply mode	AC pluggable DC pluggable HVDC pluggable
Console port	RJ45
Downlink Service interface	32 x 100GE QSFP28/32 x 200GE QSFP56 1. 100GE ports can be configured as 40GE or 50GE (50GE: 2 x 25GE) ports but cannot be split into 2 x 50GE ports. 2. A 100GE port can be split into 4 x 25GE, 4 x 10GE, or 2 x 50GE (50GE: 2 x 25GE) ports. Ports 1 and 2, 3 and 4, ..., and 31 and 32 form different groups. The two ports in a group need to be split together. For example, ports 1 and 2 form a group. When port 1 is split, port 2 is also split. 3. 200GE ports can be configured as 40GE/100GE ports and can be split into 2 x 100GE (100GE: 2 x 50GE) ports. NOTE: 1. Support for optical modules: (1) In the case of port-side air intake, downlink 100GE/200GE ports support 100G-SR4/CWDM4/LR4/4WDM. (2) In the case of port-side air exhaust, downlink 100GE/200GE ports support 100G-SR4/CWDM4. 2. Support for copper cables: When 200GE copper cables are used, contact Huawei engineers for interconnection verification.
Uplink Service interface	8 x 400GE QSFP-DD 1. 400GE ports can be used as 200GE, 100GE, and 40GE ports. 2. In V300R020C10, a 400GE port can be used as a 200GE/100GE/40GE port and can be split into 4 x 100GE (100GE: 2 x 50GE but not 4 x 25GE) ports. Other port split modes, such as 2 x 200GE/2 x 100GE/2 x 40GE/8 x 50GE/8 x 25GE/8 x 10GE/4 x 50GE/4 x 25GE/4 x 10GE, are not supported. In V300R021C10, a 400GE port can be dynamically split into 2 x 200GE ports. Currently, 2 x 200GE AOCs and 2.5 m copper cables can be used. NOTE: 1. Support for optical modules: (1) In the case of port-side air intake, uplink 400GE ports support 400G-SR8/DR4/FR4. When the ambient temperature ranges from 0°C to 35°C, 400G-LR8 is supported. However, the noise of the device exceeds the threshold at room temperature. (2) In the case of port-side air exhaust, uplink 400GE ports support 400G-SR8. However, the noise of the device exceeds the threshold at room temperature. 2. Support for copper cables: V300R021C10 and later versions: 40GE/100GE/200GE/400GE copper cables are supported. A 400GE port can be dynamically split into 2 x 200GE ports. 2.5 m copper cables can be used. When 200GE and 400GE copper cables are used, contact Huawei engineers for interconnection verification. V300R020C10 and V300R021C00: 40GE/100GE/200GE/400GE copper cables are supported. After uplink ports are split, copper cables are not supported. When 200GE and 400GE copper cables are used, contact Huawei engineers for interconnection verification.
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Typical power consumption [W]	32x200G+8x400G: 590 W (50% traffic load, copper cables on all ports, normal temperature, dual power modules) 32x100G+8x400G: 560 W (50% traffic load, copper cables on all ports, normal temperature, dual power modules); 693 W (50% traffic load, short-distance optical modules on all ports, normal temperature, dual power modules)
Typical heat dissipation [BTU/hour]	32 x 200G + 8 x 400G: 2013 BTU/hour (50% traffic load, copper cables on all ports, normal temperature, dual power modules) 32 x 100G + 8 x 400G: 1912 BTU/hour (50% traffic load, copper cables on all ports, normal temperature, dual power modules), 2363 BTU/hour (50% traffic load, short-distance optical modules on all ports, normal temperature, dual power modules)
Static power consumption [W]	455 W
Static heat dissipation [BTU/hour]	1757 BTU/hour
Maximum power consumption [W]	32 x 200G + 8 x 400G: 1152 W (100% traffic load, 6.5 W 200G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules) 32 x 100G + 8 x 400G: 973 W (100% traffic load, 5 W 100G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules)
Maximum heat dissipation [BTU/hour]	32 x 200G + 8 x 400G: 3927 BTU/hour (100% traffic load, 6.5 W 200G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules) 32 x 100G + 8 x 400G: 3323 BTU/hour (100% traffic load, 5 W 100G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules)
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	1200 W AC or 240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1200 W DC power module: –48 V DC: –48 V DC to –60 V DC; +48 V DC: +48 V DC
Input voltage range [V]	1200 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC 1200 W DC power module: -48 V DC: -38.4 V DC to -72 V DC; +48 V DC: +38.4 V DC to +60 V DC
Maximum input current [A]	1200 W AC&240 V DC power modules: 10 A (100 V AC to 130 V AC) 8 A (200 V AC to 240 V AC) 8 A (240 V DC) 1200 W DC power module: 38 A
Rated output power [W]	1200 W AC&240 V DC power module: 1200 W 1200 W DC power module: 1200 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC power protection: 6 kV in common mode and 6 kV in differential mode 240 V HVDC power protection: 4 kV in common mode and 2 kV in differential mode –48 V DC power supply protection: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	6
Redundant fans	The device supports 5+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Availability	0.9999920679
MTBF [year]	21.59 years
MTTR [hour]	1.5 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 56.5 dB(A) on average (maximum: 61.7 dB(A)) Back-to-front airflow: 58.7 dB(A) on average (maximum: 62.9 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 71.8 dB(A) on average (maximum: 78.3 dB(A)) Back-to-front airflow: 74.5 dB(A) on average (maximum: 78.9 dB(A))
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
RTU License Supported	Yes A 200GE interface works at the rate of 100 Gbit/s by default and can work at the rate of 200 Gbit/s only after an RTU license is activated. 400GE interfaces cannot be used by default and are available only after an RTU license is activated.
Dimensions with packaging (H x W x D) [mm (in.)]	260 mm x 790 mm x 590 mm (10.24 in. x 31.10 in. x 23.23 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442 mm x 600 mm (1.72 in. x 17.40 in. x 23.62 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 625.5 mm (1.72 in. x 17.40 in. x 24.63 in.)
Weight without packaging [kg (lb)]	9.1 kg (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	12.2 kg (including AC power modules and fan modules, excluding optical modules)
Weight with packaging [kg (lb)]	13.4 kg (29.54 lb)
Weight with packaging (full configuration) [kg (lb)]	16.5 kg (36.37 lb)
Chassis height [U]	1 U
