Categories:CloudEngine 8800 Series

CE8850-32CQ-EI

Rated 5.00 out of 5 based on 2 customer ratings

2 Reviews Write a review

PN02350SQW

BrandsHuawei

AvailabilityIn Stock

CE Switch CE8800

WarrantyUp to 36 months

CE8850-32CQ-EI Huawei CE8800 switch supports 2*10GE SFP+, 32*40GE/100GE QSFP28

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE8850-32CQ-EI overview

CE8850-32CQ-EI Huawei CE8800 switch supports 2*10GE SFP+, 32*40GE/100GE QSFP28

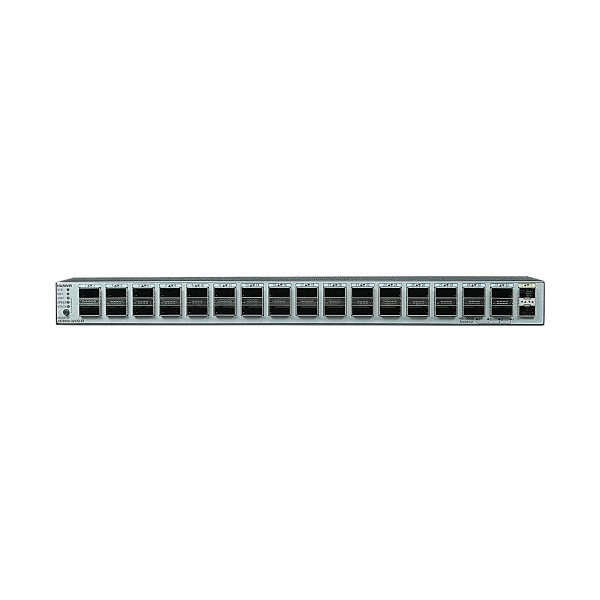

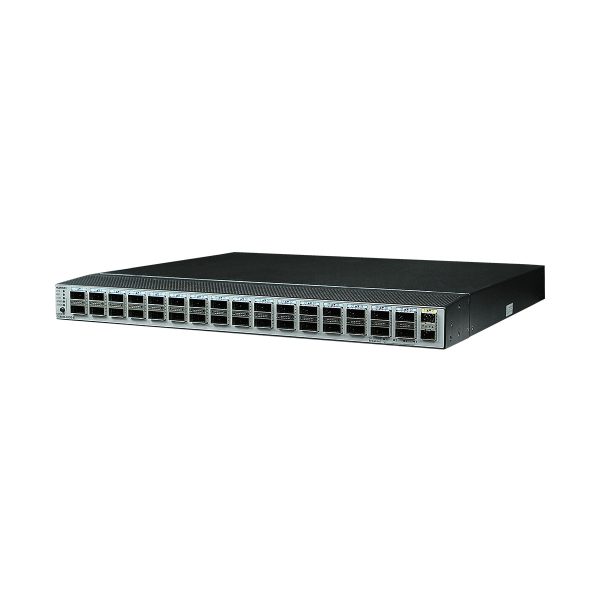

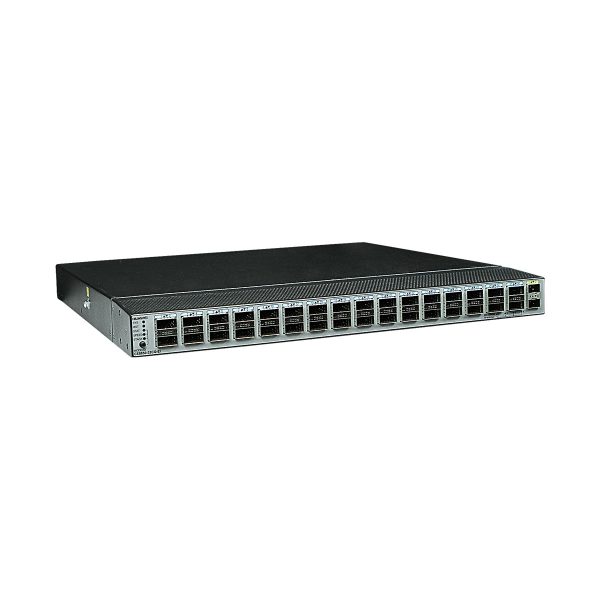

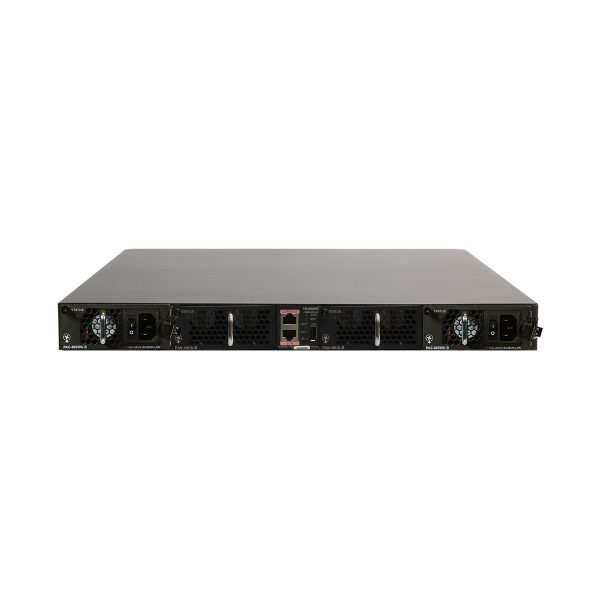

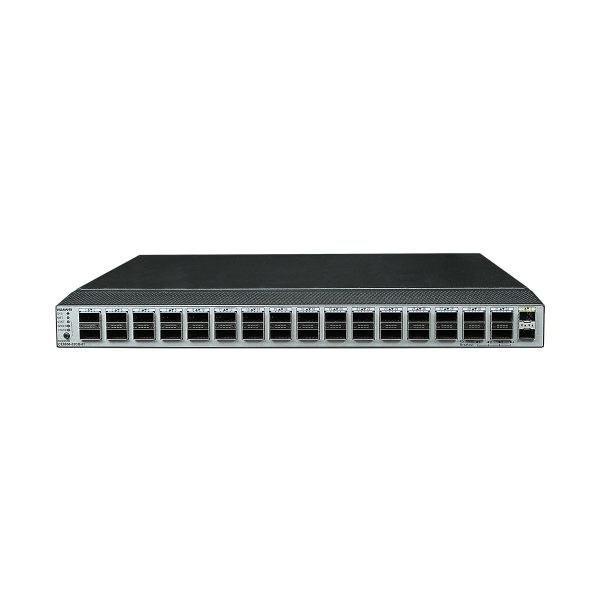

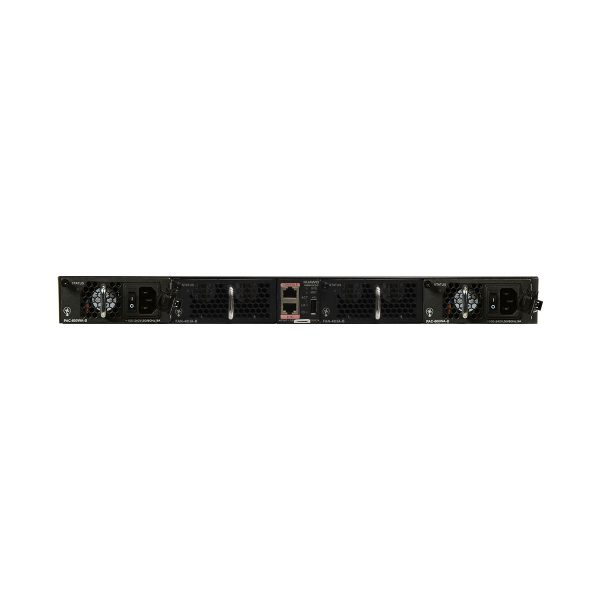

CE8850-32CQ-EI appearance

1	Power supply slot 1 Applicable power modules: 600 W AC Power Module (PAC-600WA) 600 W DC Power Module (PDC600S12)	2	Power supply slot 2 Applicable power modules: 600 W AC Power Module (PAC-600WA) 600 W DC Power Module (PDC600S12)
3	Fan slot 1 Applicable fan modules: FAN-40HA Series Fan Modules	4	Fan slot 2 Applicable fan modules: FAN-40HA Series Fan Modules
5	Console port	6	ETH management port (RJ45)
7	Barcode label NOTE: This label is drawable, and you can pull it outward to view the ESN barcode and MAC address of the switch.	8	USB port
9	Thirty-two 40GE/100GE QSFP28 Ethernet optical ports NOTE: A QSFP28 Ethernet optical port can be split into four 10GE or 25GE ports. Applicable modules and cables: 40GE QSFP+ Optical Modules 100GE QSFP28 Optical Modules (QSFP28-100G-4WDM-40 not supported) QSFP+ to QSFP+ AOC cable QSFP+ to QSFP+ High-Speed Cable QSFP+ to 4SFP+ AOC cable QSFP+ to 4SFP+ High-Speed Cable QSFP28 to QSFP28 AOC Cable QSFP28 to QSFP28 High-Speed Cable QSFP28 to 4*SFP28 High-Speed Cable	10	Two 10GE SFP+ Ethernet optical ports Applicable modules and cables: 10GE SFP+ Optical Modules (OSXD22N00, LE2MXSC80FF0 and SFP-10G-ZDWT-L not supported) GE eSFP Optical Modules GE SFP Copper Modules (works at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s) SFP+ to SFP+ AOC Cable SFP+ to SFP+ High-Speed Cable
11	Three port-side mounting holes for mounting brackets	12	Four power-supply-side mounting holes for mounting brackets
13	Ground screw	–	–

CE8850-32CQ-EI application

Device Series	Sub-series	Device Model	Short Name	Supported Version
CE8800	CE8850	CE8850-32CQ-EI	CE8850EI	V200R002C50 to V200R021C00 NOTE: This model is not supported in V200R005C20 and V200R020C00.

Item	CE8850-32CQ-EI
Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity	5% RH to 95% RH, noncondensing
Altitude	< 5000 m (16404 ft.)
Noise (sound pressure, 27°C)	Back-to-front airflow: < 52 dBA Front-to-back airflow: < 52 dBA
Power source type	AC
AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input	Not supported
Rated input current	600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC) 600 W DC power (PDC600S12 series): 20A (-48 V DC to -60 V DC)
Maximum power consumption	453 W
Typical power consumption	219 W (100% throughput, SFP+ cables on 2 ports and QSFP28 cables on 32 ports, double power modules)
Maximum heat dissipation	1544 BTU/hr
Typical heat dissipation	748 BTU/hr (100% throughput, SFP+ cables on 2 ports and QSFP28 cables on 32 ports, double power modules)
Surge protection	Power module: AC: 6 kV in common mode and 6 kV in differential mode
Heat dissipation mode	Air cooling
Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Power module backup	1+1 backup
Fan module backup	1+1 backup not supported NOTE: A CE8850EI chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
Hot swap	Supported by all power modules and fan modules
Mean time between failures (MTBF)	45.34 years
Mean time to repair (MTTR)	1.68 hours
Availability	0.99999576496
Processor	1.5 GHz, eight-core
DRAM Memory	4 GB
NOR Flash	32 MB
NAND Flash	1 GB
Physical specifications	Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 9.0 kg (19.84 lb)

Item	CE8850-32CQ-EI
Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity	5% RH to 95% RH, noncondensing
Altitude	< 5000 m (16404 ft.)
Noise (sound pressure, 27°C)	Back-to-front airflow: < 52 dBA Front-to-back airflow: < 52 dBA
Power source type	AC
AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input	Not supported
Rated input current	600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC) 600 W DC power (PDC600S12 series): 20A (-48 V DC to -60 V DC)
Maximum power consumption	453 W
Typical power consumption	219 W (100% throughput, SFP+ cables on 2 ports and QSFP28 cables on 32 ports, double power modules)
Maximum heat dissipation	1544 BTU/hr
Typical heat dissipation	748 BTU/hr (100% throughput, SFP+ cables on 2 ports and QSFP28 cables on 32 ports, double power modules)
Surge protection	Power module: AC: 6 kV in common mode and 6 kV in differential mode
Heat dissipation mode	Air cooling
Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Power module backup	1+1 backup
Fan module backup	1+1 backup not supported NOTE: A CE8850EI chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
Hot swap	Supported by all power modules and fan modules
Mean time between failures (MTBF)	45.34 years
Mean time to repair (MTTR)	1.68 hours
Availability	0.99999576496
Processor	1.5 GHz, eight-core
DRAM Memory	4 GB
NOR Flash	32 MB
NAND Flash	1 GB
Physical specifications	Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 9.0 kg (19.84 lb)

Brand	Huawei
CE Switch	CE8800
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
