CE88-SAN-D26F-H

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN03035BWC

AvailabilityIn Stock

WarrantyUp to 36 months

Huawei CE88-SAN-D26F-H supports CE8865-SAN:24 Port 25GE SFP28 and 2 Port 100GE QSFP28 Interface Card(CM)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE88-SAN-D26F-H overview

CE88-SAN-D26F-H CE8865-SAN:24 Port 25GE SFP28 and 2 Port 100GE QSFP28 Interface Card(CM) applied to CloudEngine 8800 and 6800 Series Switches.

Huawei CloudEngine 6800 series switches are next-generation Ethernet switches designed for data centers and high-end campus networks, providing high-performance and high port density. CloudEngine 6800 series switches have an advanced hardware architecture design with high-density of 25GE/50GE access ports, provide 100GE/200GE uplink ports, and support extensive data center service features. Huawei CloudEngine 8800 series switches are next-generation Ethernet switches designed for data centers and high-end campus networks, providing high-performance. CloudEngine 8800 series switches have an advanced hardware architecture design with high-density of 100GE/200GE/400GE access ports, and support extensive data center service features.

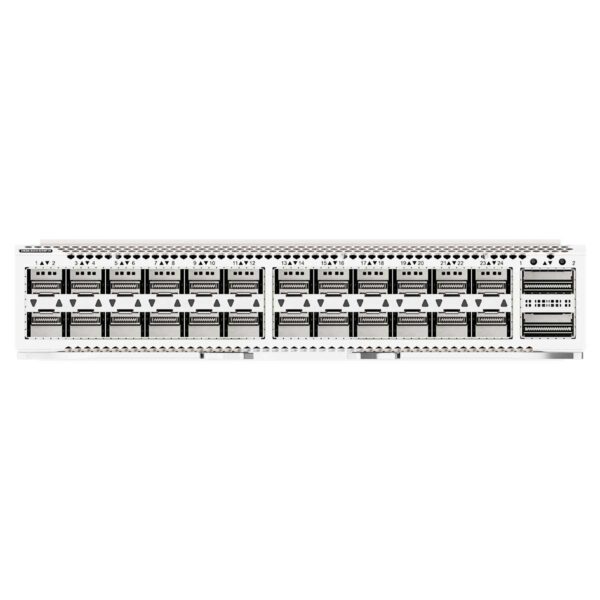

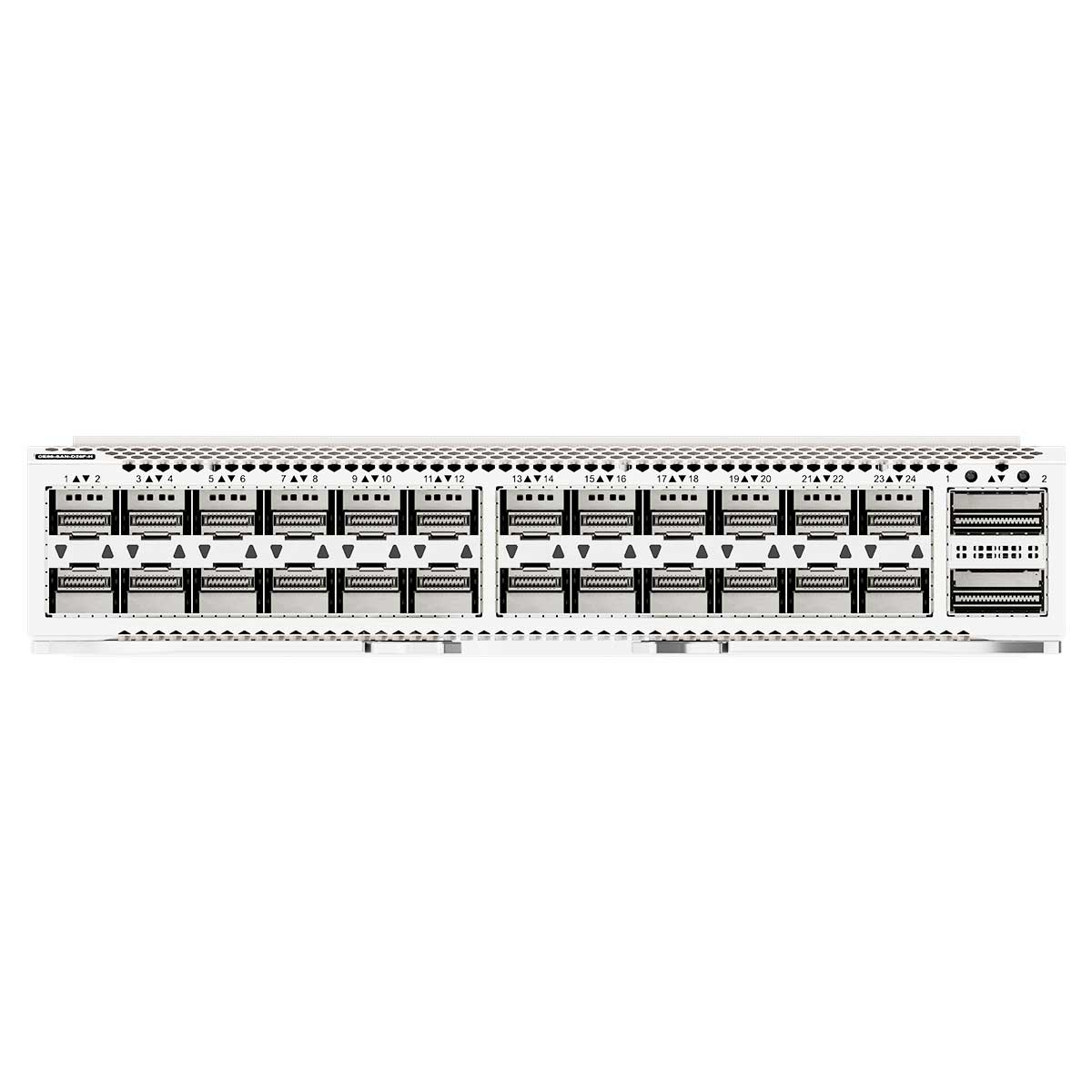

Front panel of the CE88-SAN-D26F-H board

1. Service port indicator (25GE optical port)

2. Service port indicator (100GE optical port)

Mappings between CE88-SAN-D26F-H and product models

Product	Product Model	First Supported Version	Last Supported Version	Unsupported Version
CloudEngine 8800	CE8865-SAN-4C (02355SDP)	V300R023C10	–	–
CloudEngine 8800	CE8865-SAN-4C (02355SDQ)	V300R023C10	–	–
CloudEngine 8800	CE8865-SAN-4C (02355SDR)	V300R023C10	–	–

Item	CE88-SAN-D26F-H
Basic function	The card provides data packet processing and traffic management on 24 x 25GE SFP28 optical ports and 2 x 100GE QSFP28 optical ports.
Port split	Supported
Hot swapping	Supported
Service port stacking	Not supported
Typical power consumption [W]	45 W
Typical heat dissipation [BTU/hour]	153.5 BTU/hour
Static power consumption [W]	5 W
Static heat dissipation [BTU/hour]	17.1 BTU/hour
Maximum power consumption [W]	80 W
Maximum heat dissipation [BTU/hour]	273 BTU/hour
RTU License Supported	Yes. By default, 24 x 25GE ports can only work at 25 Gbit/s, and 2 x 100GE ports can only work at 100 Gbit/s. You can use the RTU license (part number: 88039CSX) to increase the rate of 25GE ports to 50 Gbit/s and the RTU license (part number: 88039CSY) to increase the rate of 100GE ports to 200 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)]	41.7 mm x 206 mm x 173 mm (1.64 in. x 8.11 in. x 6.81 in.)
Dimensions with packaging (H x W x D) [mm (in.)]	110 mm x 310 mm x 293 mm (4.33 in. x 12.2 in. x 11.54 in.)
Weight without packaging [kg (lb)]	1.14 kg (2.51 lb)
Weight with packaging [kg (lb)]	1.47 kg (3.24 lb)

Brand
Lead Time
Ship From
Warranty
Condition

Item	CE88-SAN-D26F-H
Basic function	The card provides data packet processing and traffic management on 24 x 25GE SFP28 optical ports and 2 x 100GE QSFP28 optical ports.
Port split	Supported
Hot swapping	Supported
Service port stacking	Not supported
Typical power consumption [W]	45 W
Typical heat dissipation [BTU/hour]	153.5 BTU/hour
Static power consumption [W]	5 W
Static heat dissipation [BTU/hour]	17.1 BTU/hour
Maximum power consumption [W]	80 W
Maximum heat dissipation [BTU/hour]	273 BTU/hour
RTU License Supported	Yes. By default, 24 x 25GE ports can only work at 25 Gbit/s, and 2 x 100GE ports can only work at 100 Gbit/s. You can use the RTU license (part number: 88039CSX) to increase the rate of 25GE ports to 50 Gbit/s and the RTU license (part number: 88039CSY) to increase the rate of 100GE ports to 200 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)]	41.7 mm x 206 mm x 173 mm (1.64 in. x 8.11 in. x 6.81 in.)
Dimensions with packaging (H x W x D) [mm (in.)]	110 mm x 310 mm x 293 mm (4.33 in. x 12.2 in. x 11.54 in.)
Weight without packaging [kg (lb)]	1.14 kg (2.51 lb)
Weight with packaging [kg (lb)]	1.47 kg (3.24 lb)
