Huawei CE7850-32Q-EI switch supports 32 40GE QSFP+ ports, 2 hot swappable power supply slots without power module equipped

32 Ports Switch 40GE Uplink Switch Core/Aggregation Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE7850-32Q-EI overview

Huawei CE7850-32Q-EI switch with 32 40GE QSFP+ ports, 2 hot swappable power supply slots without power module equipped, is one of the Huawei CloudEngine 7800 series (CE7800) switches.

Huawei CloudEngine 7800 series (CE7800) switches are next-generation 40G Ethernet switches designed for data centers and high-end campus networks. The switches provide high-performance, high-density 40GE ports, and low latency. The CE7800 hardware has an advanced architectural design with 40GE QSFP+ ports. CE7800 switches can work with CE12800/CE8800/CE6800/CE5800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. CE7800 switches can function as core or aggregation switches on data center networks to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also be used as aggregation or core switches for enterprise campus networks.

CE7850-32Q-EI quick spec

32 40GE QSFP+ ports

2 hot swappable power supply slots

Switching capacity: 2.56 Tbit/s
Forwarding performance: 1,440 Mpps

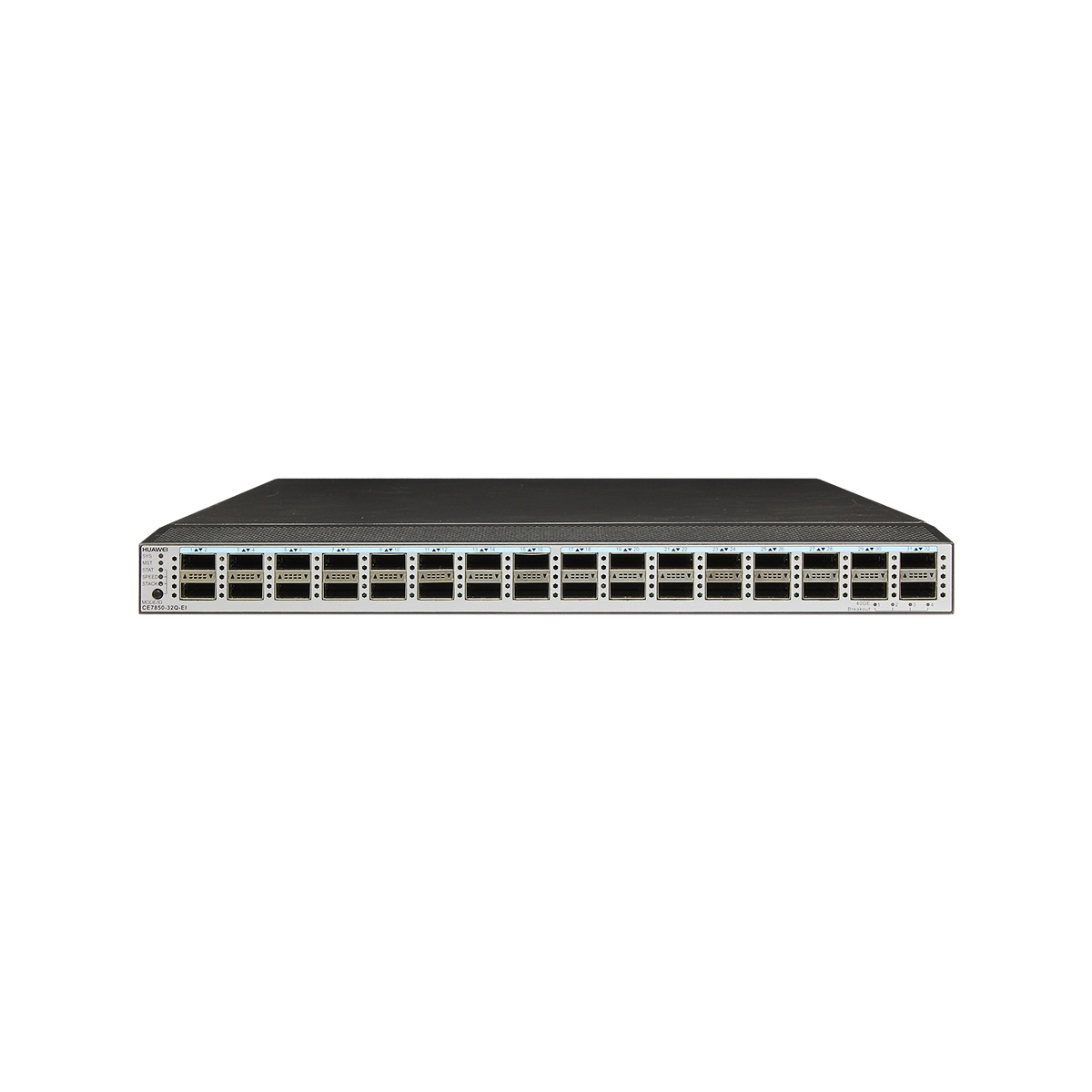

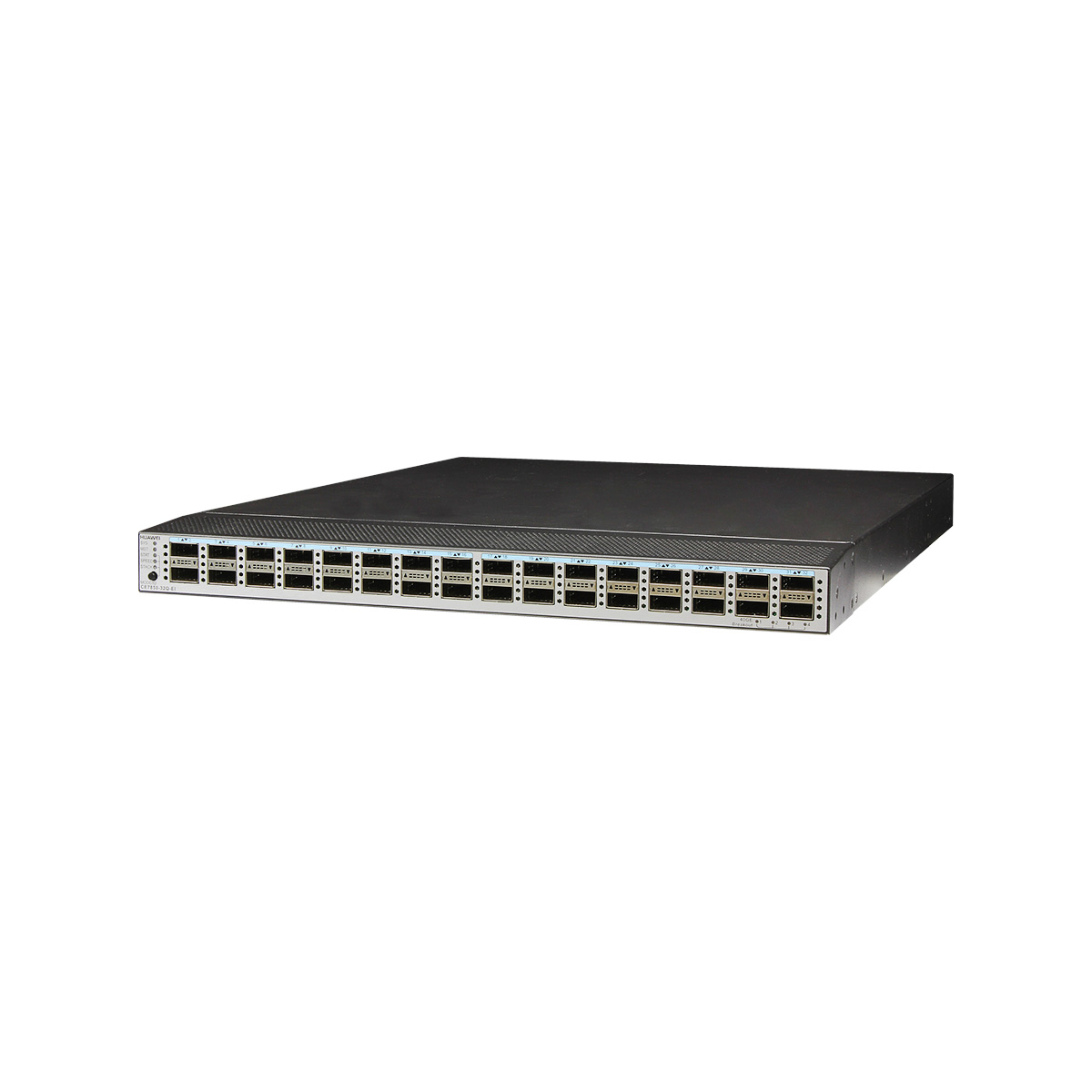

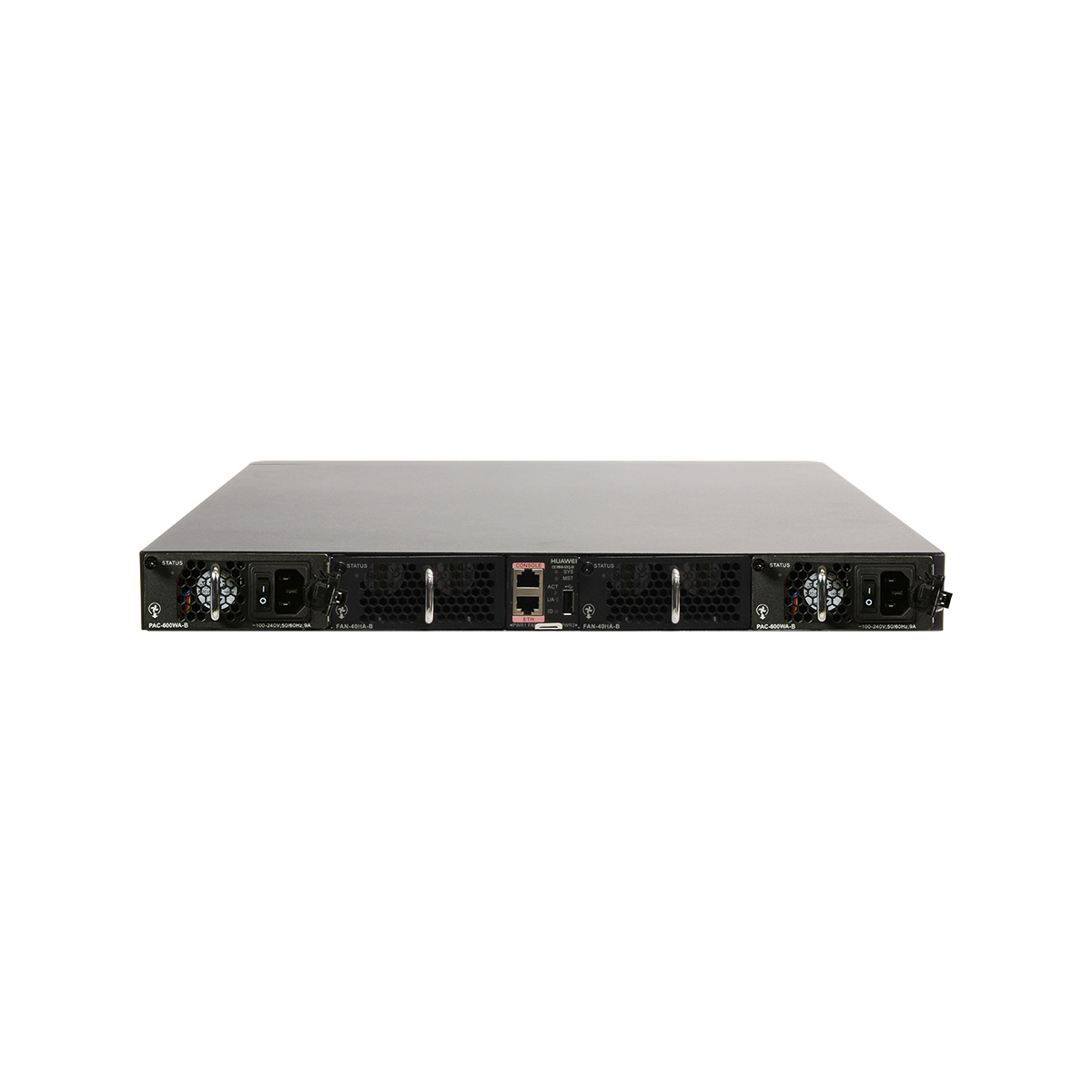

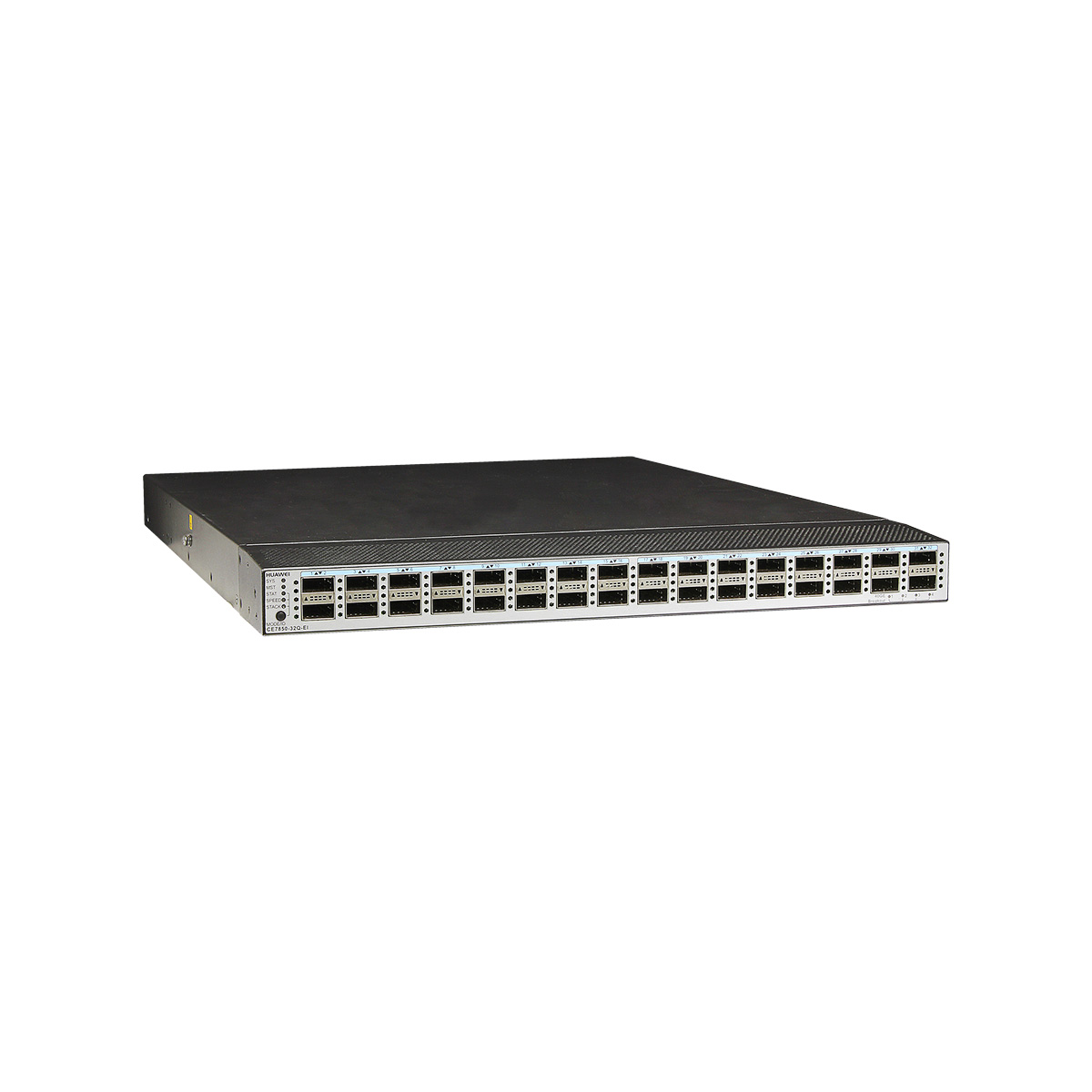

CE7850-32Q-EI appearance and structure

1	Power supply slot 1 Applicable power modules: 600 W AC power module	2	Power supply slot 1 Applicable power modules: 600 W AC power module
3	Fan slot 1 Applicable fan modules: FAN-40HA series fan modules	4	Fan slot 2 Applicable fan modules: FAN-40HA series fan modules
5	Console port	6	ETH management port (RJ45)
7	Barcode label NOTE: This label is drawable, and you can pull it outward to view the ESN barcode and MAC address of the switch. This label is drawable, and you can pull it outward to view the ESN barcode and MAC address of the switch.	8	USB port
9	Thirty-two 40GE QSFP+ Ethernet optical ports NOTE: A 40GE QSFP+ port can be split into four 10GE ports. Applicable modules and cables: 40GE optical module QSFP+ AOC cable (QSFP+ to QSFP+) QSFP+ AOC cable (QSFP+ to 4SFP+) QSFP+ high-speed cable (QSFP+ to 4SFP+) QSFP+ high-speed cable (QSFP+ to QSFP+)	10	Three port-side mounting holes for mounting brackets
11	Four middle mounting holes for mounting brackets	12	Four power-supply-side mounting holes for mounting brackets
13	Ground screw	–	–

Item		CE7850-32Q-EI
Technical specifications	Processor	1.5 GHz, quad-core
	DRAM Memory	4 GB
	NOR Flash	16 MB
	NAND Flash	1 GB
Stack	Service port supporting the stack function	40GE optical ports
Physical specifications		Dimensions (W x D x H): 442.0 mm x 607.0 mm x 43.6 mm (17.4 in. x 23.9 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 11.2 kg (24.69 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 55 dBA Front-to-back airflow: < 54 dBA
Power specifications	Power source type	AC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC power input	Not supported
	High-voltage DC power input	Not supported
	Rated input current	600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
Chassis power consumption	Maximum power consumption	431 W
Chassis power consumption	Typical power consumption	297 W (100% throughput, QSFP+ cables on 32 ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	1471 BTU/hr
Chassis heat dissipation	Typical heat dissipation	1013 BTU/hr (100% throughput, QSFP+ cables on 32 ports, double power modules)
Surge protection		AC Power module: 6 kV in common mode and 6 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability	Power module backup	1+1 backup
	Fan module backup	1+1 backup not supported NOTE: CE7800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	42.20 years
	Mean time to repair (MTtr)	2.0 hours
	Availability	0.9999951387
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance

Item		CE7850-32Q-EI
Technical specifications	Processor	1.5 GHz, quad-core
	DRAM Memory	4 GB
	NOR Flash	16 MB
	NAND Flash	1 GB
Stack	Service port supporting the stack function	40GE optical ports
Physical specifications		Dimensions (W x D x H): 442.0 mm x 607.0 mm x 43.6 mm (17.4 in. x 23.9 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 11.2 kg (24.69 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 55 dBA Front-to-back airflow: < 54 dBA
Power specifications	Power source type	AC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC power input	Not supported
	High-voltage DC power input	Not supported
	Rated input current	600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
Chassis power consumption	Maximum power consumption	431 W
Chassis power consumption	Typical power consumption	297 W (100% throughput, QSFP+ cables on 32 ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	1471 BTU/hr
Chassis heat dissipation	Typical heat dissipation	1013 BTU/hr (100% throughput, QSFP+ cables on 32 ports, double power modules)
Surge protection		AC Power module: 6 kV in common mode and 6 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability	Power module backup	1+1 backup
	Fan module backup	1+1 backup not supported NOTE: CE7800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	42.20 years
	Mean time to repair (MTtr)	2.0 hours
	Availability	0.9999951387
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance
