CE6885H-48YS8CQ

0 Reviews Write a review

PN02355SFF

AvailabilityIn Stock

WarrantyUp to 36 months

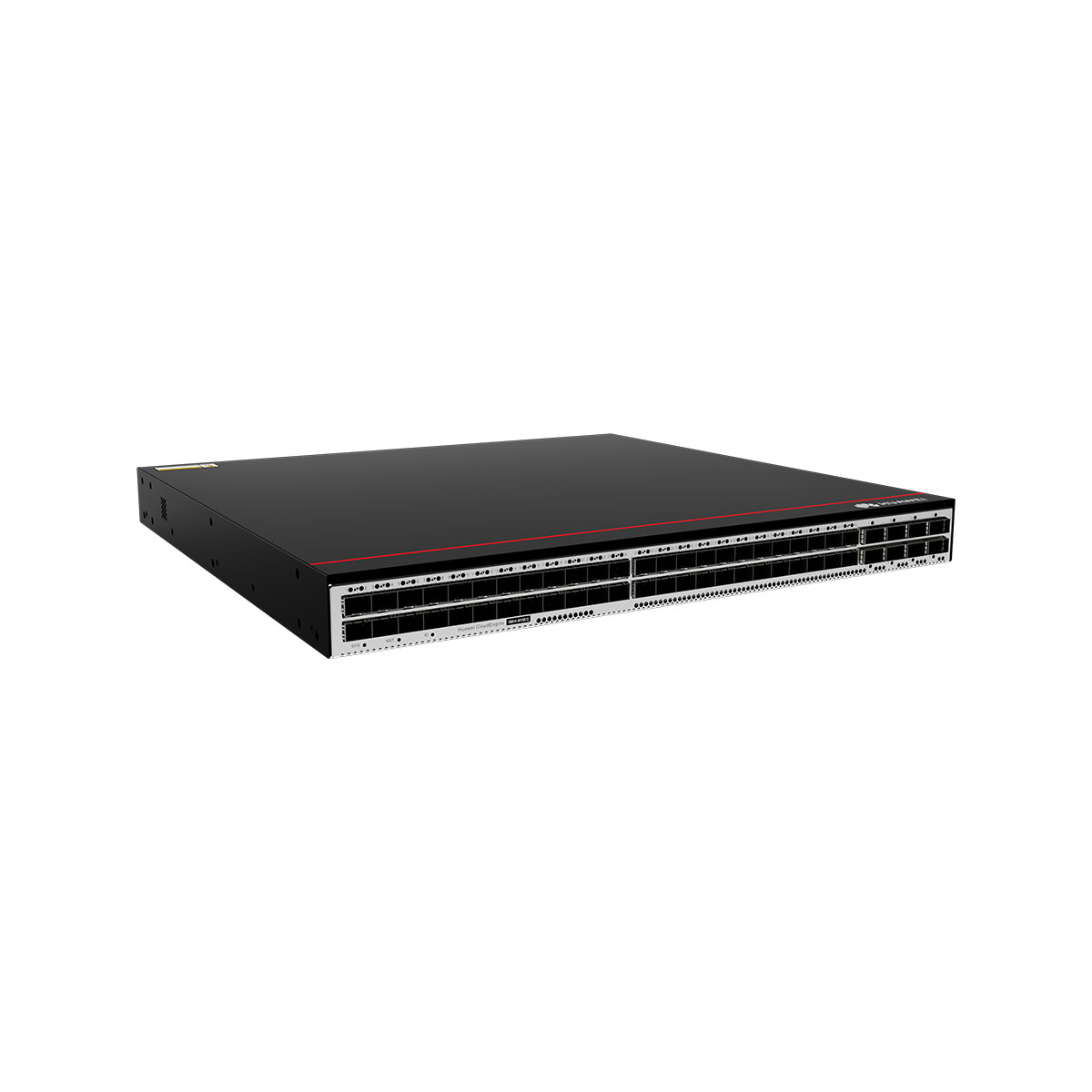

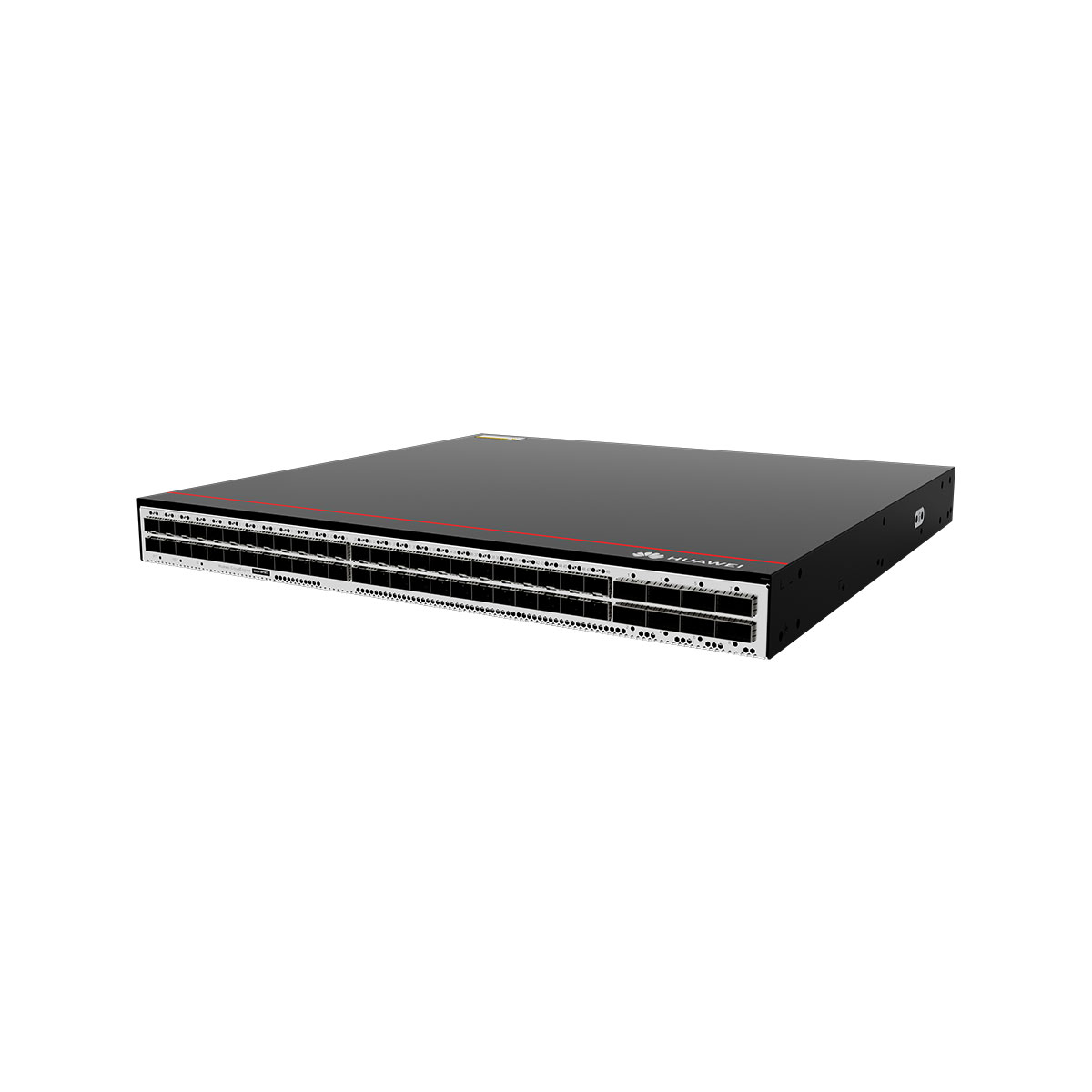

Huawei CE6885H-48YS8CQ switch with 48*25GE SFP28, 8*100GE QSFP28, Without Fan and Power Modules

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6885H-48YS8CQ overview

The CloudEngine 6800 series switches deliver high performance, high port density, and low latency, making them ideal for building cloud-oriented data center networks for enterprises and carriers. Featuring a cutting-edge hardware design, the series offers access ports with 10 GE, 25 GE, or 50 GE options, along with uplink ports supporting 40 GE, 100 GE, or 200 GE. With advanced data center capabilities, high-performance stacking technologies, and flexible airflow designs, the series ensures superior efficiency and scalability.

The CloudEngine 6800 is ideal for both core and aggregation layers and seamlessly integrates with CloudEngine 16800 and 12800 series switches. This compatibility allows enterprises to create scalable, streamlined, open, and secure networks.

Item	Details
Description	CE6885H-48YS8CQ switch (4825GE SFP28, 8100GE QSFP28, Without Fan and Power Modules)
Part Number	02355SFF
Model	CE6885H-48YS8CQ

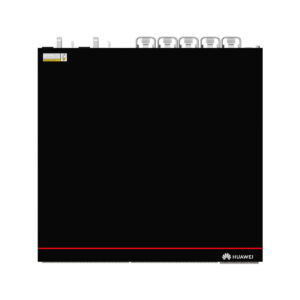

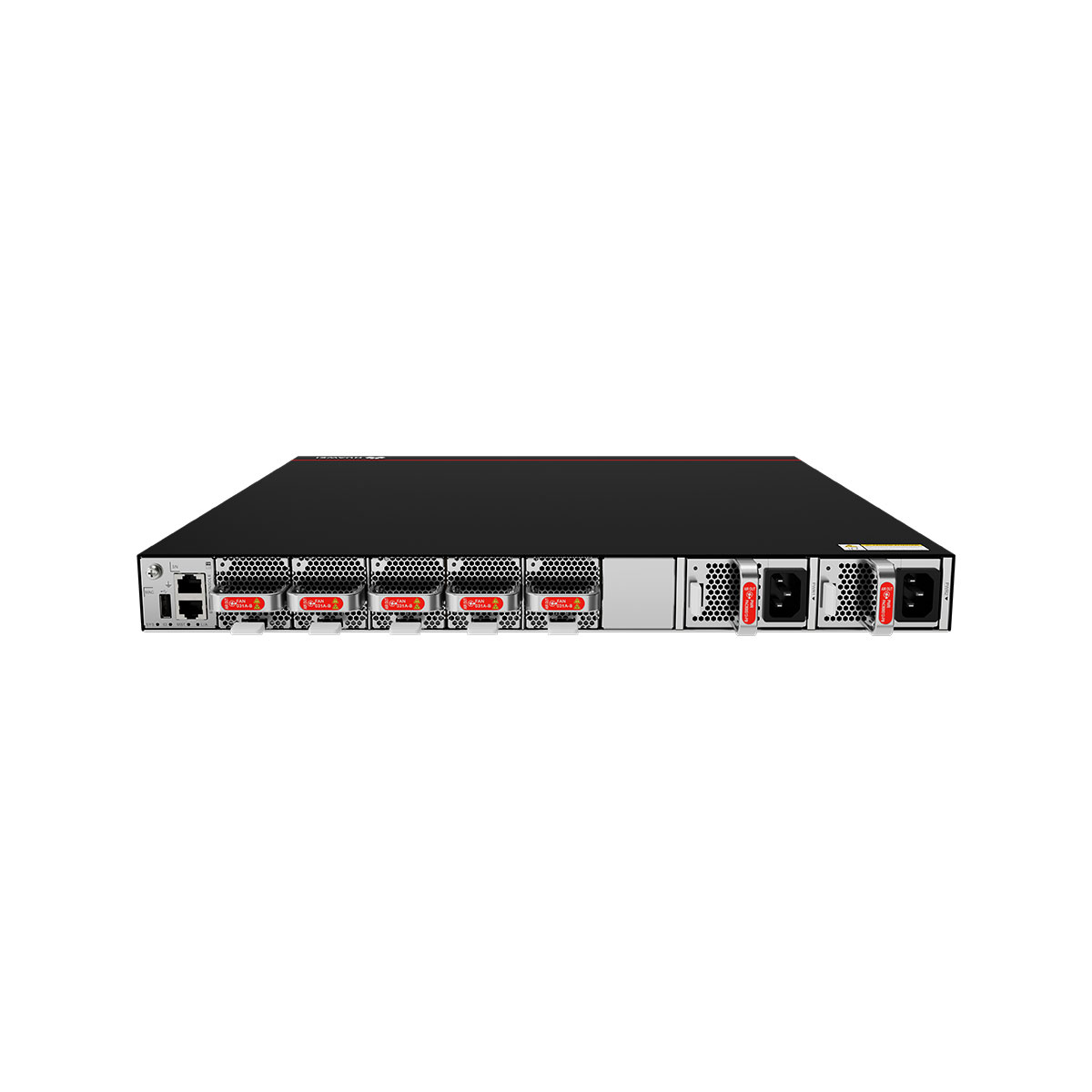

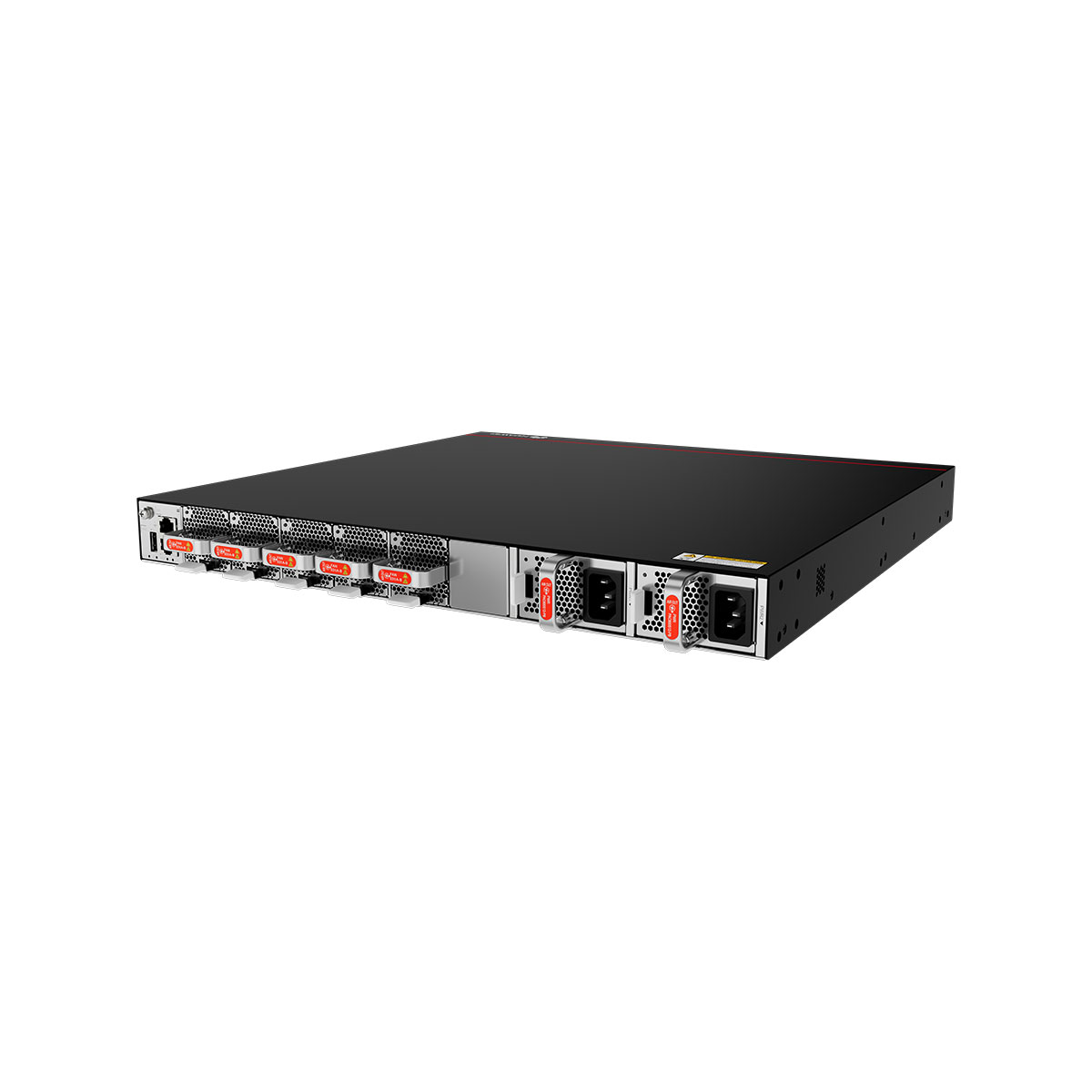

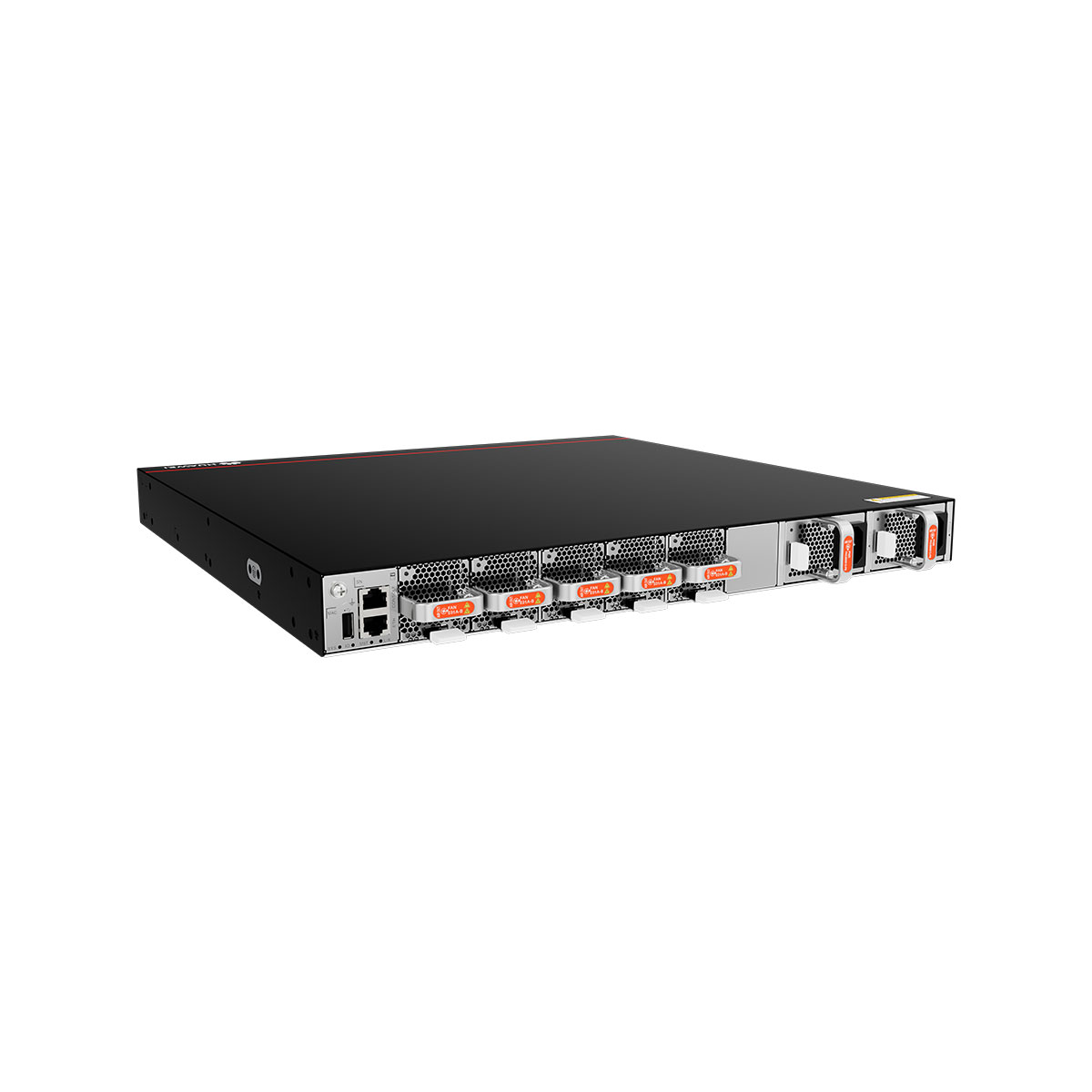

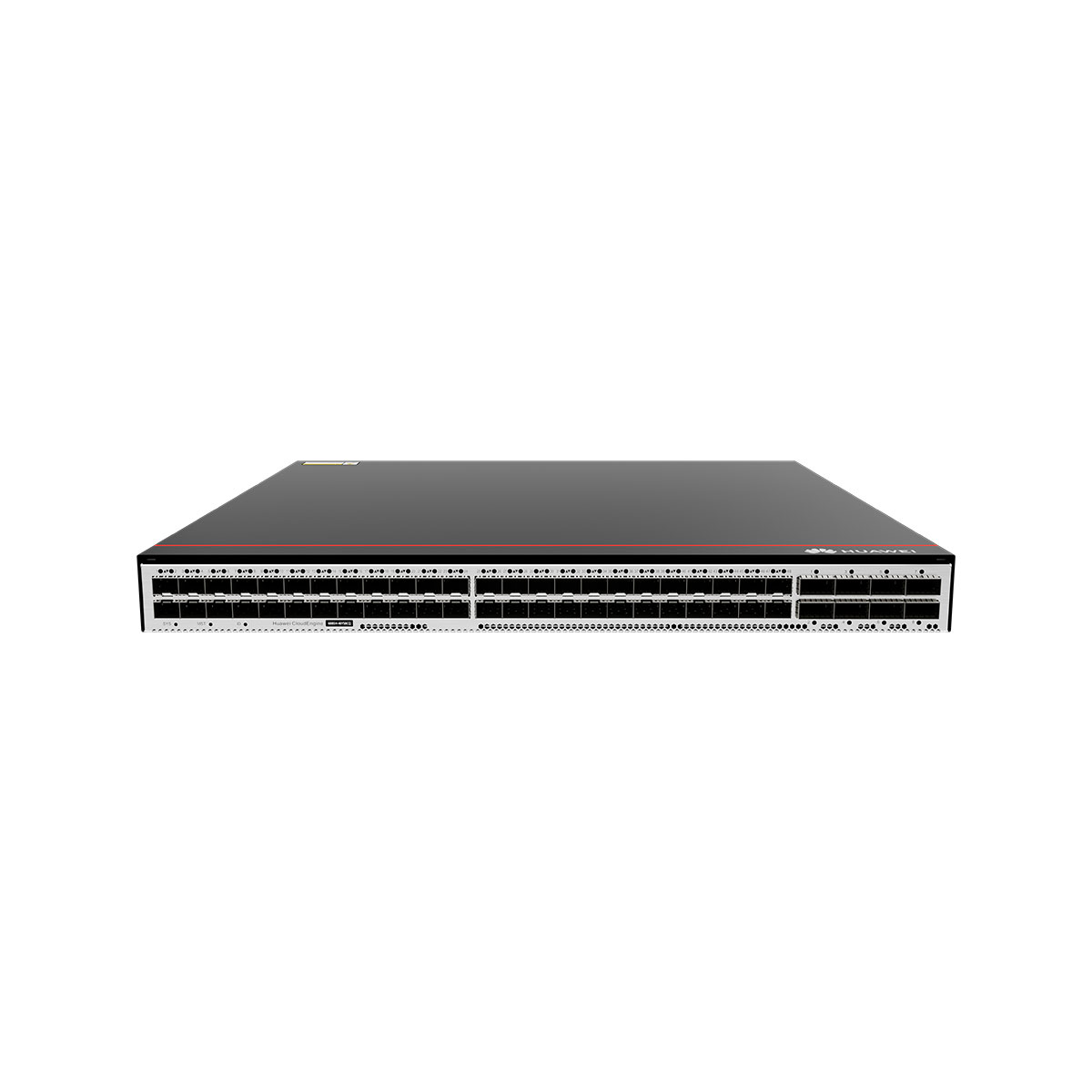

CE6885H-48YS8CQ Appearance

1. Ground screw

2. Equipment serial number (ESN) and MAC address

NOTE:

You can scan the code to view the ESN and MAC address of the switch.

3. Console port

4. ETH management port (RJ45)

5. USB port

6. Five Fan slots

Applicable fan modules:

FAN-031A-B
FAN-031A-F
FAN-031B-B
FAN-031B-F

7. Two Power supply slots

Applicable power modules:

PAC600S12-PB
PAC600S12-PF
PDC1K2S12-CE
PDC1K2S12-PB
PDC400S12-CB
PDC400S12-CF

8. Forty-eight 25GE SFP28/50GE SFP56 Ethernet optical ports

9. Eight 100GE QSFP28/200GE QSFP56 Ethernet optical ports

10. Three port-side mounting holes for mounting brackets

11. Two middle mounting holes for mounting brackets

12. Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal

13. Four power-supply-side mounting holes for mounting brackets

–

Item	CE6885H-48YS8CQ
Installation Type	Cabinet installation
Switching capacity	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU	16-core, 2 GHz
Memory	DRAM: 16 GB
NOR Flash	64 MB x 2
SSD Flash	4GB SSD
USB	It can be used for log backup and USB-based deployment. This function is reserved.
Power supply mode	AC pluggable DC pluggable HVDC pluggable
Console port	RJ45
Downlink Service interface	48 x 25GE SFP28/48 x 50GE SFP56
Uplink Service interface	8 x 100GE QSFP28/8 x 200GE QSFP56
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Typical power consumption [W]	48 x 25GE + 8 x 100GE ports: 207 W (100% traffic load, copper cables on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) 218 W (100% traffic load, short-distance optical modules on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour]	48 x 25GE + 8 x 100GE ports: 706 BTU/hour (100% traffic load, copper cables on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) 744 BTU/hour (100% traffic load, short-distance optical modules on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules)
Static power consumption [W]	196 W
Static heat dissipation [BTU/hour]	669 BTU/hour
Maximum power consumption [W]	48 x 25GE + 8 x 100GE ports: 255 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 372 W (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules)
Maximum heat dissipation [BTU/hour]	48 x 25GE + 8 x 100GE ports: 870 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 1269 BTU/hour (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules)
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC 1200 W DC power module: –48 V DC to –60 V DC; +48 V DC 400 W DC power module: –48 V DC to –60 V DC; +48 V DC
Input voltage range [V]	600 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC 1200 W DC power module: –38.4 V DC to –72 V DC; +40 V DC to +57 V DC 400 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC) 400 W DC power module: 12 A (–48 V DC to –60 V DC); 12 A (+48 V DC)
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1200 W DC power module: 1200 W 400 W DC power module: 400 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fan modules	5
Redundant fans	The device supports 4+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Availability	0.9999948505
MTBF [year]	44.34 years
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: Average: 52.8 dB(A); max: 58.7 dB(A) Back-to-front airflow: Average: 51.3 dB(A); max: 59.0 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: Average: 69.5 dB(A); max: 76.0 dB(A) Back-to-front airflow: Average: 70.2 dB(A); max: 75.6 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
RTU License Supported	Yes. By default, 48 x 25GE ports can only work at the rate of 25 Gbit/s, and eight 100GE ports can only work at the rate of 100 Gbit/s. You can use the RTU license (BOM number: 88036EUQ) to increase the rate of 25GE ports to 50 Gbit/s and the rate of 100GE ports to 200 Gbit/s.
Dimensions with packaging (H x W x D) [mm (in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.)
Weight without packaging [kg (lb)]	6.84 kg (15.08 lb), excluding optical modules, power modules, and fan modules
Weight without packaging (full configuration) [kg (lb)]	9.03 kg (19.91 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.)
Weight with packaging [kg (lb)]	11.11 kg (24.49 lb)
Weight with packaging (full configuration) [kg (lb)]	13.3 kg (29.32 lb)
Chassis height [U]	1 U

Item	CE6885H-48YS8CQ
Installation Type	Cabinet installation
Switching capacity	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU	16-core, 2 GHz
Memory	DRAM: 16 GB
NOR Flash	64 MB x 2
SSD Flash	4GB SSD
USB	It can be used for log backup and USB-based deployment. This function is reserved.
Power supply mode	AC pluggable DC pluggable HVDC pluggable
Console port	RJ45
Downlink Service interface	48 x 25GE SFP28/48 x 50GE SFP56
Uplink Service interface	8 x 100GE QSFP28/8 x 200GE QSFP56
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Typical power consumption [W]	48 x 25GE + 8 x 100GE ports: 207 W (100% traffic load, copper cables on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) 218 W (100% traffic load, short-distance optical modules on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour]	48 x 25GE + 8 x 100GE ports: 706 BTU/hour (100% traffic load, copper cables on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) 744 BTU/hour (100% traffic load, short-distance optical modules on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules)
Static power consumption [W]	196 W
Static heat dissipation [BTU/hour]	669 BTU/hour
Maximum power consumption [W]	48 x 25GE + 8 x 100GE ports: 255 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 372 W (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules)
Maximum heat dissipation [BTU/hour]	48 x 25GE + 8 x 100GE ports: 870 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 1269 BTU/hour (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules)
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC 1200 W DC power module: –48 V DC to –60 V DC; +48 V DC 400 W DC power module: –48 V DC to –60 V DC; +48 V DC
Input voltage range [V]	600 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC 1200 W DC power module: –38.4 V DC to –72 V DC; +40 V DC to +57 V DC 400 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC) 400 W DC power module: 12 A (–48 V DC to –60 V DC); 12 A (+48 V DC)
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1200 W DC power module: 1200 W 400 W DC power module: 400 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fan modules	5
Redundant fans	The device supports 4+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Availability	0.9999948505
MTBF [year]	44.34 years
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: Average: 52.8 dB(A); max: 58.7 dB(A) Back-to-front airflow: Average: 51.3 dB(A); max: 59.0 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: Average: 69.5 dB(A); max: 76.0 dB(A) Back-to-front airflow: Average: 70.2 dB(A); max: 75.6 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
RTU License Supported	Yes. By default, 48 x 25GE ports can only work at the rate of 25 Gbit/s, and eight 100GE ports can only work at the rate of 100 Gbit/s. You can use the RTU license (BOM number: 88036EUQ) to increase the rate of 25GE ports to 50 Gbit/s and the rate of 100GE ports to 200 Gbit/s.
Dimensions with packaging (H x W x D) [mm (in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.)
Weight without packaging [kg (lb)]	6.84 kg (15.08 lb), excluding optical modules, power modules, and fan modules
Weight without packaging (full configuration) [kg (lb)]	9.03 kg (19.91 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.)
Weight with packaging [kg (lb)]	11.11 kg (24.49 lb)
Weight with packaging (full configuration) [kg (lb)]	13.3 kg (29.32 lb)
Chassis height [U]	1 U
