Categories:CloudEngine 6800 Series

CE6881H-48S6CQ-K

0 Reviews Write a review

SKU2029121

AvailabilityIn Stock

WarrantyUp to 36 months

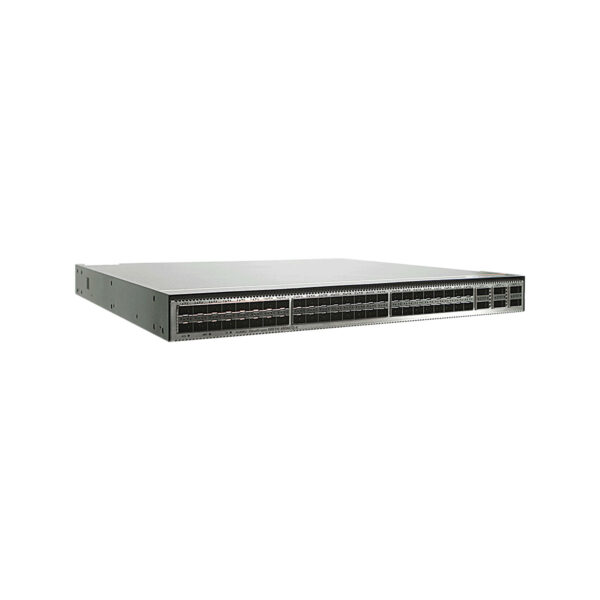

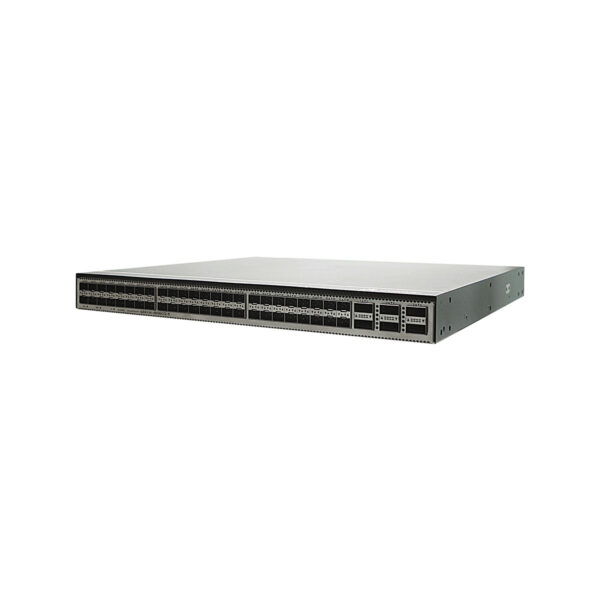

Huawei CE6881H-48S6CQ-K switch with 48*10GE SFP+, 6*100GE QSFP28, without fan and power modules

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6881H-48S6CQ-K overview

The CloudEngine 6800 series switches deliver high performance, high port density, and low latency, making them ideal for building cloud-oriented data center networks for enterprises and carriers. Featuring a cutting-edge hardware design, the series offers access ports with 10 GE, 25 GE, or 50 GE options, along with uplink ports supporting 40 GE, 100 GE, or 200 GE. With advanced data center capabilities, high-performance stacking technologies, and flexible airflow designs, the series ensures superior efficiency and scalability.

The CloudEngine 6800 is ideal for both core and aggregation layers and seamlessly integrates with CloudEngine 16800 and 12800 series switches. This compatibility allows enterprises to create scalable, streamlined, open, and secure networks.

Item	Details
Description	CE6881H-48S6CQ-K switch (4810GE SFP+, 6100GE QSFP28, without fan and power modules)
Part Number	02354VSS
Model	CE6881H-48S6CQ-K

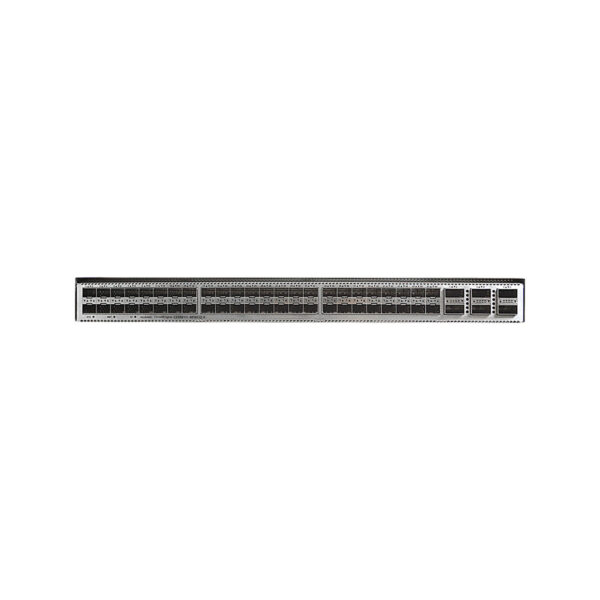

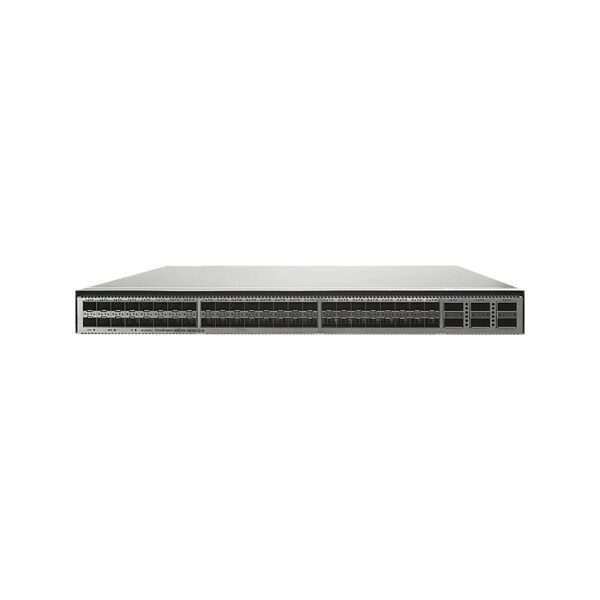

CE6881H-48S6CQ-K Appearance

1	Ground screw	2	Equipment serial number (ESN) NOTE: You can scan the code to view the ESN and MAC address of the switch.
3	Console port	4	ETH management port (RJ45)
5	USB port	6	Fan slot 1
7	Fan slot 2	8	Fan slot 3
9	Fan slot 4	10	Power supply slot 1
11	Power supply slot 2	12	Forty-eight 10GE SFP+ Ethernet optical ports
13	Six 40GE/100GE QSFP28 Ethernet optical ports	14	Three port-side mounting holes for mounting brackets
15	Two middle mounting holes for mounting brackets	16	Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal
17	Four power-supply-side mounting holes for mounting brackets	–	–

Item	CE6881H-48S6CQ-K
Installation Type	Cabinet installation
Switching capacity	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU	Quad-core, 1.4 GHz
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	It can be used for log backup and USB-based deployment. This function is reserved.
Power supply mode	AC pluggable DC pluggable HVDC pluggable
Console port	RJ45
Downlink Service interface	48*10GE SFP+
Uplink Service interface	6 x 100GE QSFP28
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Typical power consumption [W]	194 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 240 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]	662 BTU/hour (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 819 BTU/hour (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	161 W
Static heat dissipation [BTU/hour]	549 BTU/hour
Maximum power consumption [W]	349 W
Maximum heat dissipation [BTU/hour]	1191 BTU/hour
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fan modules	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
Availability	0.9999960856
MTBF [year]	45.9 years
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: < 58 dB(A) Back-to-front airflow: < 57 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: < 75 dB(A) Back-to-front airflow: < 74 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging [kg (lb)]	5.7 kg (12.57 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	7.8 kg (17.2 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.)
Weight with packaging [kg (lb)]	9.97 kg (21.98 lb)
Weight with packaging (full configuration) [kg (lb)]	12.07 kg (26.61 lb)
Chassis height [U]	1 U

Item	CE6881H-48S6CQ-K
Installation Type	Cabinet installation
Switching capacity	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU	Quad-core, 1.4 GHz
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	It can be used for log backup and USB-based deployment. This function is reserved.
Power supply mode	AC pluggable DC pluggable HVDC pluggable
Console port	RJ45
Downlink Service interface	48*10GE SFP+
Uplink Service interface	6 x 100GE QSFP28
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Typical power consumption [W]	194 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 240 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]	662 BTU/hour (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 819 BTU/hour (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	161 W
Static heat dissipation [BTU/hour]	549 BTU/hour
Maximum power consumption [W]	349 W
Maximum heat dissipation [BTU/hour]	1191 BTU/hour
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fan modules	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
Availability	0.9999960856
MTBF [year]	45.9 years
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: < 58 dB(A) Back-to-front airflow: < 57 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: < 75 dB(A) Back-to-front airflow: < 74 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging [kg (lb)]	5.7 kg (12.57 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	7.8 kg (17.2 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.)
Weight with packaging [kg (lb)]	9.97 kg (21.98 lb)
Weight with packaging (full configuration) [kg (lb)]	12.07 kg (26.61 lb)
Chassis height [U]	1 U
