Categories:CloudEngine 6800 Series

CE6881E-48S6CQ

0 Reviews Write a review

PN02353LHN

BrandsHuawei

AvailabilityIn Stock

CE Switch CE6800

WarrantyUp to 36 months

CE6881E-48S6CQ Huawei CE6800 switch supports 24*10GE SFP+, 24*25GE SFP28, 6*100GE QSFP28

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6881E-48S6CQ overview

CE6881E-48S6CQ Huawei CE6800 switch supports 24*10GE SFP+, 24*25GE SFP28, 6*100GE QSFP28

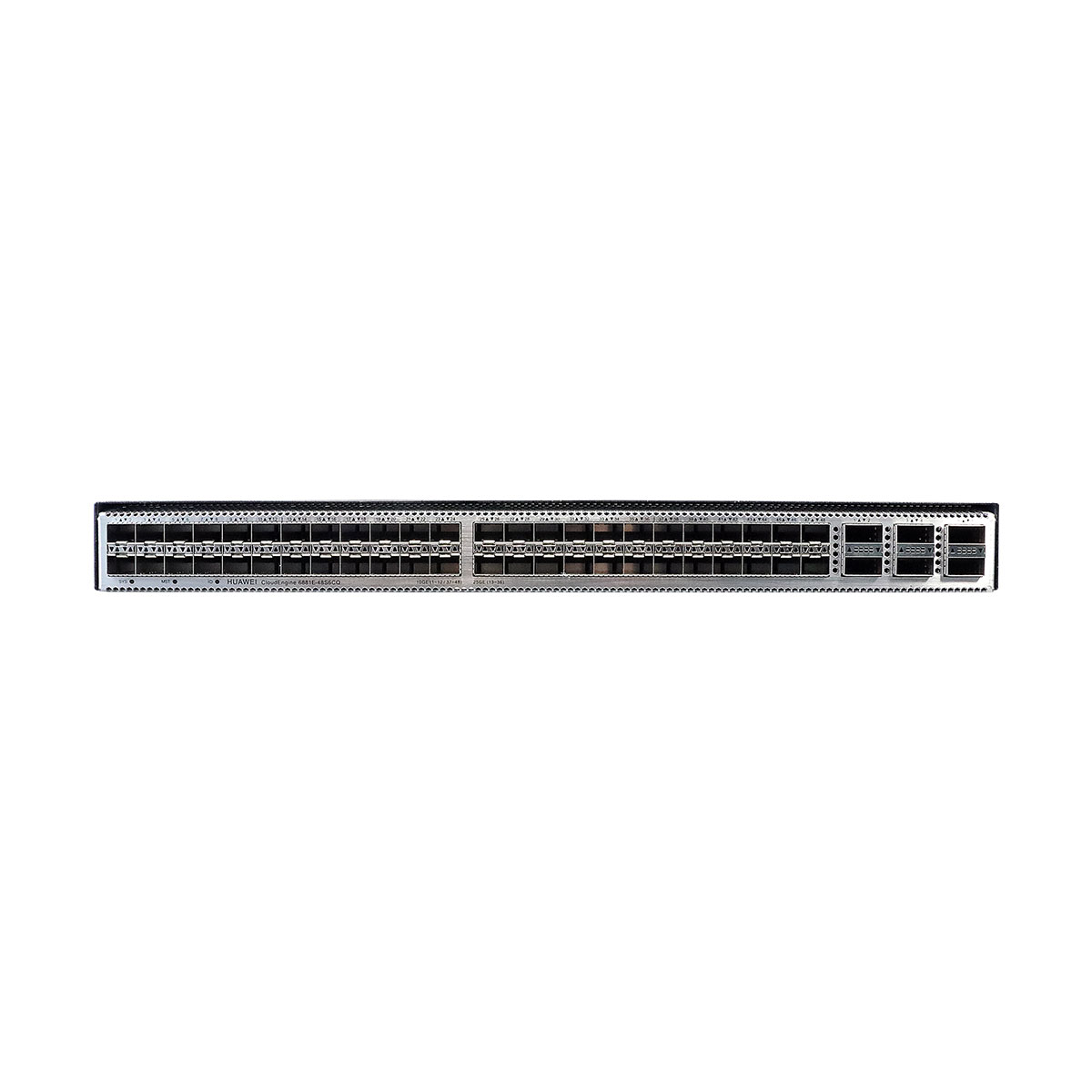

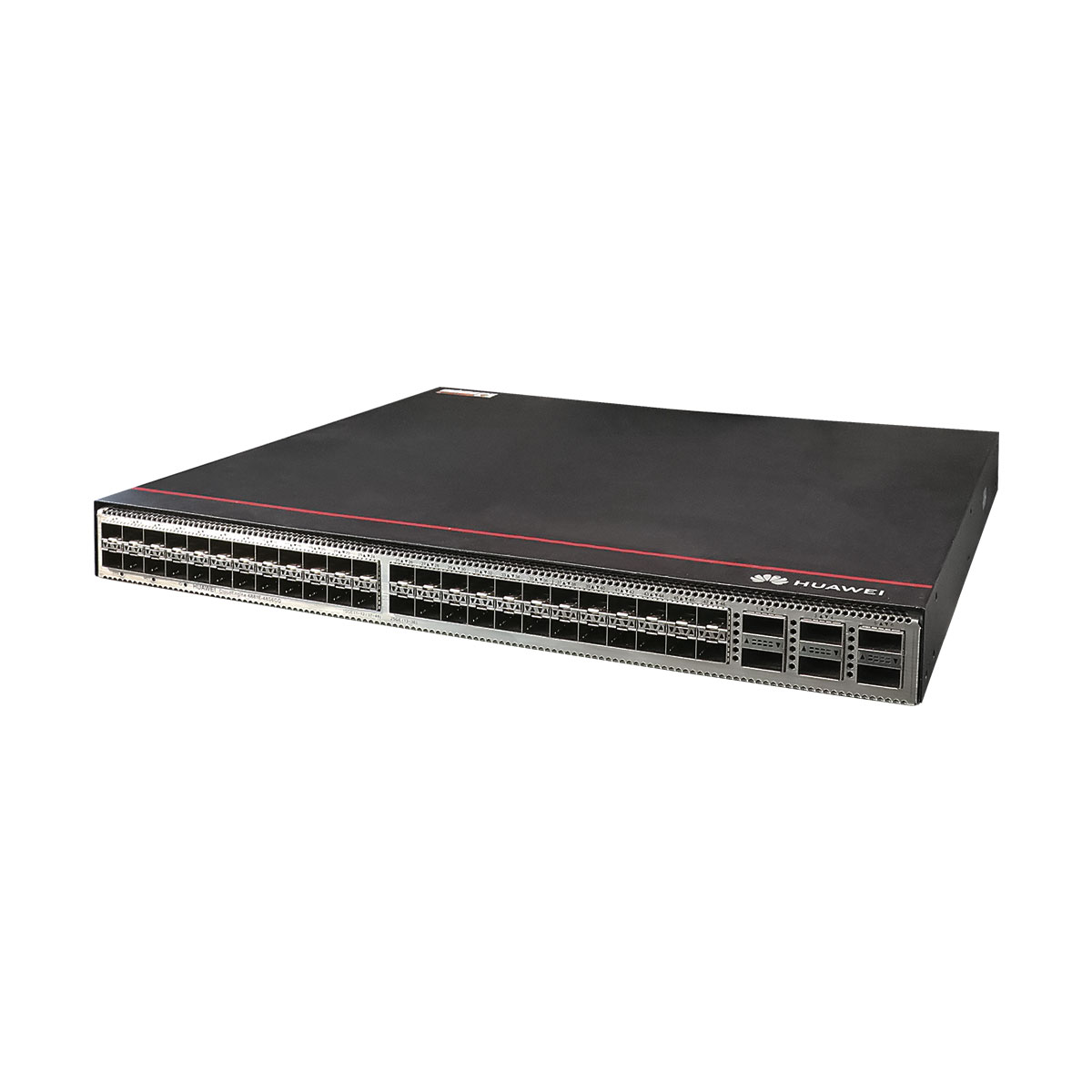

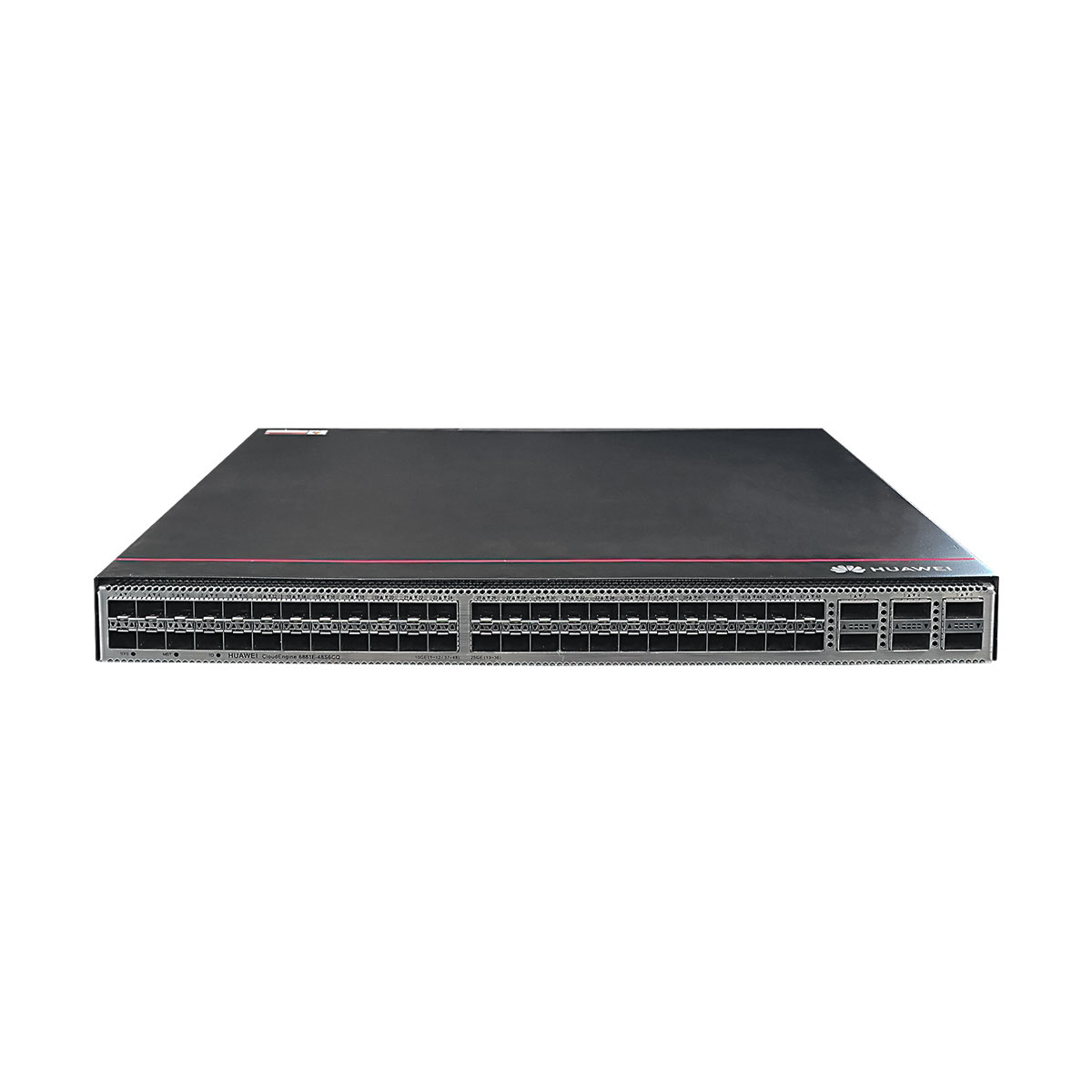

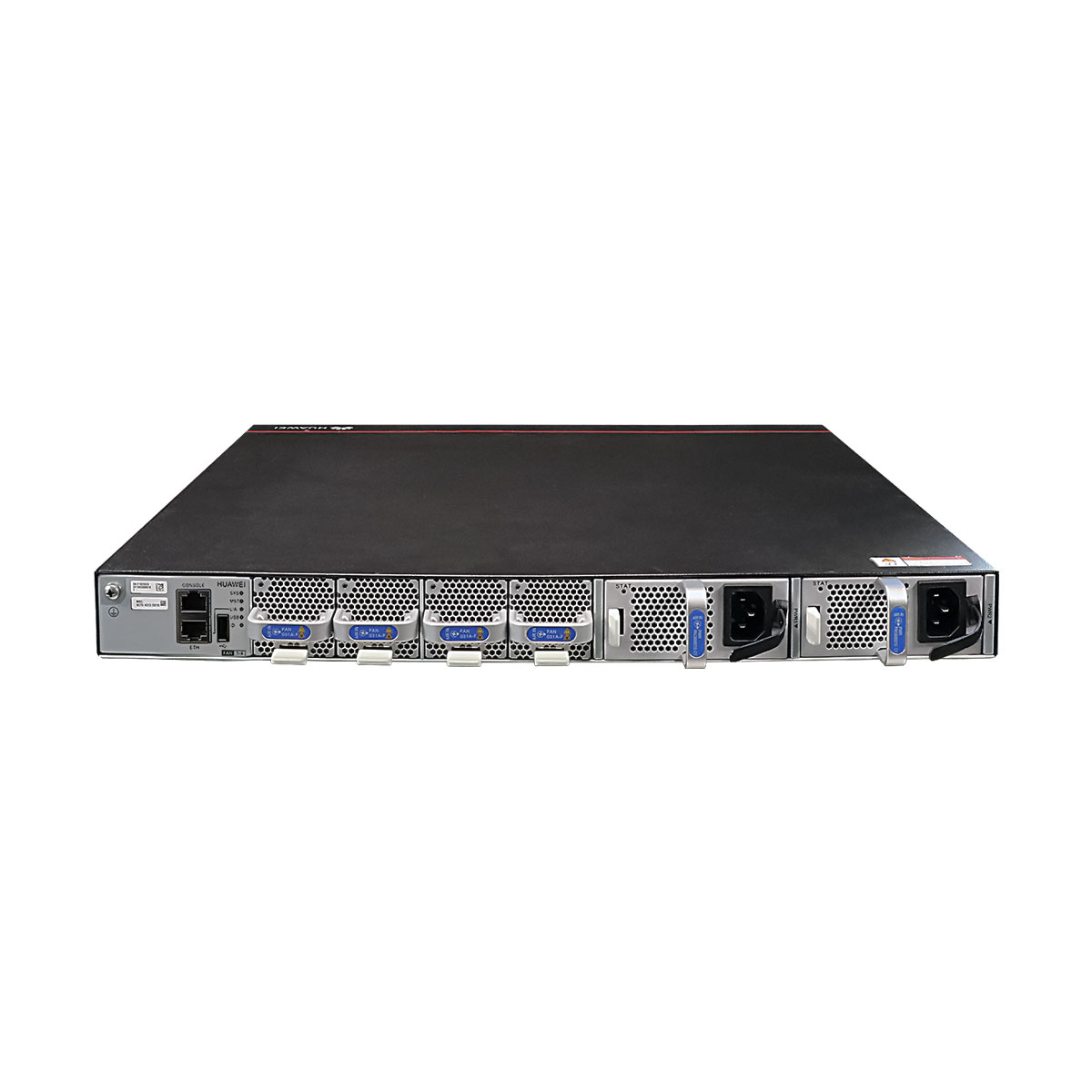

CE6881E-48S6CQ appearance

1	Ground screw	2	Equipment serial number (ESN)
3	Console port	4	ETH management port (RJ45)
5	USB port	6	Fan slot 1
7	Fan slot 2	8	Fan slot 3
9	Fan slot 4	10	Power supply slot 1
11	Power supply slot 2	12	Twenty-four 10GE SFP+ Ethernet optical ports
13	Twenty-four 10GE/25GE SFP28 Ethernet optical ports	14	Six 40GE/100GE QSFP28 Ethernet optical ports
15	Three port-side mounting holes for mounting brackets	16	Two middle mounting holes for mounting brackets
17	Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal	18	Four power-supply-side mounting holes for mounting brackets

CE6881E-48S6CQ application

Item	Details
Description	CE6881E-48S6CQ switch (2410GE SFP+, 2425GE SFP28, 6*100GE QSFP28)
Part Number	02353LHN
Model	CE6881E-48S6CQ
First supported version	V200R019C10

Item	CE6881E-48S6CQ
Installation Type	Cabinet Installation
CPU	4-core, 1.4GHZ
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
Power supply mode	AC DC HVDC
Console port	RJ45
Downlink Service interface	24 x 10GE SFP+ and 24 x 25GE SFP28 (10GE ports can be configured as GE ports, and the ports can automatically adjust their speeds based on the installed modules. 25GE ports can be configured as 10GE and GE ports. Every four downlink 25GE ports form a group, and their speeds can be set to 10 Gbit/s or 1 Gbit/s using the CLI. 10GE LRM/80KM linear optical modules are not supported. 25GE 1 m copper cables and 10GE 1 m/3 m/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 25GE copper cables can only be used on stack ports and M-LAG peer-link ports.)
Uplink Service interface	6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.)
Service port supporting the stack function	10GE optical ports, 25GE optical ports, and 100GE optical ports
RTC	Supported
Typical power consumption [W]	203 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 252 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]	693 BTU/hr (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 860 BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	165 W
Static heat dissipation [BTU/hour]	563 BTU/hour
Maximum power consumption [W]	363 W
Maximum heat dissipation	1239
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V DC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Maximum output power [W]	600 W (AC&240 V HVDC) 1000 W (–48 V DC)
Certification	· Complies with safety standards. · Complies with EMC standards. · Complies with environmental protection standards.
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.9999960856
MTBF [year]	45.9 year
MTTR [hour]	1.57 hour
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: < 58 dB(A) Back-to-front airflow: < 57 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: < 75 dB(A) Back-to-front airflow: < 74 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging (base configuration) [kg (lb)]	5.7 kg (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	7.8 kg (17.2 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)

Brand	Huawei
CE Switch	CE6800
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	CE6881E-48S6CQ
Installation Type	Cabinet Installation
CPU	4-core, 1.4GHZ
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
Power supply mode	AC DC HVDC
Console port	RJ45
Downlink Service interface	24 x 10GE SFP+ and 24 x 25GE SFP28 (10GE ports can be configured as GE ports, and the ports can automatically adjust their speeds based on the installed modules. 25GE ports can be configured as 10GE and GE ports. Every four downlink 25GE ports form a group, and their speeds can be set to 10 Gbit/s or 1 Gbit/s using the CLI. 10GE LRM/80KM linear optical modules are not supported. 25GE 1 m copper cables and 10GE 1 m/3 m/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 25GE copper cables can only be used on stack ports and M-LAG peer-link ports.)
Uplink Service interface	6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.)
Service port supporting the stack function	10GE optical ports, 25GE optical ports, and 100GE optical ports
RTC	Supported
Typical power consumption [W]	203 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 252 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]	693 BTU/hr (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 860 BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	165 W
Static heat dissipation [BTU/hour]	563 BTU/hour
Maximum power consumption [W]	363 W
Maximum heat dissipation	1239
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V DC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Maximum output power [W]	600 W (AC&240 V HVDC) 1000 W (–48 V DC)
Certification	· Complies with safety standards. · Complies with EMC standards. · Complies with environmental protection standards.
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.9999960856
MTBF [year]	45.9 year
MTTR [hour]	1.57 hour
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: < 58 dB(A) Back-to-front airflow: < 57 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: < 75 dB(A) Back-to-front airflow: < 74 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging (base configuration) [kg (lb)]	5.7 kg (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	7.8 kg (17.2 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
