Categories:CloudEngine 6800 Series

CE6881-48S6CQ

0 Reviews Write a review

PN02352QGF

BrandsHuawei

AvailabilityIn Stock

CE Switch CE6800

WarrantyUp to 36 months

CE6881-48S6CQ Huawei CE6800 switch supports 48*10GE SFP+, 6*100GE QSFP28

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6881-48S6CQ overview

CE6881-48S6CQ Huawei CE6800 switch supports 48*10GE SFP+, 6*100GE QSFP28

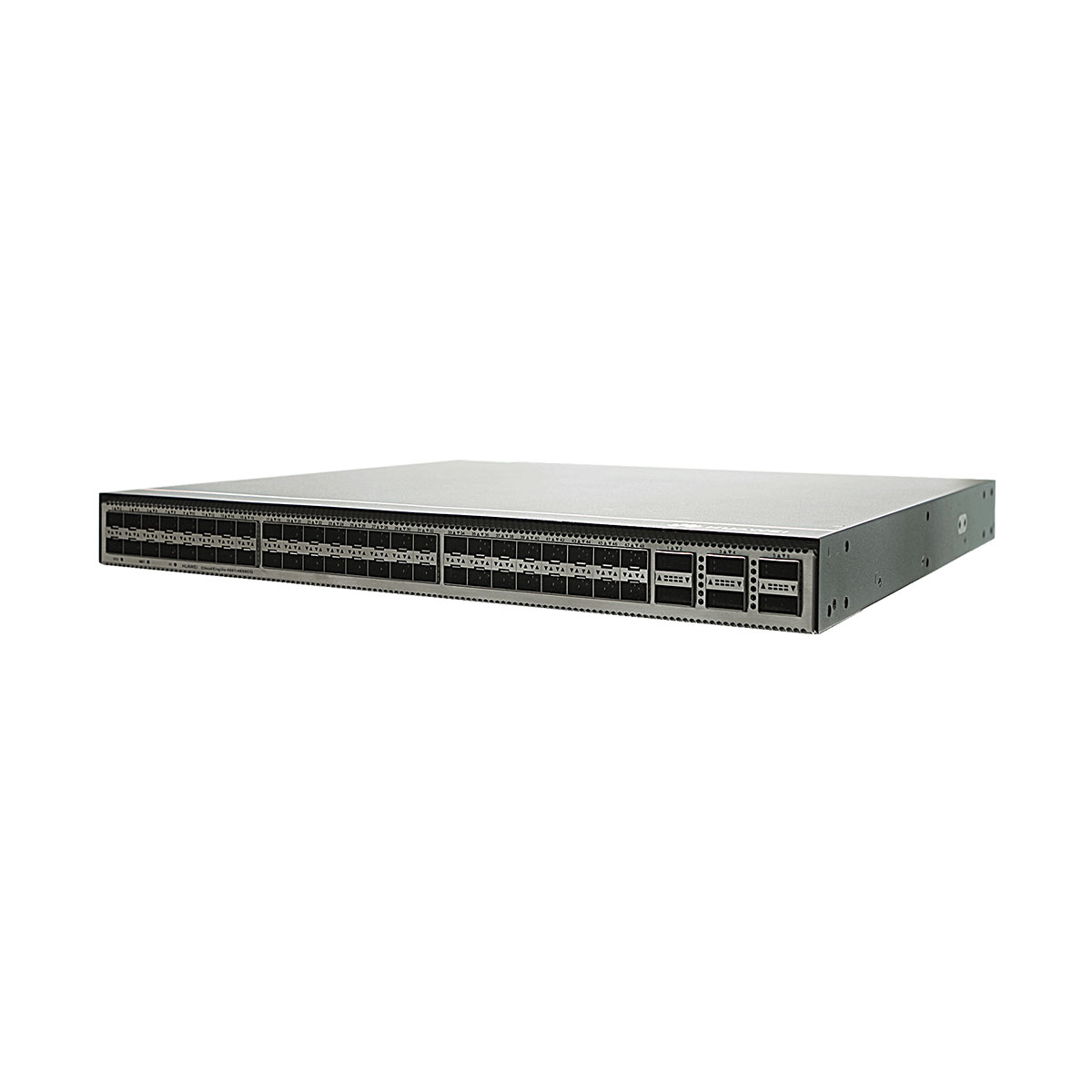

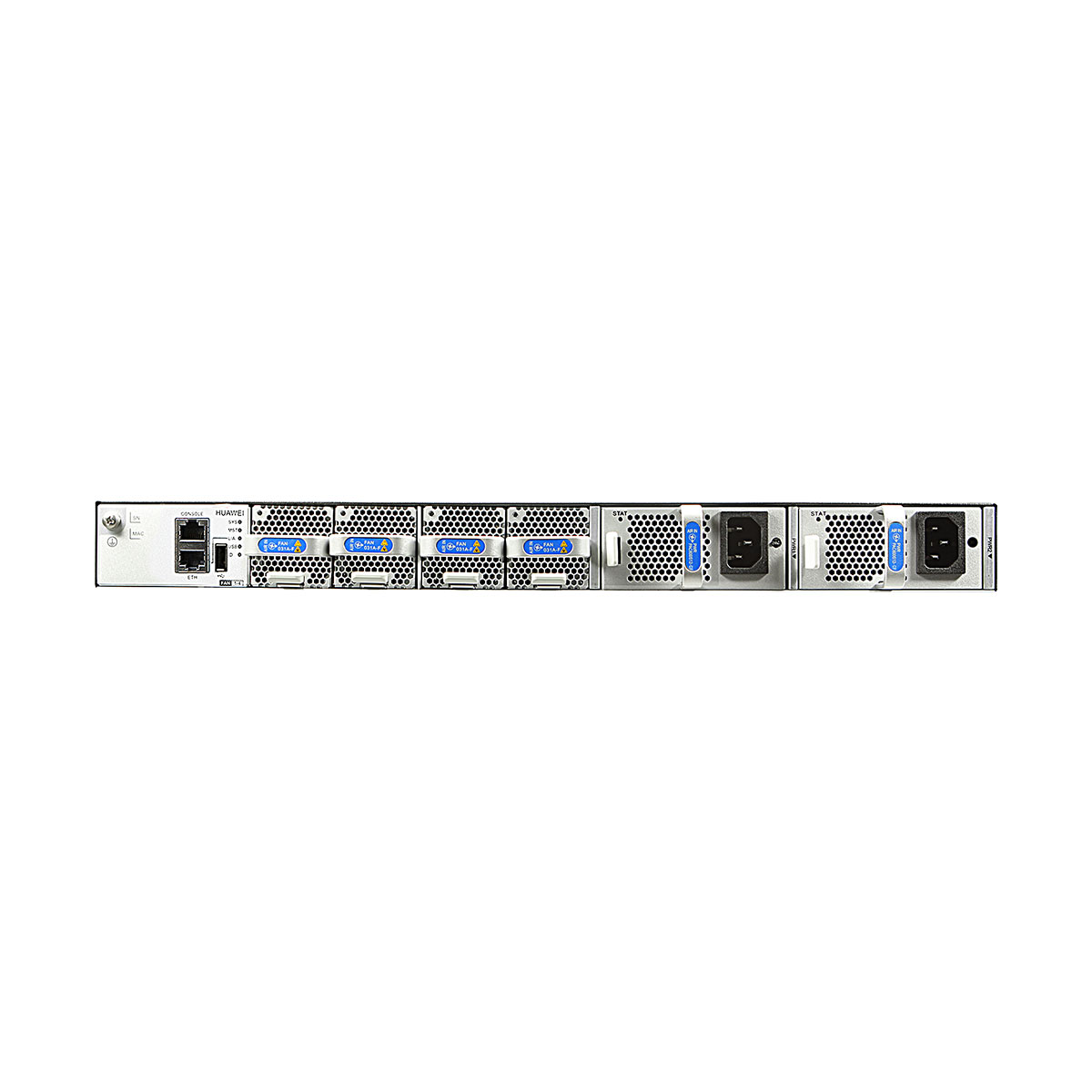

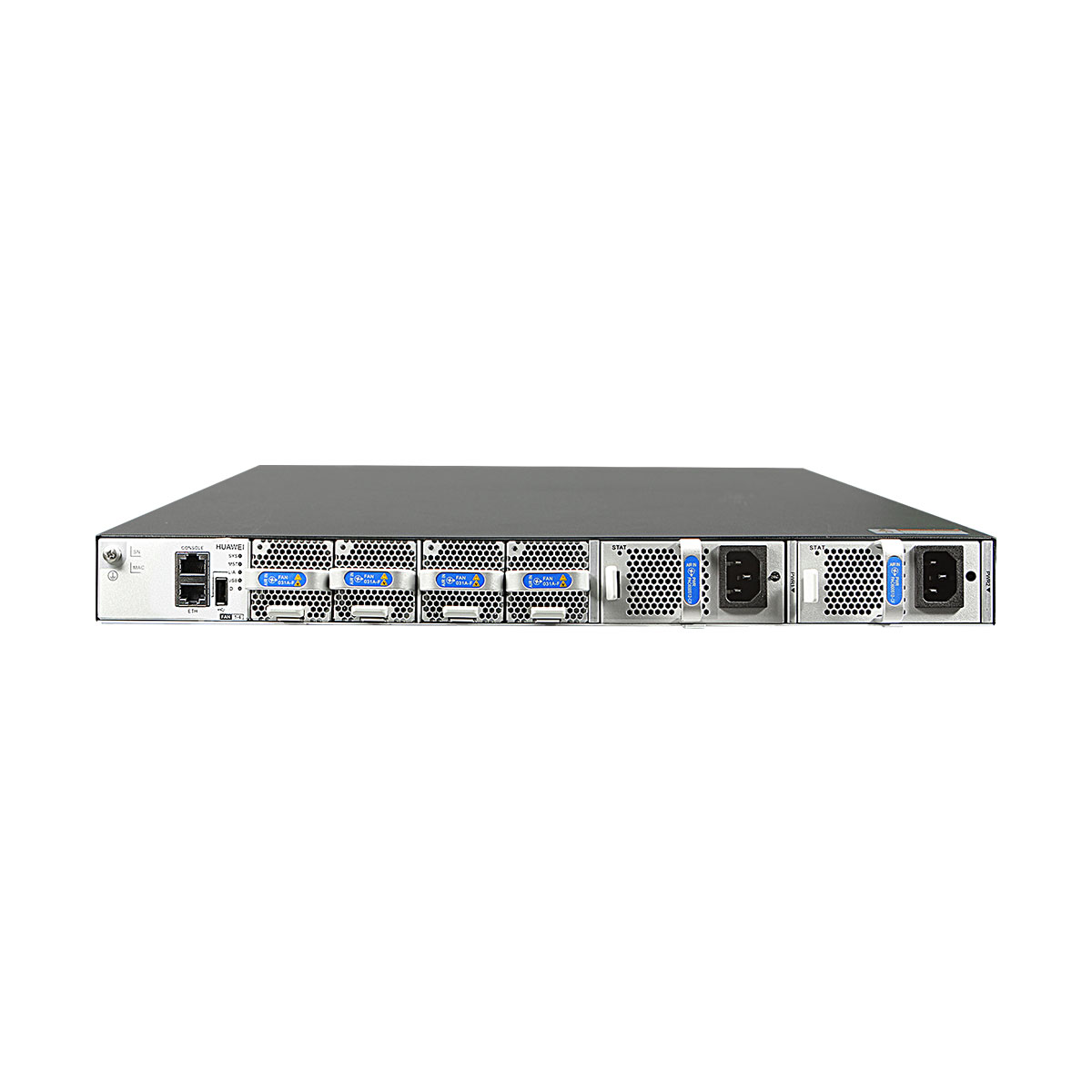

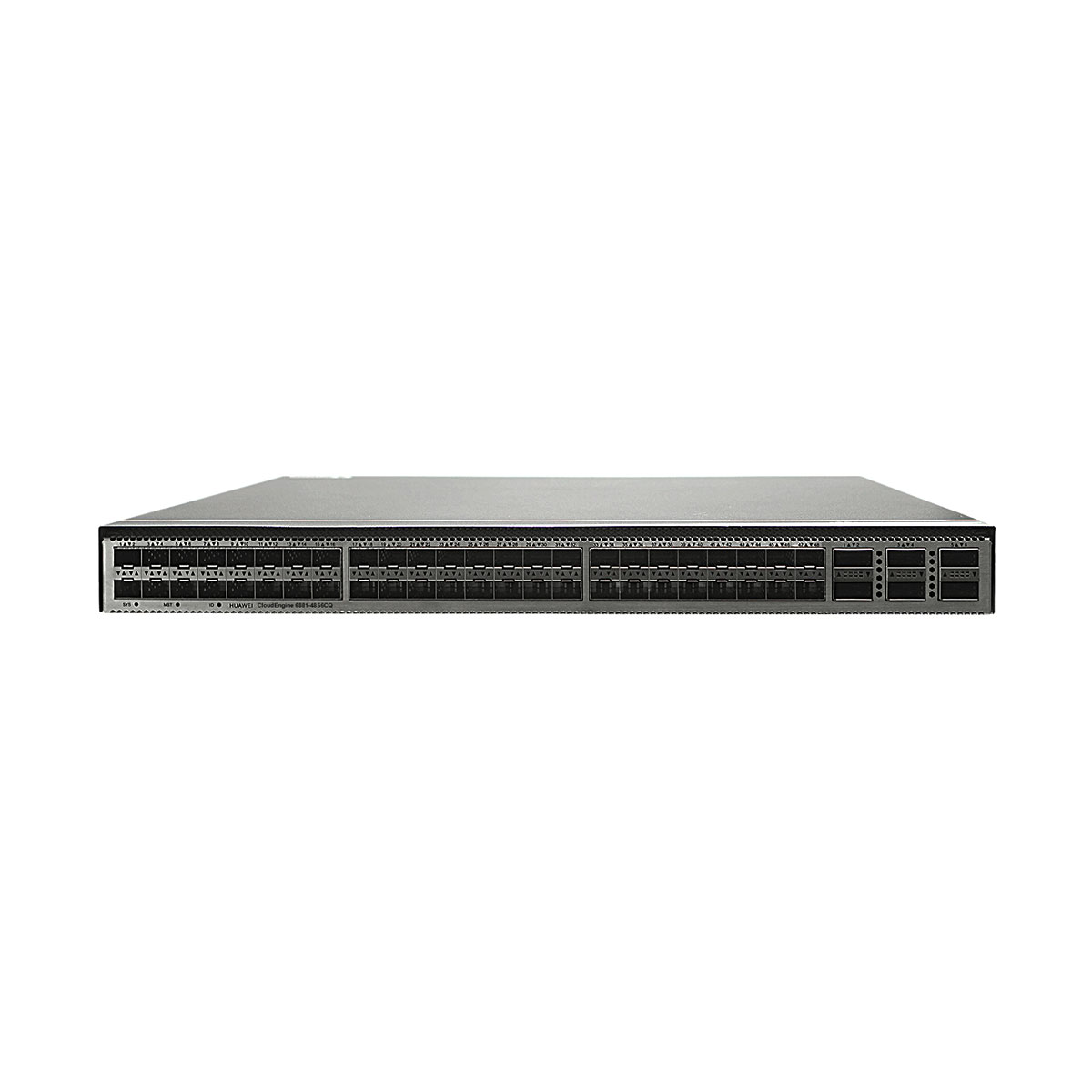

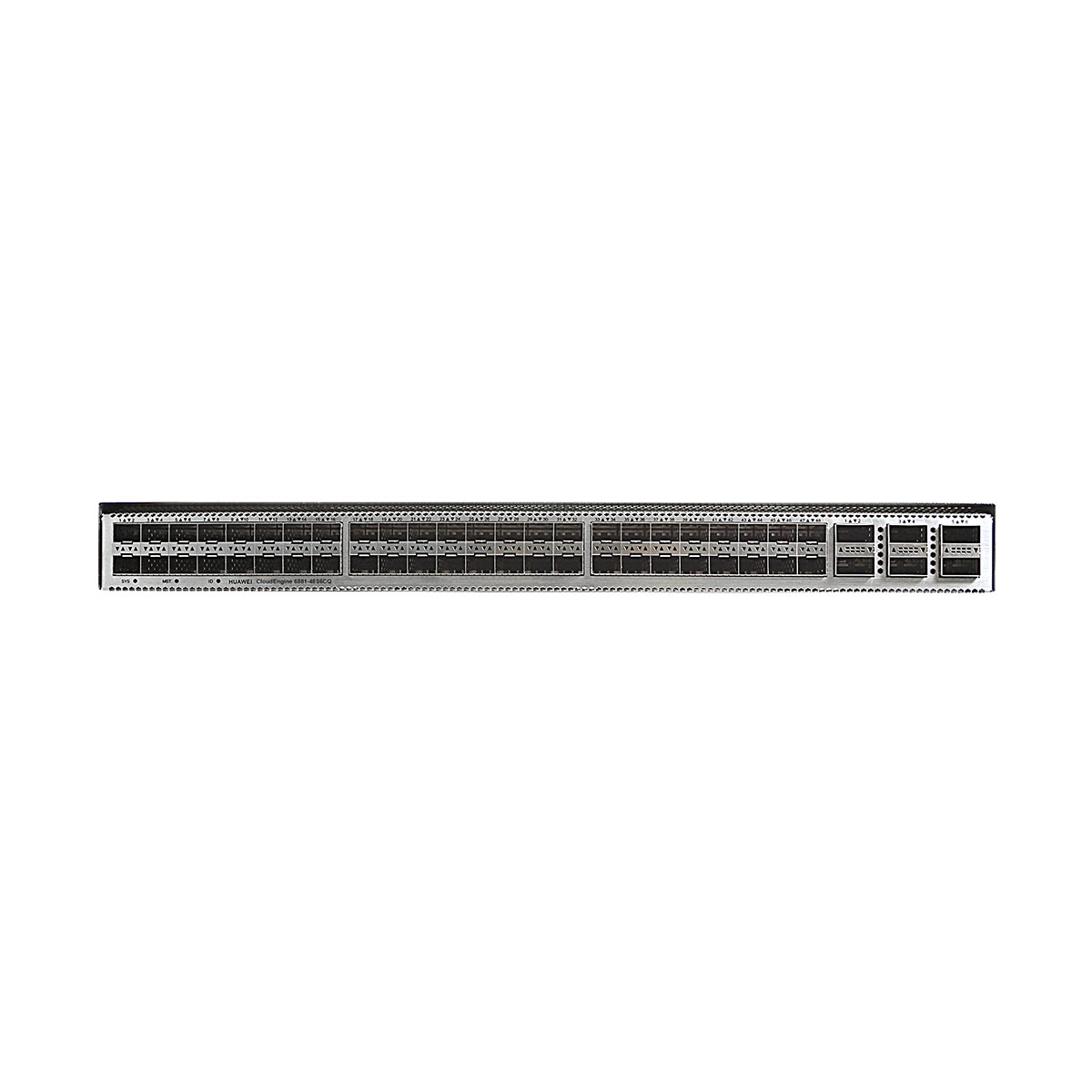

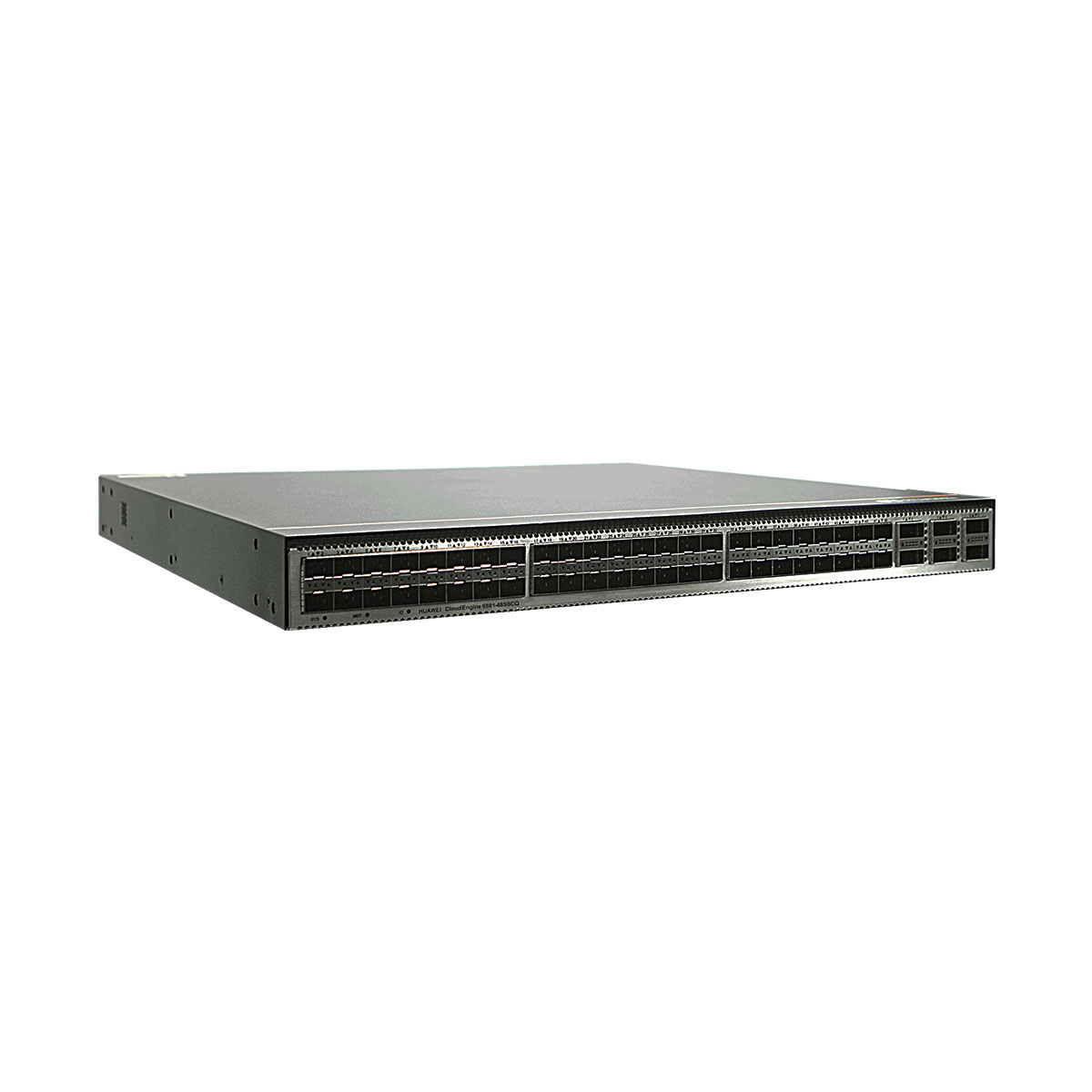

CE6881-48S6CQ appearance

1	Ground screw	2	Equipment serial number (ESN) NOTE: You can scan the code to view the ESN and MAC address of the switch.
3	Console port	4	ETH management port (RJ45)
5	USB port	6	Fan slot 1
7	Fan slot 2	8	Fan slot 3
9	Fan slot 4	10	Power supply slot 1
11	Power supply slot 2	12	Forty-eight 10GE SFP+ Ethernet optical ports
13	Six 40GE/100GE QSFP28 Ethernet optical ports	14	Three port-side mounting holes for mounting brackets
15	Two middle mounting holes for mounting brackets	16	Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal
17	Four power-supply-side mounting holes for mounting brackets	–	–

CE6881-48S6CQ application

Device Series	Sub-series	Device Model	Short Name	Supported Version
CE6800	CE6881	CE6881-48S6CQ	CE6881	V200R005C20 and later

Item	CE6881-48S6CQ
Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity	5% RH to 95% RH, noncondensing
Altitude	< 5000 m (16404 ft.)
Noise (sound pressure, 27°C)	Back-to-front airflow: < 57 dBA Front-to-back airflow: < 58 dBA
Power source type	AC/DC/HVDC
AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input	600 W AC&240 V DC power module (PAC600S12 series): Rated voltage range: 240 V DC Maximum voltage range: 190 V DC to 290 V DC 1200 W high-voltage DC power module (PHD1K2S12 series): Rated voltage range: 240 V DC to 380V DC Maximum voltage range: 190 V DC to 400 V DC
Rated input current	600 W AC&240 V DC power module (PAC600S12 series): 8 A (100 V AC to 240 V AC) 4 A (240V DC) 1000 W DC power module (PDC1000S12 series): 30 A (-48 V DC to -60 V DC) 1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
Maximum power consumption	349 W
Typical power consumption	194 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules) 240 W (100% throughput, short-distance optical modules on all optical ports, double power modules)
Maximum heat dissipation	1191 BTU/hr
Typical heat dissipation	662 BTU/hr (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules) 819 BTU/hr (100% throughput, short-distance optical modules on all optical ports, double power modules)
Surge protection	Power module: AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation mode	Air cooling
Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Power module backup	1+1 backup
Fan module backup	The device supports four pluggable fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Hot swap	Supported by all power modules and fan modules
Mean time between failures (MTBF)	45.9 years
Mean time to repair (MTTR)	1.57 hours
Availability	0.9999960856
Processor	1.4 GHz, four-core
DRAM memory	4 GB
NOR Flash	64 MB
NAND Flash	4 GB
Service port supporting the stacking function	10GE optical ports and 100GE optical ports
Physical specifications	Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.4 in. x 17.6 in.) Weight (with two AC power modules and four fan modules, calculated based on the heaviest model if multiple models are supported): 7.8 kg (17.20 lb)

Brand	Huawei
CE Switch	CE6800
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	CE6881-48S6CQ
Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity	5% RH to 95% RH, noncondensing
Altitude	< 5000 m (16404 ft.)
Noise (sound pressure, 27°C)	Back-to-front airflow: < 57 dBA Front-to-back airflow: < 58 dBA
Power source type	AC/DC/HVDC
AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input	600 W AC&240 V DC power module (PAC600S12 series): Rated voltage range: 240 V DC Maximum voltage range: 190 V DC to 290 V DC 1200 W high-voltage DC power module (PHD1K2S12 series): Rated voltage range: 240 V DC to 380V DC Maximum voltage range: 190 V DC to 400 V DC
Rated input current	600 W AC&240 V DC power module (PAC600S12 series): 8 A (100 V AC to 240 V AC) 4 A (240V DC) 1000 W DC power module (PDC1000S12 series): 30 A (-48 V DC to -60 V DC) 1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
Maximum power consumption	349 W
Typical power consumption	194 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules) 240 W (100% throughput, short-distance optical modules on all optical ports, double power modules)
Maximum heat dissipation	1191 BTU/hr
Typical heat dissipation	662 BTU/hr (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules) 819 BTU/hr (100% throughput, short-distance optical modules on all optical ports, double power modules)
Surge protection	Power module: AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation mode	Air cooling
Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Power module backup	1+1 backup
Fan module backup	The device supports four pluggable fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Hot swap	Supported by all power modules and fan modules
Mean time between failures (MTBF)	45.9 years
Mean time to repair (MTTR)	1.57 hours
Availability	0.9999960856
Processor	1.4 GHz, four-core
DRAM memory	4 GB
NOR Flash	64 MB
NAND Flash	4 GB
Service port supporting the stacking function	10GE optical ports and 100GE optical ports
Physical specifications	Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.4 in. x 17.6 in.) Weight (with two AC power modules and four fan modules, calculated based on the heaviest model if multiple models are supported): 7.8 kg (17.20 lb)
