CE6880-24S4Q2CQ-EI

0 Reviews Write a review

PN02350SRC

AvailabilityIn Stock

WarrantyUp to 36 months

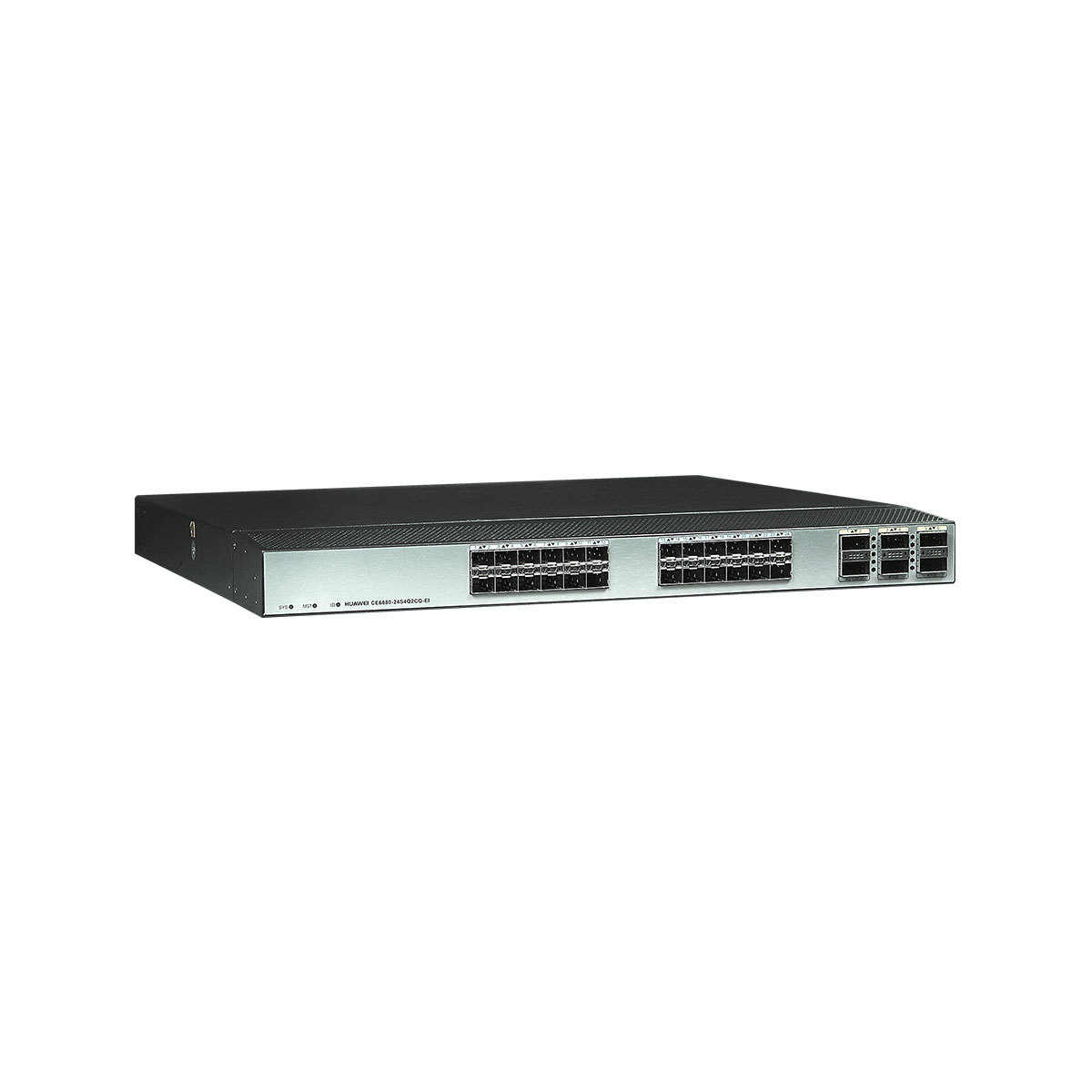

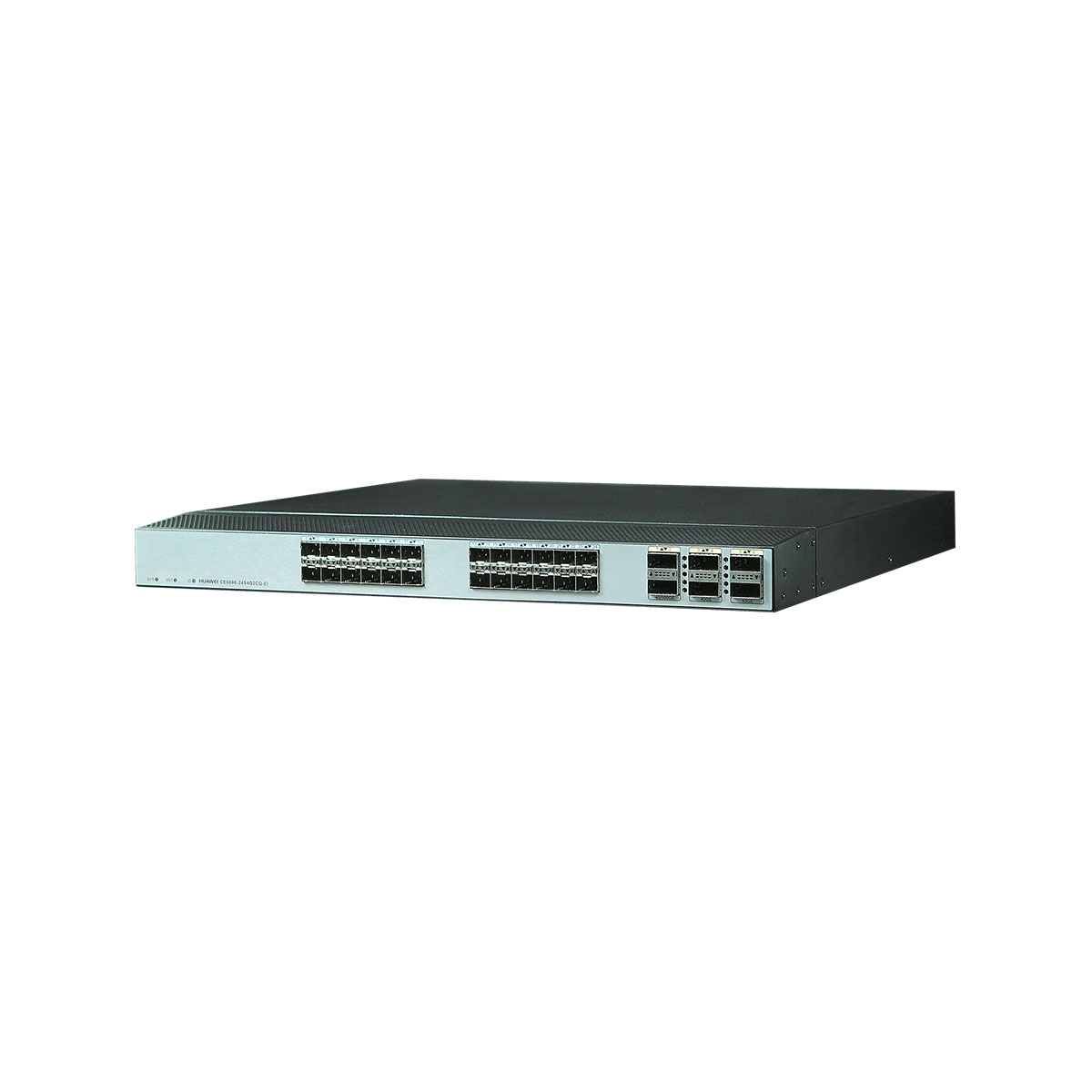

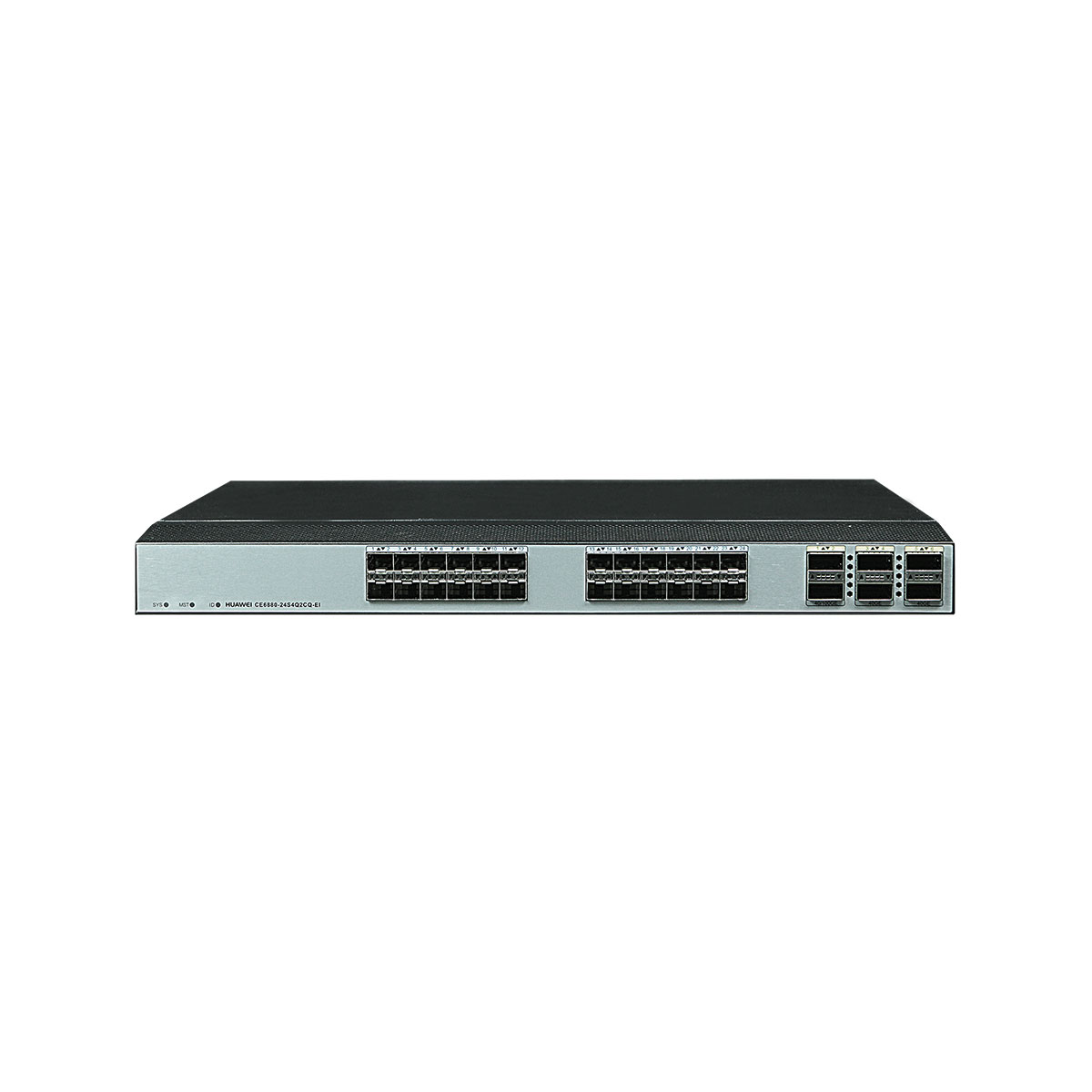

Huawei CE6880-24S4Q2CQ-EI Switch with 24-Port 10GE SFP+, 4-Port 40GE QSFP+, 2-Port 100GE QSFP28, Without Fan and Power Module

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6880-24S4Q2CQ-EI overview

The CloudEngine 6800 series switches deliver high performance, high port density, and low latency, making them ideal for building cloud-oriented data center networks for enterprises and carriers. Featuring a cutting-edge hardware design, the series offers access ports with 10 GE, 25 GE, or 50 GE options, along with uplink ports supporting 40 GE, 100 GE, or 200 GE. With advanced data center capabilities, high-performance stacking technologies, and flexible airflow designs, the series ensures superior efficiency and scalability.

The CloudEngine 6800 is ideal for both core and aggregation layers and seamlessly integrates with CloudEngine 16800 and 12800 series switches. This compatibility allows enterprises to create scalable, streamlined, open, and secure networks.

Item	Details
Description	CE6880-24S4Q2CQ-EI Switch (24-Port 10GE SFP+, 4-Port 40GE QSFP+, 2-Port 100GE QSFP28, Without Fan and Power Module)
Part Number	02350SRC
Model	CE6880-24S4Q2CQ-EI

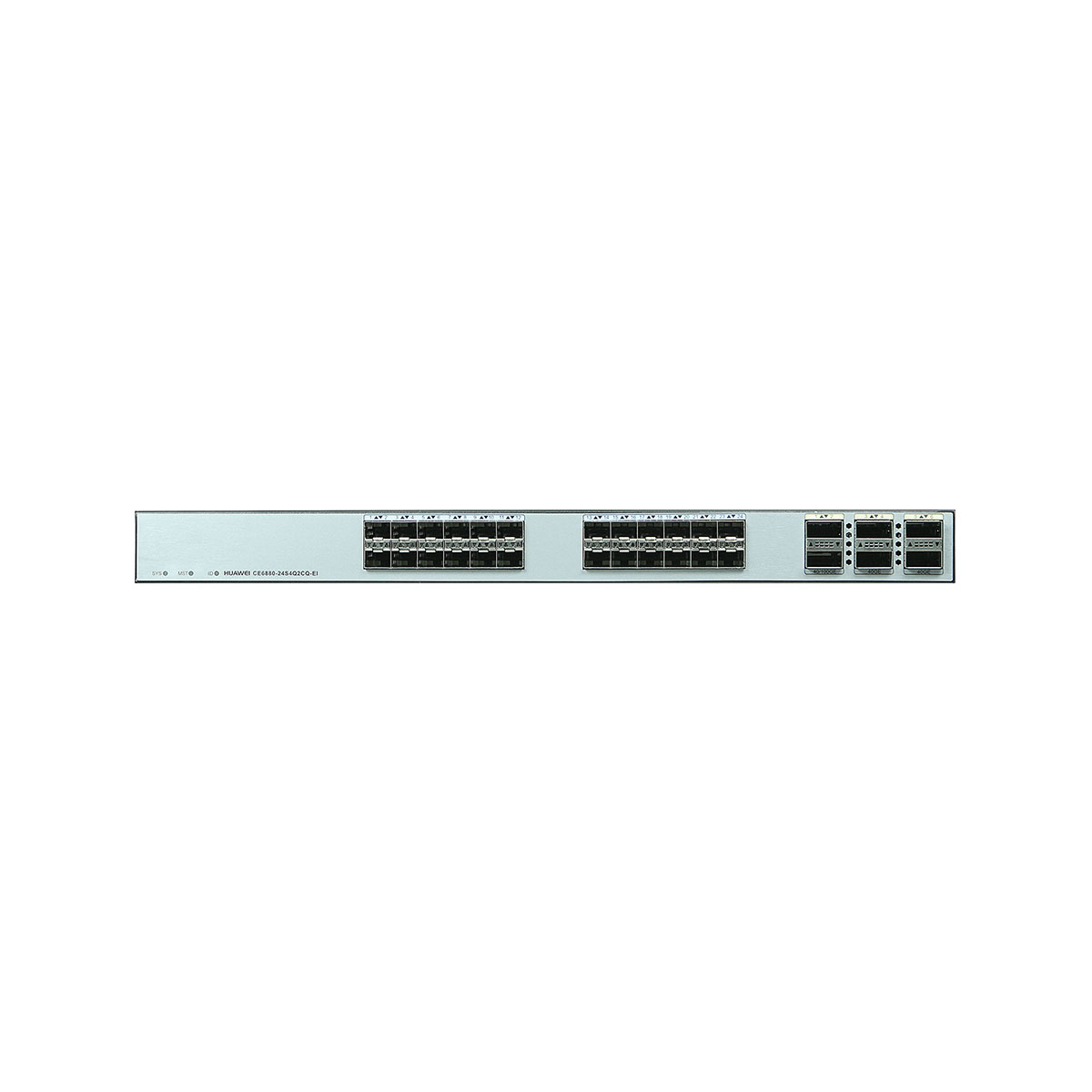

CE6880-24S4Q2CQ-EI Appearance

1	Power supply slot 1 Applicable power modules: 350 W DC power module 600 W AC power module	2	Power supply slot 2 Applicable power modules: 350 W DC power module 600 W AC power module
3	Fan slot 1 Applicable fan modules: FAN-40HA series fan modules	4	Fan slot 2 Applicable fan modules: FAN-40HA series fan modules
5	Console port	6	ETH management port (RJ45)
7	Barcode label NOTE: This label is drawable, and you can pull it outward to view the ESN barcode and MAC address of the switch.	8	USB port
9	Twenty-four 10GE SFP+ Ethernet optical ports Applicable modules and cables: 10GE optical module (OSXD22N00, LE2MXSC80FF0 and SFP-10G-ZDWT-L not supported) GE optical module GE copper module (works at 100 Mbit/s or 1000 Mbit/s) SFP+ AOC cable SFP+ high-speed cable	10	Two 40GE/100GE QSFP28 Ethernet optical ports NOTE: A QSFP28 Ethernet optical port can be split into four 10GE ports. The default rate of a QSFP28 Ethernet optical port is 40 Gbit/s, and you can use the port mode 100ge command to change the port speed to 100 Gbit/s. Applicable modules and cables: 40GE optical module 100GE optical module (QSFP28-100G-4WDM-40 not supported) QSFP+ to QSFP+ AOC cable QSFP+ to 4SFP+ AOC cable QSFP+ to 4SFP+ high-speed cable QSFP+ to QSFP+ high-speed cable (When a QSFP+ to QSFP+ high-speed cable is installed on the port, the cable can only be used as a stack cable. In V200R005C10 and later versions, the cable can also be used to connect peer-link interfaces in an M-LAG) QSFP28 to QSFP28 AOC cable QSFP28 to QSFP28 high-speed cable
11	Four 40GE QSFP+ Ethernet optical ports NOTE: A 40GE QSFP+ port cannot be split into four 10GE ports. Applicable modules and cables: 40GE optical module QSFP+ AOC cable (QSFP+ to QSFP+) QSFP+ to QSFP+ high-speed cable (When a QSFP+ to QSFP+ high-speed cable is installed on the port, the cable can only be used as a stack cable. In V200R005C10 and later versions, the cable can also be used to connect peer-link interfaces in an M-LAG)	12	Three port-side mounting holes for mounting brackets
13	Four power-supply-side mounting holes for mounting brackets	14	Ground screw

Item		Description
Physical specifications		Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.5 kg (18.74 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 52 dBA Front-to-back airflow: < 52 dBA
Power specifications	Power source type	AC/DC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
	High-voltage DC power input	Not supported
	Rated input current	350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC) 600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
Chassis power consumption	Maximum power consumption	224 W
Chassis power consumption	Typical power consumption	120 W (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 6 ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	765 BTU/hr
Chassis heat dissipation	Typical heat dissipation	409 BTU/hr (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 6 ports, double power modules)
Surge protection		Power module: AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability	Power module backup	1+1 backup
	Fan module backup	1+1 backup not supported NOTE: A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	61.41 years
	Mean time to repair (MTTR)	1.78 hours
	Availability	0.99999668259
Technical specifications	Processor	1.5 GHz, eight-core.
	DRAM Memory	2 GB
	NOR Flash	32 MB
	NAND Flash	1 GB
Stack	Service port supporting the stack function	10GE optical ports, 40GE optical ports, and 100GE optical ports
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance

Item		Description
Physical specifications		Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.5 kg (18.74 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 52 dBA Front-to-back airflow: < 52 dBA
Power specifications	Power source type	AC/DC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
	High-voltage DC power input	Not supported
	Rated input current	350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC) 600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
Chassis power consumption	Maximum power consumption	224 W
Chassis power consumption	Typical power consumption	120 W (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 6 ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	765 BTU/hr
Chassis heat dissipation	Typical heat dissipation	409 BTU/hr (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 6 ports, double power modules)
Surge protection		Power module: AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability	Power module backup	1+1 backup
	Fan module backup	1+1 backup not supported NOTE: A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	61.41 years
	Mean time to repair (MTTR)	1.78 hours
	Availability	0.99999668259
Technical specifications	Processor	1.5 GHz, eight-core.
	DRAM Memory	2 GB
	NOR Flash	32 MB
	NAND Flash	1 GB
Stack	Service port supporting the stack function	10GE optical ports, 40GE optical ports, and 100GE optical ports
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance
