Categories:CloudEngine 6800 Series

CE6870-48T6CQ-EI

0 Reviews Write a review

PN02351GCL

BrandsHuawei

AvailabilityIn Stock

CE Switch CE6800

WarrantyUp to 36 months

CE6870-48T6CQ-EI Huawei CE6800 switch supports 48*10GBASE-T, 6*100GE QSFP28

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6870-48S6CQ-EI overview

CE6870-48T6CQ-EI Huawei CE6800 switch supports 48*10GBASE-T, 6*100GE QSFP28

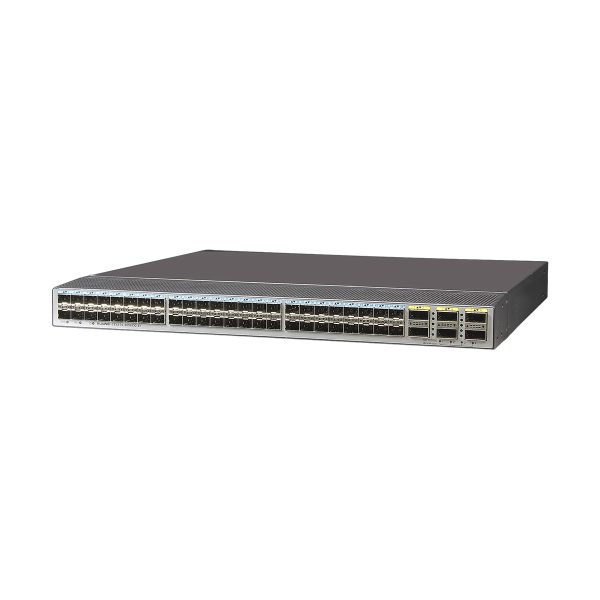

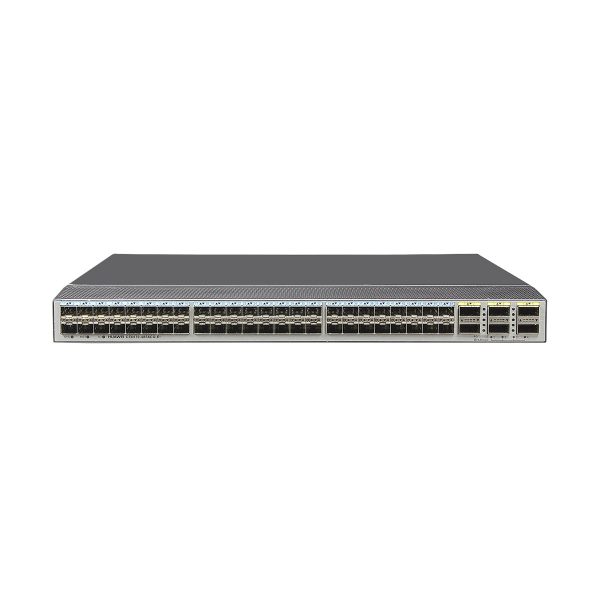

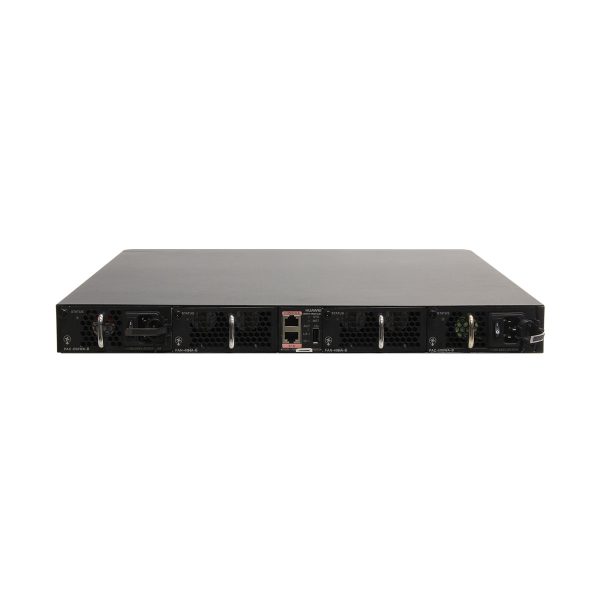

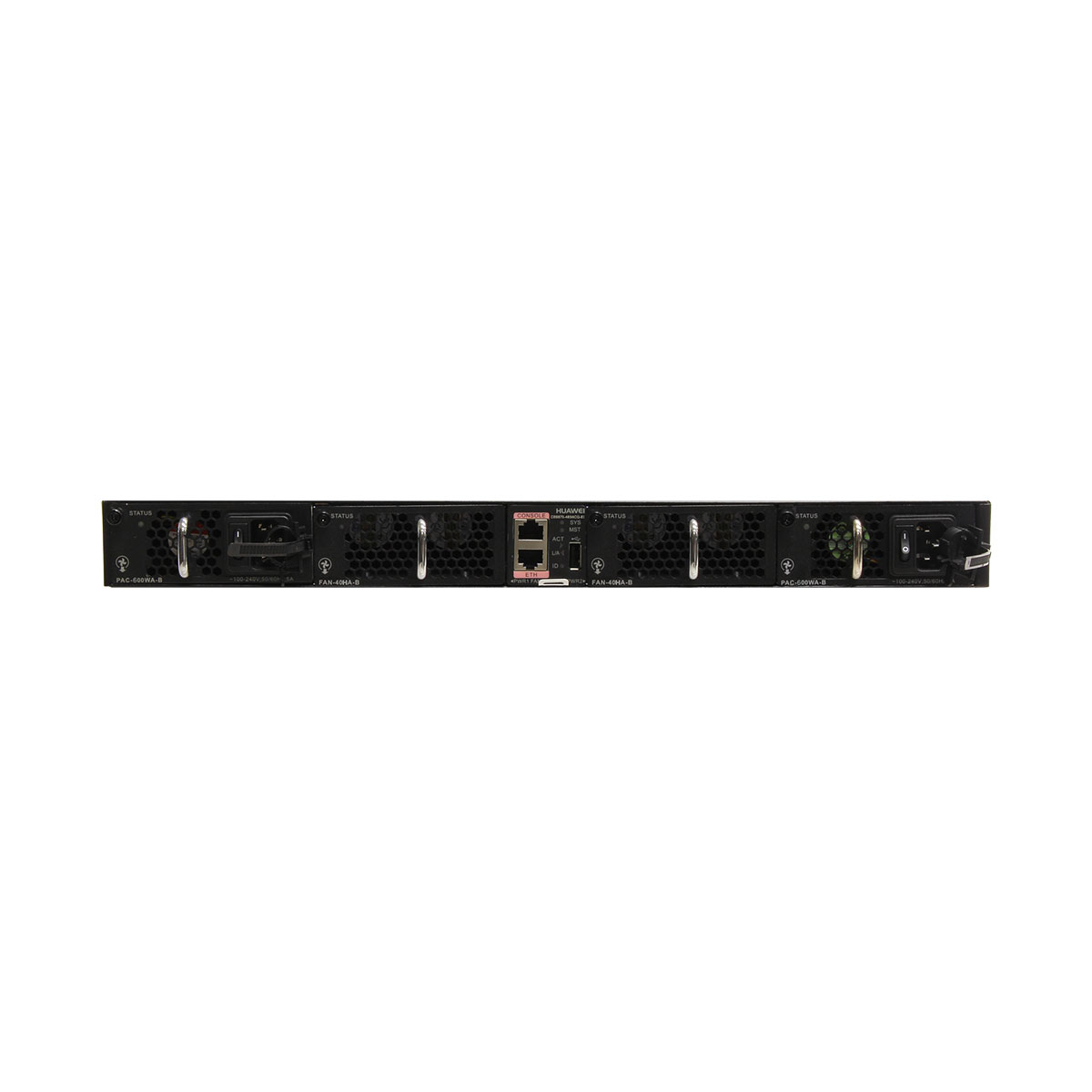

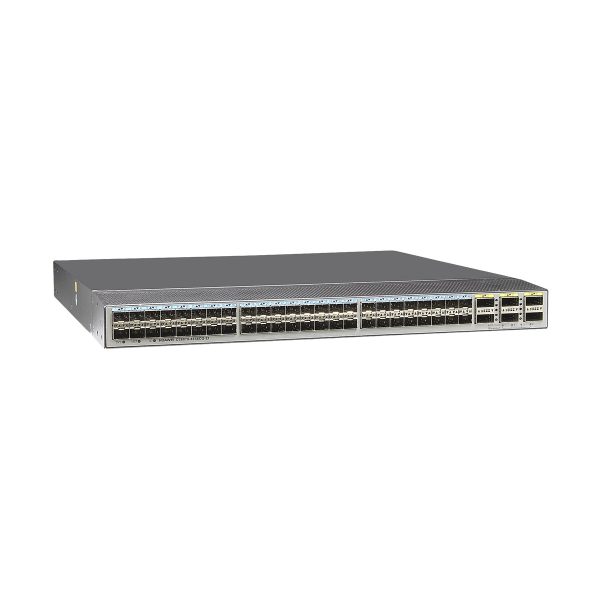

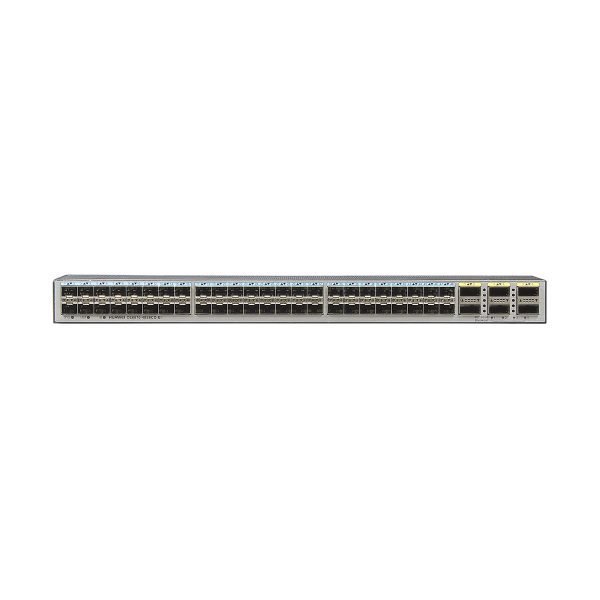

CE6870-48S6CQ-EI appearance

1	Power supply slot 1	2	Power supply slot 2
3	Fan slot 1	4	Fan slot 2
5	Console port	6	ETH management port (RJ45)
7	Barcode label	8	USB port
9	Forty-eight 10GBASE-T Ethernet electrical ports	10	Six 40GE/100GE QSFP28 Ethernet optical ports
11	Three port-side mounting holes for mounting brackets	12	Four power-supply-side mounting holes for mounting brackets
13	Ground screw	–	–

CE6870-48S6CQ-EI application

Device Series	Sub-series	Device Model	Short Name	Supported Version
CE6800	CE6870	CE6870-48T6CQ-EI	CE6870EI	V200R002C50 to V200R019C10

Item	CE6870-48T6CQ-EI
Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity	5% RH to 95% RH, noncondensing
Altitude	< 5000 m (16404 ft.)
Noise (sound pressure, 27°C)	Back-to-front airflow: < 56 dBA Front-to-back airflow: < 57 dBA
Power source type	AC
AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input	Not supported
Rated input current	600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC) 600 W DC power (PDC600S12 series): 20A (-48 V DC to -60 V DC)
Maximum power consumption	405 W
Typical power consumption	280 W (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Maximum heat dissipation	1382 BTU/hr
Typical heat dissipation	955 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Surge protection	Power module: AC: 6 kV in common mode and 6 kV in differential mode
Heat dissipation mode	Air cooling
Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Power module backup	1+1 backup
Fan module backup	1+1 backup not supported
Hot swap	Supported by all power modules and fan modules
Mean time between failures (MTBF)	44.44 years
Mean time to repair (MTTR)	1.76 hours
Availability	0.99999548998
Processor	1.5 GHz, eight-core
DRAM Memory	4 GB
NOR Flash	32 MB
NAND Flash	1 GB
Service port supporting the stack function	10GE electrical ports and 100GE optical ports
Physical specifications	Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 9.8 kg (21.61 lb)
Certification	Safety standards compliance EMC standards compliance Environmental standards compliance

Brand	Huawei
CE Switch	CE6800
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	CE6870-48T6CQ-EI
Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity	5% RH to 95% RH, noncondensing
Altitude	< 5000 m (16404 ft.)
Noise (sound pressure, 27°C)	Back-to-front airflow: < 56 dBA Front-to-back airflow: < 57 dBA
Power source type	AC
AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input	Not supported
Rated input current	600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC) 600 W DC power (PDC600S12 series): 20A (-48 V DC to -60 V DC)
Maximum power consumption	405 W
Typical power consumption	280 W (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Maximum heat dissipation	1382 BTU/hr
Typical heat dissipation	955 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Surge protection	Power module: AC: 6 kV in common mode and 6 kV in differential mode
Heat dissipation mode	Air cooling
Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Power module backup	1+1 backup
Fan module backup	1+1 backup not supported
Hot swap	Supported by all power modules and fan modules
Mean time between failures (MTBF)	44.44 years
Mean time to repair (MTTR)	1.76 hours
Availability	0.99999548998
Processor	1.5 GHz, eight-core
DRAM Memory	4 GB
NOR Flash	32 MB
NAND Flash	1 GB
Service port supporting the stack function	10GE electrical ports and 100GE optical ports
Physical specifications	Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 9.8 kg (21.61 lb)
Certification	Safety standards compliance EMC standards compliance Environmental standards compliance
