Categories:CloudEngine 6800 Series

CE6866-48S8CQ-K

Rated 5.00 out of 5 based on 1 customer rating

2 Reviews Write a review

PN02353PJM

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei CE6866-48S8CQ-K switch supports 48 ports 25G SFP28, 8 ports 100G QSFP28, without fan and power modules

100GE Uplink Switch 10GE Switch 48 Ports Switch Core/Aggregation Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6866-48S8CQ-K Overview

Huawei CE6866-48S8CQ-K switch with 48 ports 25G SFP28, 8 ports 100G QSFP28, without fan and power modules, is one of the Huawei CE6800 series switches.

Offering high performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. Advanced data center features, high performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well suited to both the core and aggregation layers and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.

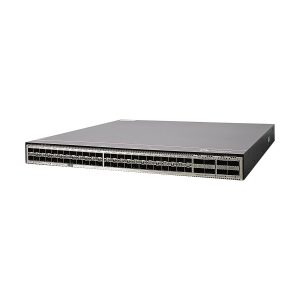

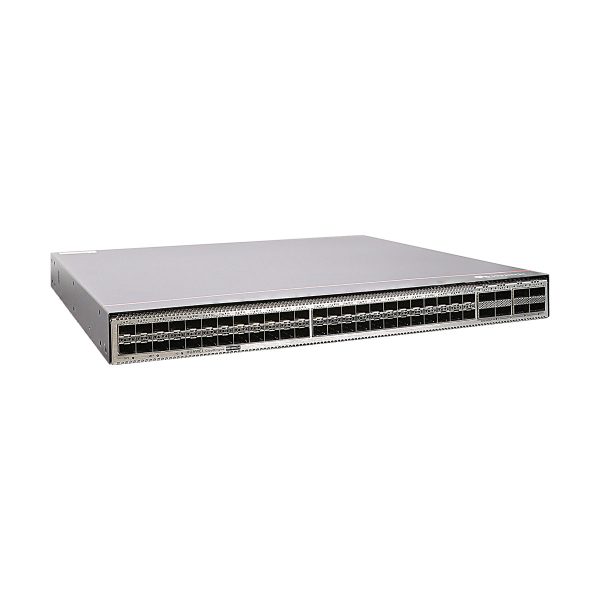

Appearance of the CE6866-48S8CQ-K

1	Ground screw
2	Equipment serial number (ESN) and MAC address
3	Console port
4	ETH management port (RJ45)
5	USB port
6	Four Fan slots
7	Two Power supply slots
8	Forty-eight 25GE SFP28/Forty-eight 50GE SFP56 Ethernet optical ports
9	Eight 100GE QSFP28/Eight 200GE QSFP56 Ethernet optical ports
10	Three port-side mounting holes for mounting brackets
11	Two middle mounting holes for mounting brackets
12	Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal
13	Four power-supply-side mounting holes for mounting brackets

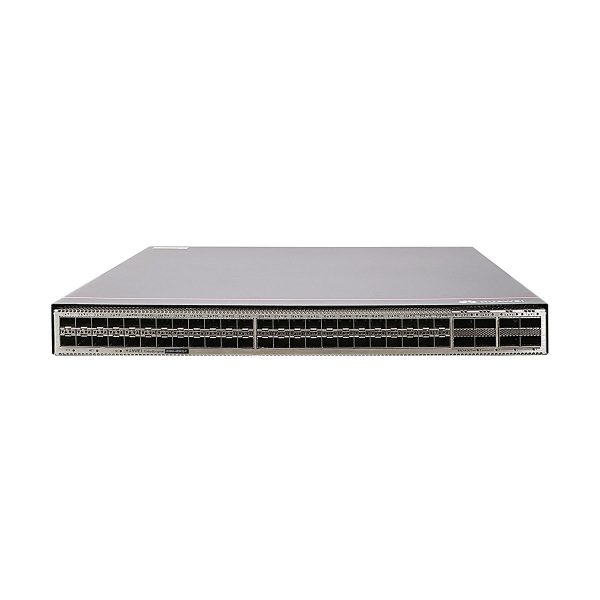

CE6866-48S8CQ-K (port panel)

1	System status indicator
2	Stack master/slave indicator
3	ID indicator
4	Service port indicator (50GE/25GE/10GE optical port)
5	Service port indicator (200GE/100GE/40GE optical port)
6	Breakout channel indicator

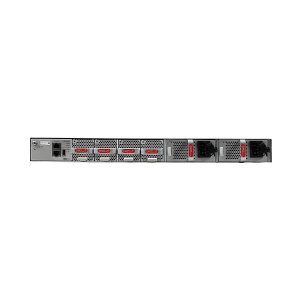

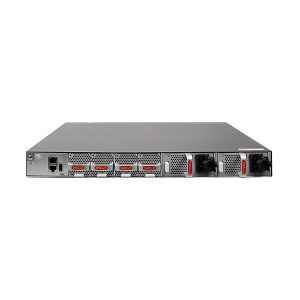

CE6866-48S8CQ-K (power supply panel)

7	ETH management port indicator
8	USB-based deployment indicator

Ports on the CE6866-48S8CQ-K

Port	Connector Type	Description	Available Components
50GE/25GE/10GE SFP56 Optical Port	SFP56	Port for inputting and outputting 50GE/25GE/10GE optical signals.	10GE SFP+ optical modules 25GE SFP28 optical modules
200GE/100GE/40GE QSFP56 QSFP28 Optical Port	QSFP56	Port for inputting and outputting 200GE/100GE/40GE optical signals.	40GE QSFP+ optical modules 100GE QSFP28 optical modules
Console Port	RJ45	The console port is connected to a console for onsite configuration. The default baud rate is 9600 bit/s.	Console cable
ETH Management Port	RJ45	The ETH management port (RJ45) of a switch is connected to the network port of a configuration terminal or network management workstation to set up the onsite or remote configuration environment.	The ETH management port (RJ45) uses a Category 5 or higher category cable
USB Port	USB 2.0 Type A	A USB flash drive can be connected to the USB port for log backup, system software backup and uploading. The switch does not support USB-based deployment.	USB 2.0

Item	CE6866-48S8CQ-K
CPU	4 Core 1.4 GHz
Memory	DRAM: 8 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	Supported
Power supply mode	AC DC HVDC
Console port	RJ45
Downlink Service interface	48 x 25GE SFP28/48 x 50GE SFP56 1. 25GE ports can be configured as 10GE ports, and 50GE ports can be configured as 25GE ports rather than 10GE or GE ports. 2. When 25GE ports are upgraded to 50GE, eight such ports form a group. NOTE: 1. Supported optical modules: (1) In the case of port-side air intake, the downlink 25GE/50GE ports support 25G-AOC/SR/LR. (2) In the case of port-side air exhaust, the downlink 25GE/50GE ports support 25G-AOC/SR/LR. 2. Supported copper cables: As for 50GE ports to interconnect with third-party devices, contact R&D engineers to verify the interconnection.
Uplink Service interface	8 x 100GE QSFP28/8 x 200GE QSFP56 1. Each 100GE port can be configured as a 40GE port, and each 200GE port can be configured as a 100GE/40GE port. 2. When 100GE ports are upgraded to 200GE, four such ports form a group. 3. 100GE ports are divided into groups 1 to 4 and 5 to 8. Four ports in each group are split together. Ports 2, 4, 6, and 8 can be split into four 25GE ports (whose speeds can be set to 10 Gbit/s). After the split, ports 1, 3, 5, and 7 cannot be used. A 100GE port cannot be split into 2 x 50GE (50GE: 2x25GE) ports. 4. 200GE ports cannot be split.
Service port supporting the stack function	Not supported
RTC	Supported
Typical power consumption [W]	48 x 50G + 8 x 200G: 374 W (50% throughput, copper cables on all ports, normal temperature, dual power modules) 48 x 25G + 8 x 100G: 360 W (50% throughput, copper cables on all ports, normal temperature, dual power modules), 407 W (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules)
Typical heat dissipation [BTU/hour]	48 x 50G + 8 x 200G: 1277 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules) 48 x 25G + 8 x 100G: 1229 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power supplies), 1389 BTU/hour (50% throughput, short-distance optical modules on all ports, normal temperature, dual power supplies)
Static power consumption [W]	322 W
Static heat dissipation [BTU/hour]	1100 BTU/hour
Maximum power consumption [W]	48 x 50G + 8 x 200G: 619 W (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules) 48 x 25G + 8 x 100G: 544 W (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules)
Maximum heat dissipation	48 x 50G + 8 x 200G: 2110 BTU/hour (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules) 48 x 25G + 8 x 100G: 1858 BTU/hour (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules)
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V DC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Certification	Complies with safety standards. Complies with EMC standards. Complies with environmental protection standards.
Power supply surge protection [kV]	AC power supply protection: 6 kV in common mode and 6 kV in differential mode 240 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode –48 V DC power supply protection: 4 kV in common mode and 2 kV in differential mode 380 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. If a single fan module fails, the device can work properly in a short period of time. To guarantee long-term operation of the device, you are advised to replace the failed fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	port-side intake/port-side exhaust airflow
Availability	0.9999943515
MTBF [year]	30.32 years
MTtr [hour]	1.5 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 49.8 dB(A) on average (maximum: 53.6 dB(A)) Back-to-front airflow: 47.8 dB(A) on average (maximum: 51.2 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 67.6 dB(A) on average (maximum: 73.4 dB(A)) Back-to-front airflow: 68 dB(A) on average (maximum: 75.4 dB(A))
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	–40°C to +70°C (–40°F to +158°F)
RTU License Supported	Yes. By default, 48 x 25GE ports can only work at the rate of 25 Gbit/s, and eight 100GE ports can only work at the rate of 100 Gbit/s. You can use the RTU license (BOM number: 88036EUQ) to increase the rate of 25GE ports to 50 Gbit/s and the rate of 100GE ports to 200 Gbit/s.
Dimensions with packaging (H x W x D) [mm (in.)]	225 mm x 860 mm x 650 mm (8.86 in. x 33.86 in. x 25.59 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 445.0 mm (1.72 in. x 17.40 in. x 17.52 in.)
Weight without packaging (base configuration) [kg (lb)]	6.7 kg (14.8lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	8.7 kg (19.2lb) (including AC power modules and fan modules, excluding optical modules)
Weight with packaging (base configuration) [kg (lb)]	11.9 kg (26.24 lb)
Weight with packaging (full configuration) [kg (lb)]	13.9 kg(30.64 lb)

Item	CE6866-48S8CQ-K
CPU	4 Core 1.4 GHz
Memory	DRAM: 8 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	Supported
Power supply mode	AC DC HVDC
Console port	RJ45
Downlink Service interface	48 x 25GE SFP28/48 x 50GE SFP56 1. 25GE ports can be configured as 10GE ports, and 50GE ports can be configured as 25GE ports rather than 10GE or GE ports. 2. When 25GE ports are upgraded to 50GE, eight such ports form a group. NOTE: 1. Supported optical modules: (1) In the case of port-side air intake, the downlink 25GE/50GE ports support 25G-AOC/SR/LR. (2) In the case of port-side air exhaust, the downlink 25GE/50GE ports support 25G-AOC/SR/LR. 2. Supported copper cables: As for 50GE ports to interconnect with third-party devices, contact R&D engineers to verify the interconnection.
Uplink Service interface	8 x 100GE QSFP28/8 x 200GE QSFP56 1. Each 100GE port can be configured as a 40GE port, and each 200GE port can be configured as a 100GE/40GE port. 2. When 100GE ports are upgraded to 200GE, four such ports form a group. 3. 100GE ports are divided into groups 1 to 4 and 5 to 8. Four ports in each group are split together. Ports 2, 4, 6, and 8 can be split into four 25GE ports (whose speeds can be set to 10 Gbit/s). After the split, ports 1, 3, 5, and 7 cannot be used. A 100GE port cannot be split into 2 x 50GE (50GE: 2x25GE) ports. 4. 200GE ports cannot be split.
Service port supporting the stack function	Not supported
RTC	Supported
Typical power consumption [W]	48 x 50G + 8 x 200G: 374 W (50% throughput, copper cables on all ports, normal temperature, dual power modules) 48 x 25G + 8 x 100G: 360 W (50% throughput, copper cables on all ports, normal temperature, dual power modules), 407 W (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules)
Typical heat dissipation [BTU/hour]	48 x 50G + 8 x 200G: 1277 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules) 48 x 25G + 8 x 100G: 1229 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power supplies), 1389 BTU/hour (50% throughput, short-distance optical modules on all ports, normal temperature, dual power supplies)
Static power consumption [W]	322 W
Static heat dissipation [BTU/hour]	1100 BTU/hour
Maximum power consumption [W]	48 x 50G + 8 x 200G: 619 W (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules) 48 x 25G + 8 x 100G: 544 W (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules)
Maximum heat dissipation	48 x 50G + 8 x 200G: 2110 BTU/hour (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules) 48 x 25G + 8 x 100G: 1858 BTU/hour (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules)
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V DC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Certification	Complies with safety standards. Complies with EMC standards. Complies with environmental protection standards.
Power supply surge protection [kV]	AC power supply protection: 6 kV in common mode and 6 kV in differential mode 240 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode –48 V DC power supply protection: 4 kV in common mode and 2 kV in differential mode 380 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. If a single fan module fails, the device can work properly in a short period of time. To guarantee long-term operation of the device, you are advised to replace the failed fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	port-side intake/port-side exhaust airflow
Availability	0.9999943515
MTBF [year]	30.32 years
MTtr [hour]	1.5 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 49.8 dB(A) on average (maximum: 53.6 dB(A)) Back-to-front airflow: 47.8 dB(A) on average (maximum: 51.2 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 67.6 dB(A) on average (maximum: 73.4 dB(A)) Back-to-front airflow: 68 dB(A) on average (maximum: 75.4 dB(A))
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	–40°C to +70°C (–40°F to +158°F)
RTU License Supported	Yes. By default, 48 x 25GE ports can only work at the rate of 25 Gbit/s, and eight 100GE ports can only work at the rate of 100 Gbit/s. You can use the RTU license (BOM number: 88036EUQ) to increase the rate of 25GE ports to 50 Gbit/s and the rate of 100GE ports to 200 Gbit/s.
Dimensions with packaging (H x W x D) [mm (in.)]	225 mm x 860 mm x 650 mm (8.86 in. x 33.86 in. x 25.59 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 445.0 mm (1.72 in. x 17.40 in. x 17.52 in.)
Weight without packaging (base configuration) [kg (lb)]	6.7 kg (14.8lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	8.7 kg (19.2lb) (including AC power modules and fan modules, excluding optical modules)
Weight with packaging (base configuration) [kg (lb)]	11.9 kg (26.24 lb)
Weight with packaging (full configuration) [kg (lb)]	13.9 kg(30.64 lb)

Brand	Huawei
Lead Time	In Stock
Ship From	Shenzhen Warehouse
