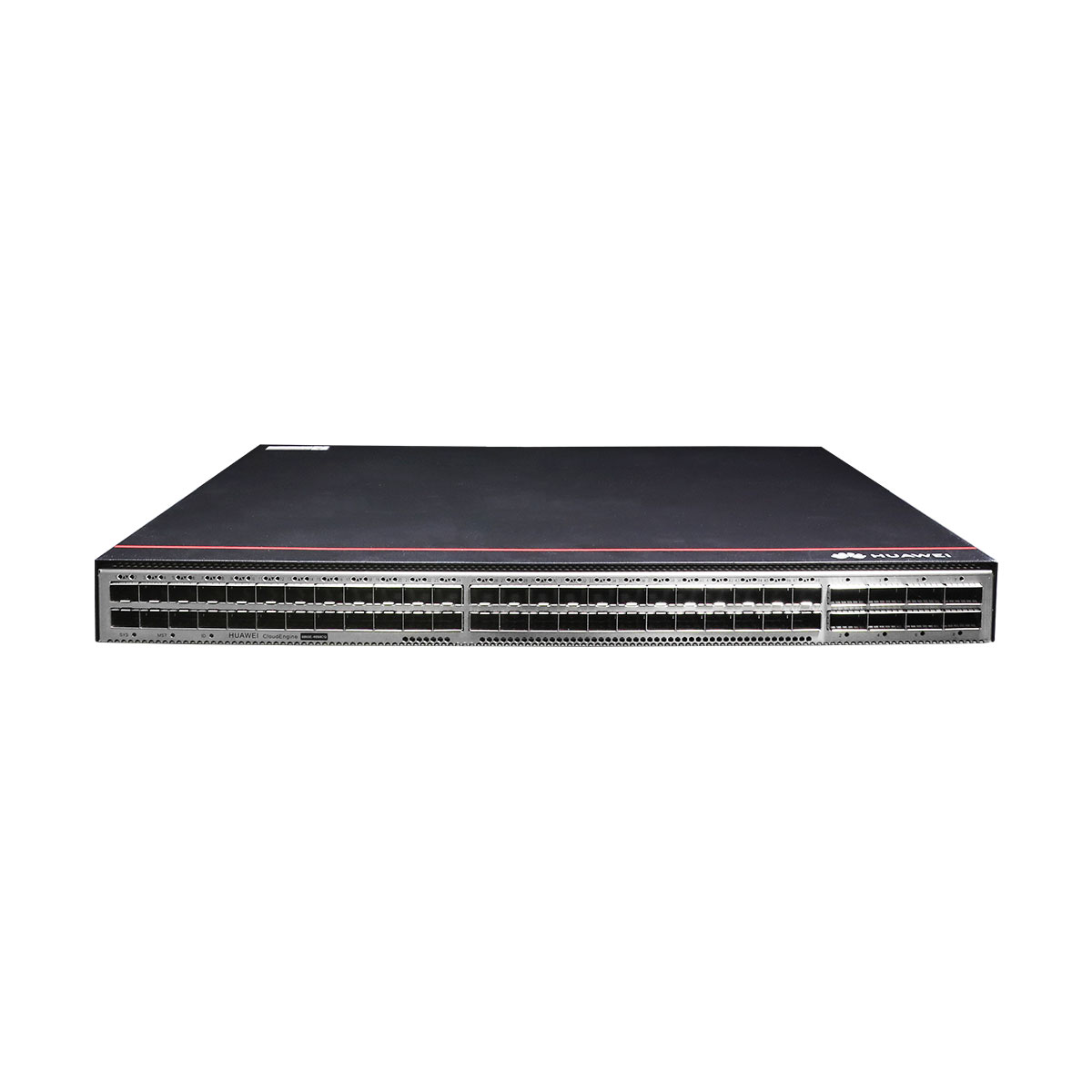

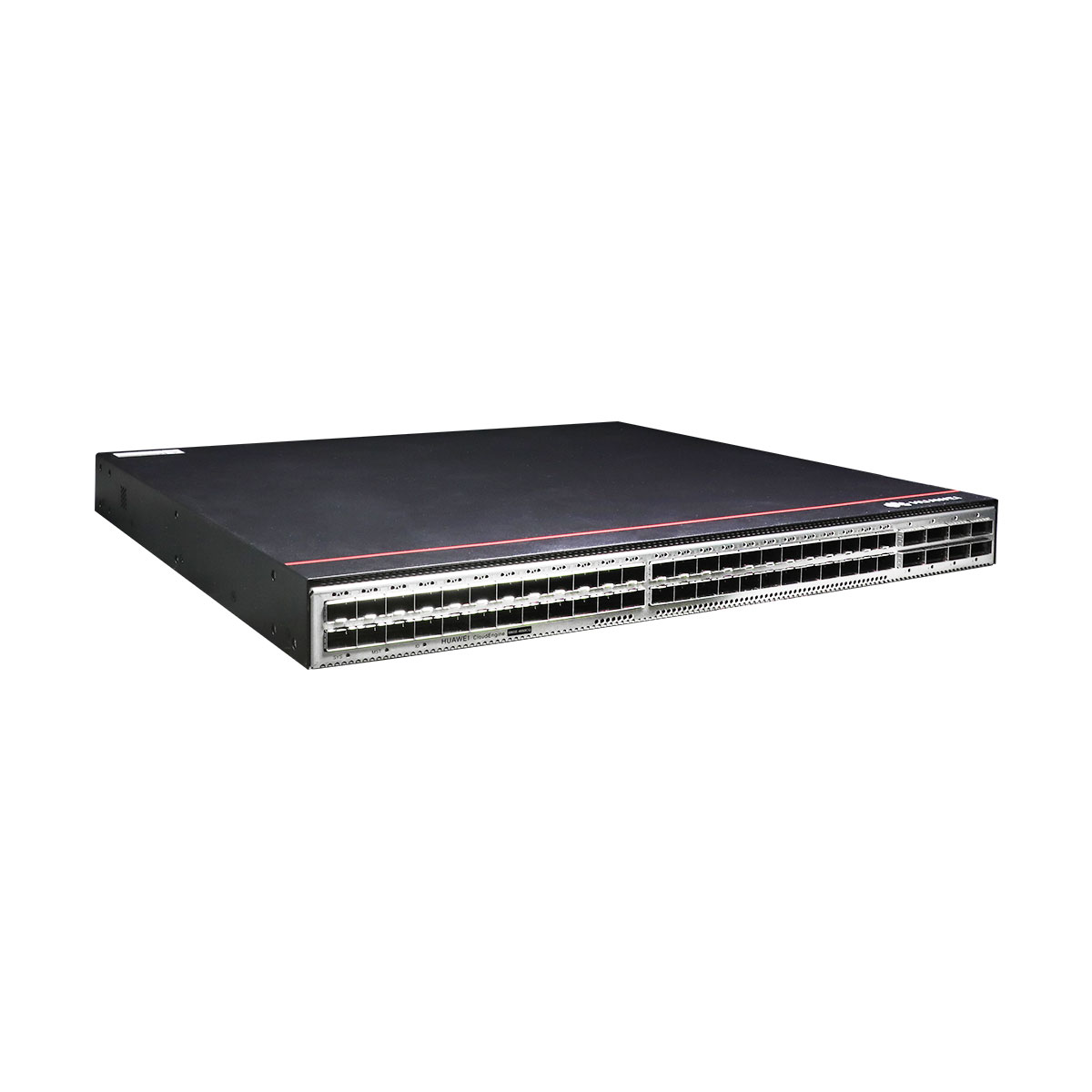

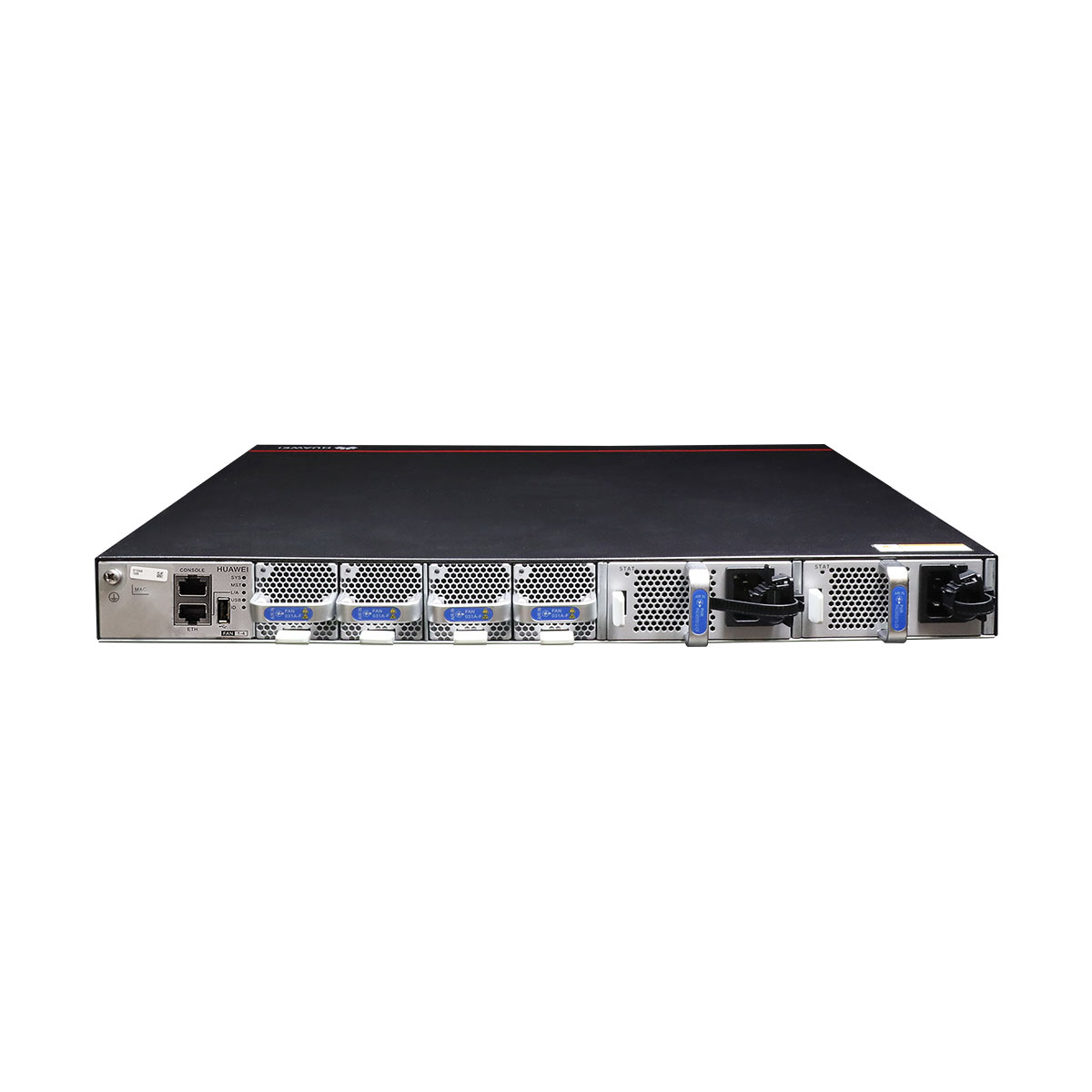

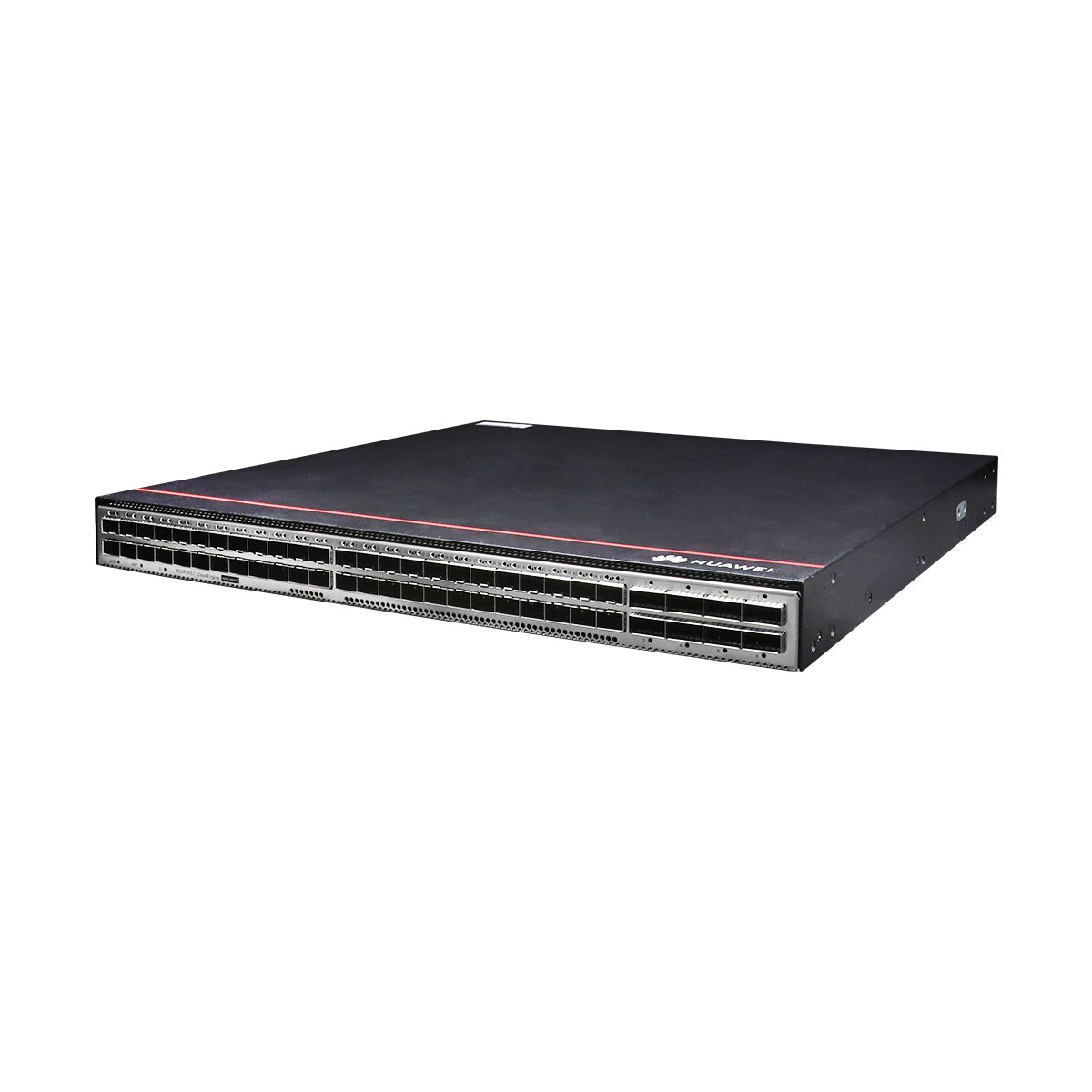

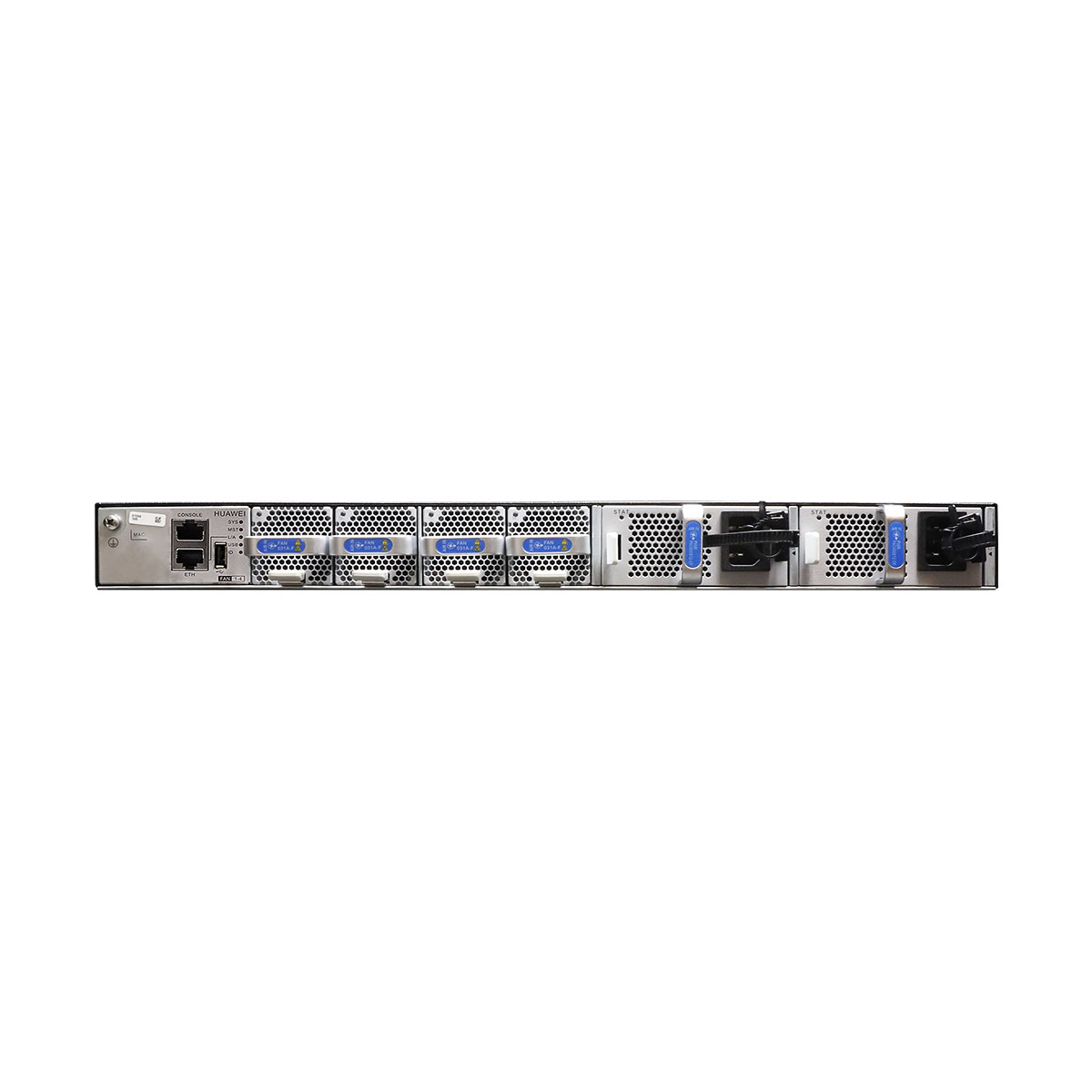

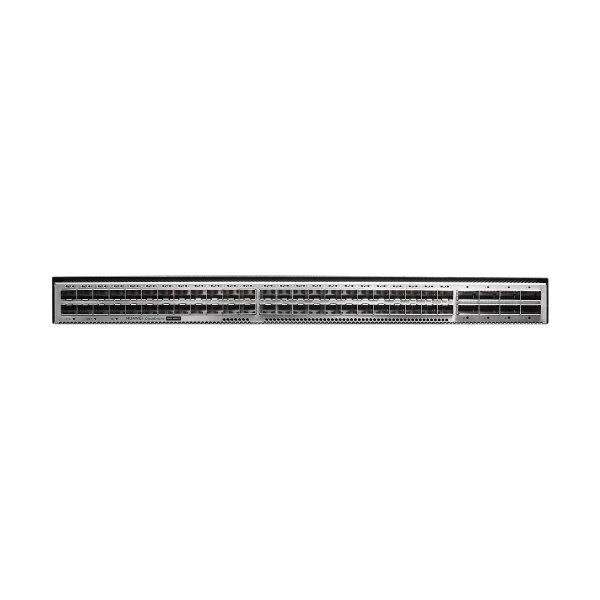

CE6865E-48S8CQ

Name: CE6865E-48S8CQ
SKU: 2008906
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02354CPT

BrandsHuawei

AvailabilityIn Stock

CE Switch CE6800

WarrantyUp to 36 months

CE6865E-48S8CQ Huawei CE6800 series Switch 48*25G SFP28, 8*100G QSFP28

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6865E-48S8CQ overview

CE6865E-48S8CQ Huawei CE6800 series Switch 48*25G SFP28, 8*100G QSFP28

CE6865E-48S8CQ application

Item	Details
Description	CE6865E-48S8CQ switch (4825G SFP28, 8100G QSFP28, without fan and power modules)
Part Number	02354CPT
Model	CE6865E-48S8CQ
First supported version	V200R021C00
Other part numbers	02354CPN (CE6865E-48S8CQ-B switch, 4825G SFP28, 8100G QSFP28, 2AC power modules, 4fan modules, port-side intake) 02354CPV (CE6865E-48S8CQ-F switch, 4825G SFP28, 8100G QSFP28, 2AC power modules, 4fan modules, port-side exhaust)
Short Name	CE6865E

Item	CE6865E-48S8CQ
Installation Type	Cabinet Installation
CPU	4-core, 1.4GHZ
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	Supported
Power supply mode	AC DC HVDC
Console port	RJ45
Downlink Service interface	48*25GE SFP28 (A 25GE port works at 25 Gbit/s by default and cannot work at 1 Gbit/s or 10 Gbit/s through auto-sensing, but can be configured to work at 10 Gbit/s or 1 Gbit/s through commands. When a 25GE port is configured to work at 10 Gbit/s or 1 Gbit/s, the working speed of the other three ports in the same group also needs to be switched. The speed of a single port cannot be switched. The 10GE LRM/80KM linear optical module and 1000base-X auto-negotiation are not supported. The 1GE optical module can be used for interconnection only when auto-negotiation is disabled on the peer end.)
Uplink Service interface	8*100GE QSFP28 (Note: Each 100G QSFP28 port can be configured to work at 40 Gbit/s, and can be split into four 10GE or 25GE ports. After split, they cannot be used as GE ports.)
Service port supporting the stack function	25GE optical ports, and 100GE optical ports
RTC	Supported
Typical power consumption [W]	179 W (50% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 232 W (50% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]	610 BTU/hour (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 791 BTU/hour (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	133 W
Static heat dissipation [BTU/hour]	453 BTU/hour
Maximum power consumption [W]	378 W
Maximum heat dissipation	1290 BTU/hour
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V DC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Certification	· Complies with safety standards. · Complies with EMC standards. · Complies with environmental protection standards.
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.9999966836
MTBF [year]	36.9 year
MTTR [hour]	1.85 hour
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 49.8 dB(A) on average (maximum: 53.6 dB(A)) Back-to-front airflow: 47.8 dB(A) on average (maximum: 51.2 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 67.6 dB(A) on average (maximum: 73.4 dB(A)) Back-to-front airflow: 68 dB(A) on average (maximum: 75.4 dB(A))
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.58 in.)
Weight without packaging (base configuration) [kg (lb)]	6.2kg (13.67 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	8.8 kg (19.40 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging (base configuration) [kg (lb)]	9.45kg(20.83 lb)
Weight with packaging (full configuration) [kg (lb)]	11.75kg(25.9 lb)

Item	CE6865E-48S8CQ
Installation Type	Cabinet Installation
CPU	4-core, 1.4GHZ
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	Supported
Power supply mode	AC DC HVDC
Console port	RJ45
Downlink Service interface	48*25GE SFP28 (A 25GE port works at 25 Gbit/s by default and cannot work at 1 Gbit/s or 10 Gbit/s through auto-sensing, but can be configured to work at 10 Gbit/s or 1 Gbit/s through commands. When a 25GE port is configured to work at 10 Gbit/s or 1 Gbit/s, the working speed of the other three ports in the same group also needs to be switched. The speed of a single port cannot be switched. The 10GE LRM/80KM linear optical module and 1000base-X auto-negotiation are not supported. The 1GE optical module can be used for interconnection only when auto-negotiation is disabled on the peer end.)
Uplink Service interface	8*100GE QSFP28 (Note: Each 100G QSFP28 port can be configured to work at 40 Gbit/s, and can be split into four 10GE or 25GE ports. After split, they cannot be used as GE ports.)
Service port supporting the stack function	25GE optical ports, and 100GE optical ports
RTC	Supported
Typical power consumption [W]	179 W (50% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 232 W (50% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]	610 BTU/hour (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 791 BTU/hour (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	133 W
Static heat dissipation [BTU/hour]	453 BTU/hour
Maximum power consumption [W]	378 W
Maximum heat dissipation	1290 BTU/hour
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V DC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Certification	· Complies with safety standards. · Complies with EMC standards. · Complies with environmental protection standards.
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.9999966836
MTBF [year]	36.9 year
MTTR [hour]	1.85 hour
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 49.8 dB(A) on average (maximum: 53.6 dB(A)) Back-to-front airflow: 47.8 dB(A) on average (maximum: 51.2 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 67.6 dB(A) on average (maximum: 73.4 dB(A)) Back-to-front airflow: 68 dB(A) on average (maximum: 75.4 dB(A))
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.58 in.)
Weight without packaging (base configuration) [kg (lb)]	6.2kg (13.67 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	8.8 kg (19.40 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging (base configuration) [kg (lb)]	9.45kg(20.83 lb)
Weight with packaging (full configuration) [kg (lb)]	11.75kg(25.9 lb)

Brand	Huawei
CE Switch	CE6800
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
