CE6863H-48S6CQ-K

0 Reviews Write a review

PN02354VTA

AvailabilityIn Stock

WarrantyUp to 36 months

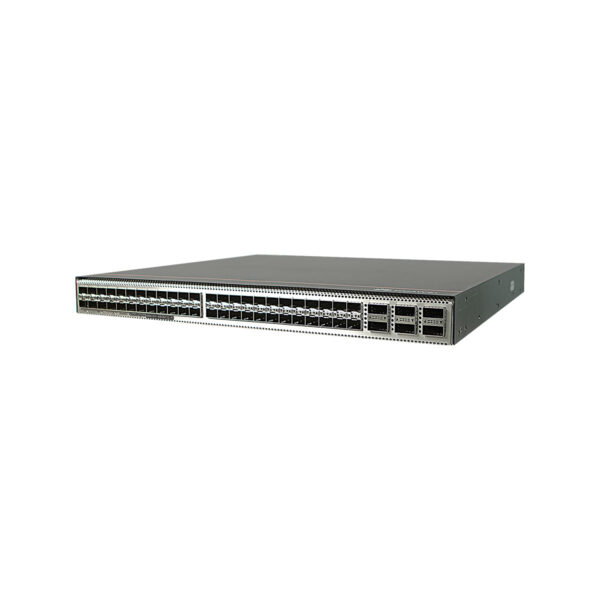

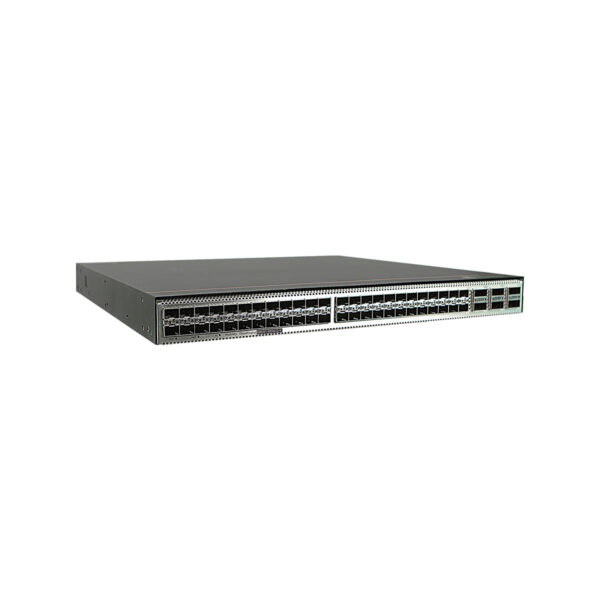

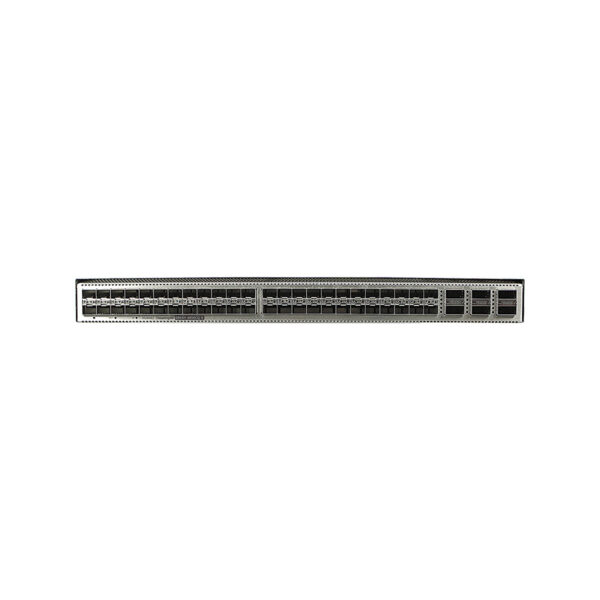

Huawei CE6863H-48S6CQ-K switch with 48*25GE SFP28, 6*100GE QSFP28, without fan and power modules

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6863H-48S6CQ-K overview

The CloudEngine 6800 series switches deliver high performance, high port density, and low latency, making them ideal for building cloud-oriented data center networks for enterprises and carriers. Featuring a cutting-edge hardware design, the series offers access ports with 10 GE, 25 GE, or 50 GE options, along with uplink ports supporting 40 GE, 100 GE, or 200 GE. With advanced data center capabilities, high-performance stacking technologies, and flexible airflow designs, the series ensures superior efficiency and scalability.

The CloudEngine 6800 is ideal for both core and aggregation layers and seamlessly integrates with CloudEngine 16800 and 12800 series switches. This compatibility allows enterprises to create scalable, streamlined, open, and secure networks.

Item	Details
Description	CE6863H-48S6CQ-K switch (4825GE SFP28, 6100GE QSFP28, without fan and power modules)
Part Number	02354VTA
Model	CE6863H-48S6CQ-K

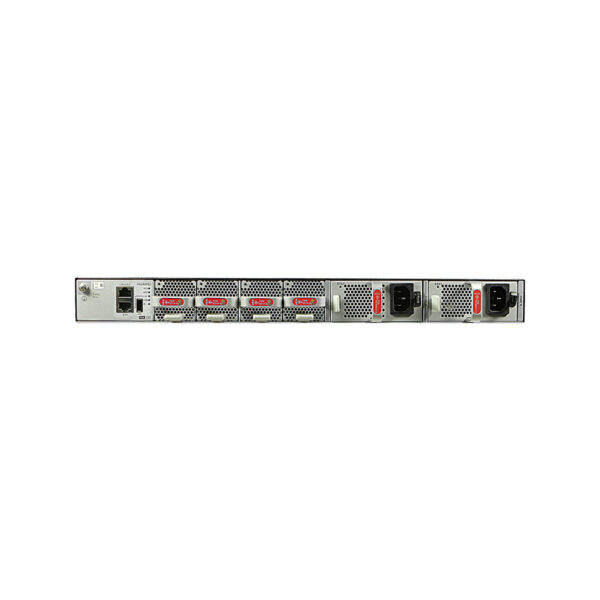

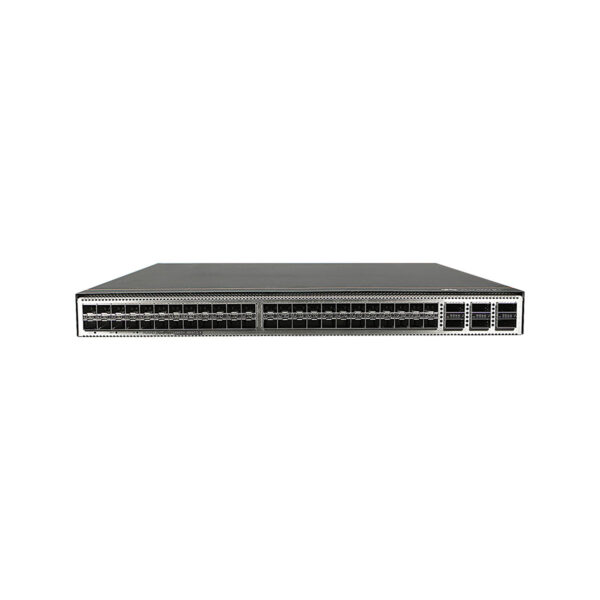

CE6863H-48S6CQ-K Appearance

1. Ground screw

2. Equipment serial number (ESN) and MAC address

NOTE:

You can scan the code to view the ESN and MAC address of the switch.

3. Console port

4. ETH management port (RJ45)

5. USB port

6-9. Four Fan slots

10-11. Two Power supply slots

12. Forty-eight 10GE/25GE SFP28 Ethernet optical ports

13. Six 40GE/100GE QSFP28 Ethernet optical ports

14. Three port-side mounting holes for mounting brackets

15. Two middle mounting holes for mounting brackets

16. Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal

17. Four power-supply-side mounting holes for mounting brackets

–

Item	CE6863H-48S6CQ-K
Installation Type	Cabinet installation
Switching capacity	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU	Quad-core, 1.4 GHz
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	It can be used for log backup and USB-based deployment. This function is reserved.
Power supply mode	AC pluggable DC pluggable HVDC pluggable
Console port	RJ45
Downlink Service interface	48*25GE SFP28 NOTE: 1. 25GE ports can be used as 10GE ports. When working in GE mode. ports 1 to 8, 9 to 12, 13 to 16, 17 to 24, 25 to 28, 29 to 36, 37 to 44, and 45 to 48 form different groups. When the port mode GE command is run on any port in a group, all the ports in the group are configured to work at the rate of 1 Gbit/s. In this case, the ports can go Up only after GE media are installed. If a medium with a different rate is installed on a port, the port goes Down. 2. 10GE LRM/80 km linear optical modules are not supported. 3. 25GE 1 m copper cables and 10GE 1 m/3 m/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 25GE copper cables can only be used on M-LAG peer-link ports.
Uplink Service interface	6*100GE QSFP28 NOTE: 1. Each 100GE QSFP28 port can be used as a 40GE port. 2. A 100GE QSFP28 port cannot be split into 4x25GE and 4x10GE ports. 3. 100GE and 40GE 1 m/3 m/5 m copper cables are supported, and auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on M-LAG peer-link ports. When 100GE 3 m/5 m copper cables are used on such ports, these cables must work in the RS FEC mode. If they work in the non-RS FEC mode, the ports are in error-down state.
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Typical power consumption [W]	226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 261 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]	771 BTU/hour (100% traffic load, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 891 BTU/hour (100% traffic load, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	167 W
Static heat dissipation [BTU/hour]	570 BTU/hour
Maximum power consumption [W]	384 W
Maximum heat dissipation [BTU/hour]	1310 BTU/hour
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	Rated AC input voltage range: 100 V AC to 240 V AC; 50/60 Hz Rated –48 V DC input voltage range: –48 V DC to –60 V DC Rated input voltage range for 600 W AC & 240 V DC: 240 V DC Rated input voltage range for 1200 W HVDC: 240 V DC to 380 V DC
Input voltage range [V]	Maximum AC input voltage range: 90 V AC to 290 V AC; 45 Hz to 65 Hz Maximum –48 V DC input voltage range: –38.4 V DC to –72 V DC Maximum input voltage range for 600 W AC & 240 V DC: 190 V DC to 290 V DC Maximum input voltage range for 1200 W HVDC: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module (PAC600S12 series): 8 A (100 V AC to 240 V AC) 4 A (240 V DC) 1000 W DC power module (PDC1000S12 series): 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
Rated output power [W]	600 W (AC&240 V HVDC) 1000 W (–48 V DC) 1200 W (380 V HVDC)
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
Availability	0.9999962836
MTBF [year]	47.81 years
MTTR [hour]	1.95 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: < 58 dB(A) Back-to-front airflow: < 57 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: < 75 dB(A) Back-to-front airflow: < 74 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging [kg (lb)]	5.7 kg (12.57 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	7.8 kg (17.2 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.)
Weight with packaging [kg (lb)]	8.95 kg (19.73 lb)
Weight with packaging (full configuration) [kg (lb)]	11.05 kg (24.36 lb)
Chassis height [U]	1 U

Item	CE6863H-48S6CQ-K
Installation Type	Cabinet installation
Switching capacity	To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU	Quad-core, 1.4 GHz
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	It can be used for log backup and USB-based deployment. This function is reserved.
Power supply mode	AC pluggable DC pluggable HVDC pluggable
Console port	RJ45
Downlink Service interface	48*25GE SFP28 NOTE: 1. 25GE ports can be used as 10GE ports. When working in GE mode. ports 1 to 8, 9 to 12, 13 to 16, 17 to 24, 25 to 28, 29 to 36, 37 to 44, and 45 to 48 form different groups. When the port mode GE command is run on any port in a group, all the ports in the group are configured to work at the rate of 1 Gbit/s. In this case, the ports can go Up only after GE media are installed. If a medium with a different rate is installed on a port, the port goes Down. 2. 10GE LRM/80 km linear optical modules are not supported. 3. 25GE 1 m copper cables and 10GE 1 m/3 m/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 25GE copper cables can only be used on M-LAG peer-link ports.
Uplink Service interface	6*100GE QSFP28 NOTE: 1. Each 100GE QSFP28 port can be used as a 40GE port. 2. A 100GE QSFP28 port cannot be split into 4x25GE and 4x10GE ports. 3. 100GE and 40GE 1 m/3 m/5 m copper cables are supported, and auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on M-LAG peer-link ports. When 100GE 3 m/5 m copper cables are used on such ports, these cables must work in the RS FEC mode. If they work in the non-RS FEC mode, the ports are in error-down state.
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Typical power consumption [W]	226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 261 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]	771 BTU/hour (100% traffic load, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 891 BTU/hour (100% traffic load, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	167 W
Static heat dissipation [BTU/hour]	570 BTU/hour
Maximum power consumption [W]	384 W
Maximum heat dissipation [BTU/hour]	1310 BTU/hour
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	Rated AC input voltage range: 100 V AC to 240 V AC; 50/60 Hz Rated –48 V DC input voltage range: –48 V DC to –60 V DC Rated input voltage range for 600 W AC & 240 V DC: 240 V DC Rated input voltage range for 1200 W HVDC: 240 V DC to 380 V DC
Input voltage range [V]	Maximum AC input voltage range: 90 V AC to 290 V AC; 45 Hz to 65 Hz Maximum –48 V DC input voltage range: –38.4 V DC to –72 V DC Maximum input voltage range for 600 W AC & 240 V DC: 190 V DC to 290 V DC Maximum input voltage range for 1200 W HVDC: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module (PAC600S12 series): 8 A (100 V AC to 240 V AC) 4 A (240 V DC) 1000 W DC power module (PDC1000S12 series): 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
Rated output power [W]	600 W (AC&240 V HVDC) 1000 W (–48 V DC) 1200 W (380 V HVDC)
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
Availability	0.9999962836
MTBF [year]	47.81 years
MTTR [hour]	1.95 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: < 58 dB(A) Back-to-front airflow: < 57 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: < 75 dB(A) Back-to-front airflow: < 74 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging [kg (lb)]	5.7 kg (12.57 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	7.8 kg (17.2 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.)
Weight with packaging [kg (lb)]	8.95 kg (19.73 lb)
Weight with packaging (full configuration) [kg (lb)]	11.05 kg (24.36 lb)
Chassis height [U]	1 U
