CE6863E-48S6CQ

0 Reviews Write a review

PN02354GCT

AvailabilityIn Stock

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

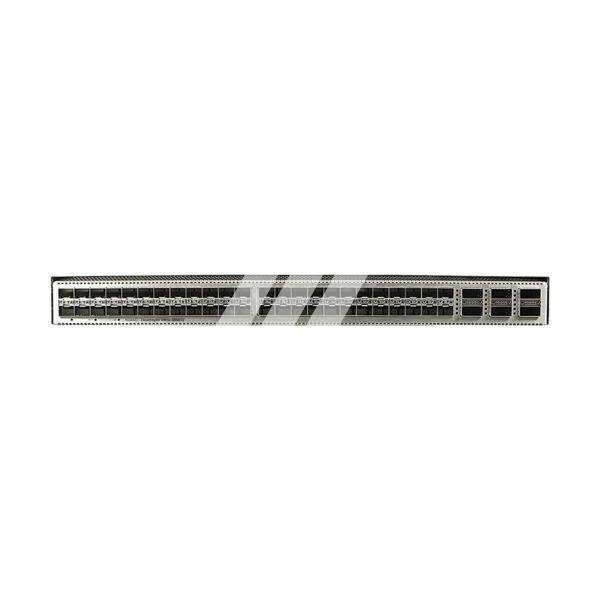

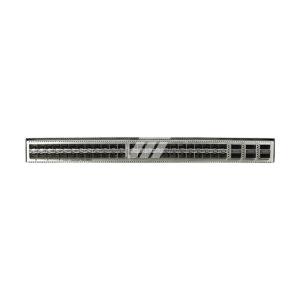

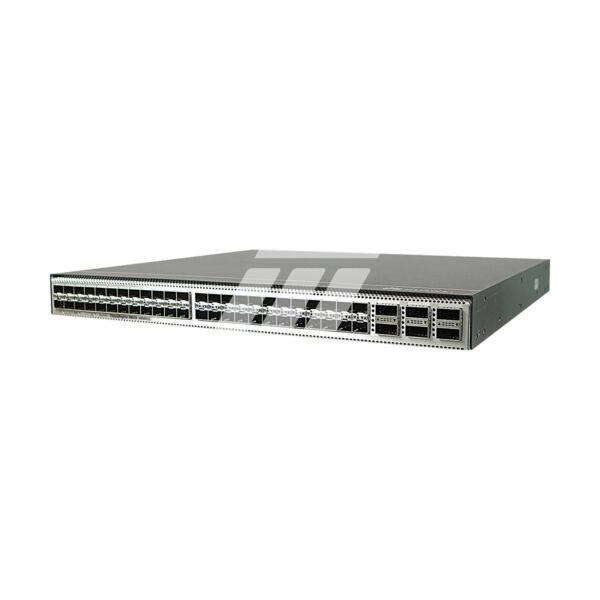

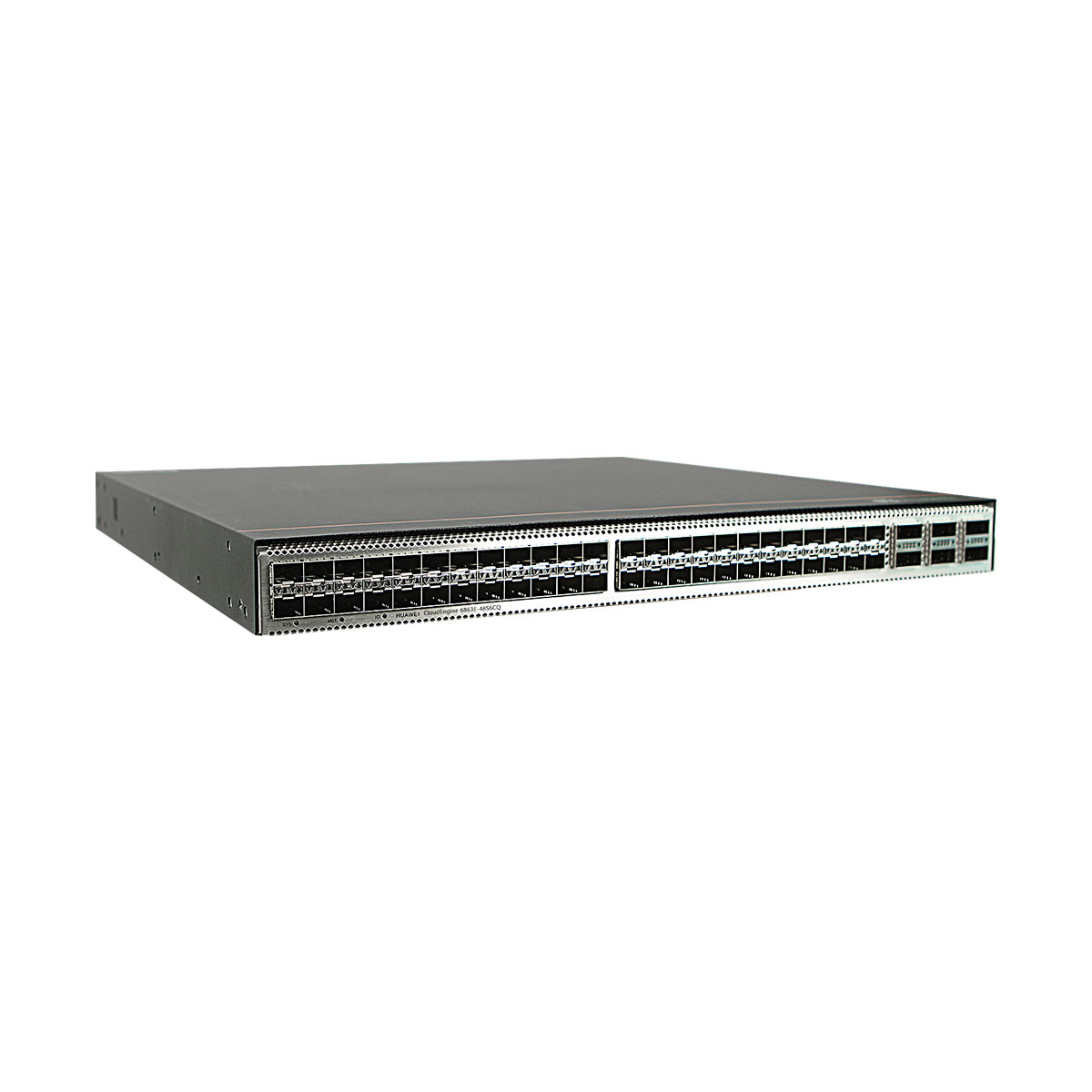

CE6863E-48S6CQ Huawei CE6800 switch supports 48*25GE SFP28, 6*100GE QSFP28

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6863E-48S6CQ overview

CE6863E-48S6CQ Huawei CE6800 switch supports 48*25GE SFP28, 6*100GE QSFP28

Offering high performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. Advanced data center features, high performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well suited to both the core and aggregation layers and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.

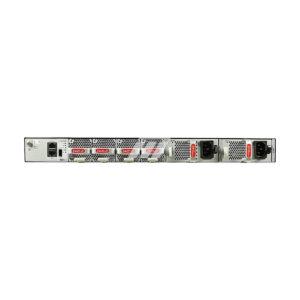

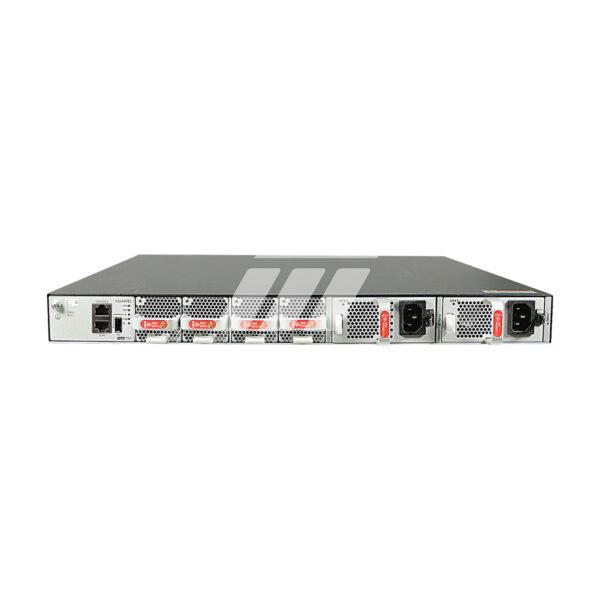

CE6863E-48S6CQ appearance

1	Ground screw	2	Equipment serial number (ESN)
3	Console port	4	ETH management port (RJ45)
5	USB port	6	Fan slot 1
7	Fan slot 2	8	Fan slot 3
9	Fan slot 4	10	Power supply slot 1
11	Power supply slot 2	12	Forty-eight 10GE/25GE SFP28 Ethernet optical ports
13	Six 40GE/100GE QSFP28 Ethernet optical ports	14	Three port-side mounting holes for mounting brackets
15	Two middle mounting holes for mounting brackets	16	Equipotential bonding
15	Two middle mounting holes for mounting brackets	16	Ground screws for a ground cable with a two-hole OT terminal
17	Four power-supply-side mounting holes for mounting brackets	–	–

Item	CE6863E-48S6CQ
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	Supported
Power supply mode	AC
	DC
	HVDC
Console port	RJ45
Downlink Service interface	48*25GE SFP28 (Note: 1. 25GE ports can be configured to work at 10 Gbit/s or 1 Gbit/s. Every four downlink 25GE ports form a group, and can be configured to work at 10 Gbit/s or 1 Gbit/s through the command; 2. 10GE LRM/80KM linear optical modules are not supported; 3. 1 m 25GE copper cables and 1 m/3 m/5 m 10GE copper cables are supported, and auto-negotiation of copper cables is not supported; 4. 25GE copper cables can only be used on stack ports and M-LAG peer-link ports.)
Uplink Service interface	6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.)
Service port supporting the stack function	25GE optical ports, and 100GE optical ports
RTC	Supported
Typical power consumption [W]	226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
Typical power consumption [W]	261 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]	771 BTU/hr (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
Typical heat dissipation [BTU/hour]	891 BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	167 W
Static heat dissipation [BTU/hour]	570 BTU/hour
Maximum power consumption [W]	384 W
Maximum heat dissipation	1310 BTU/hour
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	Rated AC input voltage range: 100 V AC to 240 V AC; 50/60 Hz
	Rated –48 V DC input voltage range: –48 V DC to –60 V DC
	Rated input voltage range for 600 W AC & 240 V DC: 240 V DC
	Rated input voltage range for 1200 W HVDC: 240 V DC to 380 V DC
Input voltage range [V]	Maximum AC input voltage range: 90 V AC to 290 V AC; 45 Hz to 65 Hz
	Maximum –48 V DC input voltage range: –38.4 V DC to –72 V DC
	Maximum input voltage range for 600 W AC & 240 V DC: 190 V DC to 290 V DC
	Maximum input voltage range for 1200 W HVDC: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module (PAC600S12 series):
	· 8 A (100 V AC to 240 V DC)
	· 4 A (240 V DC)
	1000 W DC power module (PDC1000S12 series): 30 A (–48 V DC to –60 V DC)
	1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
Rated output power [W]	600 W (AC&240 V HVDC)
	1000 W (–48 V DC)
	1200 W (380 V HVDC)
Certification	· Complies with safety standards.
	· Complies with EMC standards.
	· Complies with environmental protection standards.
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode
	DC: 4 kV in common mode and 2 kV in differential mode
	HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.999996284
MTBF [year]	47.81 years
MTtr [hour]	1.95 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: < 58 dB(A)
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Back-to-front airflow: < 57 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: < 75 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Back-to-front airflow: < 74 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)]	–40°C to +70°C (–40°F to +158°F)

Item	CE6863E-48S6CQ
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	Supported
Power supply mode	AC
	DC
	HVDC
Console port	RJ45
Downlink Service interface	48*25GE SFP28 (Note: 1. 25GE ports can be configured to work at 10 Gbit/s or 1 Gbit/s. Every four downlink 25GE ports form a group, and can be configured to work at 10 Gbit/s or 1 Gbit/s through the command; 2. 10GE LRM/80KM linear optical modules are not supported; 3. 1 m 25GE copper cables and 1 m/3 m/5 m 10GE copper cables are supported, and auto-negotiation of copper cables is not supported; 4. 25GE copper cables can only be used on stack ports and M-LAG peer-link ports.)
Uplink Service interface	6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.)
Service port supporting the stack function	25GE optical ports, and 100GE optical ports
RTC	Supported
Typical power consumption [W]	226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
Typical power consumption [W]	261 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]	771 BTU/hr (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
Typical heat dissipation [BTU/hour]	891 BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	167 W
Static heat dissipation [BTU/hour]	570 BTU/hour
Maximum power consumption [W]	384 W
Maximum heat dissipation	1310 BTU/hour
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	Rated AC input voltage range: 100 V AC to 240 V AC; 50/60 Hz
	Rated –48 V DC input voltage range: –48 V DC to –60 V DC
	Rated input voltage range for 600 W AC & 240 V DC: 240 V DC
	Rated input voltage range for 1200 W HVDC: 240 V DC to 380 V DC
Input voltage range [V]	Maximum AC input voltage range: 90 V AC to 290 V AC; 45 Hz to 65 Hz
	Maximum –48 V DC input voltage range: –38.4 V DC to –72 V DC
	Maximum input voltage range for 600 W AC & 240 V DC: 190 V DC to 290 V DC
	Maximum input voltage range for 1200 W HVDC: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module (PAC600S12 series):
	· 8 A (100 V AC to 240 V DC)
	· 4 A (240 V DC)
	1000 W DC power module (PDC1000S12 series): 30 A (–48 V DC to –60 V DC)
	1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
Rated output power [W]	600 W (AC&240 V HVDC)
	1000 W (–48 V DC)
	1200 W (380 V HVDC)
Certification	· Complies with safety standards.
	· Complies with EMC standards.
	· Complies with environmental protection standards.
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode
	DC: 4 kV in common mode and 2 kV in differential mode
	HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.999996284
MTBF [year]	47.81 years
MTtr [hour]	1.95 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: < 58 dB(A)
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Back-to-front airflow: < 57 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: < 75 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Back-to-front airflow: < 74 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)]	–40°C to +70°C (–40°F to +158°F)
