Huawei CE6860-48S8CQ-EI Switch (48-Port 25GE SFP28, 8*100GE QSFP28, Without Fan and Power Module)

Description

CE6860-48S8CQ-EI overview



The CloudEngine 6800 series switches deliver high performance, high port density, and low latency, making them ideal for building cloud-oriented data center networks for enterprises and carriers. Featuring a cutting-edge hardware design, the series offers access ports with 10 GE, 25 GE, or 50 GE options, along with uplink ports supporting 40 GE, 100 GE, or 200 GE. With advanced data center capabilities, high-performance stacking technologies, and flexible airflow designs, the series ensures superior efficiency and scalability.

The CloudEngine 6800 is ideal for both core and aggregation layers and seamlessly integrates with CloudEngine 16800 and 12800 series switches. This compatibility allows enterprises to create scalable, streamlined, open, and secure networks.

Item Details
Description

CE6860-48S8CQ-EI Switch (48-Port 25GE SFP28, 8*100GE QSFP28, Without Fan and Power Module)

Part Number 02350SRA
Model CE6860-48S8CQ-EI

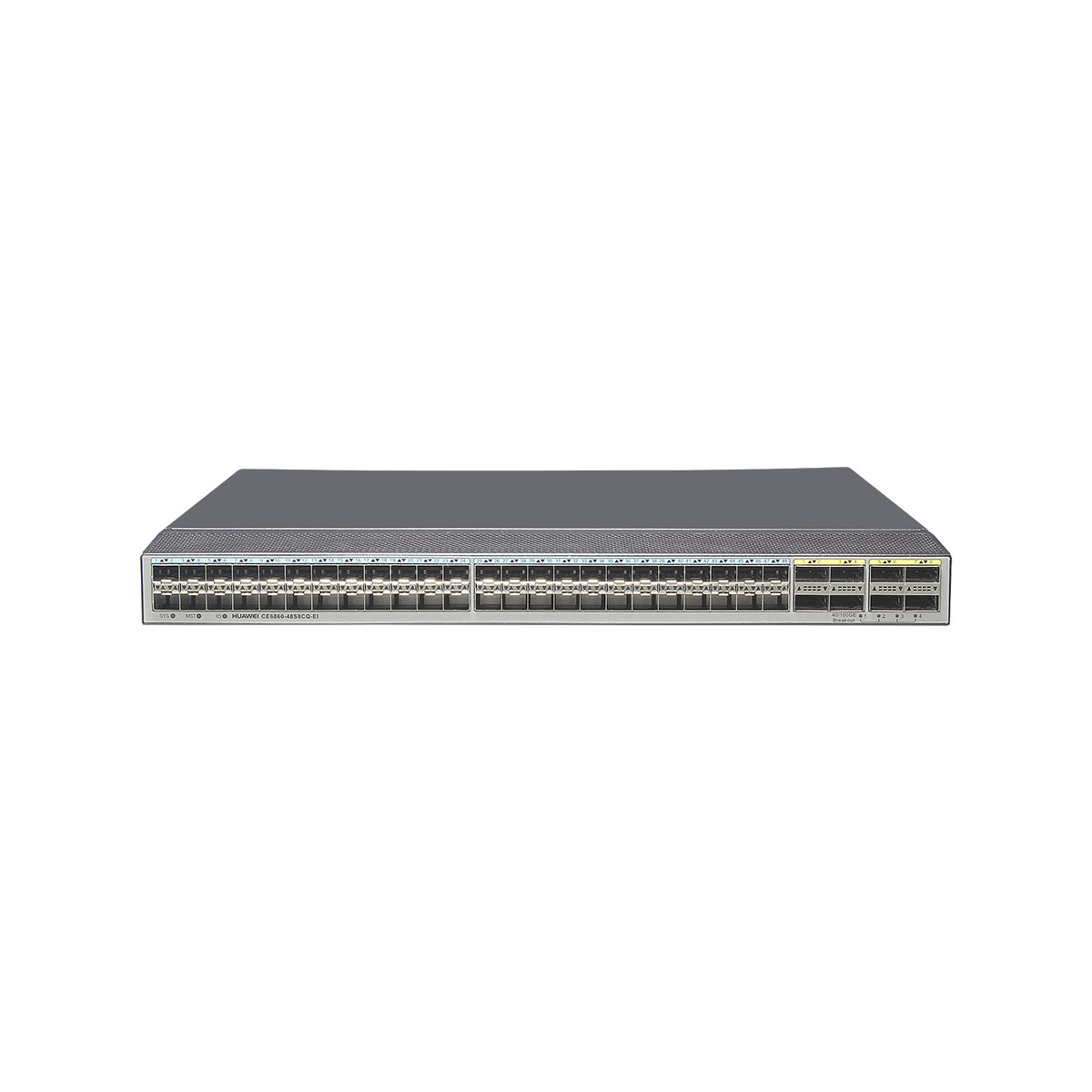

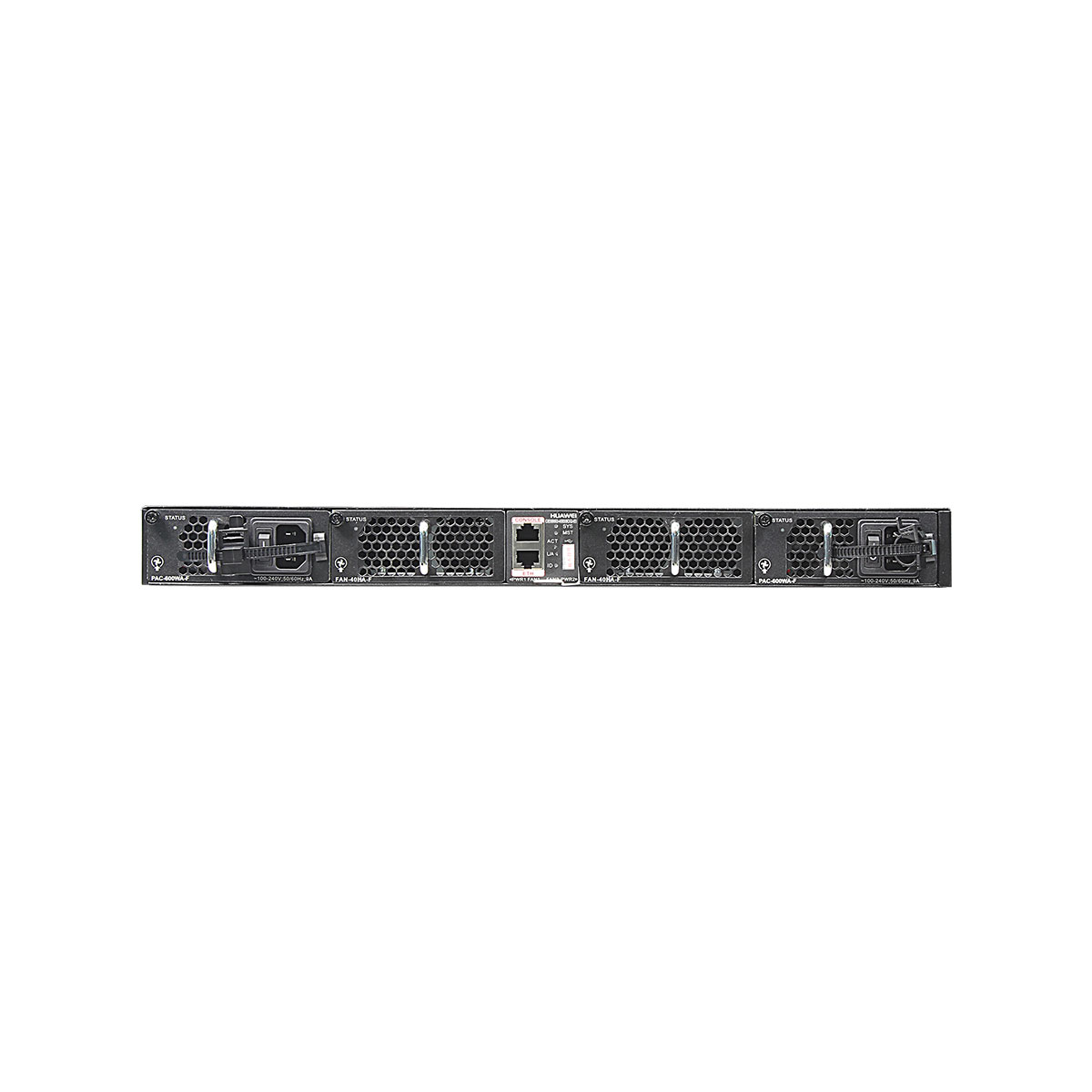

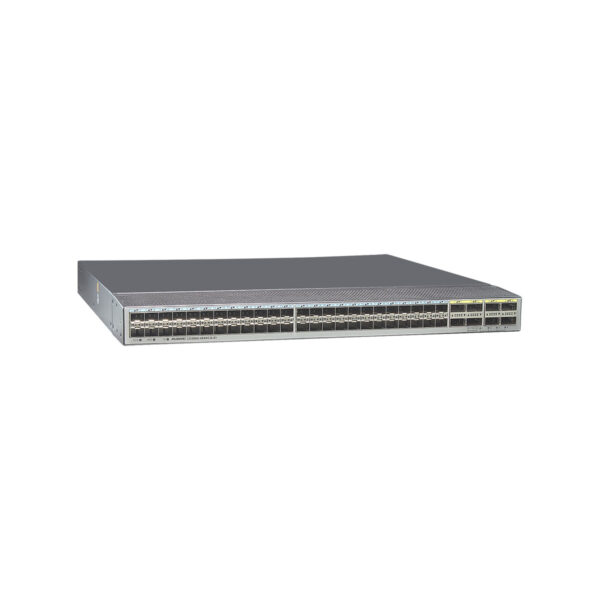

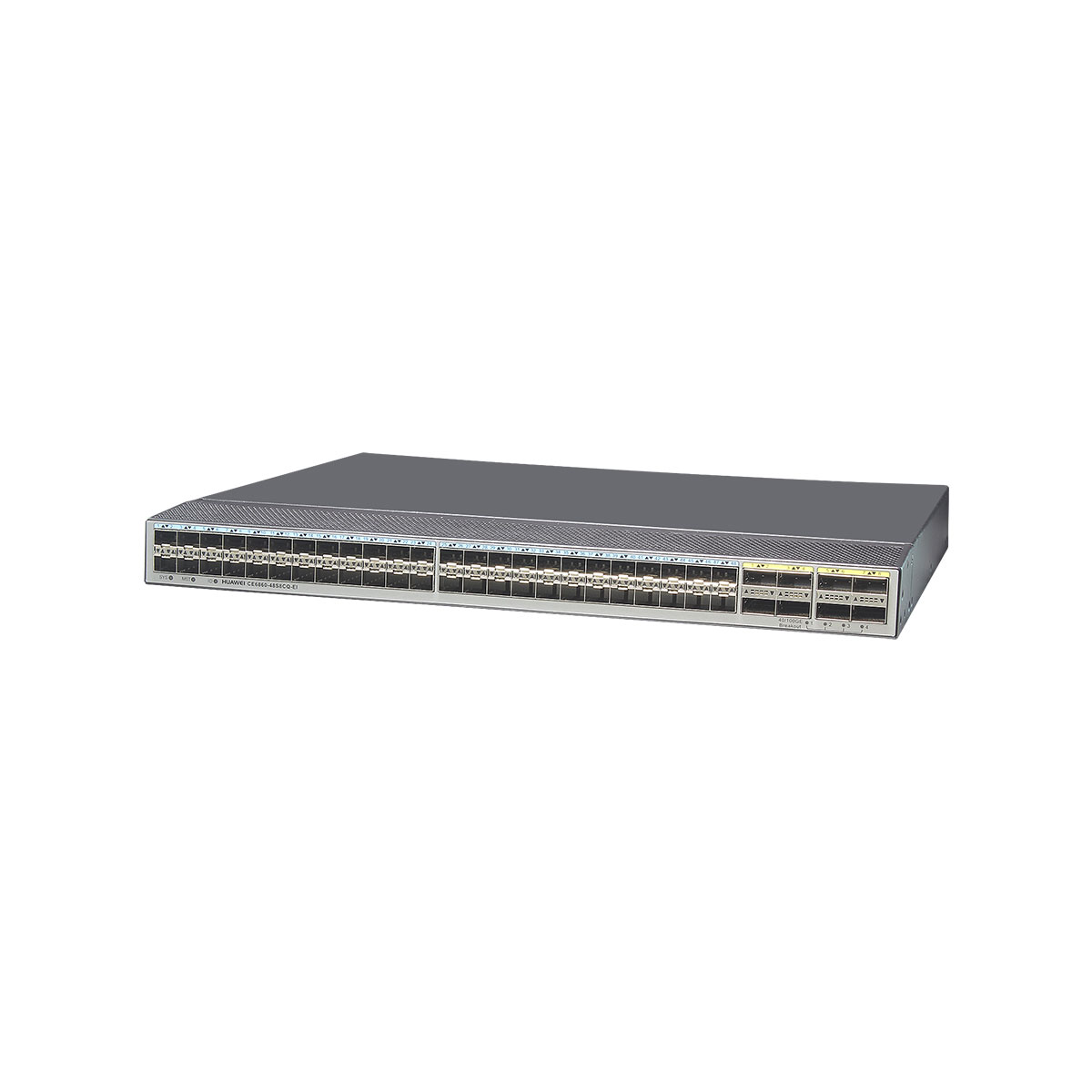

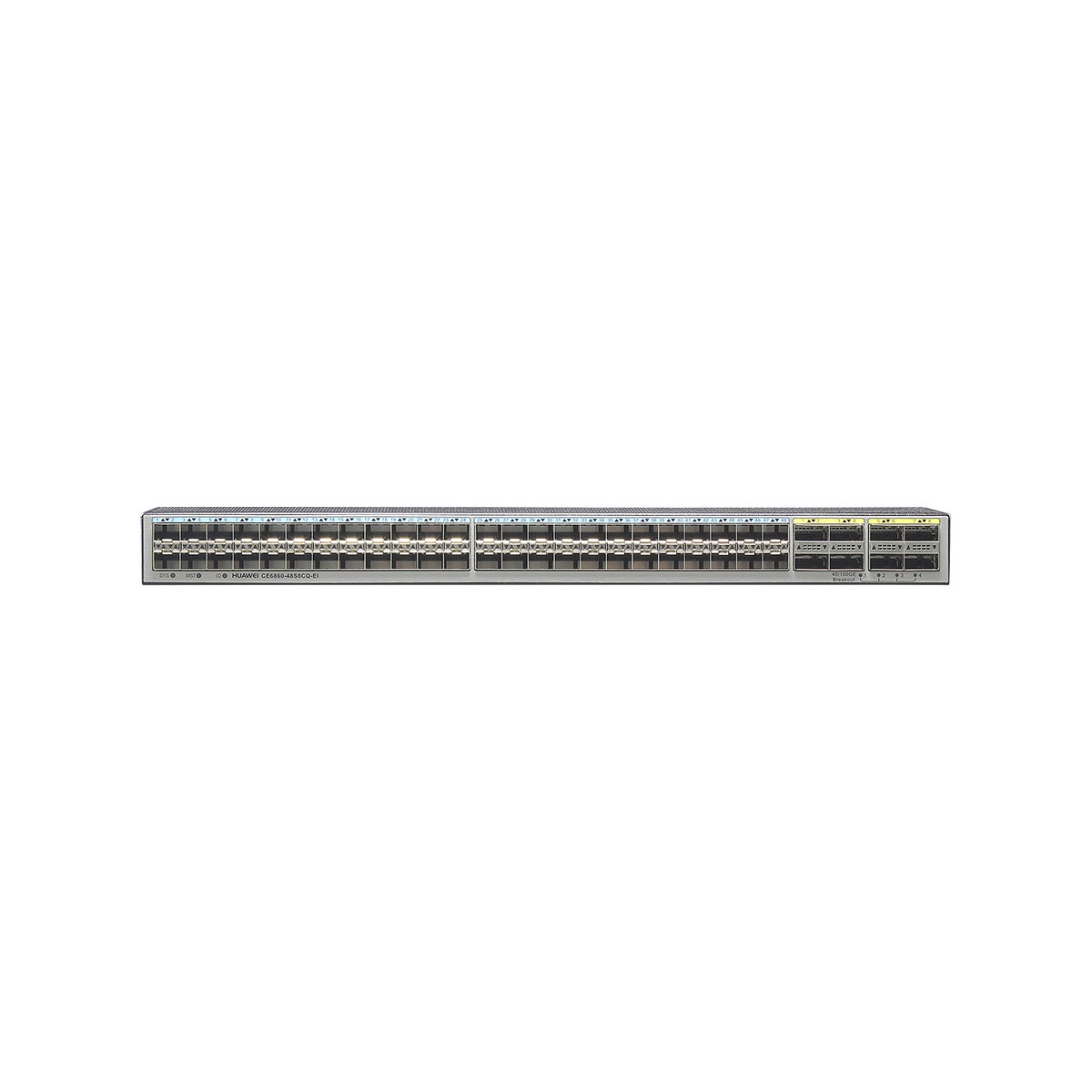

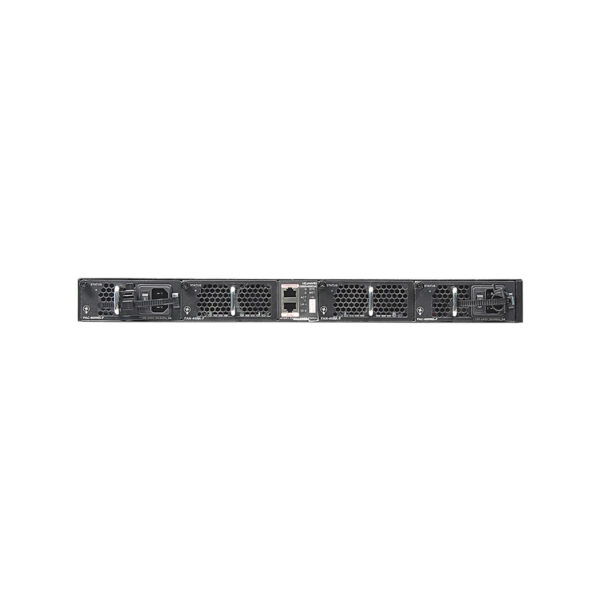

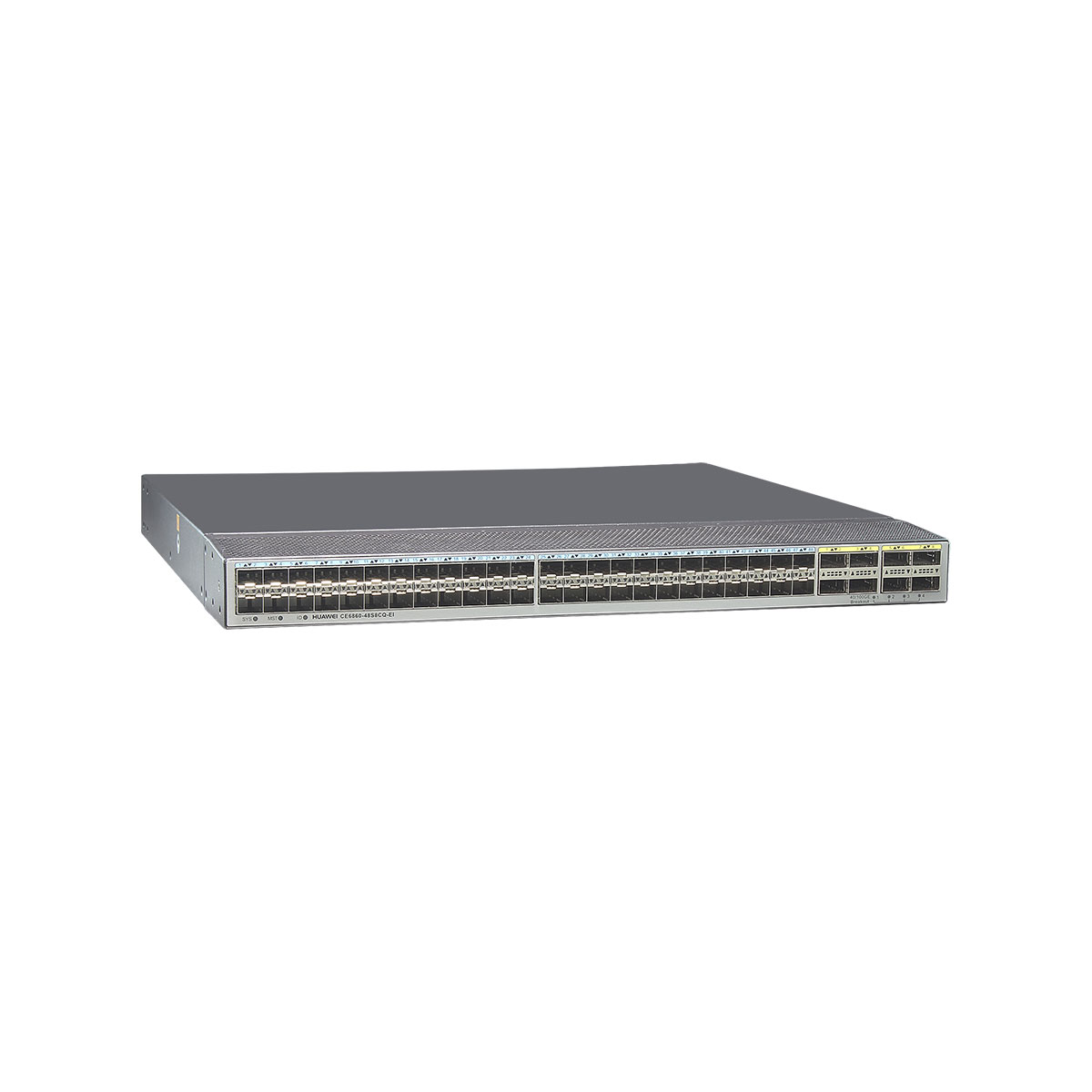

CE6860-48S8CQ-EIAppearance

CE6860-48S8CQ-EI

1

Power supply slot 1

Applicable power modules:

  • 350 W DC power module
  • 600 W AC power module

NOTE:

At the ambient temperature of 0°C to 40°C, the 350 W DC module can be used only when all optical interfaces on the switch are equipped with the following short-distance optical modules: 25GBase-SR (power consumption ≤ 1 W) and 100GE optical modules (transmission distance ≤ 2 km; power consumption ≤ 3.5 W) such as 100GBase-SR4, 100GBase-CWDM4, 100GBase-CLR4, and 100GBase-PSM4.

2

Power supply slot 2

Applicable power modules:

  • 350 W DC power module
  • 600 W AC power module

NOTE:

At the ambient temperature of 0°C to 40°C, the 350 W DC module can be used only when all optical interfaces on the switch are equipped with the following short-distance optical modules: 25GBase-SR (power consumption ≤ 1 W) and 100GE optical modules (transmission distance ≤ 2 km; power consumption ≤ 3.5 W) such as 100GBase-SR4, 100GBase-CWDM4, 100GBase-CLR4, and 100GBase-PSM4.

3

Fan slot 1

Applicable fan modules:

  • FAN-40HA series fan modules

4

Fan slot 2

Applicable fan modules:

  • FAN-40HA series fan modules

5

Console port

6

ETH management port (RJ45)

7

Barcode label

NOTE:

This label is drawable, and you can pull it outward to view the ESN barcode and MAC address of the switch.

8

USB port

9

Forty-eight 10GE/25GE SFP28 Ethernet optical ports

Applicable modules and cables:

  • 10GE optical module (OSXD22N00, LE2MXSC80FF0 and SFP-10G-ZDWT-L not supported)
  • GE Optical Modules (supported from V200R005C00 version)
  • GE copper module (supported from V200R005C00 version and only works at 1000 Mbit/s)
  • 25GE optical module (only supports SFP-25G-SR)
  • SFP+ AOC cable
  • SFP28 AOC cable
  • SFP+ high-speed cable
  • SFP28 high-speed cable (1 m or 3 m)

NOTE:

A 25GE optical interface does not support auto-negotiation when it has a GE optical module installed. To connect the two interfaces at both ends of a link, disable auto-negotiation on the peer interface. Otherwise, one interface may go Up and the other may go Down.

10

Eight 40GE/100GE QSFP28 Ethernet optical ports

NOTE:

A QSFP28 Ethernet optical port can be split into four 10GE or 25GE ports.

Applicable modules and cables:

  • 40GE optical module
  • 100GE optical module (QSFP28-100G-4WDM-40 not supported)
  • QSFP+ to QSFP+ AOC cable
  • QSFP+ to 4*SFP+ AOC cable
  • QSFP+ to 4*SFP+ high-speed cable
  • QSFP+ to QSFP+ high-speed cable
  • QSFP28 to QSFP28 AOC cable
  • QSFP28 to QSFP28 high-speed cable
  • QSFP28 to 4*SFP28 high-speed cable (1 m or 3 m)

11

Three port-side mounting holes for mounting brackets

12

Four power-supply-side mounting holes for mounting brackets

13

Ground screw
