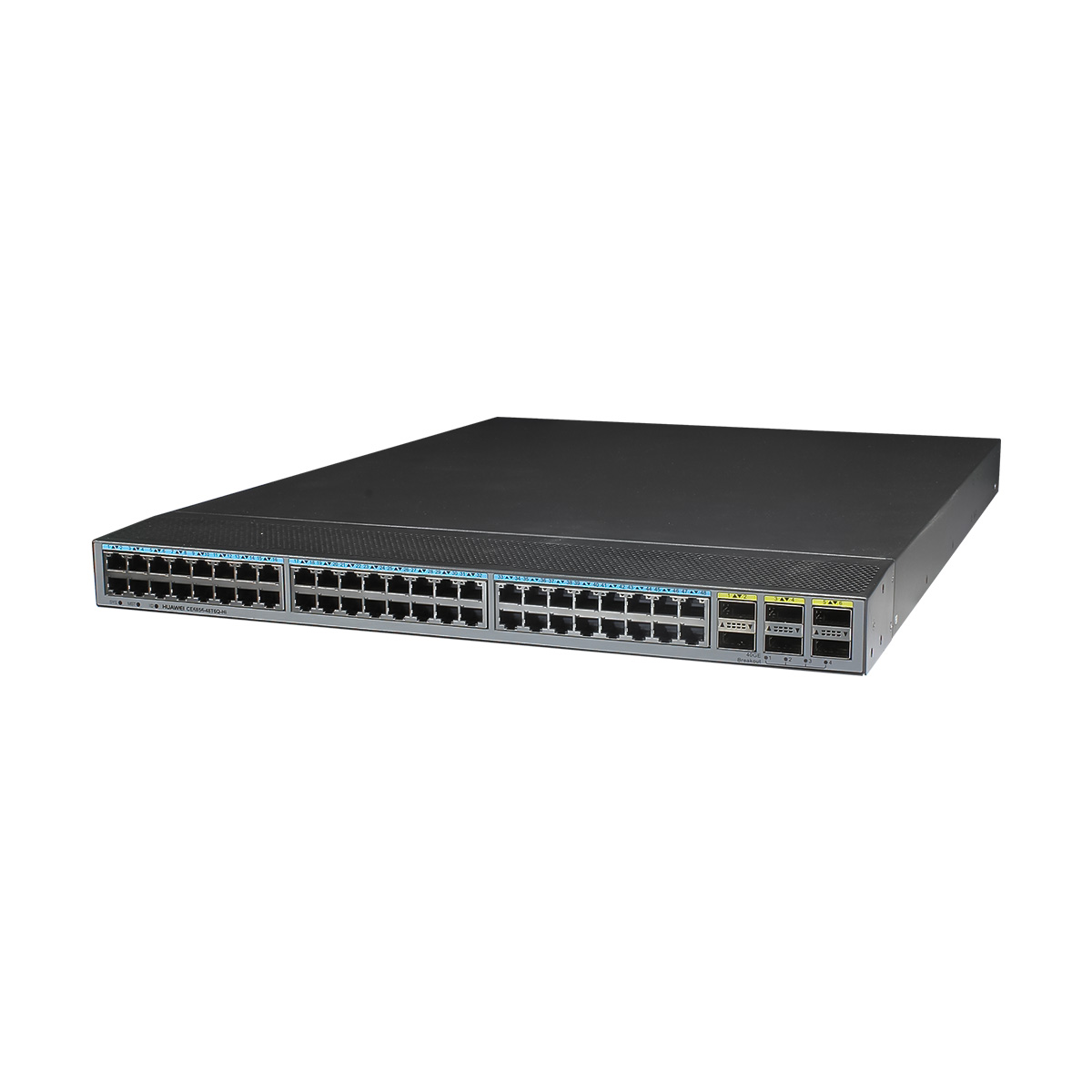

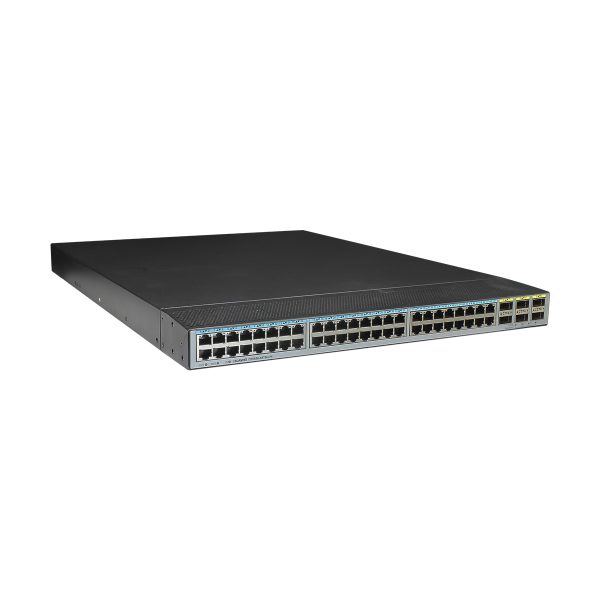

CE6856-48T6Q-HI

Rated 4.67 out of 5 based on 3 customer ratings

3 Reviews Write a review

PN02351LVC

BrandsHuawei

AvailabilityIn Stock

CE Switch CE6800

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

CE6856-48T6Q-HI Huawei CE6800 switch supports 48 ports 10GE RJ45, 6 ports 40GE QSFP+

10GE Switch 40GE Uplink Switch 48 Ports Switch Core/Aggregation Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6856-48T6Q-HI overview

Huawei CE6856-48T6Q-HI with 48 ports 10GE RJ45, 6 ports 40GE QSFP+ without power module and FAN Box is one of the Huawei CE6800 series switch

Offering high performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. Advanced data center features, high performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well suited to both the core and aggregation layers and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.

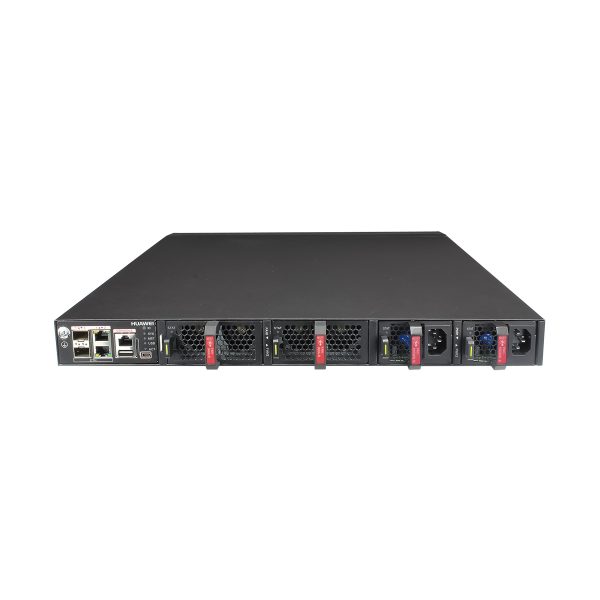

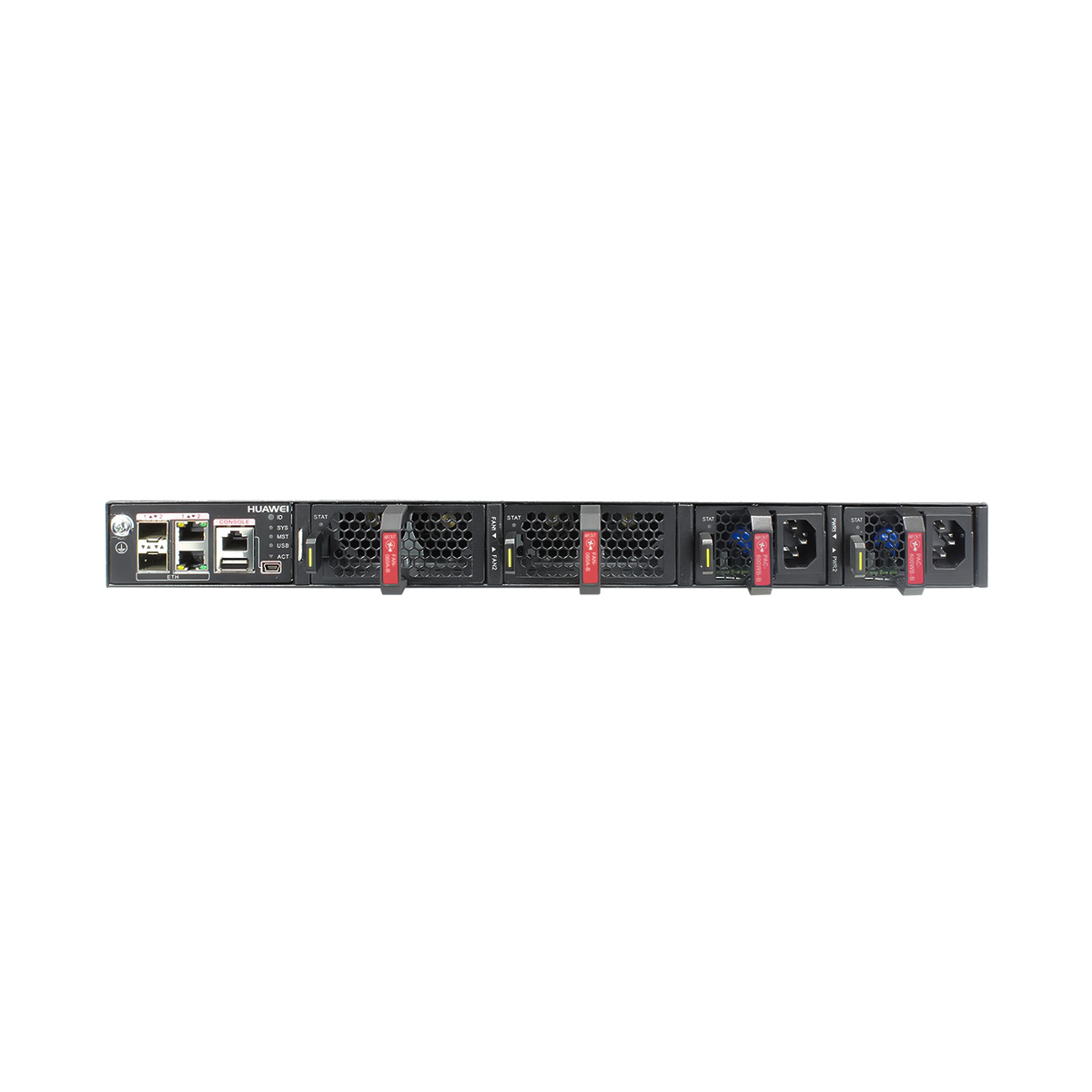

Appearance of the CE6856-48T6Q-HI

1	Ground screw
2	Two ETH management ports (combo) Applicable modules for the GE optical port of the combo port: FE SFP_eSFP Optical Modules GE eSFP Optical Modules
3	Console port
4	USB port
5	Mini USB port
6	Barcode label
7	Fan slot 1 Applicable fan modules: FAN-060A Series Fan Modules
8	Fan slot 2 Applicable fan modules: FAN-060A Series Fan Modules
9	Power supply slot 1 Applicable power modules: 600 W AC&240 V DC power module (PAC-600WB) 600 W High-Voltage DC Power Module 1200 W DC Power Module (PDC-1K2WA) 1200 W High-voltage DC Power Module (PHD-1K2WA)
10	Power supply slot 2 Applicable power modules: 600 W AC&240 V DC power module (PAC-600WB) 600 W High-Voltage DC Power Module 1200 W DC Power Module (PDC-1K2WA) 1200 W High-voltage DC Power Module (PHD-1K2WA)
11	Forty-eight 10GBASE-T Ethernet electrical ports
12	Six 40GE QSFP+ Ethernet optical ports
13	Three port-side mounting holes for mounting brackets
14	Four middle mounting holes for mounting brackets
15	Four power-supply-side mounting holes for mounting brackets

Ports on the CE6856-48T6Q-HI

10GBASE-T Ethernet Electrical Port

Attribute	Description
Connector type	RJ45
Standards compliance	IEEE802.3an and IEEE802.3az
Applicable cable	Straight-through cable and crossover cable
Working mode	Supported rate: 100/1000 Mbit/s and 10 Gbit/s auto-sensing Full-duplex
Maximum transmission distance	100 m

40GE QSFP+ Ethernet Optical Port

Attribute	Description
Connector type	LC/MPO
Optical port attributes	Depending on the module or cable in use
Standards compliance	IEEE802.3ba
Working mode	Full-duplex

Console Port

Attribute	Description
Connector type	RJ45
Standards compliance	RS232
Working mode	Duplex Universal Asynchronous Receiver/transmitter (UART)
Baud rate	9600 bit/s to 115200 bit/s Default value: 9600 bit/s

Item		CE6856-48T6Q-HI
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0–1800 m (0–5906 ft.) Storage temperature: –40°C to +70°C (–40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 53 dBA Front-to-back airflow: < 53 dBA
Power specifications	Power source type	AC/DC/high-voltage DC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC power input	Rated voltage range: –48 V DC to –60 V DC Maximum voltage range: –38.4 V DC to –72 V DC
	High-voltage DC power input	Rated voltage of 240 V high-voltage DC power input: 240 V DC Maximum voltage range of 240 V high-voltage DC power input: 188 V DC to 290 V DC Rated voltage range of 380 V high-voltage DC power input: 240 V DC to 380 V DC Maximum voltage range of 380 V high-voltage DC power input: 188 V DC to 400 V DC
	Rated input current	600 W AC&240 V DC power module (PAC-600WB series): 8 A (100 V AC to 240 V AC)/4 A (240 V DC) 600 W high-voltage DC power module (PHD-600WA series): 4 A (240 V DC to 380 V DC) 1200 W DC power module (PDC-1K2WA series): 38 A (–48 V DC to –60 V DC)
Chassis power consumption	Maximum power consumption	346 W
Chassis power consumption	Typical power consumption	219 W (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	1181 BTU/hr
Chassis heat dissipation	Typical heat dissipation	747 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Surge protection		Ethernet electrical ports: 2 kV in common mode Power module: AC: 4 kV in common mode and 2.5 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability	Power module backup	1+1 backup
	Fan module backup	1+1 backup not supported NOTE: A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	54.48
	Mean time to repair (MTtr)	1.81
	Availability	0.99999620929
Technical specifications	Processor	1.2 GHz, quad-core
	DRAM Memory	4 GB
	NOR Flash	16 MB
	NAND Flash	1 GB
Stack	Service port supporting the stack function	10GE electrical ports and 40GE optical ports
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance
Physical specifications		Dimensions (W x D x H): 442.0 mm x 600.0 mm x 43.6 mm (17.4 in. x 23.6 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 12.6 kg (27.78 lb)

Item		CE6856-48T6Q-HI
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0–1800 m (0–5906 ft.) Storage temperature: –40°C to +70°C (–40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 53 dBA Front-to-back airflow: < 53 dBA
Power specifications	Power source type	AC/DC/high-voltage DC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC power input	Rated voltage range: –48 V DC to –60 V DC Maximum voltage range: –38.4 V DC to –72 V DC
	High-voltage DC power input	Rated voltage of 240 V high-voltage DC power input: 240 V DC Maximum voltage range of 240 V high-voltage DC power input: 188 V DC to 290 V DC Rated voltage range of 380 V high-voltage DC power input: 240 V DC to 380 V DC Maximum voltage range of 380 V high-voltage DC power input: 188 V DC to 400 V DC
	Rated input current	600 W AC&240 V DC power module (PAC-600WB series): 8 A (100 V AC to 240 V AC)/4 A (240 V DC) 600 W high-voltage DC power module (PHD-600WA series): 4 A (240 V DC to 380 V DC) 1200 W DC power module (PDC-1K2WA series): 38 A (–48 V DC to –60 V DC)
Chassis power consumption	Maximum power consumption	346 W
Chassis power consumption	Typical power consumption	219 W (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	1181 BTU/hr
Chassis heat dissipation	Typical heat dissipation	747 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules)
Surge protection		Ethernet electrical ports: 2 kV in common mode Power module: AC: 4 kV in common mode and 2.5 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability	Power module backup	1+1 backup
	Fan module backup	1+1 backup not supported NOTE: A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	54.48
	Mean time to repair (MTtr)	1.81
	Availability	0.99999620929
Technical specifications	Processor	1.2 GHz, quad-core
	DRAM Memory	4 GB
	NOR Flash	16 MB
	NAND Flash	1 GB
Stack	Service port supporting the stack function	10GE electrical ports and 40GE optical ports
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance
Physical specifications		Dimensions (W x D x H): 442.0 mm x 600.0 mm x 43.6 mm (17.4 in. x 23.6 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 12.6 kg (27.78 lb)
