Description
CE6855-48S6Q-HI overview
The CloudEngine 6800 series switches deliver high performance, high port density, and low latency, making them ideal for building cloud-oriented data center networks for enterprises and carriers. Featuring a cutting-edge hardware design, the series offers access ports with 10 GE, 25 GE, or 50 GE options, along with uplink ports supporting 40 GE, 100 GE, or 200 GE. With advanced data center capabilities, high-performance stacking technologies, and flexible airflow designs, the series ensures superior efficiency and scalability.
The CloudEngine 6800 is ideal for both core and aggregation layers and seamlessly integrates with CloudEngine 16800 and 12800 series switches. This compatibility allows enterprises to create scalable, streamlined, open, and secure networks.
| Item | Details |
|---|---|
| Description |
CE6855-48S6Q-HI Switch (48-Port 10G SFP+, 6-Port 40GE QSFP+, Without Power Module and FAN Box) |
| Part Number | 02350SRQ |
| Model | CE6855-48S6Q-HI |

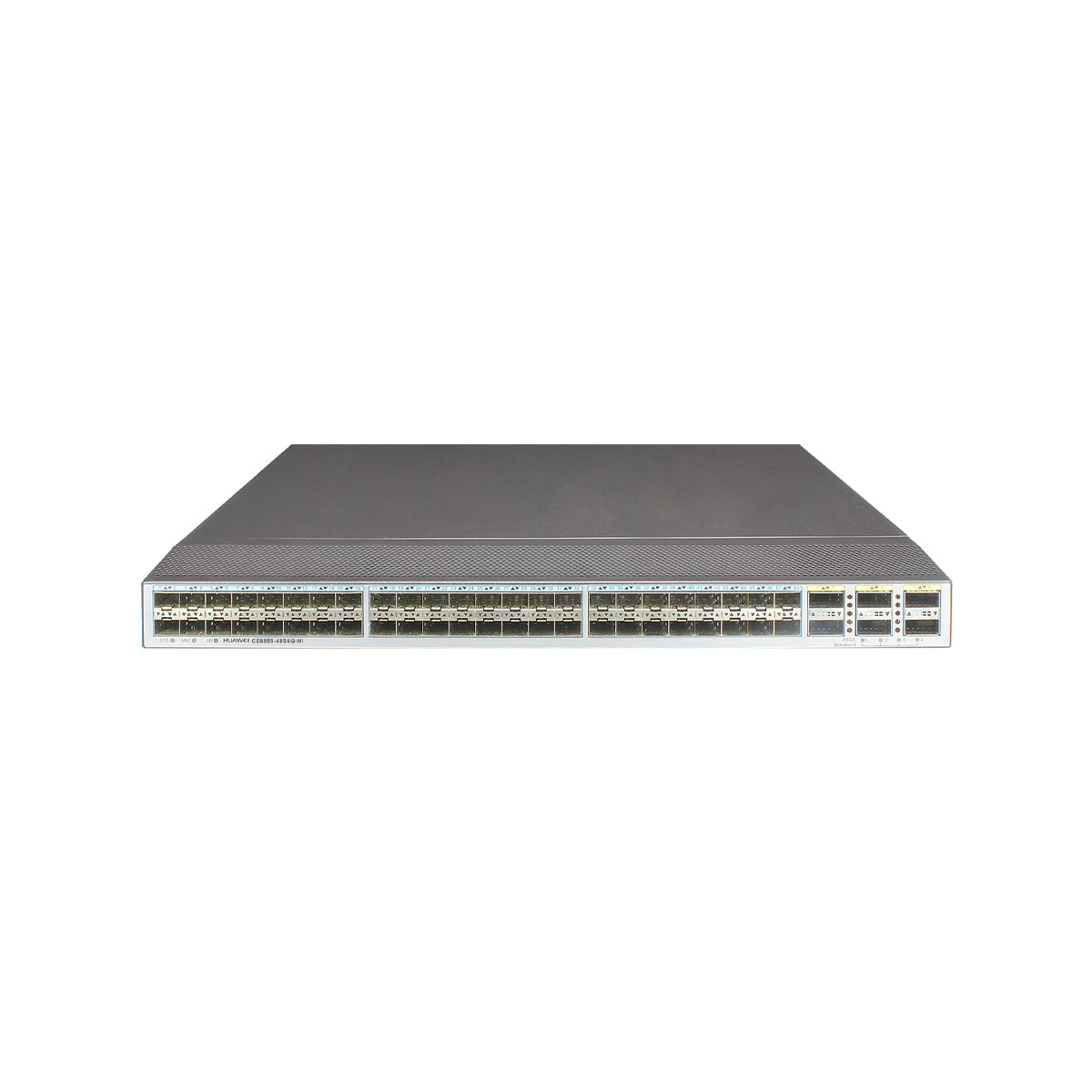

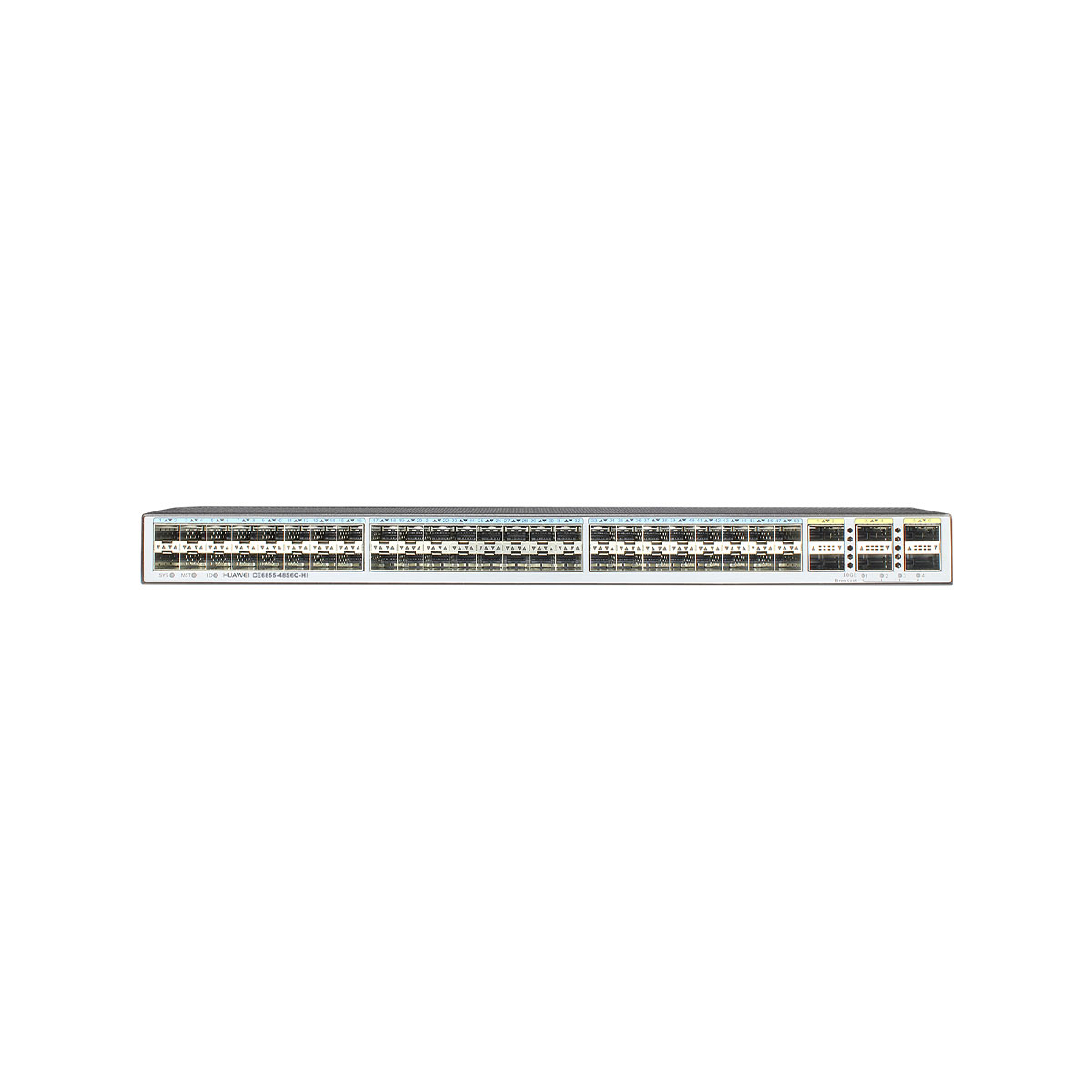

CE6855-48S6Q-HI Appearance
|
1 |
Power supply slot 1 Applicable power modules:
|
2 |
Power supply slot 2 Applicable power modules:
|
|
3 |
Fan slot 1 Applicable fan modules:
|
4 |
Fan slot 2 Applicable fan modules:
|
|
5 |
Console port |
6 |
ETH management port (RJ45) |
|
7 |
Barcode label NOTE: This label is drawable, and you can pull it outward to view the ESN barcode and MAC address of the switch. |
8 |
USB port |
|
9 |
Forty-eight 10GE SFP+ Ethernet optical ports Applicable modules and cables:
|
10 |
Six 40GE QSFP+ Ethernet optical ports NOTE: A 40GE QSFP+ port can be split into four 10GE ports. In V200R005C00 and later versions, a QSA convertor can be installed on a 40GE interface that has been split. Installing a medium whose rate is 10 Gbit/s on the QSA convertor makes a 40GE interface function as a 10GE interface. Only the first split interface works and other three split interfaces are unavailable. If a QSA convertor is installed on an interface that is not split or a medium whose rate is not 10 Gbit/s is installed on the QSA convertor on an interface that has been split, the interface enters the Down(Transceiver type mismatch) status. Applicable modules and cables:
|
|
11 |
Three port-side mounting holes for mounting brackets |
12 |
Four power-supply-side mounting holes for mounting brackets |
|
13 |
Ground screw |
– |
– |
