Categories:CloudEngine 6800 Series

CE6850U-24S2Q-HI

0 Reviews Write a review

PN02350TJH

AvailabilityIn Stock

WarrantyUp to 36 months

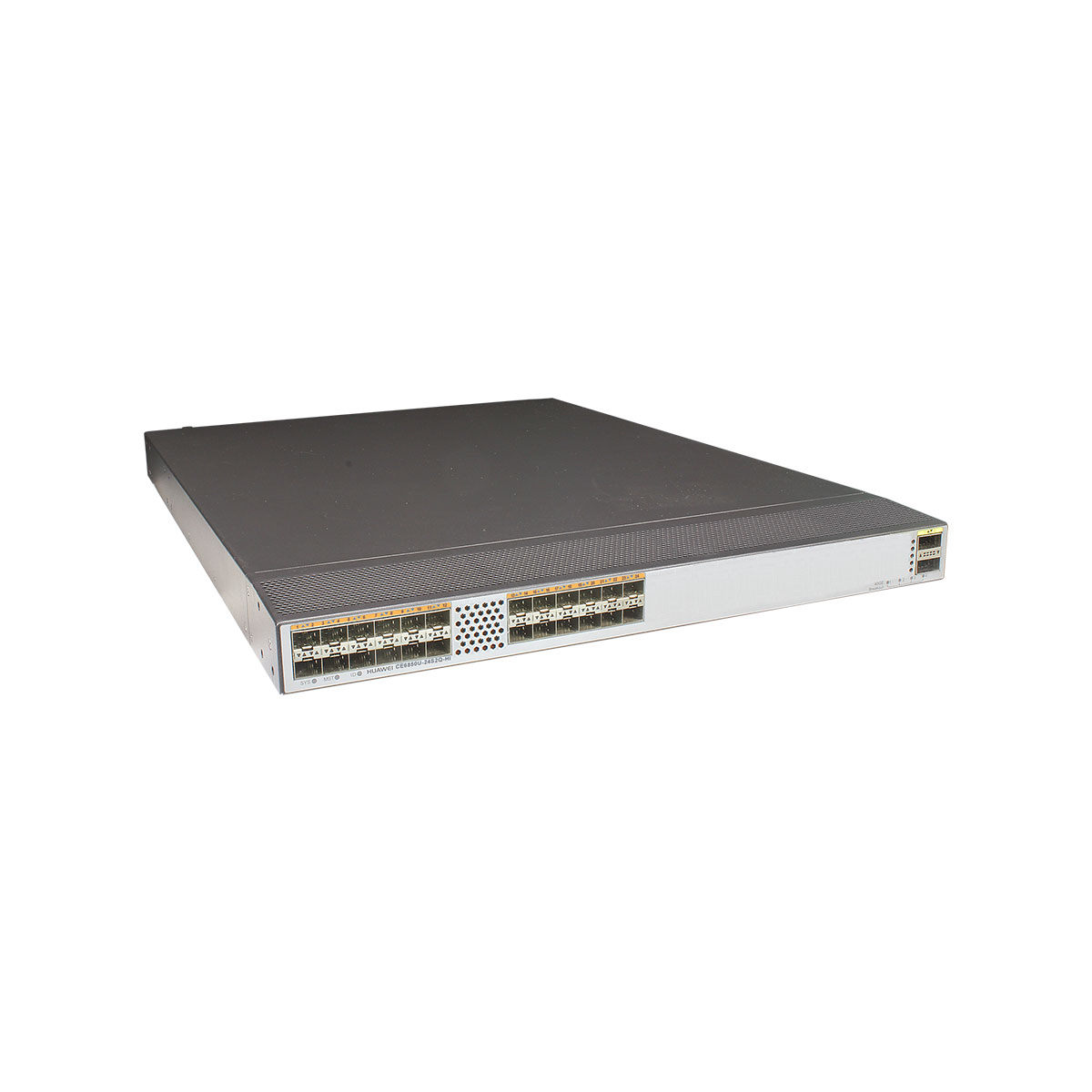

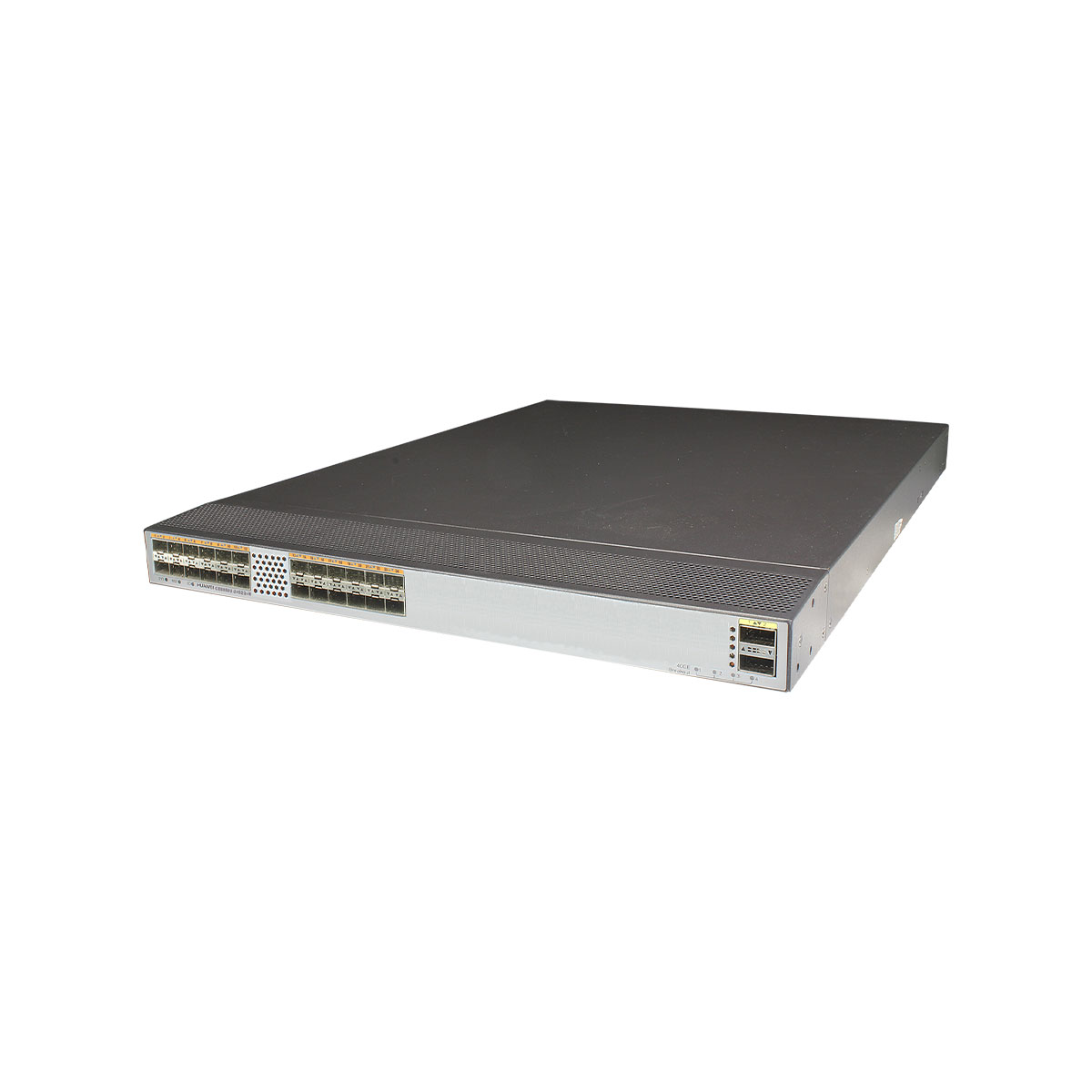

Huawei CE6850U-24S2Q-HI Switch (24-Port 10GE SFP+, support 2/4/8G FC, 2-Port 40GE QSFP+, Without FAN Box and Power Module)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6850U-24S2Q-HI overview

The CloudEngine 6800 series switches deliver high performance, high port density, and low latency, making them ideal for building cloud-oriented data center networks for enterprises and carriers. Featuring a cutting-edge hardware design, the series offers access ports with 10 GE, 25 GE, or 50 GE options, along with uplink ports supporting 40 GE, 100 GE, or 200 GE. With advanced data center capabilities, high-performance stacking technologies, and flexible airflow designs, the series ensures superior efficiency and scalability.

The CloudEngine 6800 is ideal for both core and aggregation layers and seamlessly integrates with CloudEngine 16800 and 12800 series switches. This compatibility allows enterprises to create scalable, streamlined, open, and secure networks.

Item	Details
Description	CE6850U-24S2Q-HI Switch (24-Port 10GE SFP+, support 2/4/8G FC, 2-Port 40GE QSFP+, Without FAN Box and Power Module)
Part Number	02350TJH
Model	CE6850U-24S2Q-HI

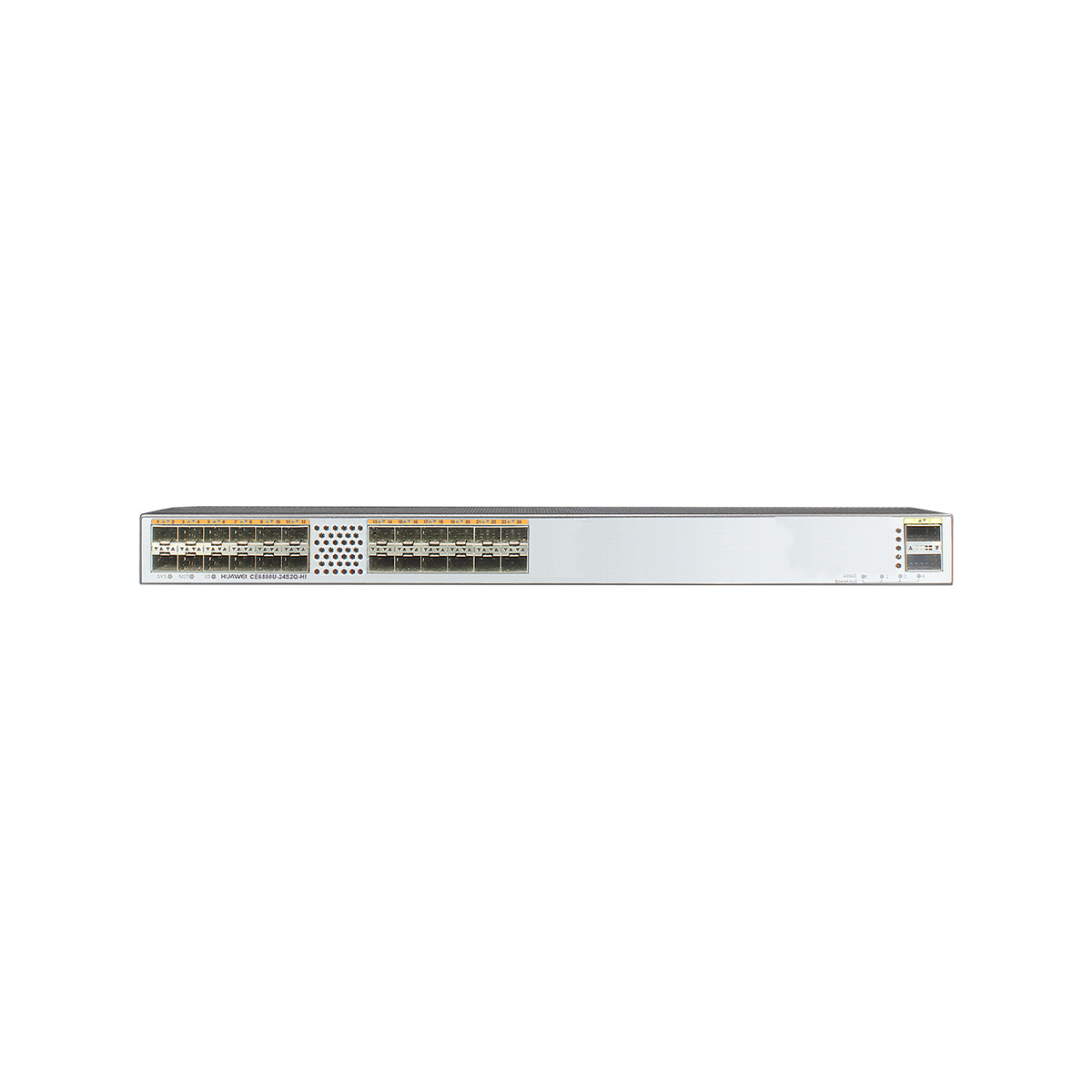

CE6850U-24S2Q-HI Appearance

1	Ground screw	2	Two ETH management ports (combo) Applicable transceiver modules for the GE optical port of the combo port: FE optical module GE optical module NOTE: The combo optical port uses a 100M or GE optical module and matching fibers. A 100M optical module can be used only after the switch starts successfully.
3	Console port	4	USB port
5	Mini USB port	6	Barcode label NOTE: This label is drawable, and you can pull it outward to view the ESN barcode and MAC address of the switch.
7	Fan slot 1 Applicable fan modules: FAN-060A series fan modules	8	Fan slot 2 Applicable fan modules: FAN-060A series fan modules
9	Power supply slot 1 Applicable power modules: 600 W AC&240 V DC power module 600 W high-voltage DC power module 1200 W DC power module 1200 W high-voltage DC power module	10	Power supply slot 2 Applicable power modules: 600 W AC&240 V DC power module 600 W high-voltage DC power module 1200 W DC power module 1200 W high-voltage DC power module
11	Twenty-four 10GE SFP+ Ethernet optical ports Applicable modules and cables: FC optical module 10GE optical module GE optical module GE copper module (works at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s) SFP+ AOC cable SFP+ high-speed cable	12	Two 40GE QSFP+ Ethernet optical ports NOTE: A 40GE QSFP+ port can be split into four 10GE ports. Applicable modules and cables: 40GE optical module QSFP+ AOC cable (QSFP+ to QSFP+) QSFP+ AOC cable (QSFP+ to 4SFP+) QSFP+ high-speed cable (QSFP+ to 4SFP+) QSFP+ high-speed cable (QSFP+ to QSFP+)
13	Three port-side mounting holes for mounting brackets	14	Four middle mounting holes for mounting brackets
15	Four power-supply-side mounting holes for mounting brackets	–	–

Item		CE6850U-24S2Q-HI
Physical specifications		Dimensions (W x D x H): 442.0 mm x 600.0 mm x 43.6 mm (17.4 in. x 23.6 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 12.3 kg (27.12 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 52 dBA Front-to-back airflow: < 52 dBA
Power specifications	Power source type	AC/DC/high-voltage DC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
	High-voltage DC power input	Rated voltage of 240 V high-voltage DC power input: 240 V DC Maximum voltage range of 240 V high-voltage DC power input: 188 V DC to 290 V DC Rated voltage range of 380 V high-voltage DC power input: 240 V DC to 380 V DC. Maximum voltage range of 380 V high-voltage DC power input: 188 V DC to 400 V DC
	Rated input current	600 W AC&240 V DC power module (PAC-600WB series): 8 A (100 V AC to 240 V AC)/4 A (240 V DC) 600 W high-voltage DC power module (PHD-600WA series): 4 A (240 V DC to 380 V DC) 1200 W DC power (PDC-1K2WA series): 38 A (-48 V DC to -60 V DC)
Chassis power consumption	Maximum power consumption	282 W
Chassis power consumption	Typical power consumption	183 W (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 2 ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	962 BTU/hr
Chassis heat dissipation	Typical heat dissipation	624 BTU/hr (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 2 ports, double power modules)
Surge protection		Power module: AC: 4 kV in common mode and 2.5 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability	Power module backup	1+1 backup
	Fan module backup	1+1 backup not supported NOTE: A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	61.53 years
	Mean time to repair (MTTR)	1.78 hours
	Availability	0.99999668947
Technical specifications	Processor	1.5 GHz, quad-core
	DRAM Memory	4 GB
	NOR Flash	16 MB
	NAND Flash	1 GB
Stack	Service port supporting the stack function	10GE optical ports and 40GE optical ports
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance

Item		CE6850U-24S2Q-HI
Physical specifications		Dimensions (W x D x H): 442.0 mm x 600.0 mm x 43.6 mm (17.4 in. x 23.6 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 12.3 kg (27.12 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 52 dBA Front-to-back airflow: < 52 dBA
Power specifications	Power source type	AC/DC/high-voltage DC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
	High-voltage DC power input	Rated voltage of 240 V high-voltage DC power input: 240 V DC Maximum voltage range of 240 V high-voltage DC power input: 188 V DC to 290 V DC Rated voltage range of 380 V high-voltage DC power input: 240 V DC to 380 V DC. Maximum voltage range of 380 V high-voltage DC power input: 188 V DC to 400 V DC
	Rated input current	600 W AC&240 V DC power module (PAC-600WB series): 8 A (100 V AC to 240 V AC)/4 A (240 V DC) 600 W high-voltage DC power module (PHD-600WA series): 4 A (240 V DC to 380 V DC) 1200 W DC power (PDC-1K2WA series): 38 A (-48 V DC to -60 V DC)
Chassis power consumption	Maximum power consumption	282 W
Chassis power consumption	Typical power consumption	183 W (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 2 ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	962 BTU/hr
Chassis heat dissipation	Typical heat dissipation	624 BTU/hr (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 2 ports, double power modules)
Surge protection		Power module: AC: 4 kV in common mode and 2.5 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability	Power module backup	1+1 backup
	Fan module backup	1+1 backup not supported NOTE: A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	61.53 years
	Mean time to repair (MTTR)	1.78 hours
	Availability	0.99999668947
Technical specifications	Processor	1.5 GHz, quad-core
	DRAM Memory	4 GB
	NOR Flash	16 MB
	NAND Flash	1 GB
Stack	Service port supporting the stack function	10GE optical ports and 40GE optical ports
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance
