CE6820H-48S6CQ

Rated 4.50 out of 5 based on 2 customer ratings

2 Reviews Write a review

PN02354FTG

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei CE6820H-48S6CQ supports 48 ports 10G SFP+, 6 ports 100G QSFP28, without fan and power modules

100GE Uplink Switch 10GE Switch 48 Ports Switch Core/Aggregation Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE6820H-48S6CQ overview

Huawei CE6820H-48S6CQ with 48 ports 10G SFP+, 6 ports 100G QSFP28, without fan and power modules, is one of the Huawei CE6800 series switch.

Offering high performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. Advanced data center features, high performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well suited to both the core and aggregation layers and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.

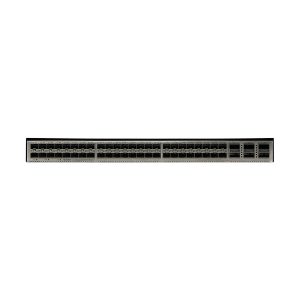

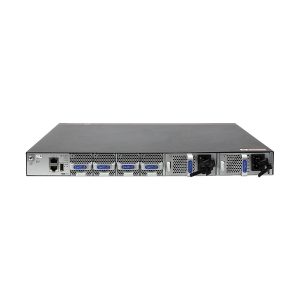

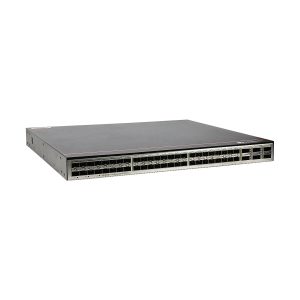

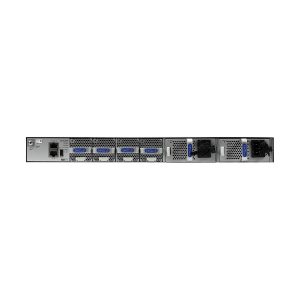

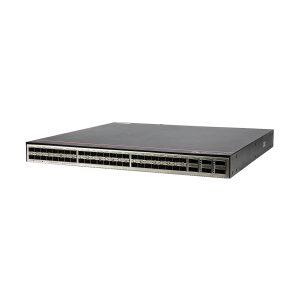

Appearance of the CE6820H-48S6CQ

1	Ground screw
2	Equipment serial number (ESN) and MAC address
3	Console port
4	ETH management port (RJ45)
5	USB port
6-9	Four Fan slots
10-11	Two Power supply slots
12	Forty-eight 10GE SFP+ Ethernet optical ports
13	Six 40GE/100GE QSFP28 Ethernet optical ports
14	Three port-side mounting holes for mounting brackets
15	Two middle mounting holes for mounting brackets
16	Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal
17	Four power-supply-side mounting holes for mounting brackets

Indicators on the CE6820H-48S6CQ (port side)

1	System status indicator
2	Stack master/slave indicator
3	ID indicator
4	Service port indicator (10GE optical port)
5	Service port indicator (40GE/100GE optical port)

Indicators on the CE6820H-48S6CQ (power supply side)

6	Service port indicator (40GE/100GE optical port)
7	USB-based deployment indicatorc

Ports on the CE6820H-48S6CQ

Port	Connector Type	Description	Available Components
10GE SFP+ Ethernet Optical Port	SFP+	A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s, and can receive and send services at a rate of 1000 Mbit/s or 10 Gbit/s.	GE eSFP optical modules GE SFP copper modules (works at 100 Mbit/s or 1000 Mbit/s) 10GE SFP+ optical modules 10GE SFP+ to 10GE SFP+ AOC cable 10GE SFP+ to 10GE SFP+ high-speed cable
40GE/100GE QSFP28 Optical Port	QSFP28	A 40GE/100GE QSFP28 optical port sends and receives service traffic at 40 Gbit/s or 100 Gbit/s. A 40GE/100GE QSFP28 optical port cannot be split.	40GE QSFP+ optical modules 100GE QSFP28 optical modules 40GE QSFP+ to 40GE QSFP+ AOC cable 40GE QSFP+ to 40GE QSFP+ high-speed cable (The cable can only be used as a stack cable or be used to connect peer-link interfaces in an M-LAG.) 100GE QSFP28 to 100GE QSFP28 AOC cable 100GE QSFP28 to 100GE QSFP28 high-speed cable (The cable can only be used as a stack cable or be used to connect peer-link interfaces in an M-LAG.)
Console Port	RJ45	The console port is connected to a console for onsite configuration.	Console cable
ETH Management Port	RJ45	The ETH management port (RJ45) of a switch is connected to the network port of a configuration terminal or network management workstation to set up the onsite or remote configuration environment.	The ETH management port (RJ45) uses a Category 5 or higher category cable.
USB Port	USB 2.0 Type A	A USB flash drive can be connected to the USB port for log backup, system software backup and uploading. The switch does not support USB-based deployment.	USB 2.0

Item	CE6820H-48S6CQ
CPU	4-core, 1.4GHZ
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	2 GB
Power supply mode	AC DC HVDC
Console port	RJ45
Downlink Service interface	48*10GE SFP+ These 10GE ports can be configured to work at 1 Gbit/s.
Uplink Service interface	6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on M-LAG peer-link interfaces.)
Service port supporting the stack function	Not supported
RTC	Supported
Typical power consumption [W]	162 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 196 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]	553 BTU/hr (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 669 BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	102 W
Static heat dissipation [BTU/hour]	348 BTU/hour
Maximum power consumption [W]	282 W
Maximum heat dissipation	962
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Certification	Complies with safety standards. Complies with EMC standards. Complies with environmental protection standards.
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.99999618
MTBF [year]	45.48 years
MTtr [hour]	1.52 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: < 55 dB(A) Back-to-front airflow: < 56 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: < 71 dB(A) Back-to-front airflow: < 72 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175mm x 650mm x 550mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging (base configuration) [kg (lb)]	5.6 kg (12.3 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	7.7 kg (17.0 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging (base configuration) [kg (lb)]	9 kg (19.84 lb) (excluding optical modules, power modules, and fan modules)
Weight with packaging (full configuration) [kg (lb)]	11.1 kg (24.47 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)

Item	CE6820H-48S6CQ
CPU	4-core, 1.4GHZ
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	2 GB
Power supply mode	AC DC HVDC
Console port	RJ45
Downlink Service interface	48*10GE SFP+ These 10GE ports can be configured to work at 1 Gbit/s.
Uplink Service interface	6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on M-LAG peer-link interfaces.)
Service port supporting the stack function	Not supported
RTC	Supported
Typical power consumption [W]	162 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 196 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]	553 BTU/hr (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 669 BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W]	102 W
Static heat dissipation [BTU/hour]	348 BTU/hour
Maximum power consumption [W]	282 W
Maximum heat dissipation	962
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Certification	Complies with safety standards. Complies with EMC standards. Complies with environmental protection standards.
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.99999618
MTBF [year]	45.48 years
MTtr [hour]	1.52 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: < 55 dB(A) Back-to-front airflow: < 56 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: < 71 dB(A) Back-to-front airflow: < 72 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	175mm x 650mm x 550mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging (base configuration) [kg (lb)]	5.6 kg (12.3 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	7.7 kg (17.0 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging (base configuration) [kg (lb)]	9 kg (19.84 lb) (excluding optical modules, power modules, and fan modules)
Weight with packaging (full configuration) [kg (lb)]	11.1 kg (24.47 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
