Categories:CloudEngine 5800 Series

CE5881-48T6CQ

Name: CE5881-48T6CQ
SKU: 2008374
Availability: InStock

0 Reviews Write a review

PN02353RAN

BrandsHuawei

AvailabilityIn Stock

CE Switch CE5800

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

CE5881-48T6CQ Huawei CE5800 switch 44GE RJ45,4*10GE RJ45 6*100G QSFP28

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE5881-48T6CQ overview

CE5881-48T6CQ Huawei CE5800 switch 44GE RJ45,4*10GE RJ45 6*100G QSFP28

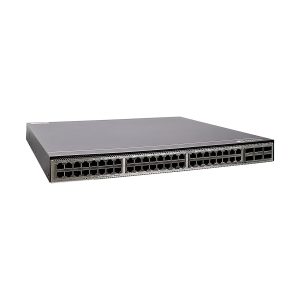

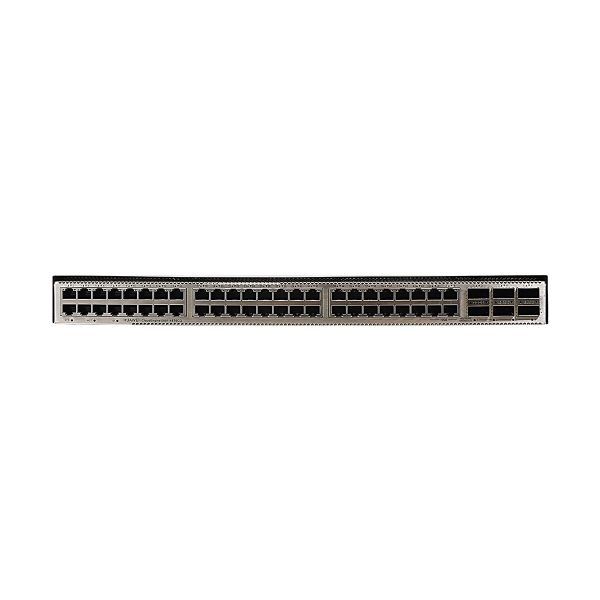

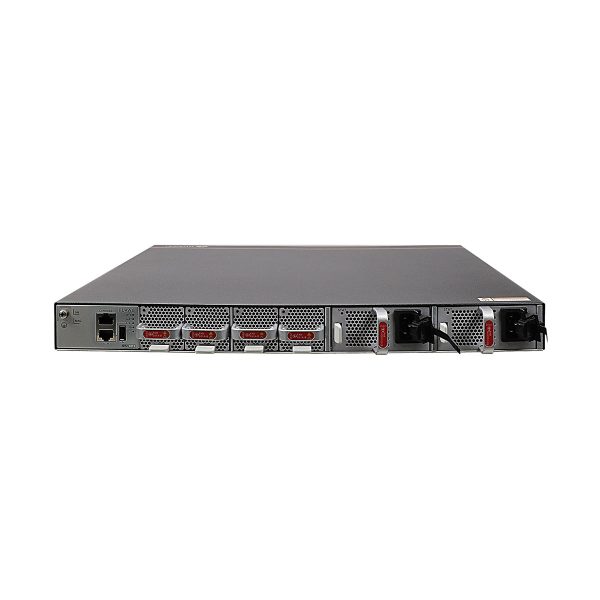

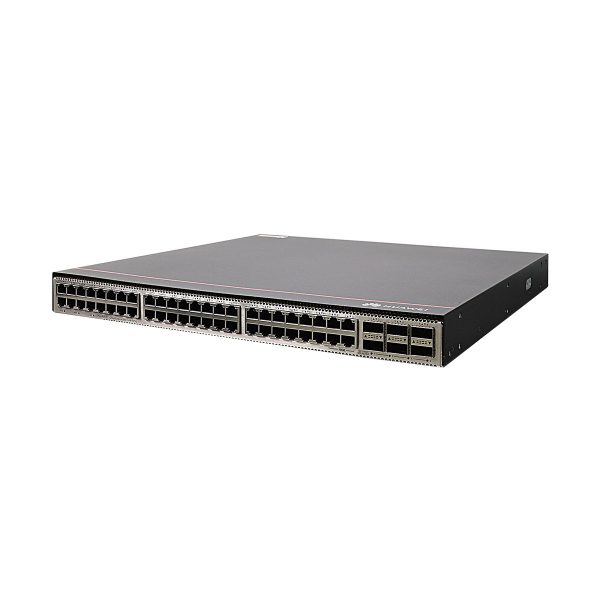

CE5881-48T6CQ appearance

Item	CE5881-48T6CQ
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	Supported
Power supply mode	AC
	DC
	HVDC
Console port	RJ45
Downlink Service interface	48*1000Base-T RJ45 (Only full-duplex is supported)
Uplink Service interface	4x10GE RJ45 and 6*100GE QSFP28 (Note: 1. 100GE interfaces are compatible with 40GE; 2. 100G interfaces do not support splitting into 4x25GE and 4x10GE; 3. Auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack ports and M-LAG peer-link ports.)
Service port supporting the stack function	10GE electrical ports and 100GE optical ports
RTC	Supported
Typical power consumption [W]	292 W (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, double power modules)
Typical power consumption [W]	307 W (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, double power modules)
Typical heat dissipation [BTU/hour]	996 BTU/hr (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, double power modules)
Typical heat dissipation [BTU/hour]	1047 BTU/hr (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, double power modules)
Static power consumption [W]	233 W
Static heat dissipation [BTU/hour]	795 BTU/hour
Maximum power consumption [W]	348 W
Maximum heat dissipation	1187
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module : AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
	1000 W DC power module : -48 V DC to -60 V DC
	1200 W high-voltage DC power module: 240 V DC to 380V DC
Input voltage range [V]	600 W AC&240 V DC power module : AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
	1000 W DC power module : -38.4 V DC to -72 V DC
	1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module : 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
	1000 W DC power module : 30 A (-48 V DC to -60 V DC)
	1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module : 600 W
	1000 W DC power module : 1000 W
	1200 W high-voltage DC power module: 1200 W
Certification	Safety standards compliance
	EMC standards compliance
	Environmental standards compliance
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode
	DC: 4 kV in common mode and 2 kV in differential mode
	HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.999995469
MTBF [year]	49.15 years
MTtr [hour]	1.95 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 49 dBA in average (maximum: 52 dBA)
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Back-to-front airflow: 50 dBA in average (maximum: 52 dBA)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 69 dBA in average (maximum: 74 dBA)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Back-to-front airflow: 67 dBA in average (maximum: 73 dBA)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage altitude [m (ft.)]	< 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)

Item	CE5881-48T6CQ
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	Supported
Power supply mode	AC
	DC
	HVDC
Console port	RJ45
Downlink Service interface	48*1000Base-T RJ45 (Only full-duplex is supported)
Uplink Service interface	4x10GE RJ45 and 6*100GE QSFP28 (Note: 1. 100GE interfaces are compatible with 40GE; 2. 100G interfaces do not support splitting into 4x25GE and 4x10GE; 3. Auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack ports and M-LAG peer-link ports.)
Service port supporting the stack function	10GE electrical ports and 100GE optical ports
RTC	Supported
Typical power consumption [W]	292 W (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, double power modules)
Typical power consumption [W]	307 W (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, double power modules)
Typical heat dissipation [BTU/hour]	996 BTU/hr (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, double power modules)
Typical heat dissipation [BTU/hour]	1047 BTU/hr (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, double power modules)
Static power consumption [W]	233 W
Static heat dissipation [BTU/hour]	795 BTU/hour
Maximum power consumption [W]	348 W
Maximum heat dissipation	1187
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module : AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
	1000 W DC power module : -48 V DC to -60 V DC
	1200 W high-voltage DC power module: 240 V DC to 380V DC
Input voltage range [V]	600 W AC&240 V DC power module : AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
	1000 W DC power module : -38.4 V DC to -72 V DC
	1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module : 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
	1000 W DC power module : 30 A (-48 V DC to -60 V DC)
	1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module : 600 W
	1000 W DC power module : 1000 W
	1200 W high-voltage DC power module: 1200 W
Certification	Safety standards compliance
	EMC standards compliance
	Environmental standards compliance
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode
	DC: 4 kV in common mode and 2 kV in differential mode
	HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.999995469
MTBF [year]	49.15 years
MTtr [hour]	1.95 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 49 dBA in average (maximum: 52 dBA)
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Back-to-front airflow: 50 dBA in average (maximum: 52 dBA)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 69 dBA in average (maximum: 74 dBA)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Back-to-front airflow: 67 dBA in average (maximum: 73 dBA)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage altitude [m (ft.)]	< 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)

Brand	Huawei
CE Switch	CE5800
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
