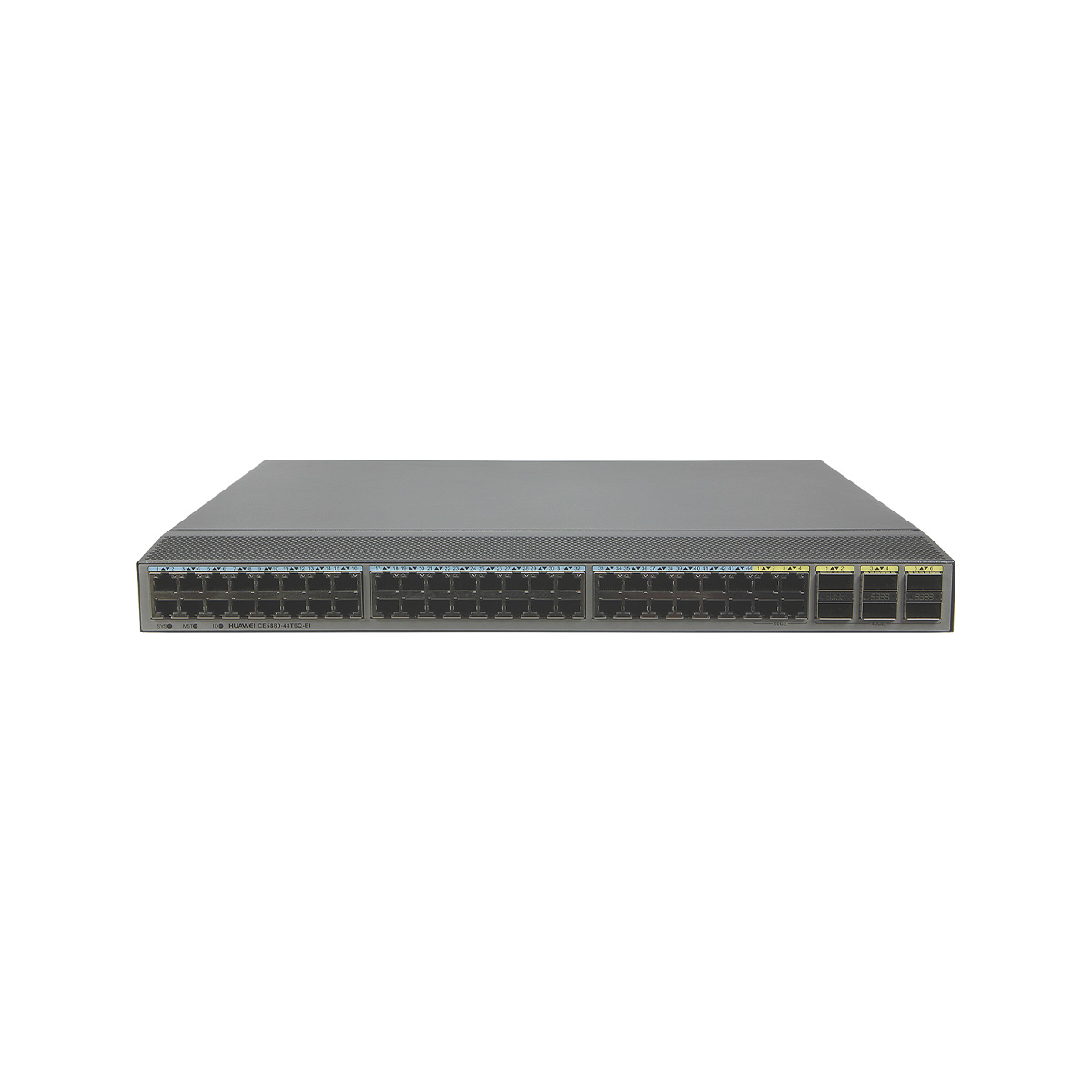

Huawei CE5880-48T6Q-EI Switch (44Port G RJ45, 4-Port 10G RJ45, 6-Port 40GE QSFP+, Without Fan and Power Module)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE5880-48T6Q-EI overview



Huawei CloudEngine 5800 (CE5800 for short) series switches are next-generation, high-density gigabit Ethernet switches designed for data centers and high-end campus networks. CE5800 series switches have an advanced hardware architecture design with the industry’s high density of GE access ports, and provide 40GE/100GE uplink ports. Using the Huawei VRP8 software platform, CE5800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE16800/CE12800/CE9800/CE8800/CE6800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.

CE5800 switches can function as GE access switches with high-density ports on data center networks to help enterprises and carriers build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches on enterprise campus networks.

Item Details
Description CE5880-48T6Q-EI Switch (44Port G RJ45, 4-Port 10G RJ45, 6-Port 40GE QSFP+, Without Fan and Power Module)
Part Number 02352AXG
Model CE5880-EI-B-B00

CE5880-48T6Q-EI Appearance

CE5880-48T6Q-EI

1

Power supply slot 1

Applicable power modules:

  • 600 W AC Power Module (PAC-600WA)
  • 600 W DC Power Module (PDC600S12)

2

Power supply slot 2

Applicable power modules:

  • 600 W AC Power Module (PAC-600WA)
  • 600 W DC Power Module (PDC600S12)

3

Fan slot 1

Applicable fan modules:

  • FAN-40HA series fan modules

4

Fan slot 2

Applicable fan modules:

  • FAN-40HA series fan modules

5

Console port

6

ETH management port (RJ45)

7

Barcode label

NOTE:

This label is drawable, and you can pull it outward to view the ESN barcode and MAC address of the switch.

8

USB port

9

Forty-four 100/1000BASE-T Ethernet electrical ports

10

Four 10GBASE-T Ethernet electrical ports

11

Six 40GE QSFP+ Ethernet optical ports

NOTE:

A 40GE interface with the number of 1 to 2 is configured to be split into four 10GE interfaces. The other 40GE interfaces cannot be split into four 10GE interfaces.

Applicable modules and cables:

  • 40GE optical module
  • QSFP+ AOC cable (QSFP+ to QSFP+)
  • QSFP+ to QSFP+ high-speed cable (only used as stack cable or the peer-link interface cable)

12

Three port-side mounting holes for mounting brackets

13

Four power-supply-side mounting holes for mounting brackets

14

Ground screw

Item

CE5880-48T6Q-EI

Physical specifications
  • Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 9.1 kg (20.06 lb)

Environment parameters

Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
    NOTE:

    When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

  • Storage temperature: -40°C to +70°C (-40°F to +158°F)

Relative humidity

5% RH to 95% RH, noncondensing

Altitude

< 5000 m (16404 ft.)

Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 64 dBA
  • Front-to-back airflow: < 64 dBA

Power specifications

Power source type

AC

AC power input
  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz

DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC

High-voltage DC power input

Not supported

Rated input current
  • 600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
  • 600 W DC power (PDC600S12 series): 20A (-48 V DC to -60 V DC)

Chassis power consumption

Maximum power consumption

244 W

Typical power consumption

211 W (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules)

222 W (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ short-distance optical modules on 6 ports, double power modules)

Chassis heat dissipation

Maximum heat dissipation

833 BTU/hr

Typical heat dissipation

720 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules)

757 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ short-distance optical modules on 6 ports, double power modules)

Surge protection
Power module:
  • AC: 6 kV in common mode and 6 kV in differential mode

Heat dissipation

Heat dissipation mode

Air cooling

Airflow

Front-to-back or back-to-front, depending on the fan modules and power modules

Reliability

Power module backup

1+1 backup

Fan module backup

1+1 backup not supported

NOTE:

The CE5880-48T6Q-EI chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.

Hot swap

Supported by all power modules and fan modules

Mean time between failures (MTBF)

49.14 years

Mean time to repair (MTTR)

1.71 hours

Availability

0.99999575382

Technical specifications

Processor

1.5 GHz, eight-core

DRAM Memory

2 GB

NOR Flash

32 MB

NAND Flash

1 GB

Stack

Service port supporting the stack function

GE electrical ports, 10GE electrical ports, and 40GE optical ports

Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance

Additional information

Item

CE5880-48T6Q-EI

Physical specifications
  • Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 9.1 kg (20.06 lb)

Environment parameters

Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
    NOTE:

    When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

  • Storage temperature: -40°C to +70°C (-40°F to +158°F)

Relative humidity

5% RH to 95% RH, noncondensing

Altitude

< 5000 m (16404 ft.)

Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 64 dBA
  • Front-to-back airflow: < 64 dBA

Power specifications

Power source type

AC

AC power input
  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz

DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC

High-voltage DC power input

Not supported

Rated input current
  • 600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
  • 600 W DC power (PDC600S12 series): 20A (-48 V DC to -60 V DC)

Chassis power consumption

Maximum power consumption

244 W

Typical power consumption

211 W (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules)

222 W (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ short-distance optical modules on 6 ports, double power modules)

Chassis heat dissipation

Maximum heat dissipation

833 BTU/hr

Typical heat dissipation

720 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules)

757 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ short-distance optical modules on 6 ports, double power modules)

Surge protection
Power module:
  • AC: 6 kV in common mode and 6 kV in differential mode

Heat dissipation

Heat dissipation mode

Air cooling

Airflow

Front-to-back or back-to-front, depending on the fan modules and power modules

Reliability

Power module backup

1+1 backup

Fan module backup

1+1 backup not supported

NOTE:

The CE5880-48T6Q-EI chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.

Hot swap

Supported by all power modules and fan modules

Mean time between failures (MTBF)

49.14 years

Mean time to repair (MTTR)

1.71 hours

Availability

0.99999575382

Technical specifications

Processor

1.5 GHz, eight-core

DRAM Memory

2 GB

NOR Flash

32 MB

NAND Flash

1 GB

Stack

Service port supporting the stack function

GE electrical ports, 10GE electrical ports, and 40GE optical ports

Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
