Categories:CloudEngine 5800 Series

CE5855E-48T4S2Q

Name: CE5855E-48T4S2Q
SKU: 2008387
Availability: InStock

0 Reviews Write a review

PN02353VWG

BrandsHuawei

AvailabilityIn Stock

CE Switch CE5800

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

CE5855E-48T4S2Q Huawei CE5800 switch 48*GE RJ45, 4*10GE SFP+, 2*40GE QSFP+

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE5855E-48T4S2Q overview

CE5855E-48T4S2Q Huawei CE5800 switch 48*GE RJ45, 4*10GE SFP+, 2*40GE QSFP+

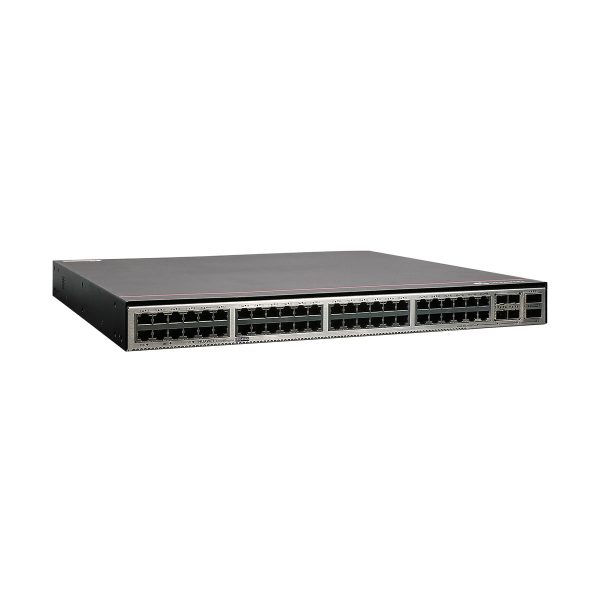

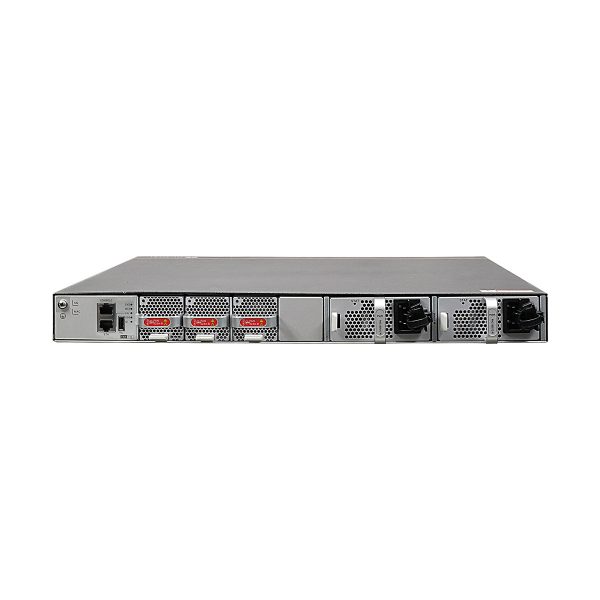

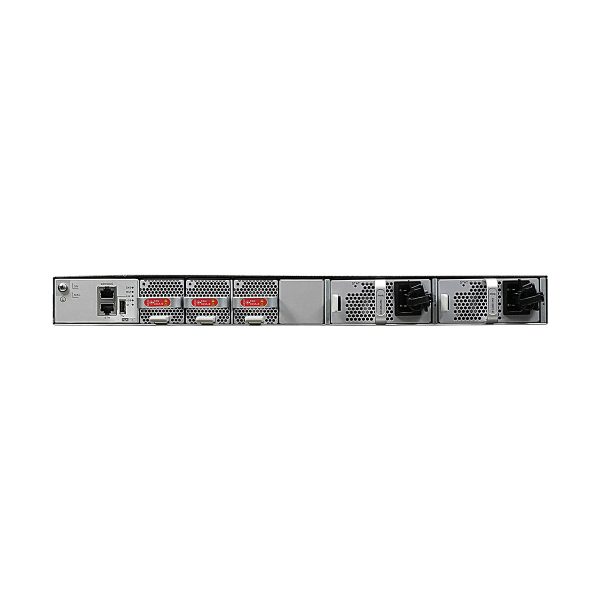

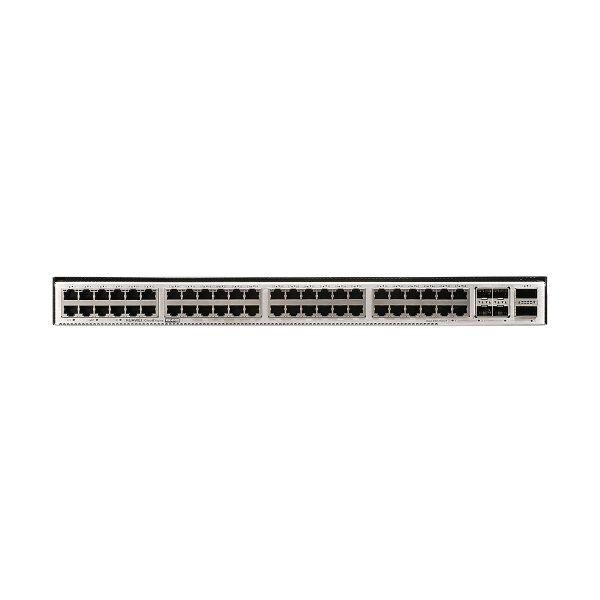

CE5855E-48T4S2Q appearance

Item	CE5855E-48T4S2Q
Memory	DRAM: 2 GB
NOR Flash	128 MB
NAND Flash	1 GB
USB	Supported
Power supply mode	AC
	DC
	HVDC
Console port	RJ45
Downlink Service interface	48*10/100/1000BASE-T
Uplink Service interface	410G SFP+, 240G QSFP+
Service port supporting the stack function	10GE optical ports and 40GE optical ports
RTC	Supported
Typical power consumption [W]	92 W (50% throughput, 3 m Ethernet cables on 48 ports and high-speed cables on 4 x 10G and 2 x 40G ports, normal temperature, dual AC power modules)
Typical power consumption [W]	96 W (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 4 x 10G and 2 x 40G ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour]	314 BTU/hour (50% throughput, 3 m Ethernet cables on 48 ports and high-speed cables on 4 x 10G and 2 x 40G ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour]	327 BTU/hour (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 4 x 10G and 2 x 40G ports, normal temperature, dual AC power modules)
Static power consumption [W]	68 W
Static heat dissipation [BTU/hour]	232 BTU/hour
Maximum power consumption [W]	137 W
Maximum heat dissipation	467
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	150 W AC power module: 100 V AC to 240 V AC, 50/60 Hz
	180 W DC power module: –48 V DC to –60 V DC
	1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	150 W AC power module: 90 V AC to 290 V AC; 45 Hz to 65 Hz
	180 W DC power module: –38.4 V DC to –72 V DC
	1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	150 W AC power module: 3 A (100 V AC to 240 V AC)
	180 W DC power module: 6 A (–48 V DC to –60 V DC)
	1200 W high-voltage DC power module: 8 A
Rated output power [W]	150 W AC power module: 150 W
	180 W DC power module: 180 W
	1200 W high-voltage DC power module: 1200 W
Certification	Complies with safety standards.
	Complies with EMC standards.
	Complies with environmental protection standards.
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode
	DC: 4 kV in common mode and 2 kV in differential mode
	HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	3
Redundant fans	The device supports 2+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.999996431
MTBF [year]	57.57 years
MTtr [hour]	1.8 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 45.58 dB(A) on average (maximum: 49.2 dB(A))
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Back-to-front airflow: 44.48 dB(A) on average (maximum: 47.6 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 56.91 dB(A) on average (maximum: 59.6 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Back-to-front airflow: 56.94 dB(A) on average (maximum: 61.8 dB(A))
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Storage altitude [m (ft.)]	< 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)

Item	CE5855E-48T4S2Q
Memory	DRAM: 2 GB
NOR Flash	128 MB
NAND Flash	1 GB
USB	Supported
Power supply mode	AC
	DC
	HVDC
Console port	RJ45
Downlink Service interface	48*10/100/1000BASE-T
Uplink Service interface	410G SFP+, 240G QSFP+
Service port supporting the stack function	10GE optical ports and 40GE optical ports
RTC	Supported
Typical power consumption [W]	92 W (50% throughput, 3 m Ethernet cables on 48 ports and high-speed cables on 4 x 10G and 2 x 40G ports, normal temperature, dual AC power modules)
Typical power consumption [W]	96 W (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 4 x 10G and 2 x 40G ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour]	314 BTU/hour (50% throughput, 3 m Ethernet cables on 48 ports and high-speed cables on 4 x 10G and 2 x 40G ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour]	327 BTU/hour (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 4 x 10G and 2 x 40G ports, normal temperature, dual AC power modules)
Static power consumption [W]	68 W
Static heat dissipation [BTU/hour]	232 BTU/hour
Maximum power consumption [W]	137 W
Maximum heat dissipation	467
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	150 W AC power module: 100 V AC to 240 V AC, 50/60 Hz
	180 W DC power module: –48 V DC to –60 V DC
	1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	150 W AC power module: 90 V AC to 290 V AC; 45 Hz to 65 Hz
	180 W DC power module: –38.4 V DC to –72 V DC
	1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	150 W AC power module: 3 A (100 V AC to 240 V AC)
	180 W DC power module: 6 A (–48 V DC to –60 V DC)
	1200 W high-voltage DC power module: 8 A
Rated output power [W]	150 W AC power module: 150 W
	180 W DC power module: 180 W
	1200 W high-voltage DC power module: 1200 W
Certification	Complies with safety standards.
	Complies with EMC standards.
	Complies with environmental protection standards.
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode
	DC: 4 kV in common mode and 2 kV in differential mode
	HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fans	3
Redundant fans	The device supports 2+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability	0.999996431
MTBF [year]	57.57 years
MTtr [hour]	1.8 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 45.58 dB(A) on average (maximum: 49.2 dB(A))
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Back-to-front airflow: 44.48 dB(A) on average (maximum: 47.6 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 56.91 dB(A) on average (maximum: 59.6 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]	Back-to-front airflow: 56.94 dB(A) on average (maximum: 61.8 dB(A))
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Storage altitude [m (ft.)]	< 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)]	-40°C to +70°C (-40°F to +158°F)

Brand	Huawei
CE Switch	CE5800
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
