Categories:CloudEngine 5800 Series

CE5855-48T4XS

0 Reviews Write a review

PN98012270

AvailabilityIn Stock

WarrantyUp to 36 months

Huawei CE5855-48T4XS Switch with 48*GE RJ45, 4*10GE SFP, Built-in Fans, Port-side Intake, Without Power Modules

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE5855-48T4XS overview

Huawei CloudEngine 5800 (CE5800 for short) series switches are next-generation, high-density gigabit Ethernet switches designed for data centers and high-end campus networks. CE5800 series switches have an advanced hardware architecture design with the industry’s high density of GE access ports, and provide 40GE/100GE uplink ports. Using the Huawei VRP8 software platform, CE5800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE16800/CE12800/CE9800/CE8800/CE6800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.

CE5800 switches can function as GE access switches with high-density ports on data center networks to help enterprises and carriers build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches on enterprise campus networks.

Item	Details
Description	CE5855-48T4XS switch (48GE RJ45, 410GE SFP, Built-in Fans, Port-side Intake, Without Power Modules)
Part Number	98012270
Model	CE5855-48T4XS
First supported version	V300R023C00
Other part numbers	98012222 (CE5855-48T4XS switch (48GE RJ45, 410GE SFP, 2AC Power Modules, Built-in Fans, Port-side Intake)) 98012402 (CE5855-48T4XS switch Bundle B0(including two CE5855-48T4XS switch (48GE RJ45, 410GE SFP, 2AC Power Modules, Built-in Fans, Port-side Intake)))
Short Name	CE5855-48T4XS

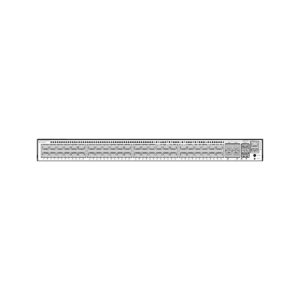

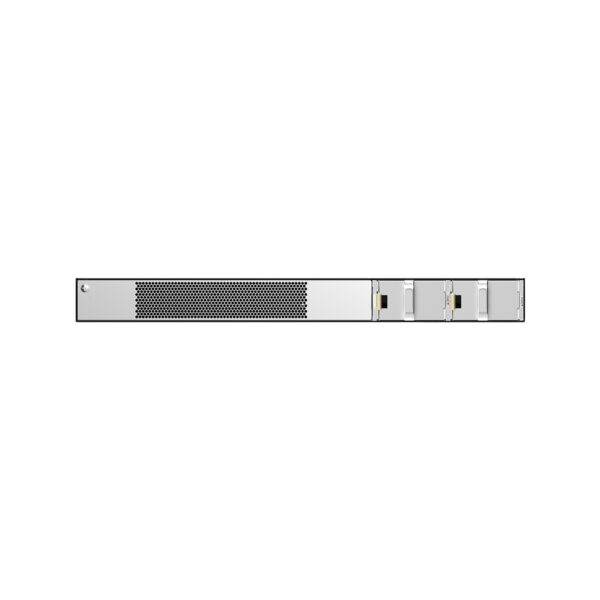

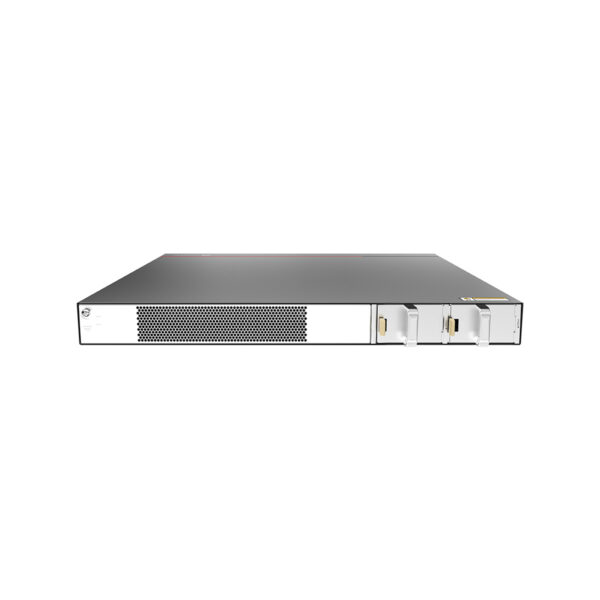

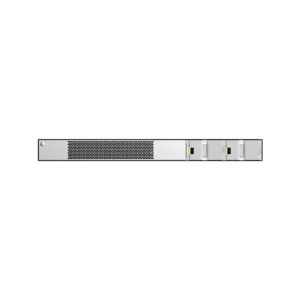

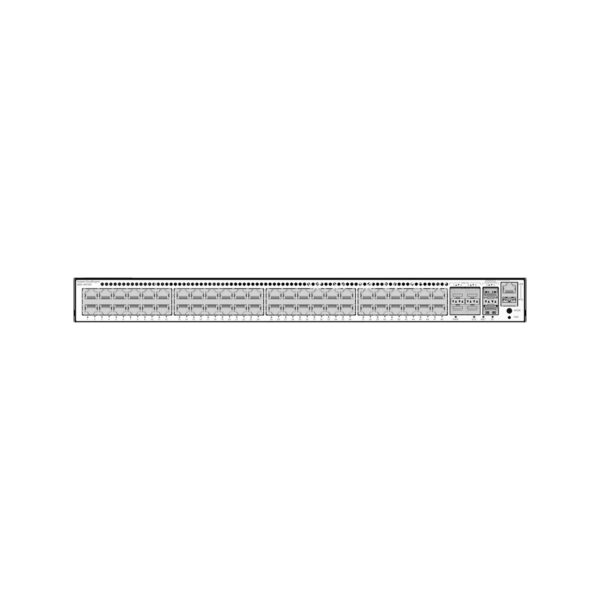

CE5855-48T4XS Appearance

1	Forty-eight 10/100/1000BASE-T ports	2	Four 10GE SFP+ ports
3	Two stack ports	4	One console port
5	One USB port	6	One MODE button
7	One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.	8	Ground screw
9	Power module slot 1	10	Power module slot 2

Item	CE5855-48T4XS
Installation Type	Rack and workbench
CPU	1.1 GHz, 2 cores
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
NAND Flash	1 GB
USB	Supported
Power supply mode	AC DC HVDC
Console port	RJ45
Downlink Service interface	48*10/100/1000BASE-T
Uplink Service interface	4*10G SFP
Service port supporting the stack function	2 x 12G stacking
RTC	Not supported
Typical power consumption [W]	39 W
Typical heat dissipation [BTU/hour]	133 BTU/hour
Static power consumption [W]	25 W
Static heat dissipation [BTU/hour]	87 BTU/hour
Maximum power consumption [W]	65 W (with two 180 W AC power modules) 93 W (with two 1200 W DC power modules)
Maximum heat dissipation [BTU/hour]	220 BTU/hour (with two 180 W AC power modules) 318 BTU/hour (with two 1200 W DC power modules)
Number of power modules	2
Redundant power supply	1+1 Power modules without fans and power modules with fans cannot be installed in the same chassis.
Rated input voltage [V]	AC input: 100 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: –38.4 V DC to –72 V DC
Maximum input current [A]	The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Certification	EMC certification Safety certification Manufacturing certification
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode, ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Types of fans	Built-in
Number of fans	2
Heat dissipation mode	Air cooling, intelligent speed adjustment
Airflow direction	Air intake from left, front, and right and air exhaust from rear
Availability	>0.99999
MTBF [year]	124.62 years
MTTR [hour]	2 hour
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Average: 29.9 dB(A); max: 32.9 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	46.6 db(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.56 in.)
Weight without packaging [kg (lb)]	4.61 kg (10.16 lb)
Weight without packaging (full configuration) [kg (lb)]	7.01 kg (15.45 lb)
Weight with packaging [kg (lb)]	7.74 kg (17.06 lb)
Weight with packaging (full configuration) [kg (lb)]	10.14 kg (22.35 lb)
Chassis height [U]	1 U

Item	CE5855-48T4XS
Installation Type	Rack and workbench
CPU	1.1 GHz, 2 cores
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
NAND Flash	1 GB
USB	Supported
Power supply mode	AC DC HVDC
Console port	RJ45
Downlink Service interface	48*10/100/1000BASE-T
Uplink Service interface	4*10G SFP
Service port supporting the stack function	2 x 12G stacking
RTC	Not supported
Typical power consumption [W]	39 W
Typical heat dissipation [BTU/hour]	133 BTU/hour
Static power consumption [W]	25 W
Static heat dissipation [BTU/hour]	87 BTU/hour
Maximum power consumption [W]	65 W (with two 180 W AC power modules) 93 W (with two 1200 W DC power modules)
Maximum heat dissipation [BTU/hour]	220 BTU/hour (with two 180 W AC power modules) 318 BTU/hour (with two 1200 W DC power modules)
Number of power modules	2
Redundant power supply	1+1 Power modules without fans and power modules with fans cannot be installed in the same chassis.
Rated input voltage [V]	AC input: 100 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: –38.4 V DC to –72 V DC
Maximum input current [A]	The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Certification	EMC certification Safety certification Manufacturing certification
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode, ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Types of fans	Built-in
Number of fans	2
Heat dissipation mode	Air cooling, intelligent speed adjustment
Airflow direction	Air intake from left, front, and right and air exhaust from rear
Availability	>0.99999
MTBF [year]	124.62 years
MTTR [hour]	2 hour
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Average: 29.9 dB(A); max: 32.9 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	46.6 db(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.56 in.)
Weight without packaging [kg (lb)]	4.61 kg (10.16 lb)
Weight without packaging (full configuration) [kg (lb)]	7.01 kg (15.45 lb)
Weight with packaging [kg (lb)]	7.74 kg (17.06 lb)
Weight with packaging (full configuration) [kg (lb)]	10.14 kg (22.35 lb)
Chassis height [U]	1 U
