CE5855-48T4S2Q-EI

0 Reviews Write a review

PN02350TJD

AvailabilityIn Stock

WarrantyUp to 36 months

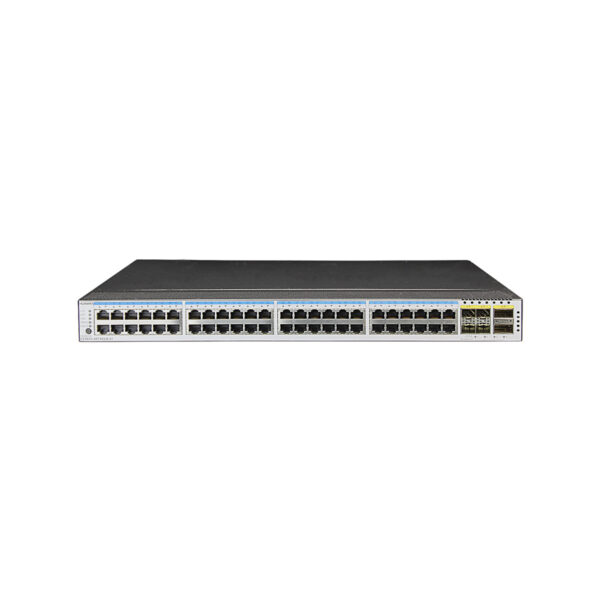

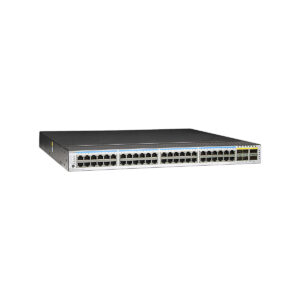

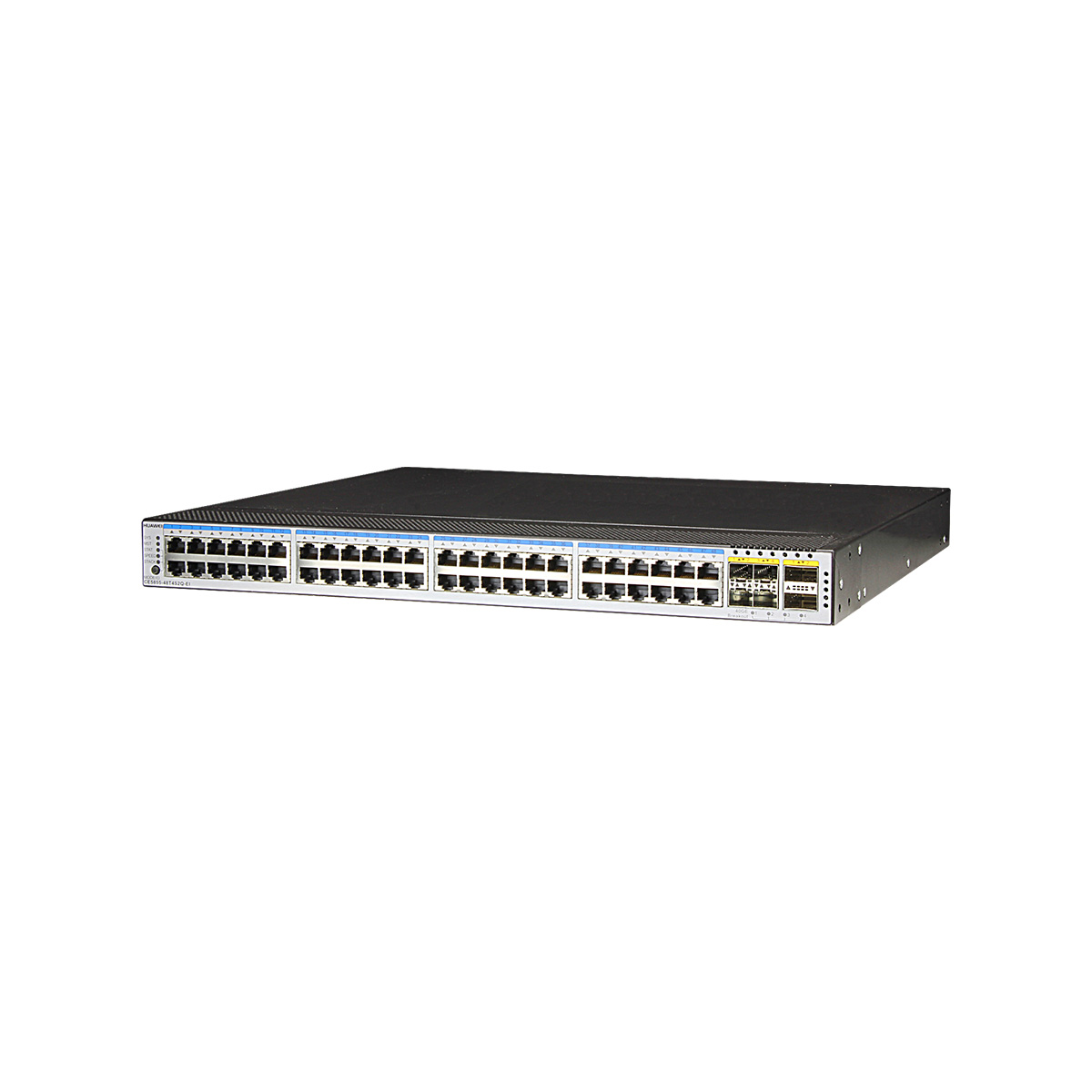

Huawei CE5855-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Port 10G SFP+, 2-Port 40G QSFP+, Without Fan Box and Power Module)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE5855-48T4S2Q-EI overview

Huawei CloudEngine 5800 (CE5800 for short) series switches are next-generation, high-density gigabit Ethernet switches designed for data centers and high-end campus networks. CE5800 series switches have an advanced hardware architecture design with the industry’s high density of GE access ports, and provide 40GE/100GE uplink ports. Using the Huawei VRP8 software platform, CE5800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE16800/CE12800/CE9800/CE8800/CE6800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.

CE5800 switches can function as GE access switches with high-density ports on data center networks to help enterprises and carriers build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches on enterprise campus networks.

Item	Details
Description	CE5855-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Port 10G SFP+, 2-Port 40G QSFP+, Without Fan Box and Power Module)
Part Number	02350TJD
Model	CE5855-48T4S2Q-EI

CE5855-48T4S2Q-EI Appearance

1	Power supply slot 1 Applicable power modules: 150 W AC power module (ES0W2PSA0150) 350 W DC power module	2	Power supply slot 2 Applicable power modules: 150 W AC power module (ES0W2PSA0150) 350 W DC power module
3	Fan slot 1 Applicable fan modules: FAN-040A series fan modules	4	Fan slot 2 Applicable fan modules: FAN-040A series fan modules
5	Console port	6	ETH management port (RJ45)
7	Barcode label NOTE: This label is drawable, and you can pull it outward to view the ESN barcode and MAC address of the switch.	8	USB port
9	Forty-eight 10/100/1000BASE-T Ethernet electrical ports	10	Four 10GE SFP+ Ethernet optical ports Applicable modules and cables: 10GE optical module (OSXD22N00, LE2MXSC80FF0 and SFP-10G-ZDWT-L not supported) GE optical module GE copper module (works at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s) SFP+ AOC cable SFP+ high-speed cable
11	Two 40GE QSFP+ Ethernet optical ports Applicable modules and cables: 40GE optical module QSFP+ AOC cable (QSFP+ to QSFP+) QSFP+ AOC cable (QSFP+ to 4SFP+) QSFP+ high-speed cable (QSFP+ to 4SFP+) QSFP+ high-speed cable (QSFP+ to QSFP+) NOTE: A 40GE QSFP+ port can be split into four 10GE ports.	12	Three port-side mounting holes for mounting brackets
13	Four power-supply-side mounting holes for mounting brackets	14	Ground screw

Item		CE5855-48T4S2Q-EI
Physical specifications		Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.4 kg (18.52 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 48 dBA Front-to-back airflow: < 55 dBA
Power specifications	Power source type	AC/DC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz
	DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
	High-voltage DC power input	Not supported
	Rated input current	150 W AC power (ES0W2PSA0150): 3 A (100 V AC to 240 V AC) 350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
Chassis power consumption	Maximum power consumption	103 W
Chassis power consumption	Typical power consumption	76 W (100% throughput, 3 m Ethernet cables on 48 ports and SFP+ cables on 4 ports and QSFP+ cables on 2 ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	351 BTU/hr
Chassis heat dissipation	Typical heat dissipation	259 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and SFP+ cables on 4 ports and QSFP+ cables on 2 ports, double power modules)
Surge protection		Ethernet electrical ports: 2 kV in common mode Power module: AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability	Power module backup	1+1 backup
	Fan module backup	1+1 backup not supported NOTE: A CE5855EI chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	55.08 years
	Mean time to repair (MTTR)	1.81 hours
	Availability	0.99999625521
Technical specifications	Processor	1 GHz, dual-core
	DRAM Memory	2 GB
	NOR Flash	16 MB
	NAND Flash	512 MB
Stack	Service port supporting the stack function	10GE optical ports and 40GE optical ports
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance

Item		CE5855-48T4S2Q-EI
Physical specifications		Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.) Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.4 kg (18.52 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 48 dBA Front-to-back airflow: < 55 dBA
Power specifications	Power source type	AC/DC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz
	DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
	High-voltage DC power input	Not supported
	Rated input current	150 W AC power (ES0W2PSA0150): 3 A (100 V AC to 240 V AC) 350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
Chassis power consumption	Maximum power consumption	103 W
Chassis power consumption	Typical power consumption	76 W (100% throughput, 3 m Ethernet cables on 48 ports and SFP+ cables on 4 ports and QSFP+ cables on 2 ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	351 BTU/hr
Chassis heat dissipation	Typical heat dissipation	259 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and SFP+ cables on 4 ports and QSFP+ cables on 2 ports, double power modules)
Surge protection		Ethernet electrical ports: 2 kV in common mode Power module: AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability	Power module backup	1+1 backup
	Fan module backup	1+1 backup not supported NOTE: A CE5855EI chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	55.08 years
	Mean time to repair (MTTR)	1.81 hours
	Availability	0.99999625521
Technical specifications	Processor	1 GHz, dual-core
	DRAM Memory	2 GB
	NOR Flash	16 MB
	NAND Flash	512 MB
Stack	Service port supporting the stack function	10GE optical ports and 40GE optical ports
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance
