Categories:CloudEngine 5800 Series

CE5810-48T4S-EI

0 Reviews Write a review

SKU2006803

BrandsHuawei

AvailabilityIn Stock

CE Switch CE5800

WarrantyUp to 36 months

Huawei CE5810-48T4S-EI switch supports 48-Port GE RJ45, 4-Port 10GE SFP+

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE5810-48T4S-EI Overview

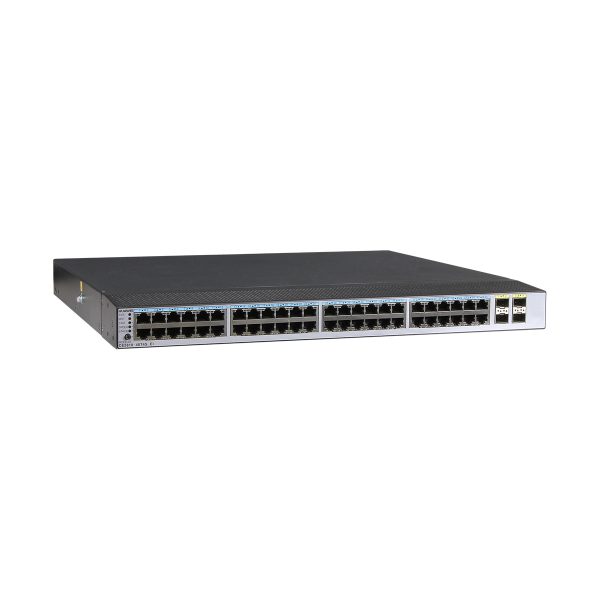

CE5810-48T4S-EI switch comes with 48-Port GE RJ45, 4-Port 10GE SFP+, without fan and power module. It is one of the Huawei Cloud Engine CE5800 series switches.

The Huawei Cloud Engine CE5800 series switches are next-generation, high-density Gigabit Ethernet switches designed for Date center and high-end campus networks. The hardware has an advanced architectural design with the industry’s highest density of GE access ports. The CE5800 is also the first Gigabit Ethernet access switch to provide 40 GE uplink ports.

CE5810-48T4S-EI quick spec

48-Port GE RJ45

4-Port 10GE SFP+

Switching capacity: 176 Gbit/s

Forwarding performance: 132 Mpps

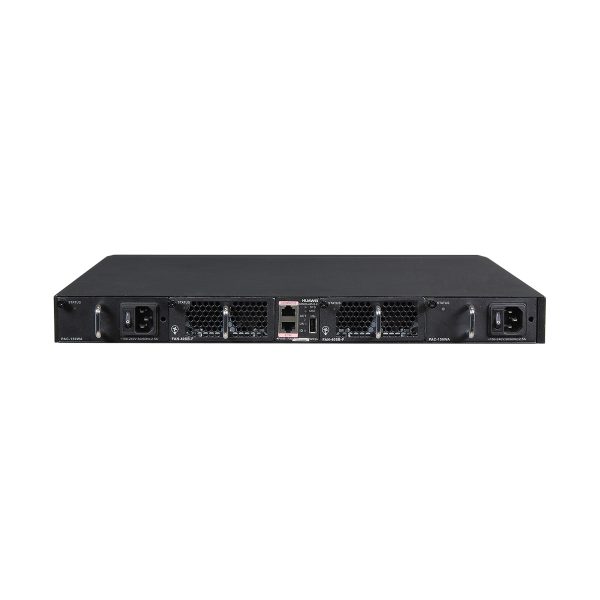

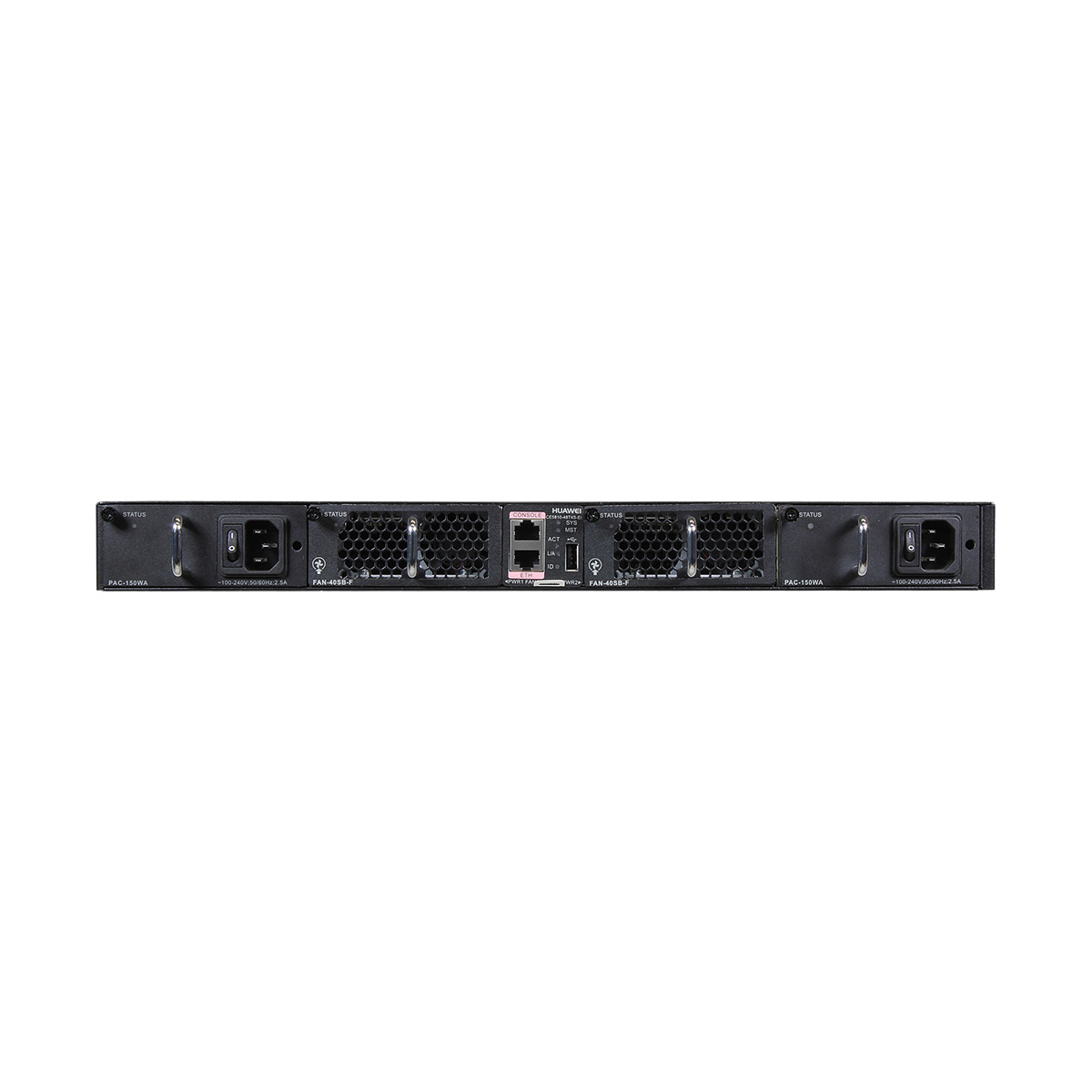

CE5810-48T4S-EI appearance and structure

1	Power supply slot 1 Applicable power modules: 150 W AC power module (PAC-150WA) 350 W DC power module
2	Power supply slot 2 Applicable power modules: 150 W AC power module (PAC-150WA) 350 W DC power module
3	Fan slot 1 Applicable fan modules: FAN-40SB series fan modules
4	Fan slot 2 Applicable fan modules: FAN-40SB series fan modules
5	Console port
6	ETH management port (RJ45)
7	Barcode label
8	USB port
9	Forty-eight 10/100/1000BASE-T Ethernet electrical ports
10	Four 10GE SFP+ Ethernet optical ports Applicable modules and cables: 10GE optical module GE optical module GE copper module (only works at 1000 Mbit/s) SFP+ AOC cable SFP+ high-speed cable
11	Three port-side mounting holes for mounting brackets
12	Four power-supply-side mounting holes for mounting brackets
13	Ground screw

Item		CE5810-48T4S-EI
Technical specifications	Processor	1.2 GHz, dual-core
	DRAM Memory	2 GB
	NOR Flash	16 MB
	NAND Flash	512 MB
Stack	Service port supporting the stack function	10GE optical ports
Certification		Safety standards compliance
		EMC standards compliance
		Environmental standards compliance
Physical specifications		Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
Physical specifications		Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.2 kg (18.08 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 43 dBA
	Noise (sound pressure, 27°C)	Front-to-back airflow: < 47 dBA
Power specifications	Power source type	AC/DC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
	AC power input	Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC power input	Rated voltage range: -48 V DC to -60 V DC
	DC power input	Maximum voltage range: -38.4 V DC to -72 V DC
	High-voltage DC power input	Not supported
	Rated input current	150 W AC power (PAC-150WA): 2.5 A (100 V AC to 240 V AC)
	Rated input current	350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
Chassis power consumption	Maximum power consumption	92 W
Chassis power consumption	Typical power consumption	80 W (100% throughput, 3 m Ethernet cables on 48 ports and SFP+ cables on 4 ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	314 BTU/hr
Chassis heat dissipation	Typical heat dissipation	273 BTU/hr (100% throughput, 3 m network cables on 48 ports and SFP+ cables on 4 ports, double power modules)
Surge protection		Ethernet electrical ports: 2 kV in common mode
		Power module:
		AC: 6 kV in common mode and 6 kV in differential mode
		DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability	Power module backup	1+1 backup
	Fan module backup	1+1 backup
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	60.48 years
	Mean time to repair (MTtr)	1.76 hours
	Availability	0.999996675

CE Switch	CE5800
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
