Categories:CloudEngine 16800 Series

CE16808-DC

0 Reviews Write a review

PN02352RCS

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

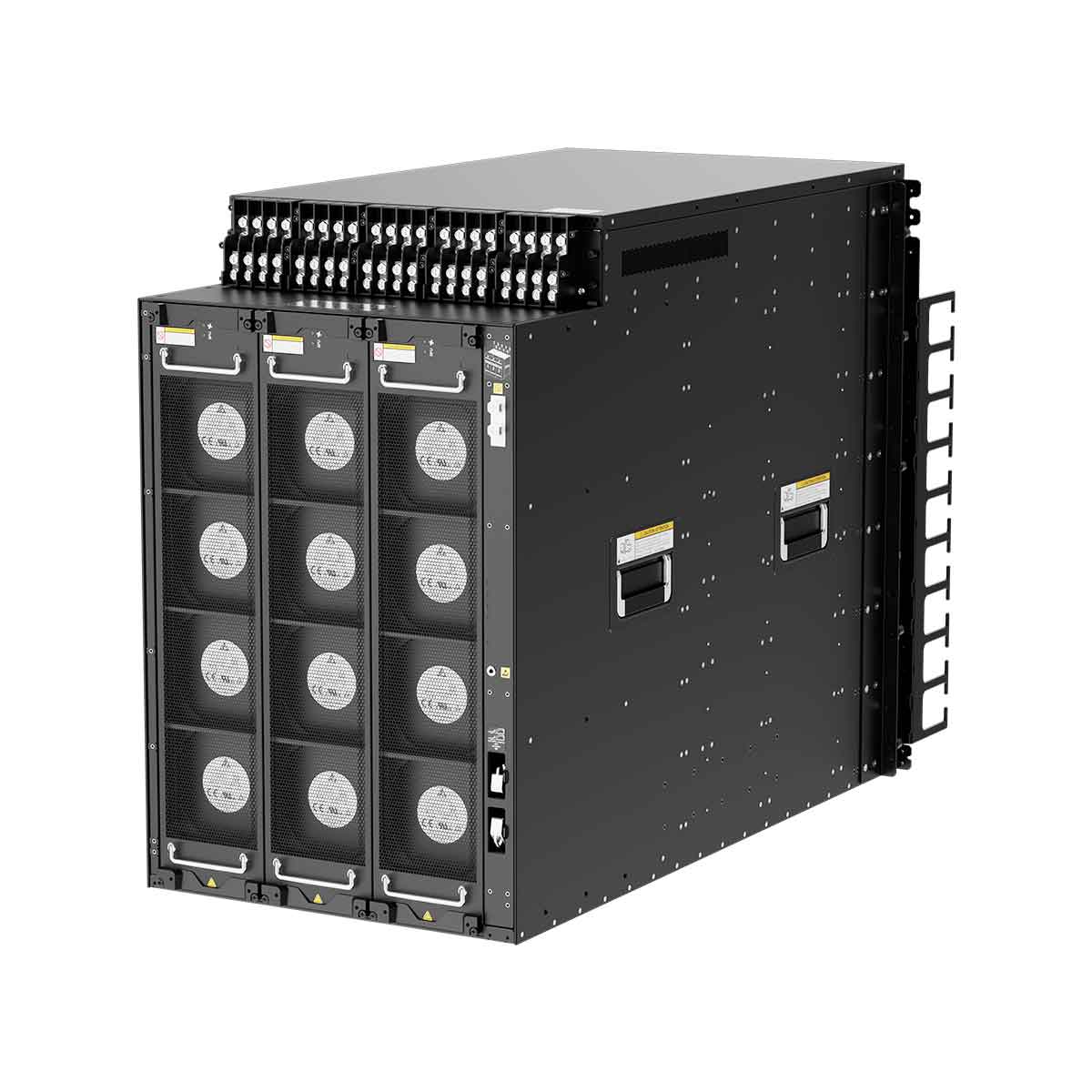

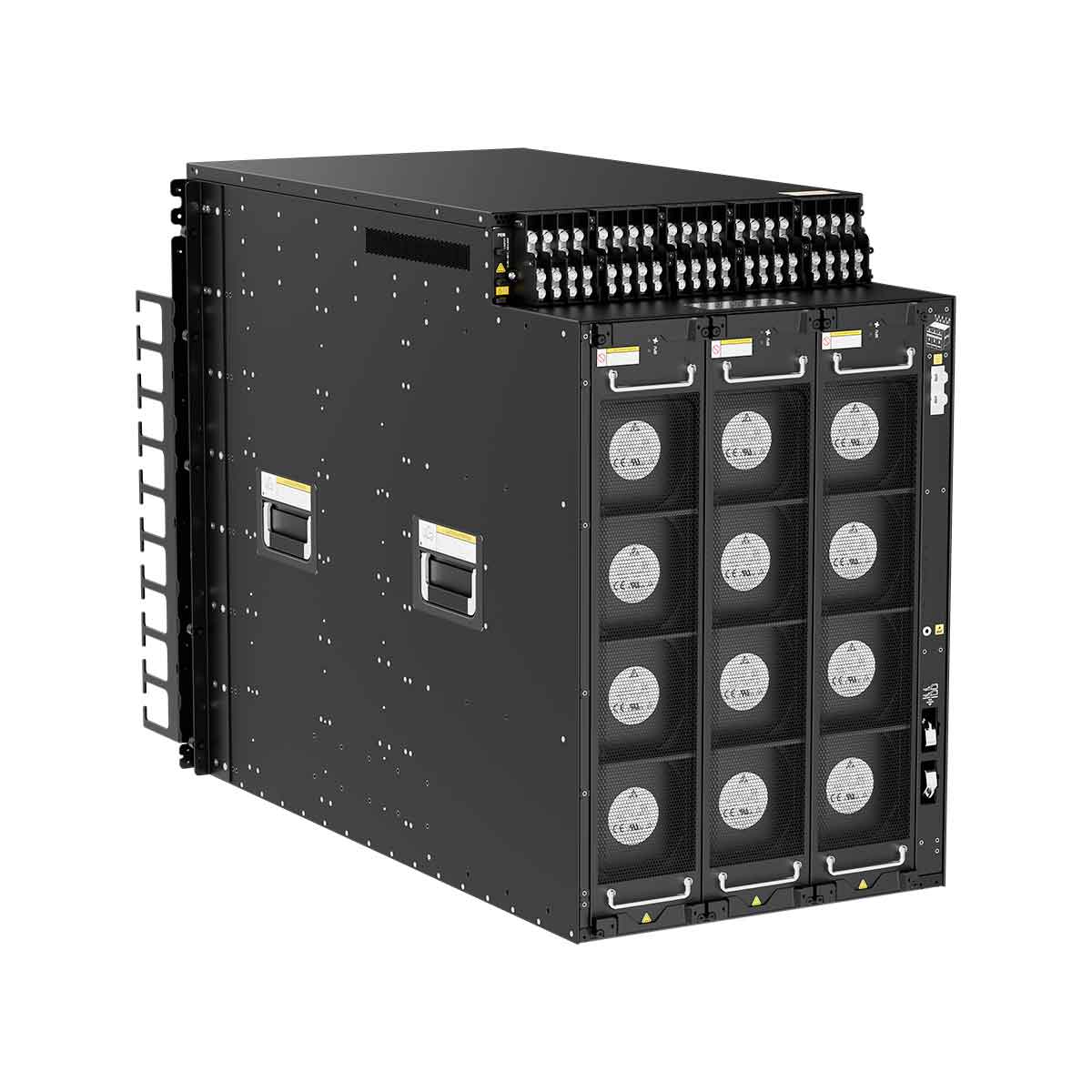

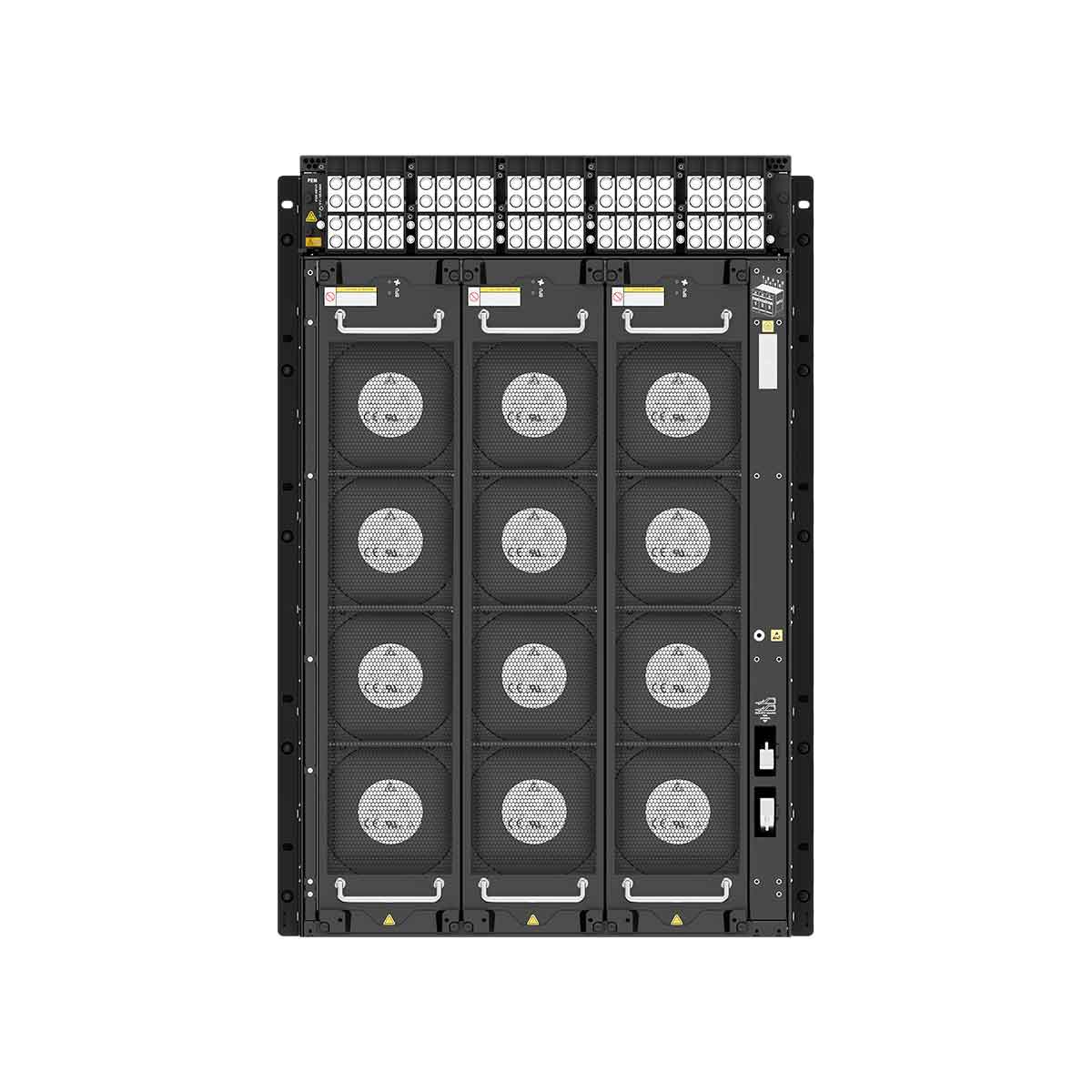

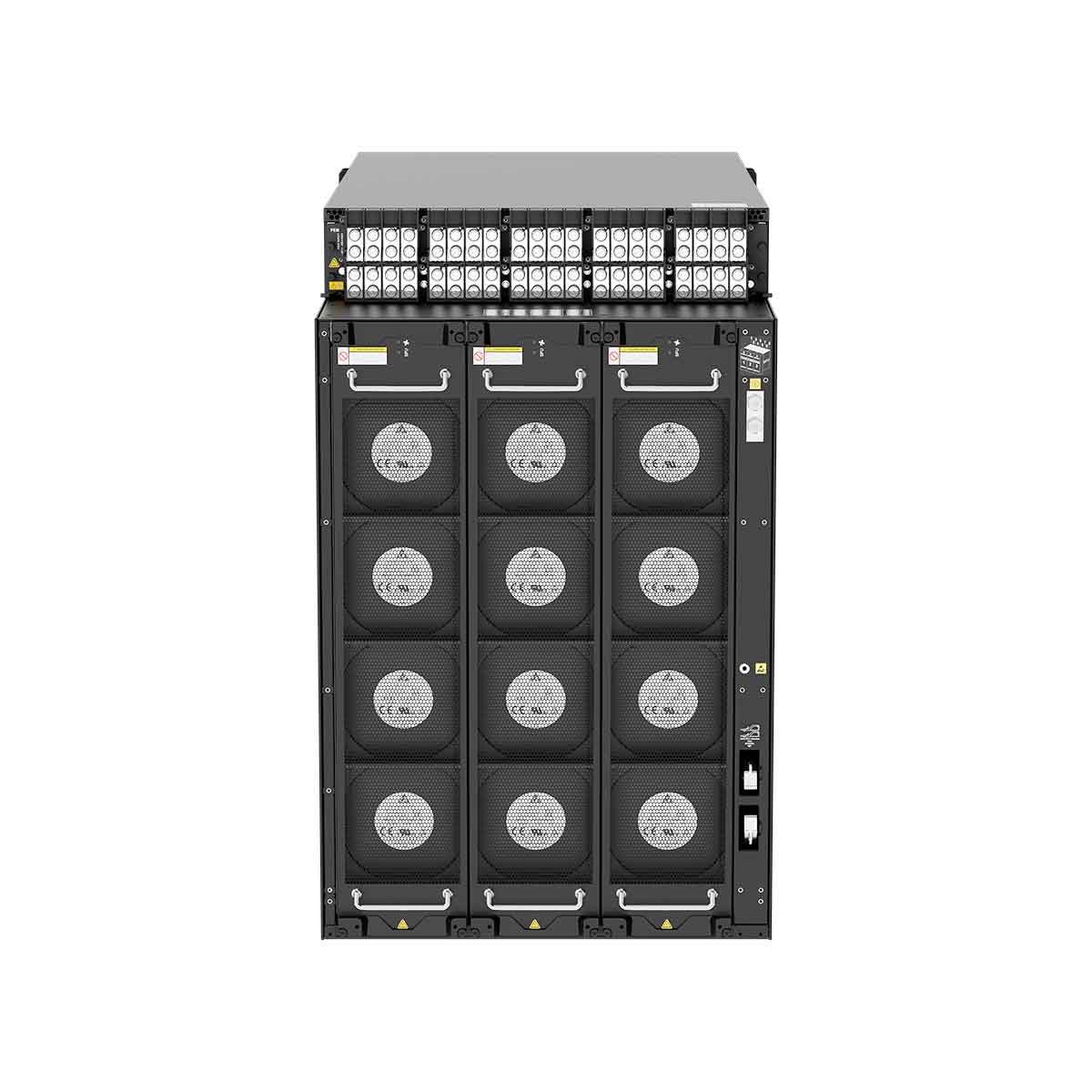

Huawei CE16808-DC switch with DC assembly chassis

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE16800 overview

The CloudEngine 16800 is the industry’s data center switch built for diversified computing power. The CloudEngine 16800 delivers stable, reliable, and high-performance Layer 2 and Layer 3 switching services, and provides customers with an intelligent, simple, secure, and open data center cloud network platform.

CloudEngine 16800 series switches use an architecture that separates the control plane, data plane, and monitoring plane. The switches use an industry-leading Clos architecture and a strict front-to-back airflow design to provide industrial-grade reliability. They support extensive data center service features. Moreover, they adopt multiple innovative energy-saving technologies to greatly reduce power consumption.

CE 16808 Overview

Item	Description	Part Number	First supported version
CE16808-AH	CE16808 AC&high-voltage DC assembly chassis	02352RCV	V200: V200R005C20 V300: V300R020C00
CE16808-DC	CE16808 DC assembly chassis	02352RCS	V200: V200R005C20 V300: V300R020C00

Item

Description

Part Number

First supported version

CE16808-AH

CE16808 AC&high-voltage DC assembly chassis

02352RCV

V200: V200R005C20

V300: V300R020C00

CE16808-DC

CE16808 DC assembly chassis

02352RCS

V200: V200R005C20

V300: V300R020C00

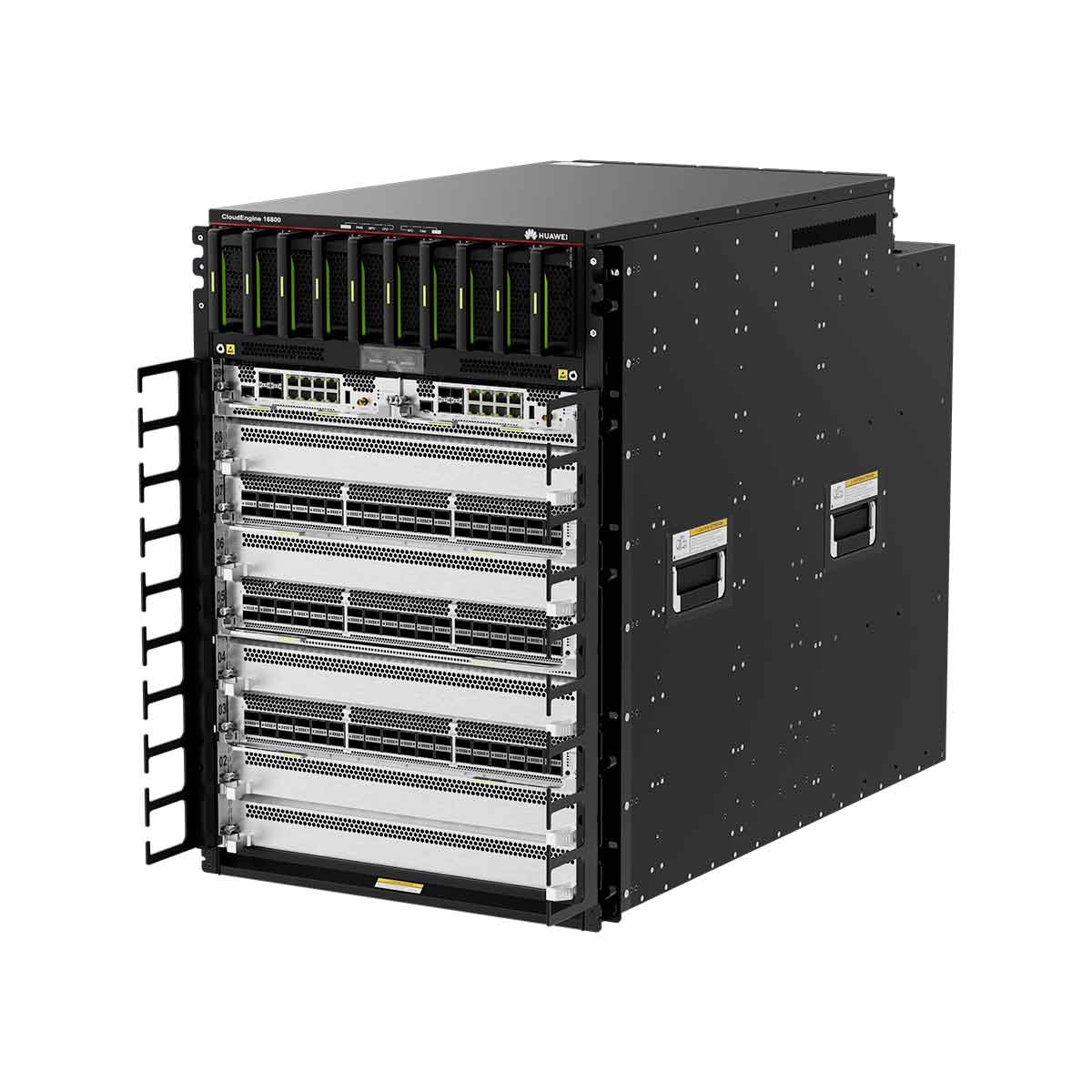

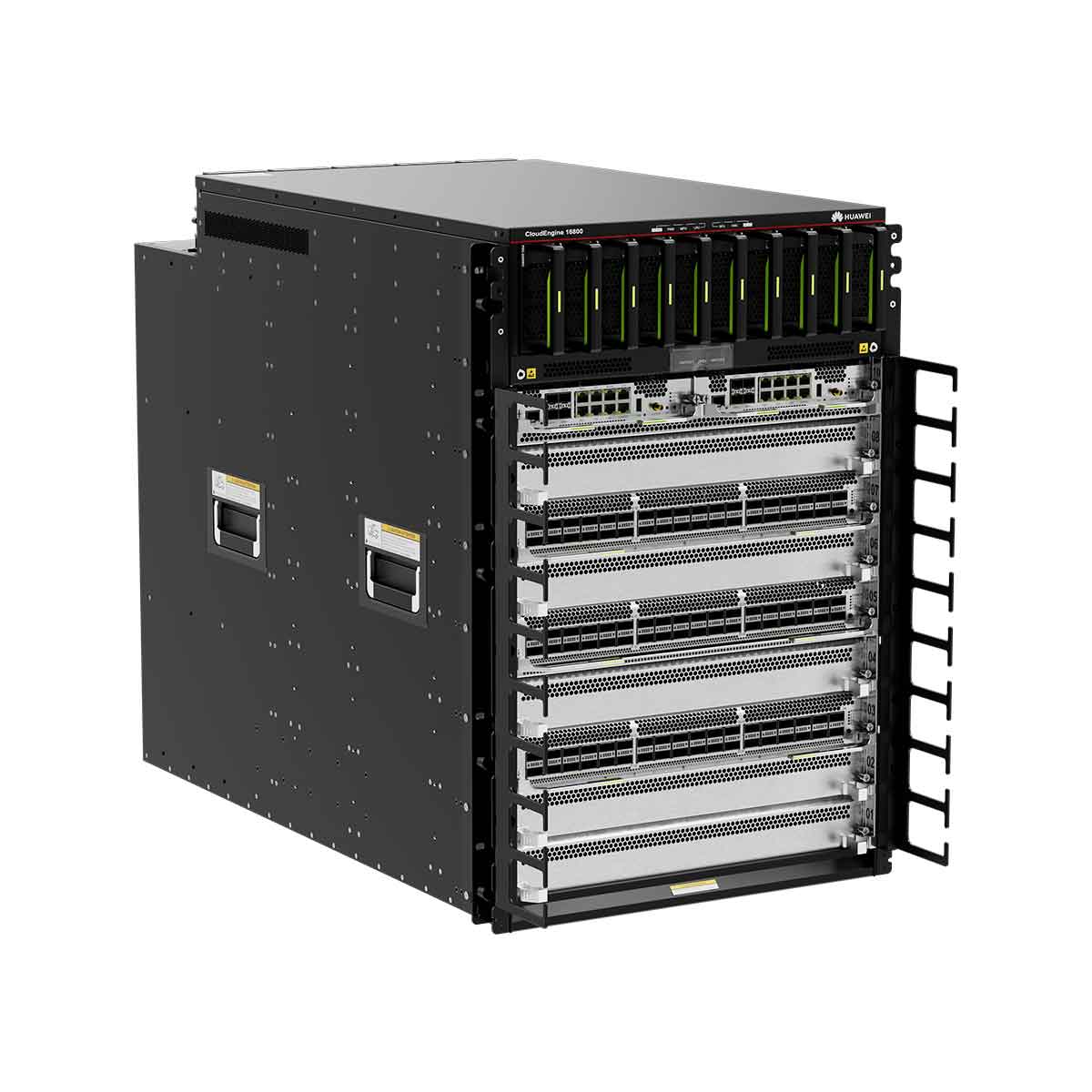

CE16808 Appearance

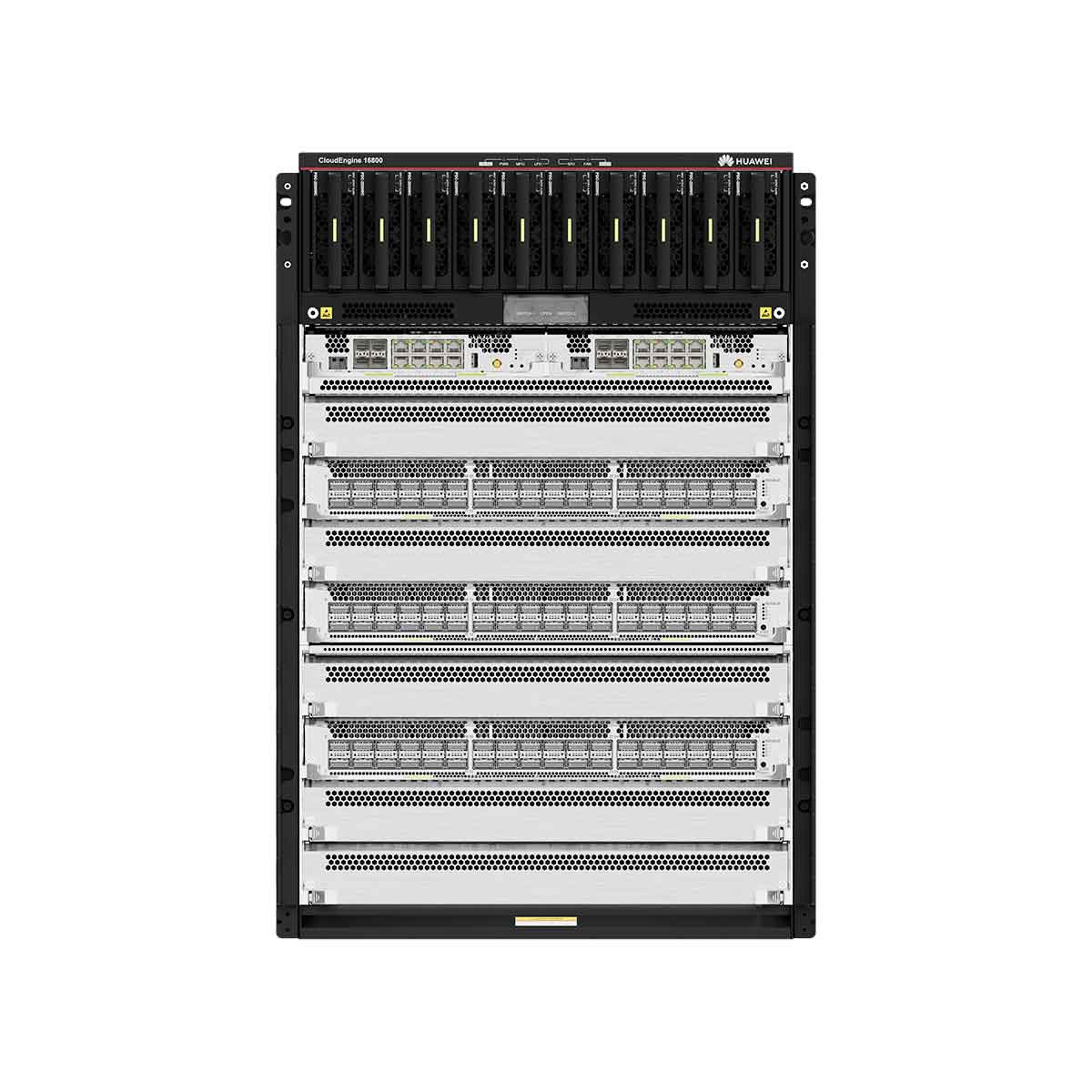

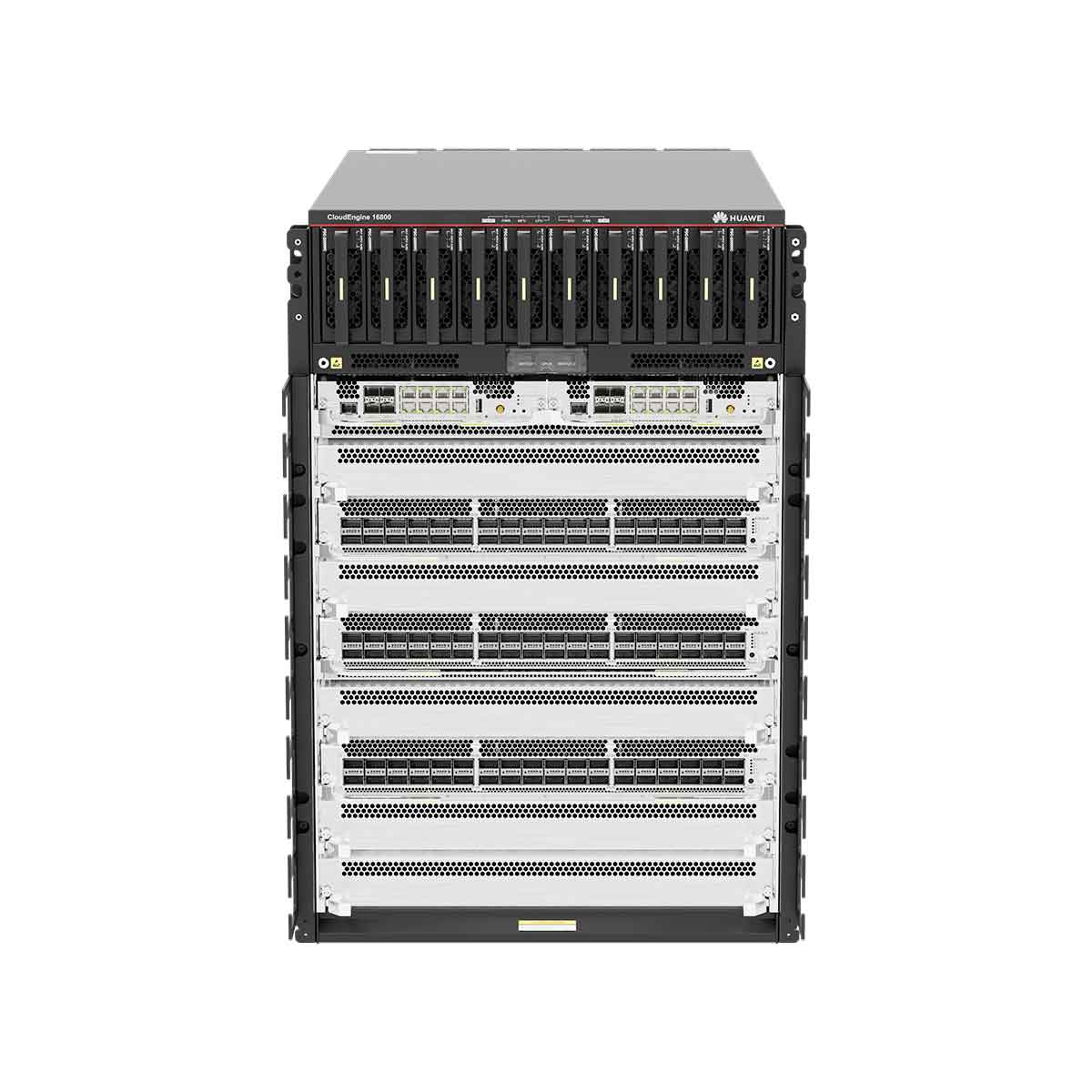

Panel on the CloudEngine CE16808

16808

1. PM indicator	2. MPU indicator	3. LPU indicator	4. SFU indicator	5. Fan module indicator
6. Power switch	–	–	–	–

Item	CE16808-DC
Chassis height [U]	15.8 U
Redundant MPUs	1:1
Redundant Switch fabrics	N+M
Power supply mode	DC
Number of power modules	10
Redundant power supply	Dual-input power supply system: N+1 backup is recommended. Single-input power supply system: N+1 backup Dual-input power supply is recommended to ensure reliability.
Rated input voltage [V]	-48 V/-60 V
Input voltage range [V]	-40 V to -72 V
Maximum input current [A]	58.5 A for the voltage of -40 V
Maximum output power [W]	In 9+1 backup mode: 2200 W x 9 = 19800 W In 10+0 backup mode: 2200 W x 10 = 22000 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Redundant fans	Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Heat dissipation using fans
Airflow direction	Front-to-back airflow
Availability	0.9999971582
MTBF [year]	34.55 year
MTTR [hour]	1 hour
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.) (When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).)
Long-term operating relative humidity [RH]	5% RH to 85% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F)
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	990 mm x 770 mm x 1150 mm (39.89 in. x 30.31 in. x 45.28 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	703 mm x 442 mm x 874 mm (27.68 in. x 17.40 in. x 34.41 in.), dimensions of the chassis body 703 mm x 483 mm x 985 mm (27.68 in. x 19.02 in. x 38.78 in.), including mounting brackets and cable management frames
Weight without packaging [kg (lb)]	135.8 kg (299.44 lb) (including two MPUs and filler panels)
Weight without packaging (full configuration) [kg (lb)]	255.1 kg (562.50 lb)
Weight with packaging [kg (lb)]	183 kg (403.52 lb)
Cabinet installation standards	A812 A612 A610

Brand	Huawei

Item	CE16808-DC
Chassis height [U]	15.8 U
Redundant MPUs	1:1
Redundant Switch fabrics	N+M
Power supply mode	DC
Number of power modules	10
Redundant power supply	Dual-input power supply system: N+1 backup is recommended. Single-input power supply system: N+1 backup Dual-input power supply is recommended to ensure reliability.
Rated input voltage [V]	-48 V/-60 V
Input voltage range [V]	-40 V to -72 V
Maximum input current [A]	58.5 A for the voltage of -40 V
Maximum output power [W]	In 9+1 backup mode: 2200 W x 9 = 19800 W In 10+0 backup mode: 2200 W x 10 = 22000 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Redundant fans	Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Heat dissipation using fans
Airflow direction	Front-to-back airflow
Availability	0.9999971582
MTBF [year]	34.55 year
MTTR [hour]	1 hour
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.) (When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).)
Long-term operating relative humidity [RH]	5% RH to 85% RH, noncondensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F)
Storage altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)]	990 mm x 770 mm x 1150 mm (39.89 in. x 30.31 in. x 45.28 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	703 mm x 442 mm x 874 mm (27.68 in. x 17.40 in. x 34.41 in.), dimensions of the chassis body 703 mm x 483 mm x 985 mm (27.68 in. x 19.02 in. x 38.78 in.), including mounting brackets and cable management frames
Weight without packaging [kg (lb)]	135.8 kg (299.44 lb) (including two MPUs and filler panels)
Weight without packaging (full configuration) [kg (lb)]	255.1 kg (562.50 lb)
Weight with packaging [kg (lb)]	183 kg (403.52 lb)
Cabinet installation standards	A812 A612 A610
