CE12812

Name: CE12812
SKU: 2008998
Availability: InStock

0 Reviews Write a review

SKU2008998

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei CE12812 switch with 2 MPU slots, 2 CMU slots, 12 LPU slots, and 12 power module slots, 6 SFU slots, 17 fan module slots, and a PDU

Core/Aggregation Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE12812 overview

CE12812 is one of the Huawei CE12800 switches, which comes with 12 service card slots.

CloudEngine 12800 (CE12800 for short) series switches are next-generation, high-performance core switches designed for data center networks and high-end campus networks. Using Huawei’s next-generation VRP8 operating system, CE12800 series switches provide stable, reliable, and secure high-performance Layer 2/Layer 3 switching capabilities to help build an elastic, virtualized, and high-quality network.

CE12800 series switches use an advanced hardware architecture design and provide 100GE/40GE/10GE/GE line cards with various port densities. The switches support high-density access of high-speed servers and aggregation of TOR switches, providing high performance and large capacity for data center networks.

CE12800 series switches use an industry-leading Clos architecture and a strict front-to-back airflow design to provide industrial-grade reliability. The switches also provide comprehensive virtualization capabilities and extensive data center service features. Moreover, they adopt multiple innovative energy-saving technologies to greatly reduce power consumption.

Huawei CloudEngine 12800 series switches use an advanced hardware architecture design, providing as much as 178Tbit/s (scalable to 1032 Tbps) switching capacity and has up to 576*100GE, 576*40GE, 2,304*25GE, or 2,304*10GE line-rate ports.

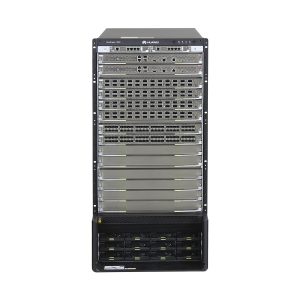

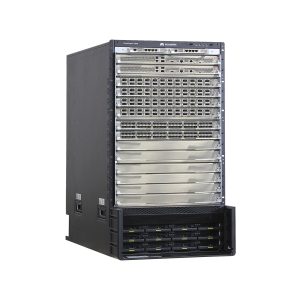

CE12812 appearance

1. CE12800 series switches chassis header, showing the following: Product series name:For the CE12812 chassis, the series name is CloudEngine 12800. Huawei Logo PWR, FAN, SFU, and MPU indicators	2. Indicators	3. CMU The CE12812 chassis supports two CMUs.	4. MPU The CE12812 chassis supports two MPUs.	5. LPU The CE12812 chassis supports 12 LPUs.
6. Front ESD jack NOTE: When maintaining components at the front of a chassis, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.	7. Air intake area for SFUs in the CE12812 chassis (See Airflow for heat dissipation of the SFUs (side view) for the heat dissipation mechanism.)	8. Power modules The CE12812 chassis supports 12 power modules. The CE12812 AC chassis uses the 2700 W AC Power Module and 3000 W AC&high-Voltage DC Power Module. The CE12812 DC chassis uses the 2200 W DC Power Module. The CE12812 AC&high-voltage chassis uses the 2700 W AC Power Module and 3000 W AC&high-Voltage DC Power Module.	9. Cable management frame NOTE: Cable management frames are installed on the left and right sides of a chassis to route cables in each slot.	10. Fan modules The CE12812 chassis uses the FAN-12C Fan Module. CE12812 chassis: supports 17 fan modules, 7 on the left, 7 on the right, and 3 on the top

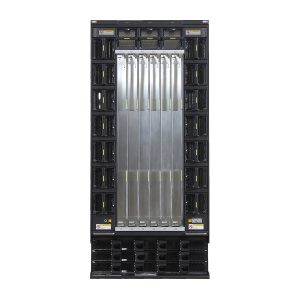

11. SFU The CE12812 chassis supports six SFU cards.	12. Power distribution unit	13. Rear ESD jack NOTE: When maintaining components at the rear of a chassis, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.	14. Two ground points for a dual-hole ground lug, with a yellow grounding label attached NOTE: To protect a chassis from lightning and electromagnetic interference, use Ground Cable to ground the chassis.	15. Handle NOTE: When installing a chassis into a cabinet/rack, you can drag the chassis by the handle at the rear of the chassis.
16. Two power switches NOTE: It is recommended to turn on both switches to power on the device. Both switches must be turned off to power off the device.	17. Serial number label	18. MAC address label

Item		CE12812
Physical specifications		Dimensions (W x D x H): 442 mm x 970 mm x 975.1 mm (17.40 in. x 38.19 in. x 38.39 in. (22U)) Depth from fan module handles to the lower enclosure frame: 970 mm (38.19 in.) Depth from fan module handles to the air filter door: 986.5 mm (38.84 in.) Weight Empty: 153.8 kg (339.07 lb) Fully loaded: 326.7 kg (720.25 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at an altitude between 0 m and 1800 m (0 ft. and 5906 ft.) NOTE: When the altitude is between 1800 m and 4000 m (5906 ft. and 13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 85% RH, noncondensing
	Altitude	< 4000 m (13123 ft.)
	Noise (27°C)	≤ 78 dBA
Power specifications	Power port	The power modules are plug-and-play. Power cables are connected to sockets on the power distribution unit at the rear of the chassis.
	AC power input	Rated voltage: 110 V AC/220 V AC; 50 Hz/60 Hz Rated voltage range: 100 V AC to 120 V AC/200 V AC to 240 V AC Maximum voltage range: 90 V AC to 290 V AC; 45 Hz to 65 Hz (PAC-2700WA)/47 Hz to 63 Hz (PHD-3000WA) Maximum input current Using PAC-2700WA power modules: 16 A Using PHD-3000WA power modules: 18.5 A
	DC power input	Rated voltage: -48 V DC/-60 V DC Maximum voltage range: -40 V DC to -72 V DC Rated input current: 50 A @ -48 V DC Maximum input current: 62 A @ -40 V DC
	High-voltage DC power input	Rated voltage: 240 V DC Rated voltage range: 188 V DC to 288 V DC
	Maximum output power of AC power modules	Using PAC-2700WA power modules: 380 V three-phase AC input, 220 V single-phase AC input, or 110 V dual-live-wire AC input: N+N backup, N+1 backup, and N+0 mode (N ≤ 6): 2700 W x 6 = 16200 W 110 V single-live-wire AC input: N+1 backup (N ≤ 11): 1200 W x 11 = 13200 W N+0 mode (N ≤ 12): 1200 W x 12 = 14400 W Using PHD-3000WA power modules: 380 V three-phase AC input, 220 V single-phase AC input, or 110 V dual-live-wire AC input: N+N backup, N+1 backup, and N+0 mode (N ≤ 6): 3000 W x 6 = 18000 W 110 V single-live-wire AC input: N+1 backup (N ≤ 11): 1500 W x 11 = 16500 W N+0 mode (N ≤ 12): 1500 W x 12 = 18000 W
		NOTE: If the power modules use a 110 V power source, follow these suggestions: Use double live wires. In this case, the output power of a power module is 2700 W/3000 W. If only one live wire is used, the output power of a power module is 1200 W/1500 W. In this case, it is recommended that you use more power modules or change the power module backup mode to increase the output power.
	Maximum output power of DC power modules	N+N backup^c (N ≤ 6): 2200 W x 6 = 13200 W N+1 backup and N+0 mode (N ≤ 8): 2200 W x 8 = 17600 W
	Maximum output power of high-voltage DC power modules	N+N backup, N+1 backup, and N+0 mode (N ≤ 6): 3000 W x 6 = 18000 W
	Heat dissipation	The power modules have their own fans, which cool the power modules through front-to-back airflow.
	Hot swap	The power modules are hot swappable.
Reliability and availability	Modules	Power module: If double external power supply systems are used, the N+N backup mode is recommended. If a single external power supply system is used, you can use more power modules or change the power module backup mode to increase the output power. To enhance system reliably, you are advised to use the N+1 backup mode.
		Fan module: Fan modules work in hot backup mode. At normal temperature range, the system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
		MPU: 1:1 hot standby
		CMU: 1:1 hot standby
		Hot swap: All the power modules, fan modules, and cards support hot swap.
	Chassis	Mean Time Between Failures (MTBF): 33.52 years Mean time to repair (MTtr): 1 hour Availability: 0.9999966 NOTE: The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules configured in the equipment.
Technical specifications	Maximum port density	V100R001C00: 288x40GE or 1152x10GE^a V100R002C00: 288x40GE, 1152x10GE^a, or 576xGE V100R003C00 and V100R003C10: 48x100GE, 288x40GE, 1152x10GE^a, or 576xGE V100R005C00 and V100R005C10: 144x100GE, 288x40GE, 1152x10GE^a, or 576xGE V100R006C00: 144x100GE, 432x40GE, 1728x10GE^a, or 576xGE V200R001C00, V200R002C50, and V200R003C00: 432x100GE, 432x40GE, 1728x25GE^b, 1728x10GE^a, or 576xGE
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance

Item		CE12812
Physical specifications		Dimensions (W x D x H): 442 mm x 970 mm x 975.1 mm (17.40 in. x 38.19 in. x 38.39 in. (22U)) Depth from fan module handles to the lower enclosure frame: 970 mm (38.19 in.) Depth from fan module handles to the air filter door: 986.5 mm (38.84 in.) Weight Empty: 153.8 kg (339.07 lb) Fully loaded: 326.7 kg (720.25 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at an altitude between 0 m and 1800 m (0 ft. and 5906 ft.) NOTE: When the altitude is between 1800 m and 4000 m (5906 ft. and 13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 85% RH, noncondensing
	Altitude	< 4000 m (13123 ft.)
	Noise (27°C)	≤ 78 dBA
Power specifications	Power port	The power modules are plug-and-play. Power cables are connected to sockets on the power distribution unit at the rear of the chassis.
	AC power input	Rated voltage: 110 V AC/220 V AC; 50 Hz/60 Hz Rated voltage range: 100 V AC to 120 V AC/200 V AC to 240 V AC Maximum voltage range: 90 V AC to 290 V AC; 45 Hz to 65 Hz (PAC-2700WA)/47 Hz to 63 Hz (PHD-3000WA) Maximum input current Using PAC-2700WA power modules: 16 A Using PHD-3000WA power modules: 18.5 A
	DC power input	Rated voltage: -48 V DC/-60 V DC Maximum voltage range: -40 V DC to -72 V DC Rated input current: 50 A @ -48 V DC Maximum input current: 62 A @ -40 V DC
	High-voltage DC power input	Rated voltage: 240 V DC Rated voltage range: 188 V DC to 288 V DC
	Maximum output power of AC power modules	Using PAC-2700WA power modules: 380 V three-phase AC input, 220 V single-phase AC input, or 110 V dual-live-wire AC input: N+N backup, N+1 backup, and N+0 mode (N ≤ 6): 2700 W x 6 = 16200 W 110 V single-live-wire AC input: N+1 backup (N ≤ 11): 1200 W x 11 = 13200 W N+0 mode (N ≤ 12): 1200 W x 12 = 14400 W Using PHD-3000WA power modules: 380 V three-phase AC input, 220 V single-phase AC input, or 110 V dual-live-wire AC input: N+N backup, N+1 backup, and N+0 mode (N ≤ 6): 3000 W x 6 = 18000 W 110 V single-live-wire AC input: N+1 backup (N ≤ 11): 1500 W x 11 = 16500 W N+0 mode (N ≤ 12): 1500 W x 12 = 18000 W
		NOTE: If the power modules use a 110 V power source, follow these suggestions: Use double live wires. In this case, the output power of a power module is 2700 W/3000 W. If only one live wire is used, the output power of a power module is 1200 W/1500 W. In this case, it is recommended that you use more power modules or change the power module backup mode to increase the output power.
	Maximum output power of DC power modules	N+N backup^c (N ≤ 6): 2200 W x 6 = 13200 W N+1 backup and N+0 mode (N ≤ 8): 2200 W x 8 = 17600 W
	Maximum output power of high-voltage DC power modules	N+N backup, N+1 backup, and N+0 mode (N ≤ 6): 3000 W x 6 = 18000 W
	Heat dissipation	The power modules have their own fans, which cool the power modules through front-to-back airflow.
	Hot swap	The power modules are hot swappable.
Reliability and availability	Modules	Power module: If double external power supply systems are used, the N+N backup mode is recommended. If a single external power supply system is used, you can use more power modules or change the power module backup mode to increase the output power. To enhance system reliably, you are advised to use the N+1 backup mode.
		Fan module: Fan modules work in hot backup mode. At normal temperature range, the system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
		MPU: 1:1 hot standby
		CMU: 1:1 hot standby
		Hot swap: All the power modules, fan modules, and cards support hot swap.
	Chassis	Mean Time Between Failures (MTBF): 33.52 years Mean time to repair (MTtr): 1 hour Availability: 0.9999966 NOTE: The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules configured in the equipment.
Technical specifications	Maximum port density	V100R001C00: 288x40GE or 1152x10GE^a V100R002C00: 288x40GE, 1152x10GE^a, or 576xGE V100R003C00 and V100R003C10: 48x100GE, 288x40GE, 1152x10GE^a, or 576xGE V100R005C00 and V100R005C10: 144x100GE, 288x40GE, 1152x10GE^a, or 576xGE V100R006C00: 144x100GE, 432x40GE, 1728x10GE^a, or 576xGE V200R001C00, V200R002C50, and V200R003C00: 432x100GE, 432x40GE, 1728x25GE^b, 1728x10GE^a, or 576xGE
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
