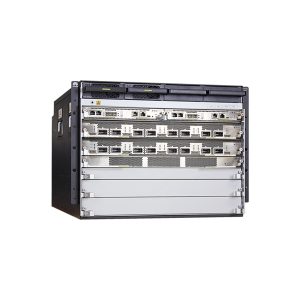

Huawei CE12804S switch chassis with 2 MPU slots, 4 LPU slots, 2 SFU slots, 4 Power Module slots, 3 Fan Module slots

Core/Aggregation Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

CE12804S overview

CE12804S is one of the Huawei CE12800 switches, which comes with 4 service slots.

CloudEngine 12800 (CE12800 for short) series switches are next-generation, high-performance core switches designed for data center networks and high-end campus networks. Using Huawei’s next-generation VRP8 operating system, CE12800 series switches provide stable, reliable, and secure high-performance Layer 2/Layer 3 switching capabilities to help build an elastic, virtualized, and high-quality network.

CE12800 series switches use an advanced hardware architecture design and provide 100GE/40GE/10GE/GE line cards with various port densities. The switches support high-density access of high-speed servers and aggregation of TOR switches, providing high performance and large capacity for data center networks.

CE12800 series switches use an industry-leading Clos architecture and a strict front-to-back airflow design to provide industrial-grade reliability. The switches also provide comprehensive virtualization capabilities and extensive data center service features. Moreover, they adopt multiple innovative energy-saving technologies to greatly reduce power consumption.

CE12804S fast spec

Switching capacity: 30/258 Tbps

Forwarding capacity: 17,280 Mpps

Operating voltage: AC: 90 V to 290 V DC: -40 V to -72 V HVDC: 188 V to 288 V

Max. power supply (W): 6000

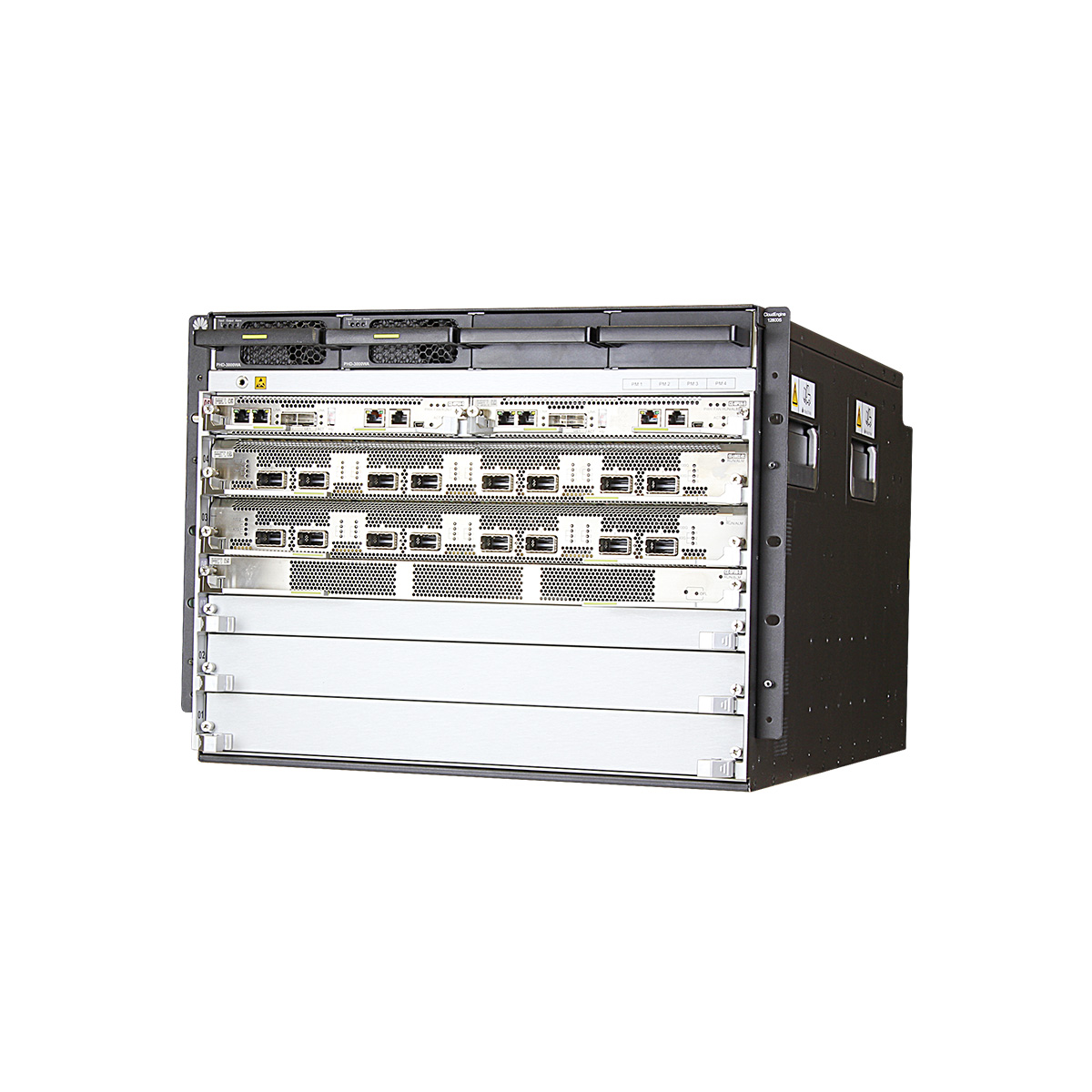

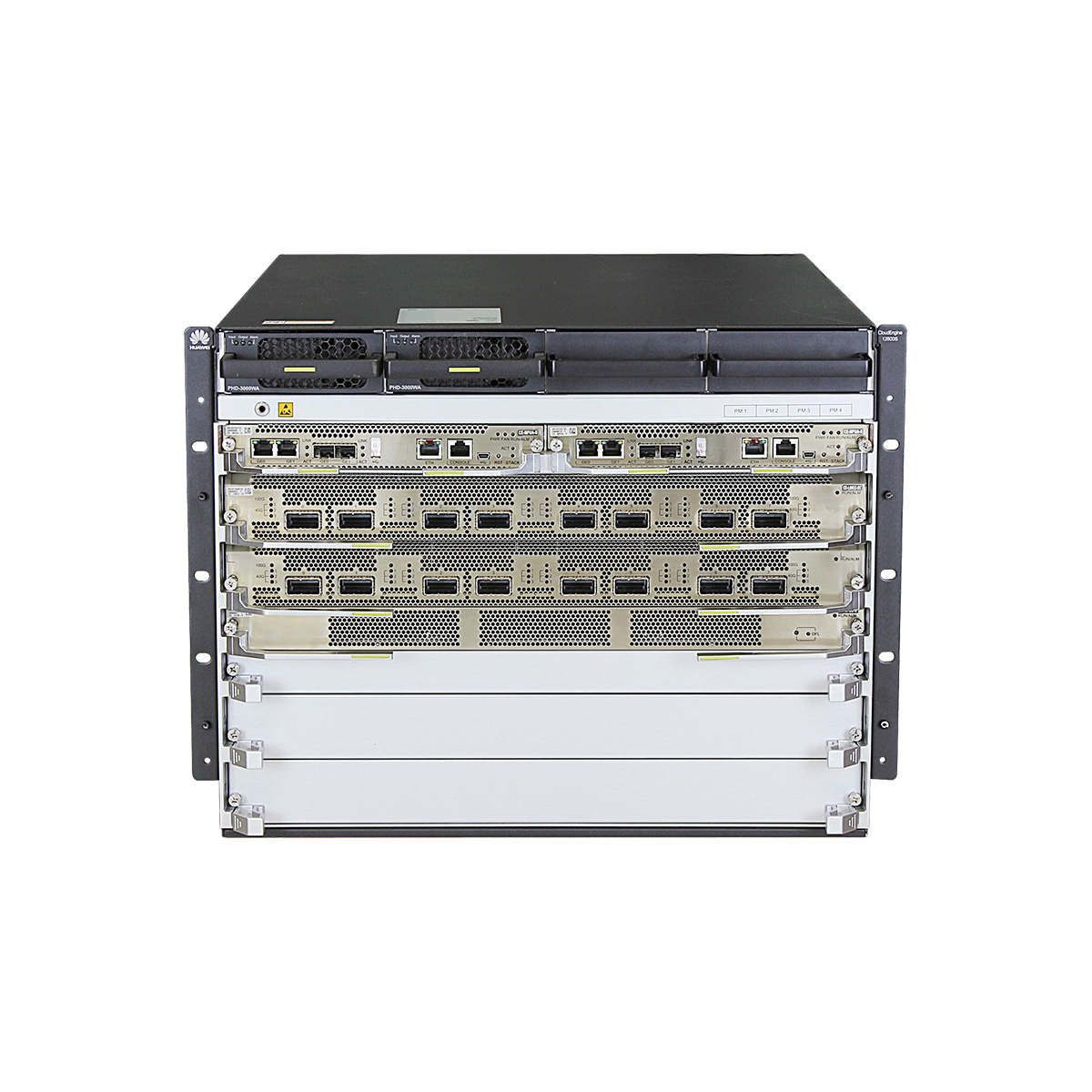

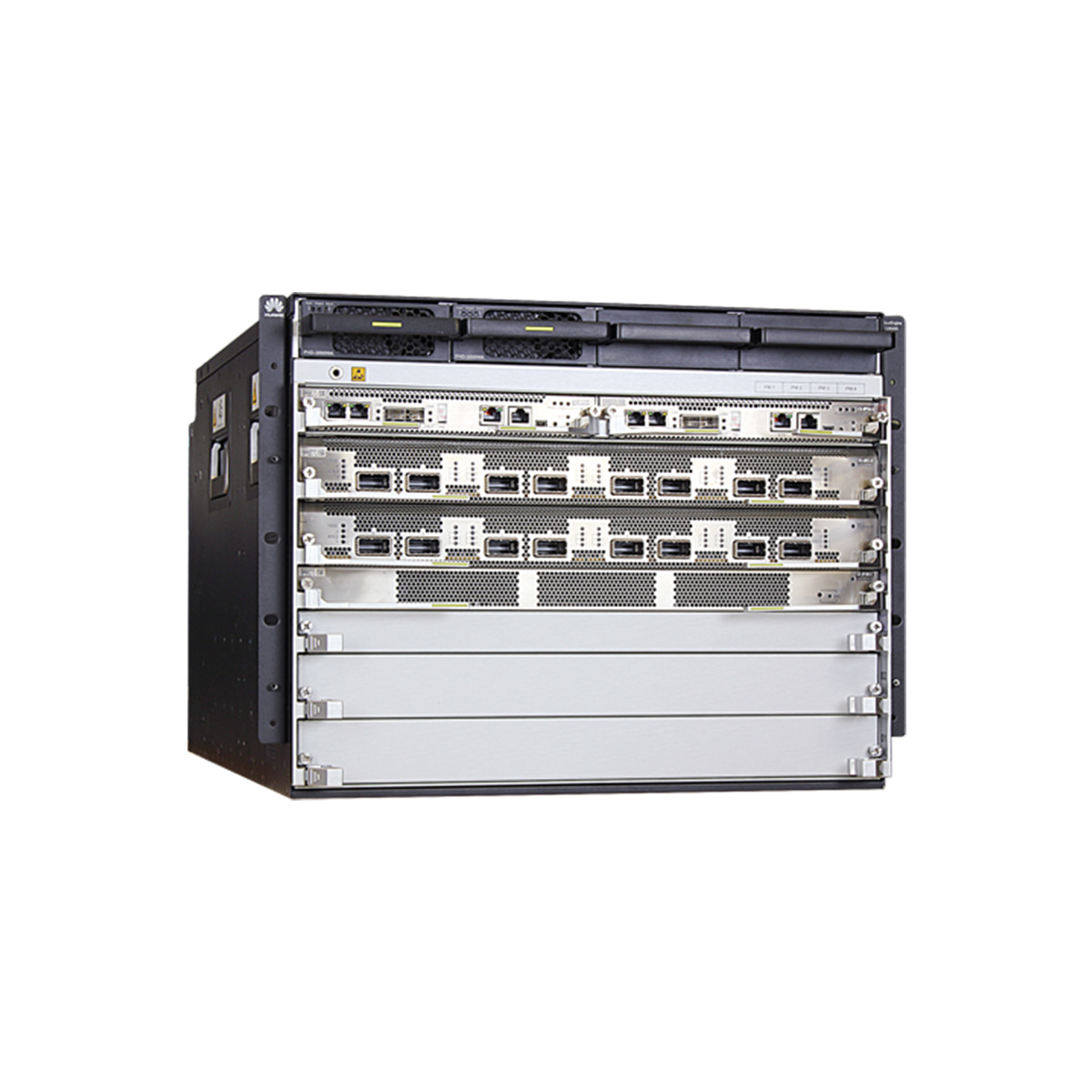

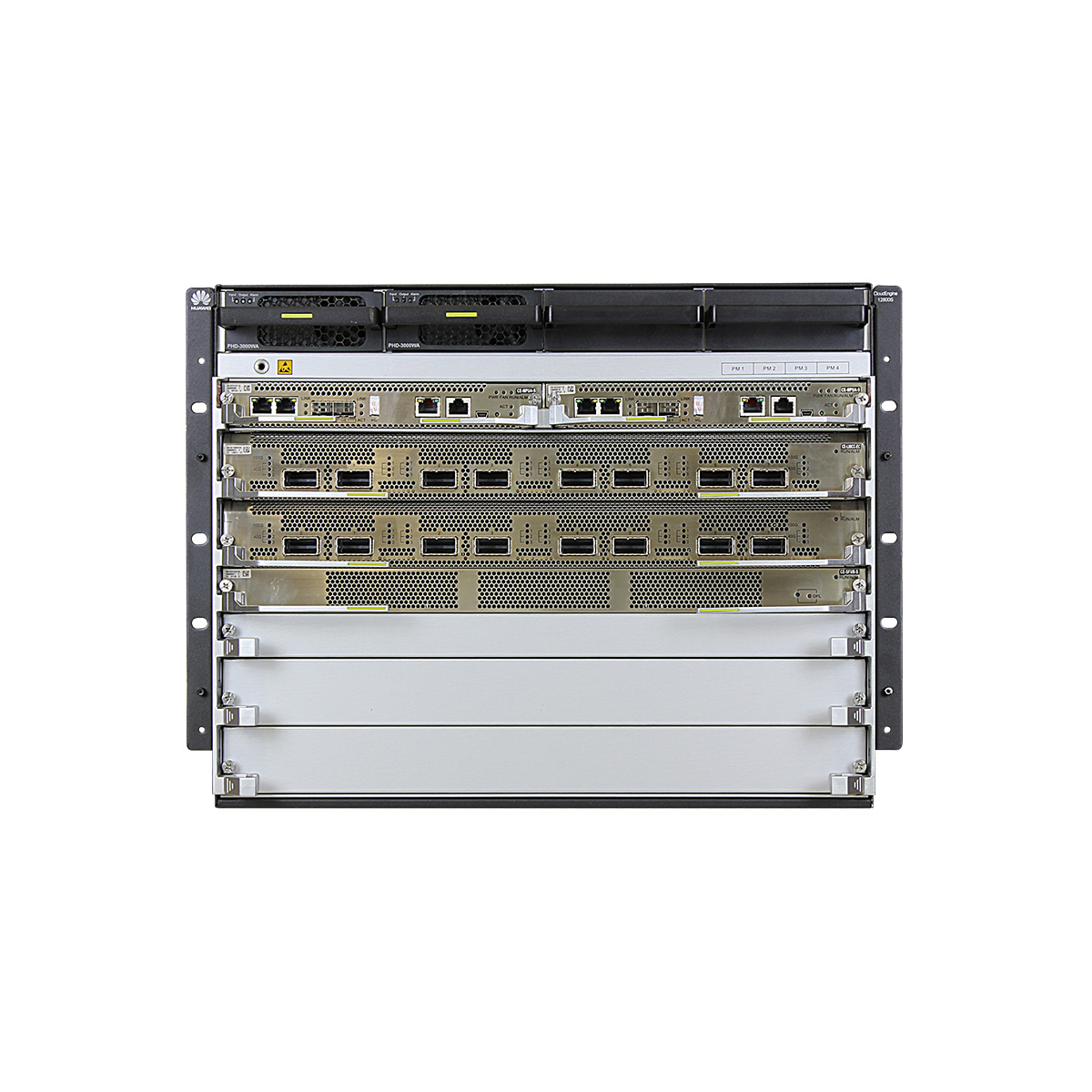

CE12804S appearance

1. CE12800 series switches chassis header, showing the following:

Product series name:For the CE12804S chassis, the series name is CloudEngine 12800S.
Huawei Logo

4. MPU

The CE12804S chassis supports two MPUs.

5. LPU

The CE12804S chassis supports four LPUs.

6. Front ESD jack

NOTE:

When maintaining components at the front of a chassis, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.

8. Power modules

The CE12804S chassis supports four power modules.

The CE12804S DC chassis uses the 2200 W DC Power Module.
The CE12804S AC&high-voltage DC chassis uses the 3000 W AC&high-Voltage DC Power Module.

9. Cable management frame

NOTE:

Cable management frames are installed on the left and right sides of a chassis to route cables in each slot.

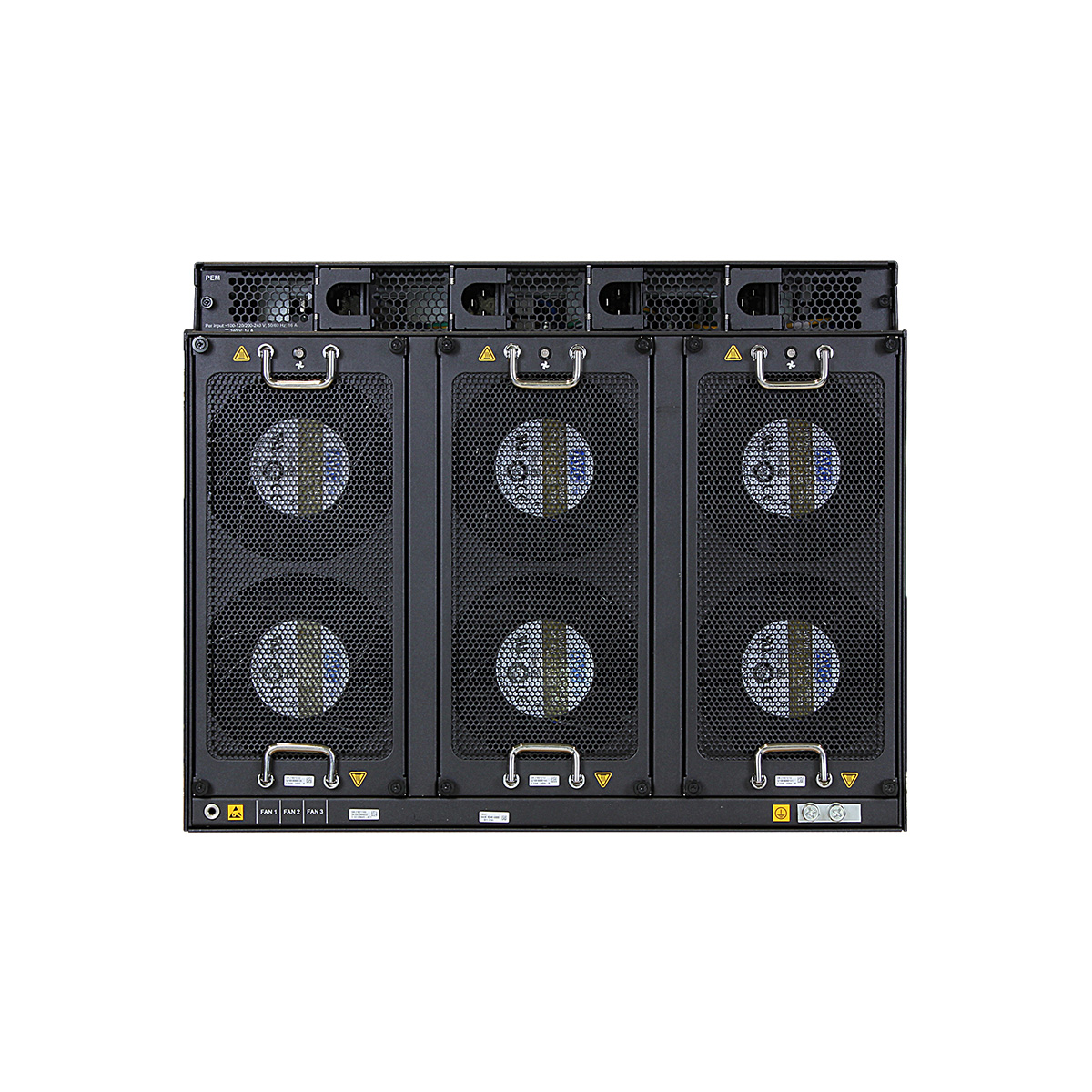

10. Fan modules

The CE12804S chassis uses the FAN-600A-B Fan Module.
The CE12804S chassis supports three fan modules.

11. SFU

The CE12804S chassis supports two SFU cards.

12. Power distribution unit

13. Rear ESD jack

NOTE:

When maintaining components at the rear of a chassis, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.

14. Two ground points for a dual-hole ground lug, with a yellow grounding label attached

NOTE:

To protect a chassis from lightning and electromagnetic interference, use Ground Cable to ground the chassis.

17. Serial number label

18. MAC address label

Item		CE12804S
Physical specifications		Dimensions (W x D x H): 442 mm x 751 mm x 352.8 mm (17.40 in. x 29.57 in. x 13.89 in. (8U)) Depth from fan module handles to the lower enclosure frame: 751 mm (29.57 in.) Depth from fan module handles to the air filter door: 766 mm (30.16 in.) Weight Empty: 60 kg (132.28 lb) Fully loaded: 120 kg (264.56 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at an altitude between 0 m and 1800 m (0 ft. and 5906 ft.) *NOTE:* When the altitude is between 1800 m and 4000 m (5906 ft. and 13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 85% RH, noncondensing
	Altitude	< 4000 m (13123 ft.)
	Noise (27°C)	≤ 78 dBA
Power specifications	Power port	The power modules are plug-and-play. Power cables are connected to sockets on the power distribution unit at the rear of the chassis.
	AC power input	Rated voltage: 110 V AC/220 V AC; 50 Hz/60 Hz Rated voltage range: 100 V AC to 120 V AC/200 V AC to 240 V AC Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz Maximum input current: 18.5 A
	DC power input	Rated voltage: -48 V DC/-60 V DC Maximum voltage range: -40 V DC to -72 V DC Rated input current: 50 A @ -48 V DC Maximum input current: 62 A @ -40 V DC
	High-voltage DC power input	Rated voltage: 240 V DC Rated voltage range: 188 V DC to 288 V DC
	Maximum output power of AC power modules	Using PHD-3000WA power modules: 380 V three-phase AC input, 220 V single-phase AC input, or 110 V dual-live-wire AC input: N+N backup, N+1 backup, and N+0 mode (N ≤ 2): 3000 W x 2 = 6000 W 110 V single-live-wire AC input: N+1 backup (N ≤ 3): 1500 W x 3 = 4500 W N+0 mode (N ≤ 4): 1500 W x 4 = 6000 W *NOTE:* If the power modules use a 110 V power source, follow these suggestions: 1. Use double live wires. In this case, the output power of a power module is 3000 W. 2. If only one live wire is used, the output power of a power module is 1500 W. In this case, it is recommended that you use more power modules or change the power module backup mode to increase the output power.
	Maximum output power of DC power modules	N+N backupc (N ≤ 2): 2200 W x 2 = 4400 W N+1 backup and N+0 mode (N ≤ 3): 2200 W x 3 = 6600 W
	Maximum output power of high-voltage DC power modules	N+N backup, N+1 backup, and N+0 mode (N ≤ 2): 3000 W x 2 = 6000 W
	Heat dissipation	The power modules have their own fans, which cool the power modules through front-to-back airflow.
	Hot swap	The power modules are hot swappable.
Reliability and availability	Modules	Power module:If double external power supply systems are used, the N+N backup mode is recommended. If a single external power supply system is used, you can use more power modules or change the power module backup mode to increase the output power. To enhance system reliably, you are advised to use the N+1 backup mode.
		Fan module: Fan modules work in hot backup mode. At normal temperature range, the system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
		MPU: 1:1 hot standby
		CMU: Not supported
		Hot swap: All the power modules, fan modules, and cards support hot swap.
	Chassis	Mean Time Between Failures (MTBF): 39.02 years Mean time to repair (MTTR): 1 hour Availability: 0.99999667 *NOTE:* The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules configured in the equipment.
Technical specifications	Maximum port density	V100R005C00 and V100R005C10: 32x100GE, 96x40GE, 384x10GEa, or 192xGE V100R006C00: 32x100GE, 144x40GE, 576x10GEa, or 192xGE V200R001C00 and V200R002C50: 72x100GE, 144x40GE, 288x25GEb, 576x10GEa, or 192xGE V200R003C00: 144x100GE, 144x40GE, 576x25GEb, 576x10GEa, or 192xGE
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance

Item		CE12804S
Physical specifications		Dimensions (W x D x H): 442 mm x 751 mm x 352.8 mm (17.40 in. x 29.57 in. x 13.89 in. (8U)) Depth from fan module handles to the lower enclosure frame: 751 mm (29.57 in.) Depth from fan module handles to the air filter door: 766 mm (30.16 in.) Weight Empty: 60 kg (132.28 lb) Fully loaded: 120 kg (264.56 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at an altitude between 0 m and 1800 m (0 ft. and 5906 ft.) *NOTE:* When the altitude is between 1800 m and 4000 m (5906 ft. and 13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 85% RH, noncondensing
	Altitude	< 4000 m (13123 ft.)
	Noise (27°C)	≤ 78 dBA
Power specifications	Power port	The power modules are plug-and-play. Power cables are connected to sockets on the power distribution unit at the rear of the chassis.
	AC power input	Rated voltage: 110 V AC/220 V AC; 50 Hz/60 Hz Rated voltage range: 100 V AC to 120 V AC/200 V AC to 240 V AC Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz Maximum input current: 18.5 A
	DC power input	Rated voltage: -48 V DC/-60 V DC Maximum voltage range: -40 V DC to -72 V DC Rated input current: 50 A @ -48 V DC Maximum input current: 62 A @ -40 V DC
	High-voltage DC power input	Rated voltage: 240 V DC Rated voltage range: 188 V DC to 288 V DC
	Maximum output power of AC power modules	Using PHD-3000WA power modules: 380 V three-phase AC input, 220 V single-phase AC input, or 110 V dual-live-wire AC input: N+N backup, N+1 backup, and N+0 mode (N ≤ 2): 3000 W x 2 = 6000 W 110 V single-live-wire AC input: N+1 backup (N ≤ 3): 1500 W x 3 = 4500 W N+0 mode (N ≤ 4): 1500 W x 4 = 6000 W *NOTE:* If the power modules use a 110 V power source, follow these suggestions: 1. Use double live wires. In this case, the output power of a power module is 3000 W. 2. If only one live wire is used, the output power of a power module is 1500 W. In this case, it is recommended that you use more power modules or change the power module backup mode to increase the output power.
	Maximum output power of DC power modules	N+N backupc (N ≤ 2): 2200 W x 2 = 4400 W N+1 backup and N+0 mode (N ≤ 3): 2200 W x 3 = 6600 W
	Maximum output power of high-voltage DC power modules	N+N backup, N+1 backup, and N+0 mode (N ≤ 2): 3000 W x 2 = 6000 W
	Heat dissipation	The power modules have their own fans, which cool the power modules through front-to-back airflow.
	Hot swap	The power modules are hot swappable.
Reliability and availability	Modules	Power module:If double external power supply systems are used, the N+N backup mode is recommended. If a single external power supply system is used, you can use more power modules or change the power module backup mode to increase the output power. To enhance system reliably, you are advised to use the N+1 backup mode.
		Fan module: Fan modules work in hot backup mode. At normal temperature range, the system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
		MPU: 1:1 hot standby
		CMU: Not supported
		Hot swap: All the power modules, fan modules, and cards support hot swap.
	Chassis	Mean Time Between Failures (MTBF): 39.02 years Mean time to repair (MTTR): 1 hour Availability: 0.99999667 *NOTE:* The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules configured in the equipment.
Technical specifications	Maximum port density	V100R005C00 and V100R005C10: 32x100GE, 96x40GE, 384x10GEa, or 192xGE V100R006C00: 32x100GE, 144x40GE, 576x10GEa, or 192xGE V200R001C00 and V200R002C50: 72x100GE, 144x40GE, 288x25GEb, 576x10GEa, or 192xGE V200R003C00: 144x100GE, 144x40GE, 576x25GEb, 576x10GEa, or 192xGE
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance
