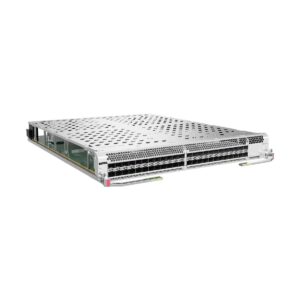

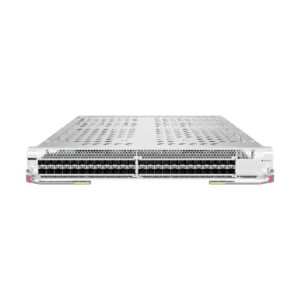

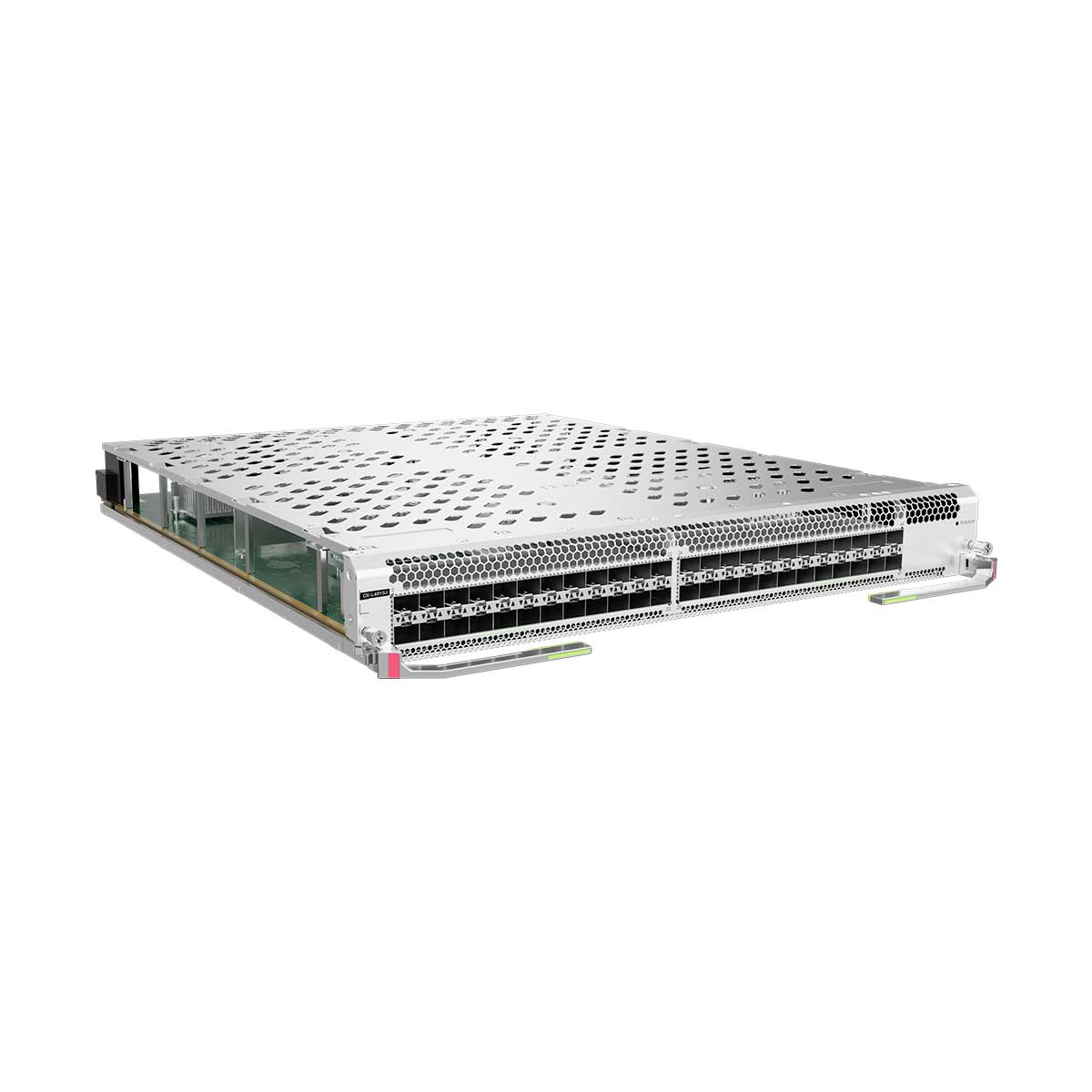

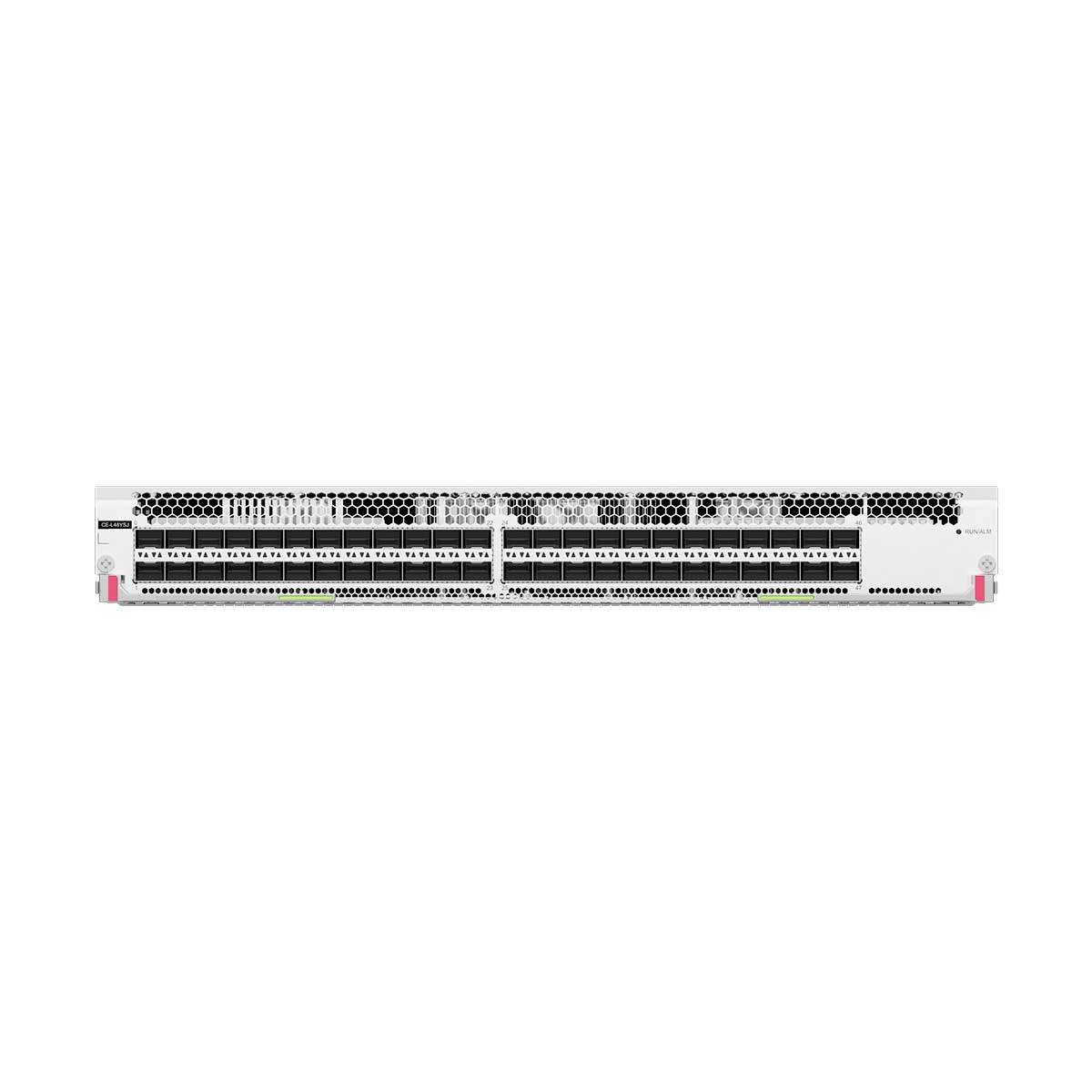

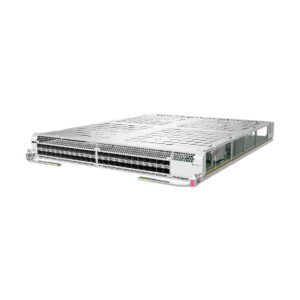

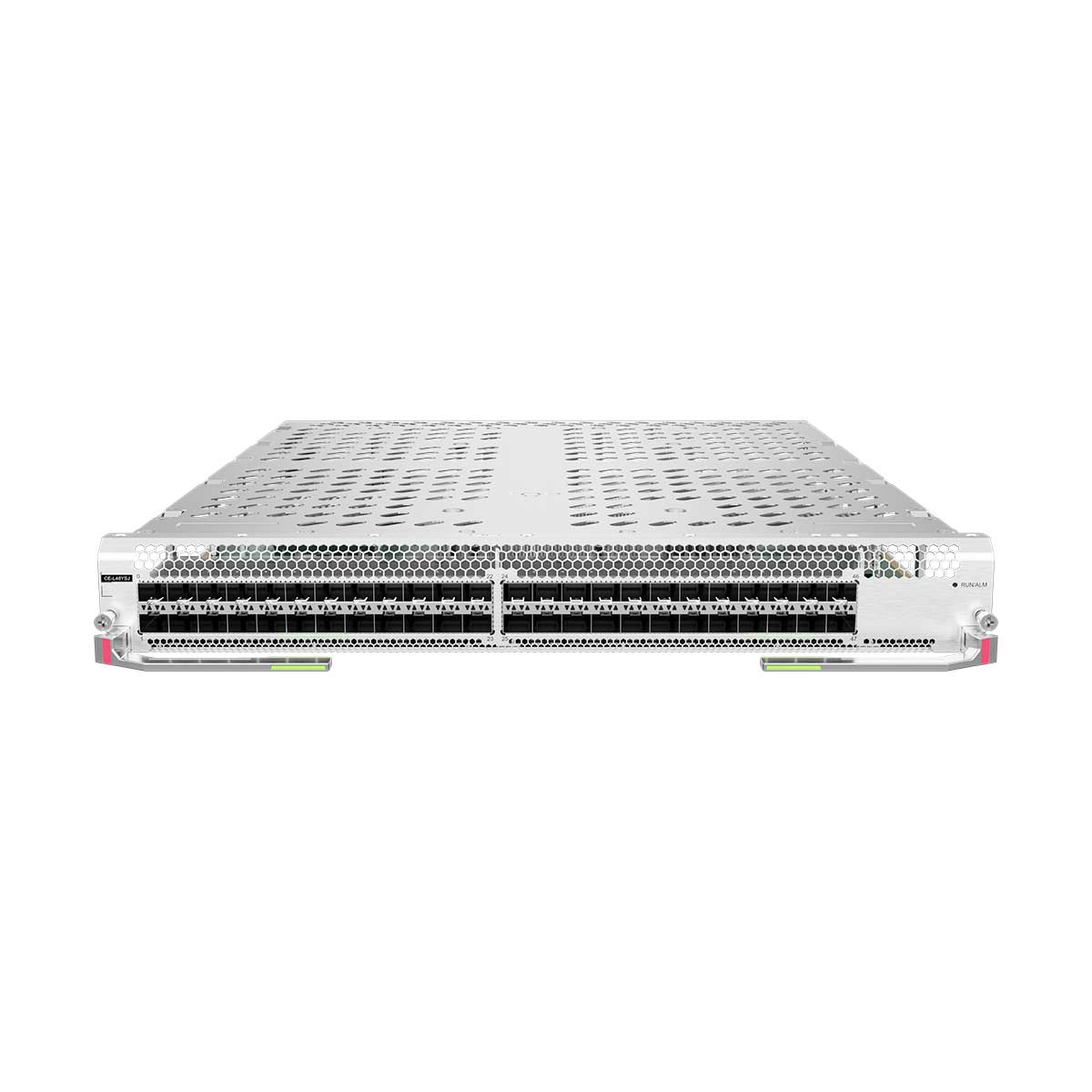

Huawei 16800series Switch Card CE-L48YSJ 48-port 25GE interface card (L-J, SFP28)(CM)
| Item | Details |
|---|---|
| Description | 48-port 25GE interface card (L-J, SFP28)(CM) |
| Part Number | 03050LET |
| Model | CE-L48YSJ |
| Silkscreen | CE-L48YSJ |
| Card Type | Interface Card |

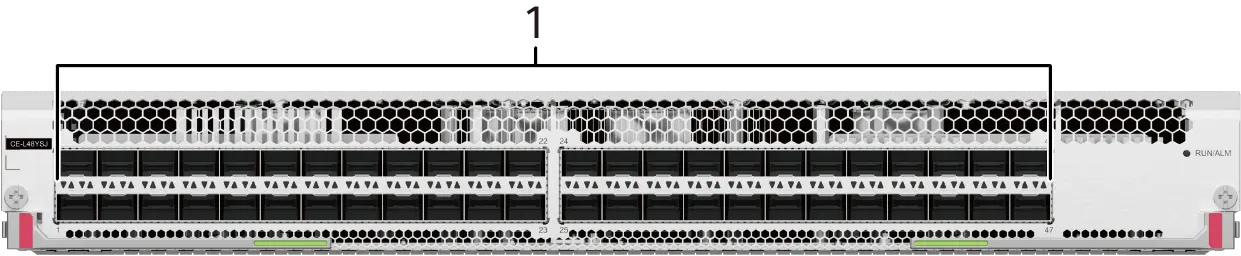

Panel on the CloudEngine CE-L48YSJ
| 1. Forty-eight 25GE optical ports |
Ports on the CE-L48YSAJ
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 48 x 25GE optical ports | SFP28/SFP+/SFP | Port for inputting and outputting 25GE/10GE/GE optical signals |
|
| Item | CE-L48YSJ |
|---|---|
| Typical power consumption [W] | 135 W |
| Typical heat dissipation [BTU/hour] | 460 BTU/hour |
| Static power consumption [W] | 111 W |
| Static heat dissipation [BTU/hour] | 379 BTU/hour |
| Maximum power consumption [W] | 201 W |
| Maximum heat dissipation [BTU/hour] | 684 BTU/hour |
| CPU | 4-core, 1.4 GHz clock speed |
| Memory | Standard 4 GB |
| NOR Flash | Standard 128 MB |
| RTU License Supported | Yes. By default, 48 x 25GE ports can only work at the rate of 10 Gbit/s. The RTU license with part number 88036EUT can be used to increase the rate of 24 x 25GE ports to 25 Gbit/s. A maximum of two licenses can be activated on a device to increase the rate of 48 x 25GE ports to 25 Gbit/s. |
| Dimensions without packaging (H x W x D) [mm (in.)] | 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.6 in.) |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.) |
| Weight without packaging [kg (lb)] | 6.20 kg (13.67 lb) |
| Weight with packaging [kg (lb)] | 10.58 kg (23.32 lb) |
| Brand | Huawei |
|---|
| Item | CE-L48YSJ |
|---|---|
| Typical power consumption [W] | 135 W |
| Typical heat dissipation [BTU/hour] | 460 BTU/hour |
| Static power consumption [W] | 111 W |
| Static heat dissipation [BTU/hour] | 379 BTU/hour |
| Maximum power consumption [W] | 201 W |
| Maximum heat dissipation [BTU/hour] | 684 BTU/hour |
| CPU | 4-core, 1.4 GHz clock speed |
| Memory | Standard 4 GB |
| NOR Flash | Standard 128 MB |
| RTU License Supported | Yes. By default, 48 x 25GE ports can only work at the rate of 10 Gbit/s. The RTU license with part number 88036EUT can be used to increase the rate of 24 x 25GE ports to 25 Gbit/s. A maximum of two licenses can be activated on a device to increase the rate of 48 x 25GE ports to 25 Gbit/s. |
| Dimensions without packaging (H x W x D) [mm (in.)] | 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.6 in.) |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.) |
| Weight without packaging [kg (lb)] | 6.20 kg (13.67 lb) |
| Weight with packaging [kg (lb)] | 10.58 kg (23.32 lb) |
