Description
CE-L48XS-FD card overview
CE-L48XS-FD is a 48-Port 10GBASE-X interface card (FD, SFP+), which can be applied in Huawei CE12800 series data center switches and is applicable to the access layer of a data center network that requires high port density, performance, and system availability

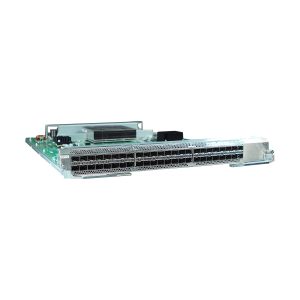

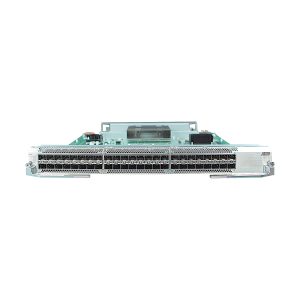

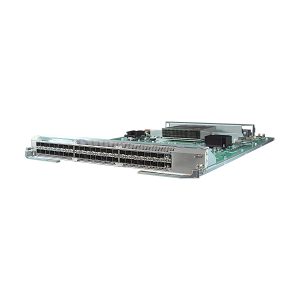

CE-L48XS-FD card appearance
CE-L48XS-FD card functions and features
| Function and Feature | CE-L48XS-FD |
| Basic function | The CE-L48XS-FD provides data packet processing and traffic management on 48 10GE optical ports. |
| Maximum port density | If all LPUs are CE-L48XS-FD cards: |
| The CE12804/CE12804S chassis provides a maximum of 192 10GE optical ports. | |
| The CE12808/CE12808S chassis provides a maximum of 384 10GEoptical ports. | |
| The CE12812 chassis provides a maximum of 576 10GE optical ports. | |
| The CE12816 chassis provides a maximum of 768 10GEGE optical ports. | |
| High 10GE/GE port density (48x10GE/GE) | When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules and can work with 10GE Twinax high-speed cables or AOC cables. |
| When optical ports 24 to 35 on the CE-L48XS-FD work at the rate of 1 Gbit/s, copper modules on the ports can only work at the rate of 1000 Mbit/s, while GE optical modules on the ports work in the non-auto-negotiation mode by default, and cannot be configured to work in auto-negotiation mode. | |
| Limitations and Descriptions | The CE-L48XS-FD provides insufficient external buffer performance. As a result, packet loss may occur during data forwarding upon heavy traffic. To obtain higher external buffer performance, you are advised to use other types of cards. |
